Description

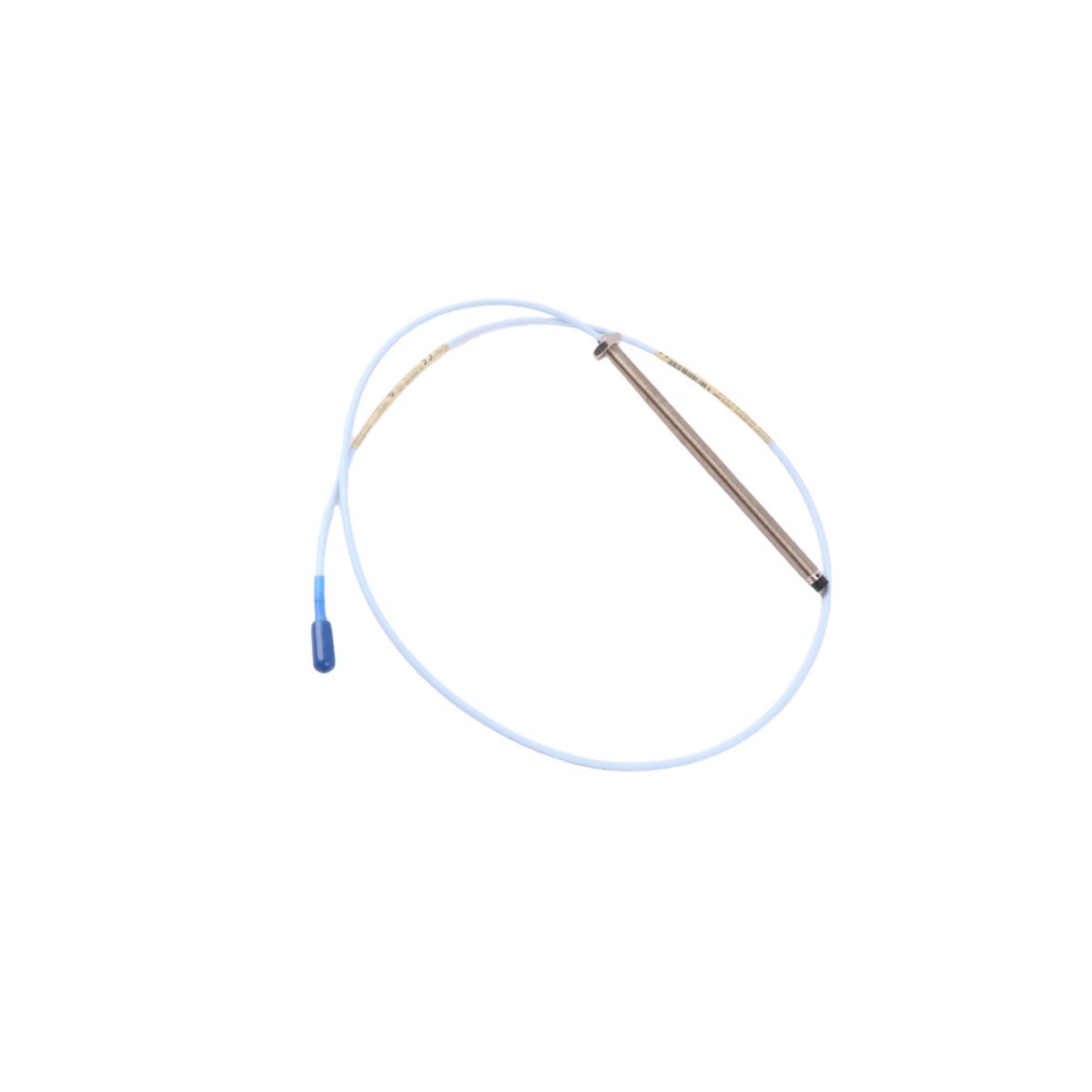

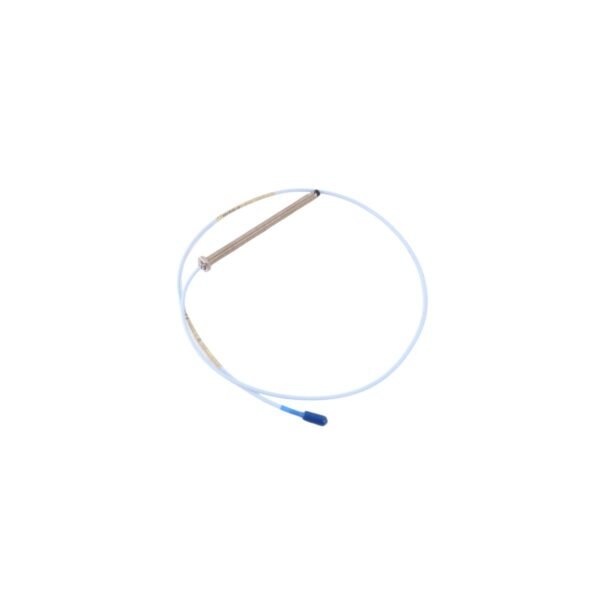

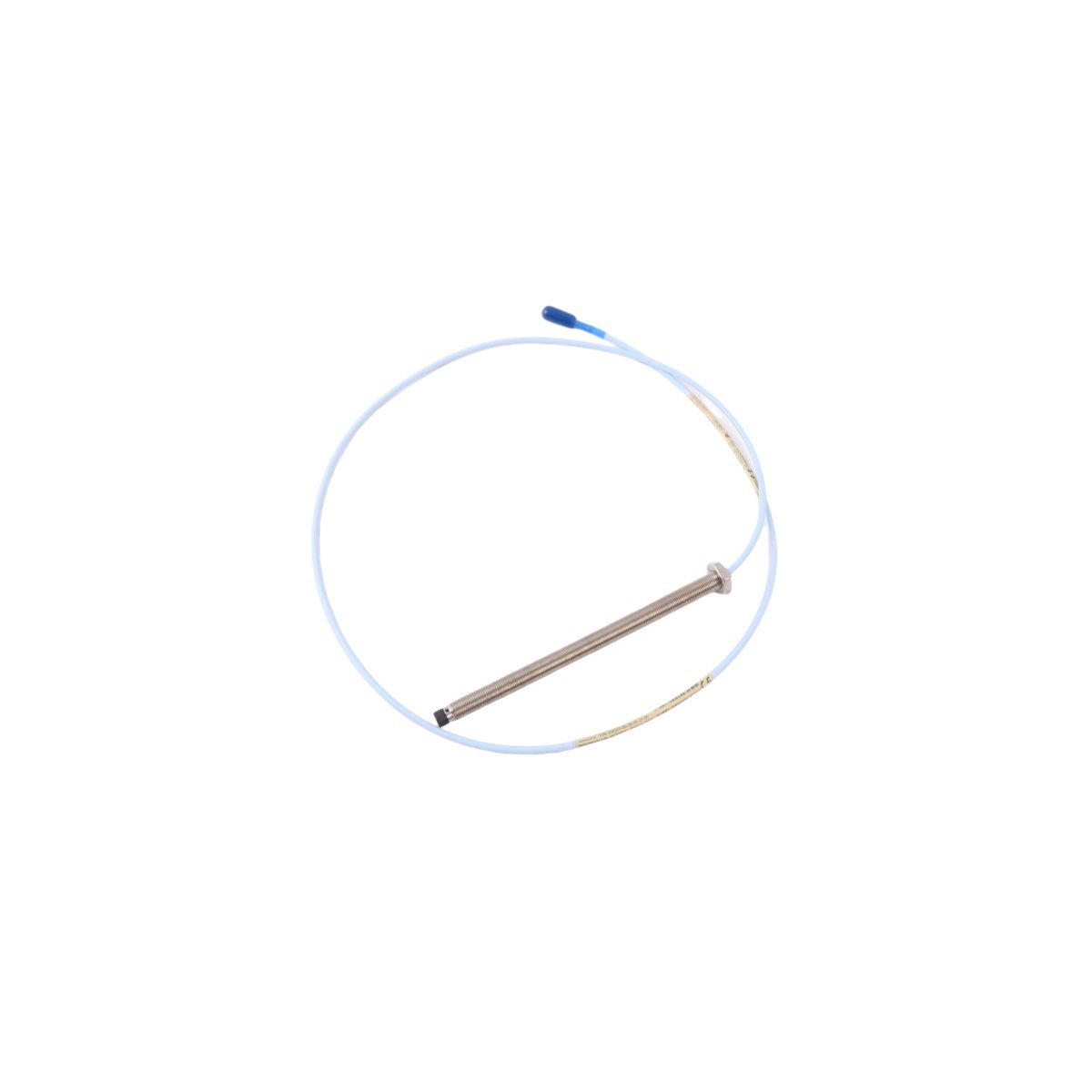

The Bently Nevada 330103-00-16-10-12-05 serves as a vital bridge in the 3300 XL transducer system. This extension cable connects the proximity probe to the Proximitor sensor unit. It transmits eddy current signals with high precision to monitor radial vibration and axial position. Most industrial operators deploy this cable on high-speed turbines, compressors, and pumps. Furthermore, the cable supports critical Turbine Supervisory Instrumentation (TSI) for machine protection.

Primary Technical Characteristics

• System Compatibility: Bently Nevada 3300 XL 8mm Transducer System
• Cable Length: Total length specified by the 05 option (typically 0.5 meters or specific custom length)
• Armor Options: Includes stainless steel coaxial shielding for mechanical protection
• Connector Type: Miniature gold-plated coaxial connectors for signal stability
• Operating Temperature: Maintains performance from -51°C to +177°C
• Weight: 0.10 kg
• Manufacturing Origin: USA

Design and Durability

Engineers designed this extension cable to withstand chemically aggressive and high-temperature environments. Consequently, the Teflon insulation prevents signal degradation in oily or humid conditions. The robust physical build resists abrasion during installation in tight conduits. Additionally, the gold-plated contacts eliminate oxidation risks to ensure long-term electrical conductivity. This reliability helps maintenance teams avoid false alarms and unplanned machinery shutdowns.

System Integration

The 330103-00-16-10-12-05 facilitates seamless integration with 3500 and 3300 monitoring racks. It provides the necessary electrical impedance matching for the 8mm probe series. Therefore, users achieve accurate displacement readings for predictive maintenance programs. This cable remains a standard choice for industries requiring API 670 compliant vibration monitoring solutions.
