Description

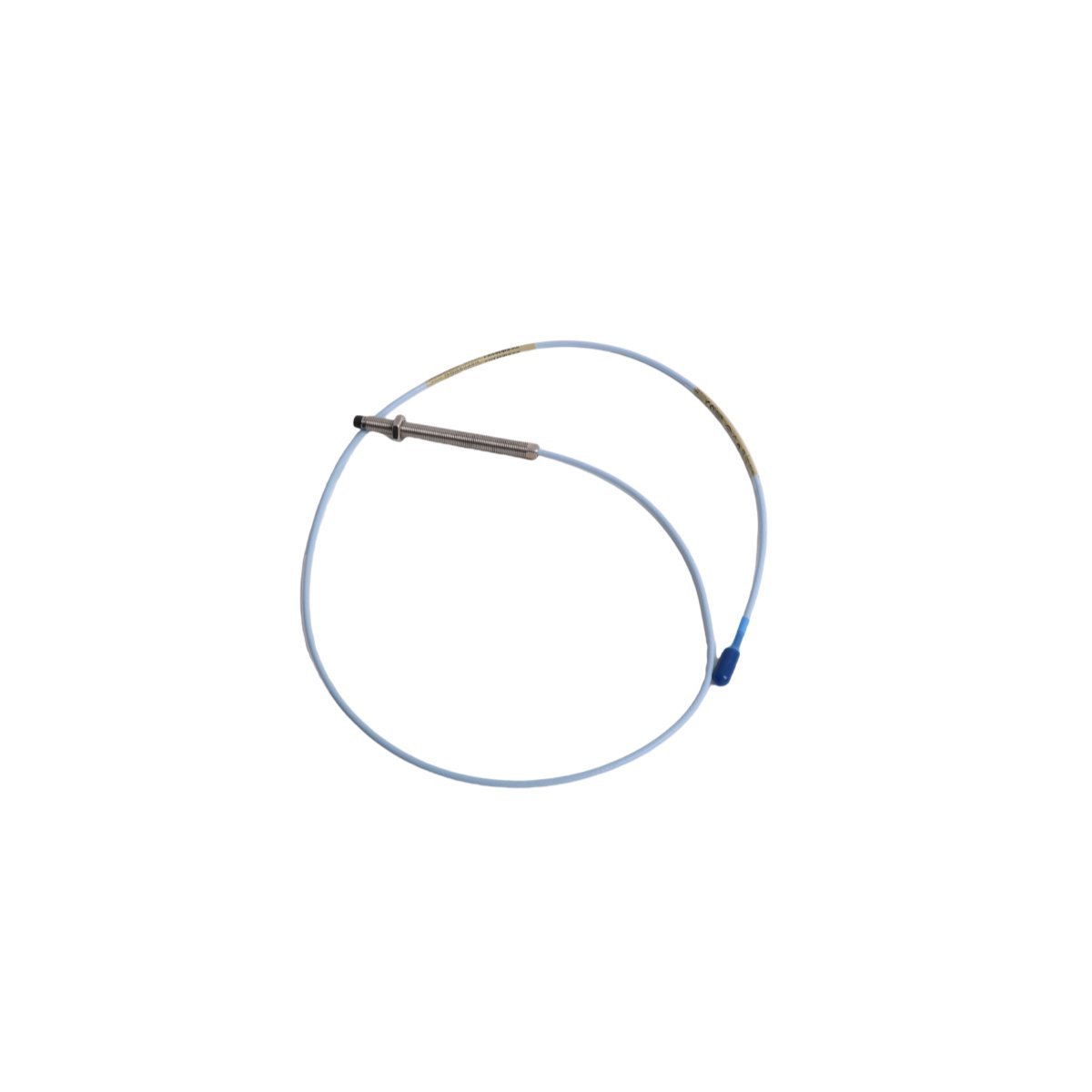

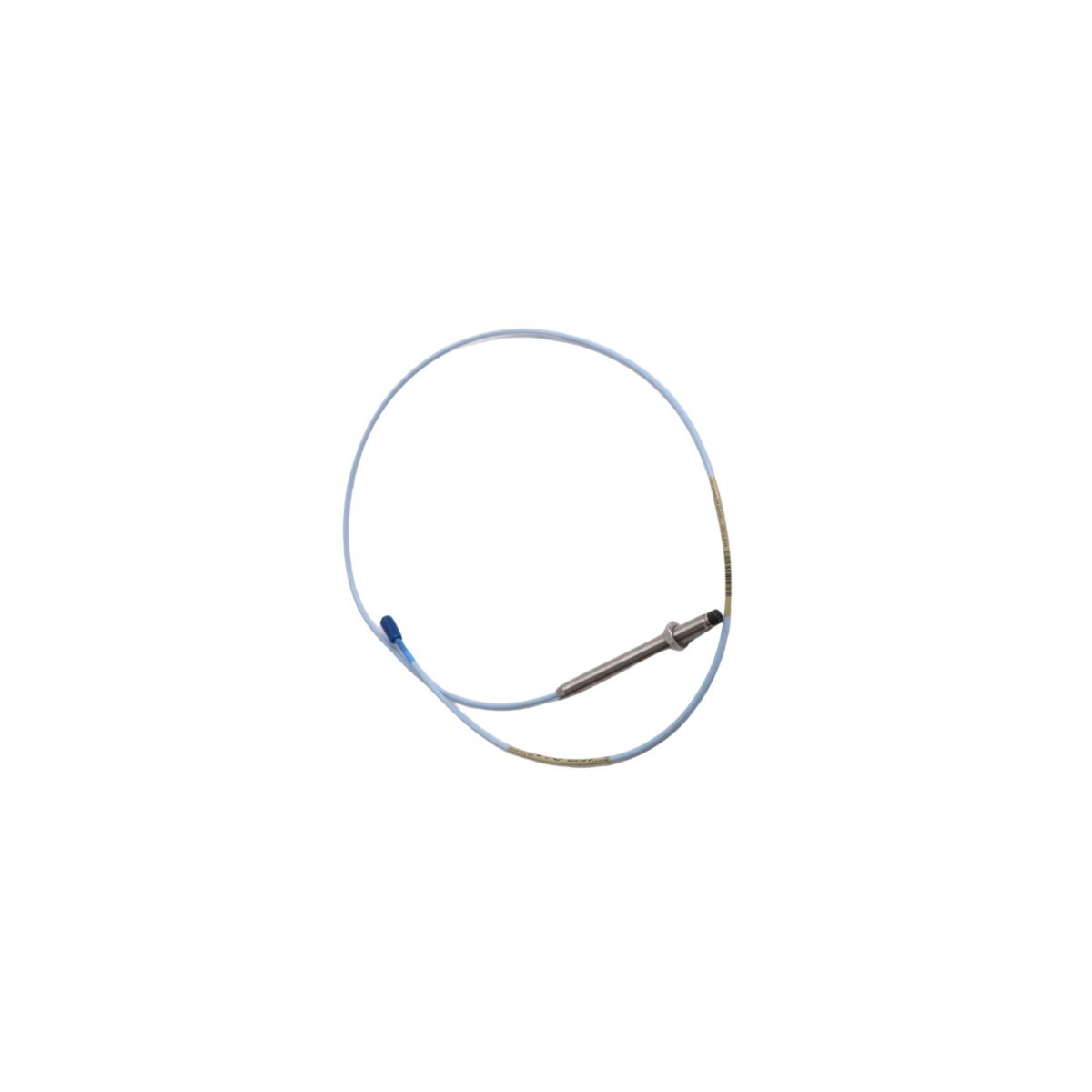

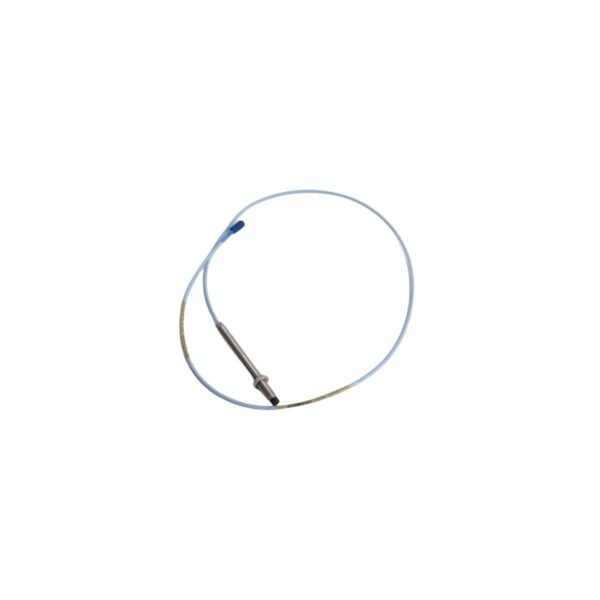

The Bently Nevada 330103-00-11-10-02-CN serves as a critical non-contacting displacement sensor. This 8mm eddy current probe monitors the radial vibration and axial position of rotating shafts. It converts the physical gap between the sensor and target into a proportional voltage. Consequently, maintenance teams receive precise data for turbomachinery protection and diagnostic analysis.

Component Configuration

This specific configuration features a 3/8-24 UNF external thread for standard industrial mounting. The probe includes a 0.0-inch unthreaded length and a 1.1-inch total case length. Additionally, the unit provides a 1.0-meter total cable length for compact installation. The “CN” suffix designates specific regional regulatory compliance for the Chinese market.

Operational Performance

The 3300 XL series maintains high accuracy across a broad temperature spectrum. Its polyphenylene sulfide (PPS) tip resists chemical degradation and moisture ingress. Furthermore, the probe effectively ignores electromagnetic interference in dense industrial environments. These characteristics ensure stable performance for critical turbines, compressors, and high-speed pumps.

Maintenance and Compatibility

Engineers can easily integrate this probe with 3300 XL Proximitor sensors. The ClickLoc connectors provide a secure, moisture-proof link between the probe and extension cable. This modular design simplifies the replacement of damaged sensors during scheduled outages. Most importantly, the system supports proactive fault detection to prevent catastrophic machine failure.

Technical Specifications

Key Technical Characteristics

• Non-contacting eddy current technology eliminates mechanical wear.
• Gold-plated connectors enhance signal conductivity and resist corrosion.
• Robust mechanical housing handles high-pressure oil environments.
• Standard sensitivity facilitates seamless calibration with 3500 series racks.
• Regional certification ensures compliance with local industrial safety standards.
