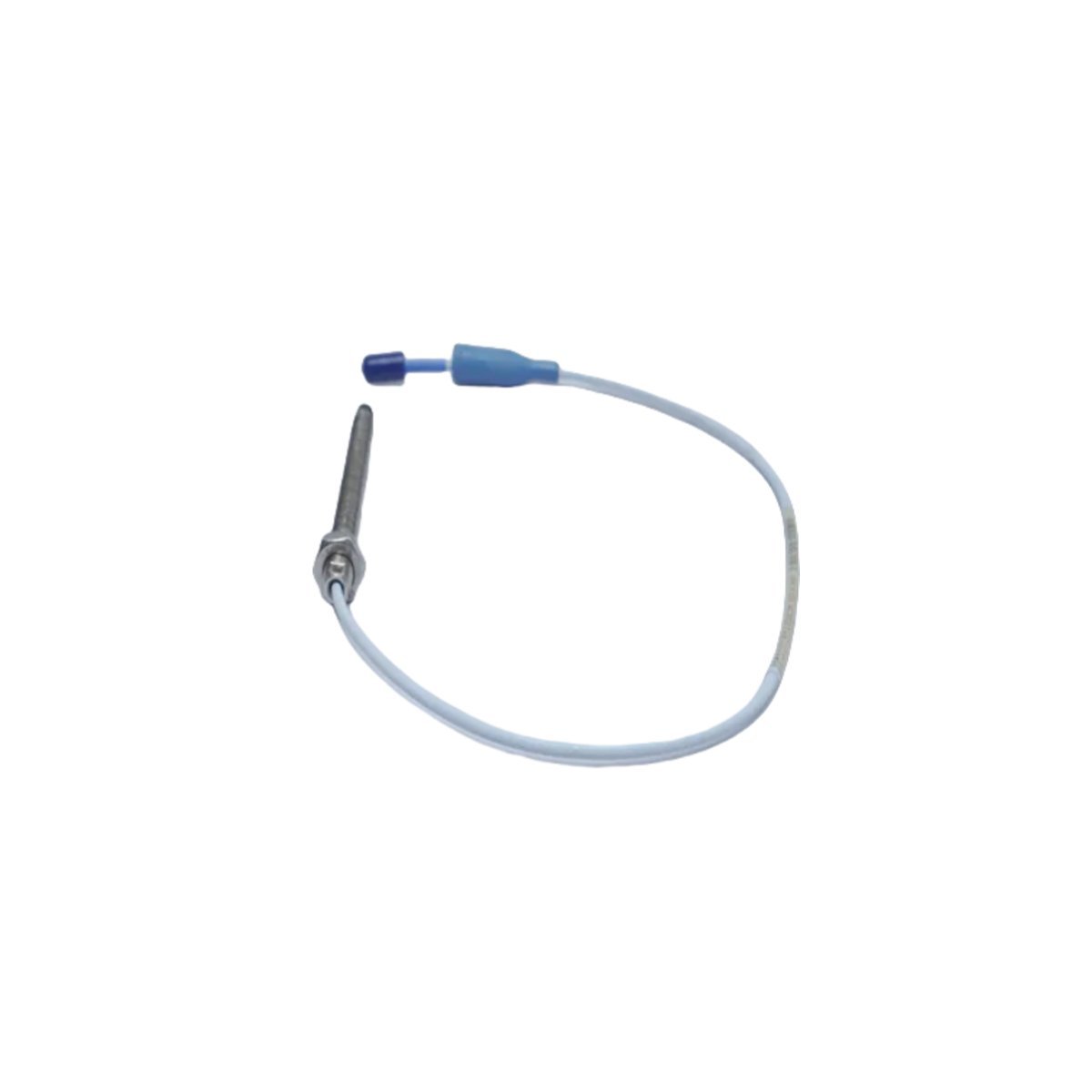

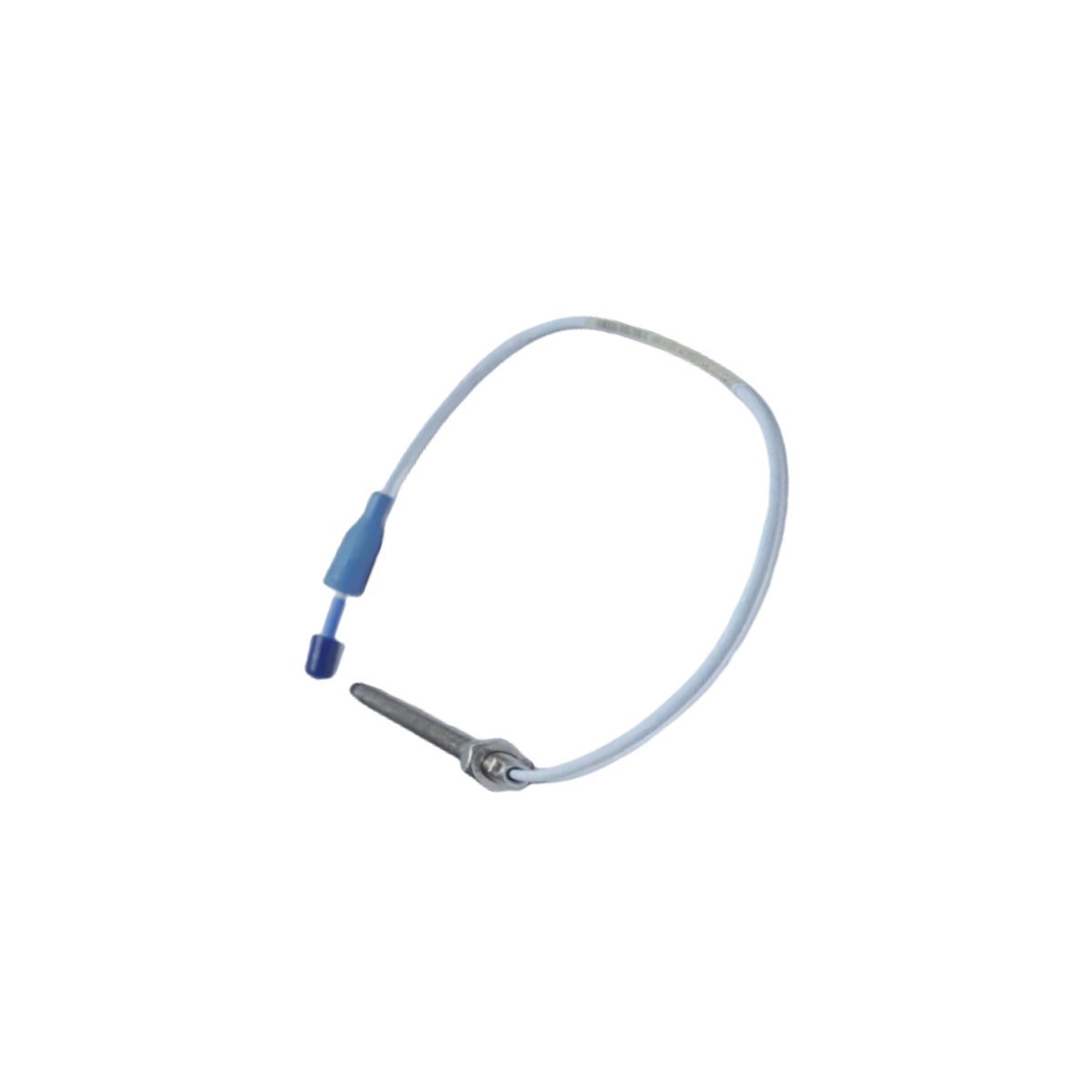

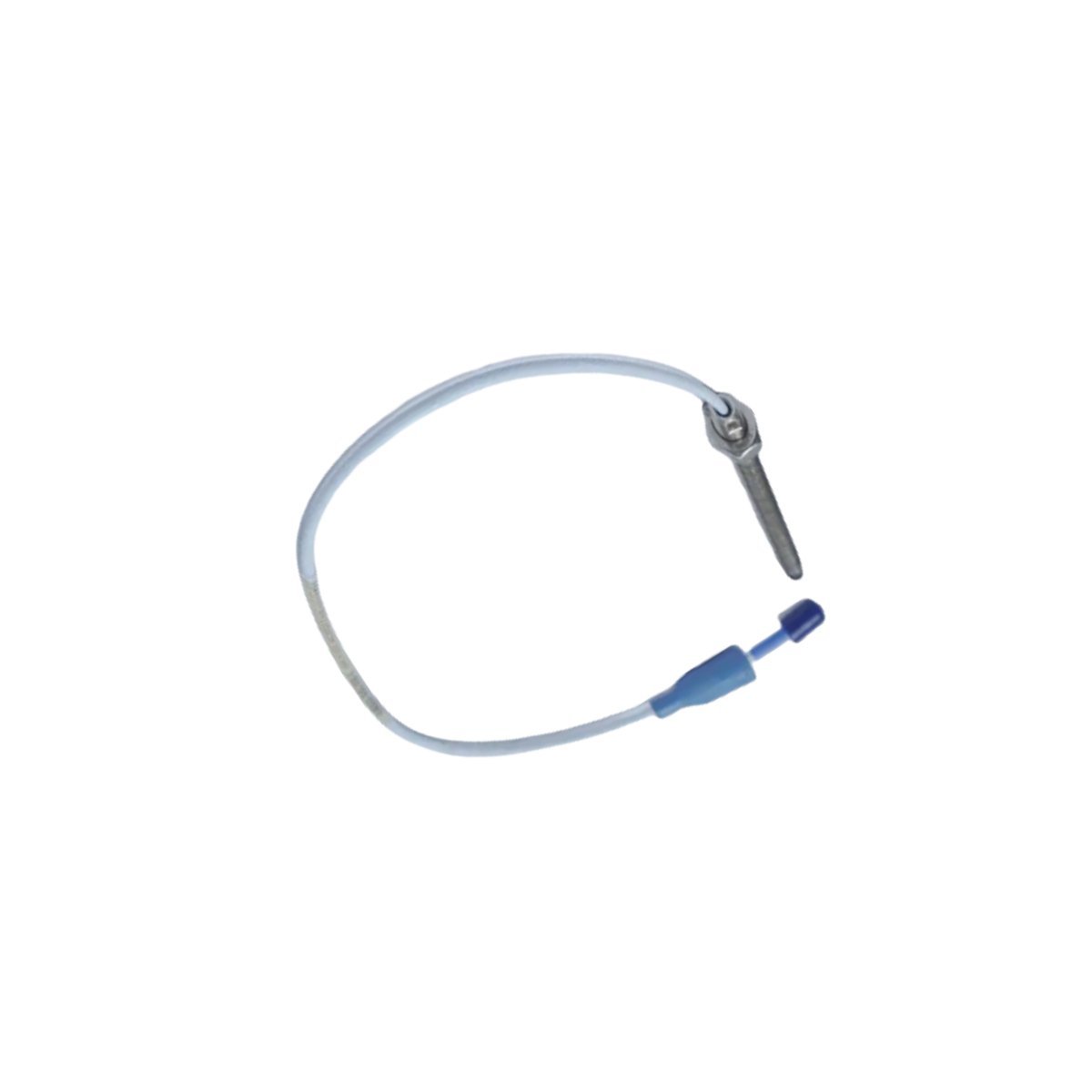

Bently Nevada 330103-00-10-05-01-00 3300 XL 8mm Proximity Transducer
The Bently Nevada 330103-00-10-05-01-00 is a 3300 XL 8mm proximity probe providing precision non-contacting vibration and displacement data for critical turbomachinery.
Description
Brief Product Description
The Bently Nevada 330103-00-10-05-01-00 is a high-performance 8mm proximity probe designed for non-contacting measurement of shaft vibration and position. It serves as a critical sensing component for the 3300 XL transducer system, providing essential data for machinery protection and predictive maintenance.
Product Description
The Bently Nevada 330103-00-10-05-01-00 operates as a precision eddy current sensor within the 3300 XL 8mm Proximity Transducer System.1 This sensor effectively measures the dynamic and static distance between the probe tip and a target conductive surface, such as a rotating shaft. By generating a proportional voltage signal, the system enables the continuous monitoring of radial vibration and axial thrust position.2 These measurements allow plant operators to observe mechanical health in real-time, providing a vital early warning system for rotating equipment.3
Engineered for Superior Environmental Resilience
Industrial environments often subject sensors to extreme stressors; however, the 330103-00-10-05-01-00 is built to maintain signal accuracy under these harsh conditions. The probe utilizes a polyphenylene sulfide (PPS) tip and a 303 stainless steel body to resist corrosive lubricants, moisture, and high-pressure exposures.4 Furthermore, advanced shielding within the coaxial cable prevents electromagnetic interference from compromising data integrity. This robust construction ensures long-term stability and reduces the need for frequent recalibration or sensor replacement.
Enhanced Machinery Protection and Reliability
The integration of the 330103-00-10-05-01-00 into a comprehensive monitoring suite like the Bently Nevada 3500 system significantly boosts asset reliability. Because the probe provides non-contacting data, it captures high-frequency vibration components without mechanical wear to the sensor or the machine. Facilities in the power generation, oil and gas, and petrochemical sectors rely on this technology to prevent catastrophic shaft failures and optimize overhaul schedules. Ultimately, using this proximity probe facilitates a transition to condition-based maintenance, maximizing the operational lifespan of turbines, compressors, and large pumps.
Technical Specification Table
| Attribute | Specification Details |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model Number | 330103-00-10-05-01-00 |
| Transducer System | 3300 XL 8 mm |
| Measurement Type | Radial Vibration / Axial Displacement |
| Body Material | 303 Stainless Steel |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Linear Range | 2.0 mm (80 mils) |
| Operating Temperature | -51 °C to +177 °C (-60 °F to +351 °F) |
| Resistance | 50 Ω or 75 Ω (System Dependent) |
| Shipping Weight | 0.10 kg |
| Physical Dimensions | 1.8 x 1.6 x 105 cm |
Additional information
| Weight | 0.1 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 1.8 x 1.6 x 105cm |
