Description

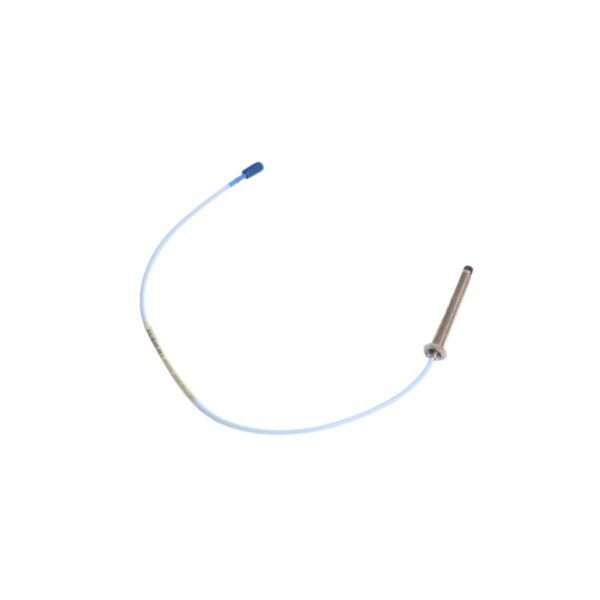

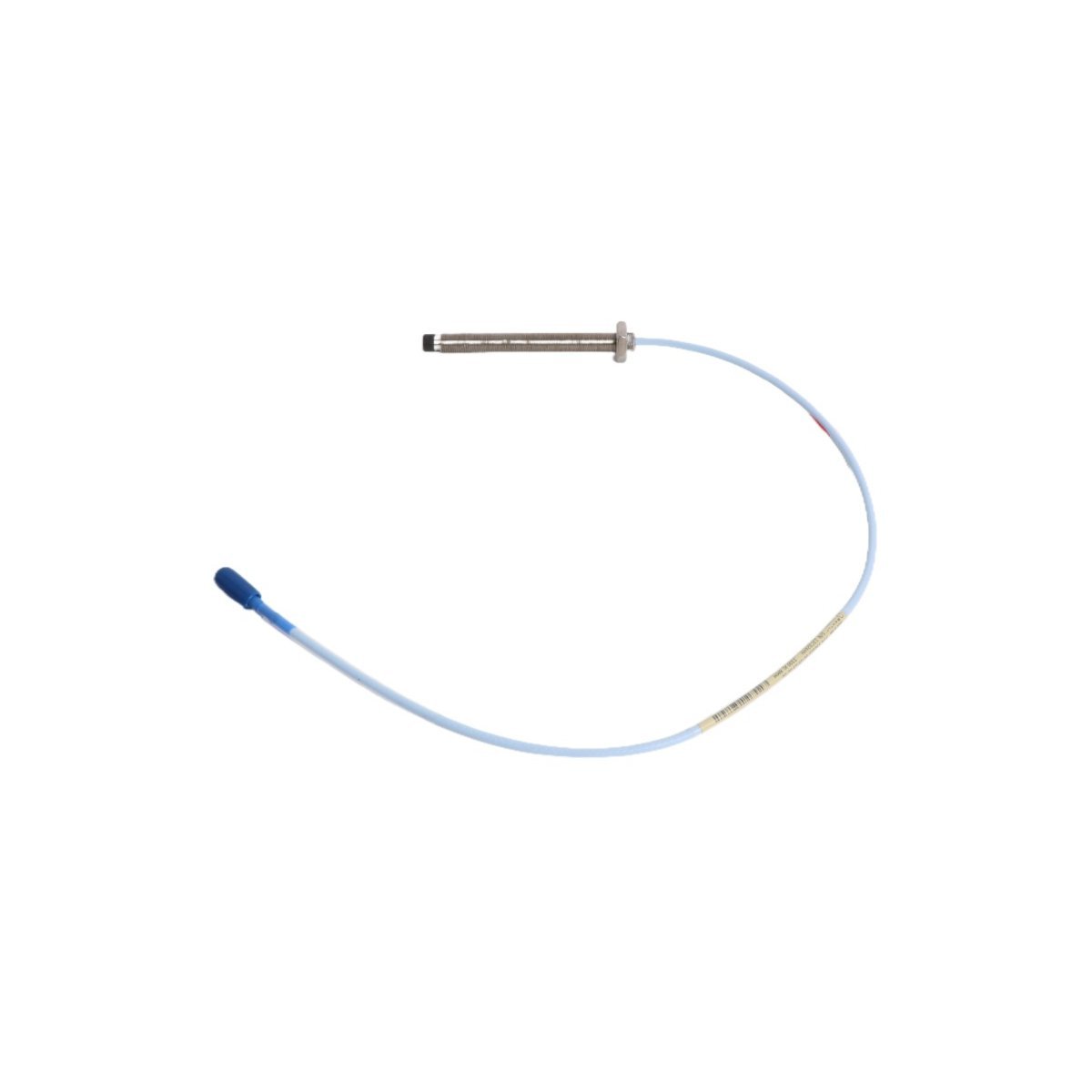

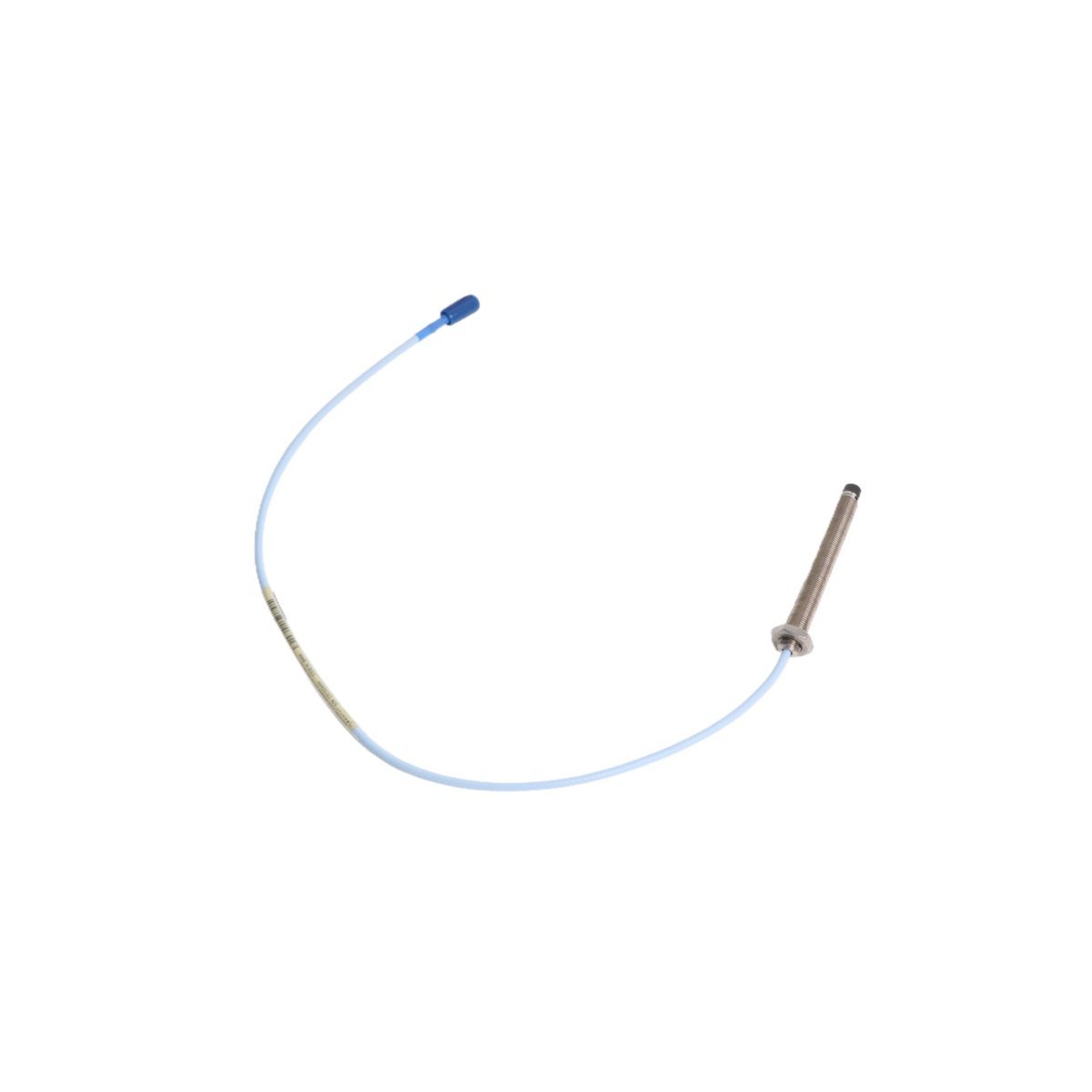

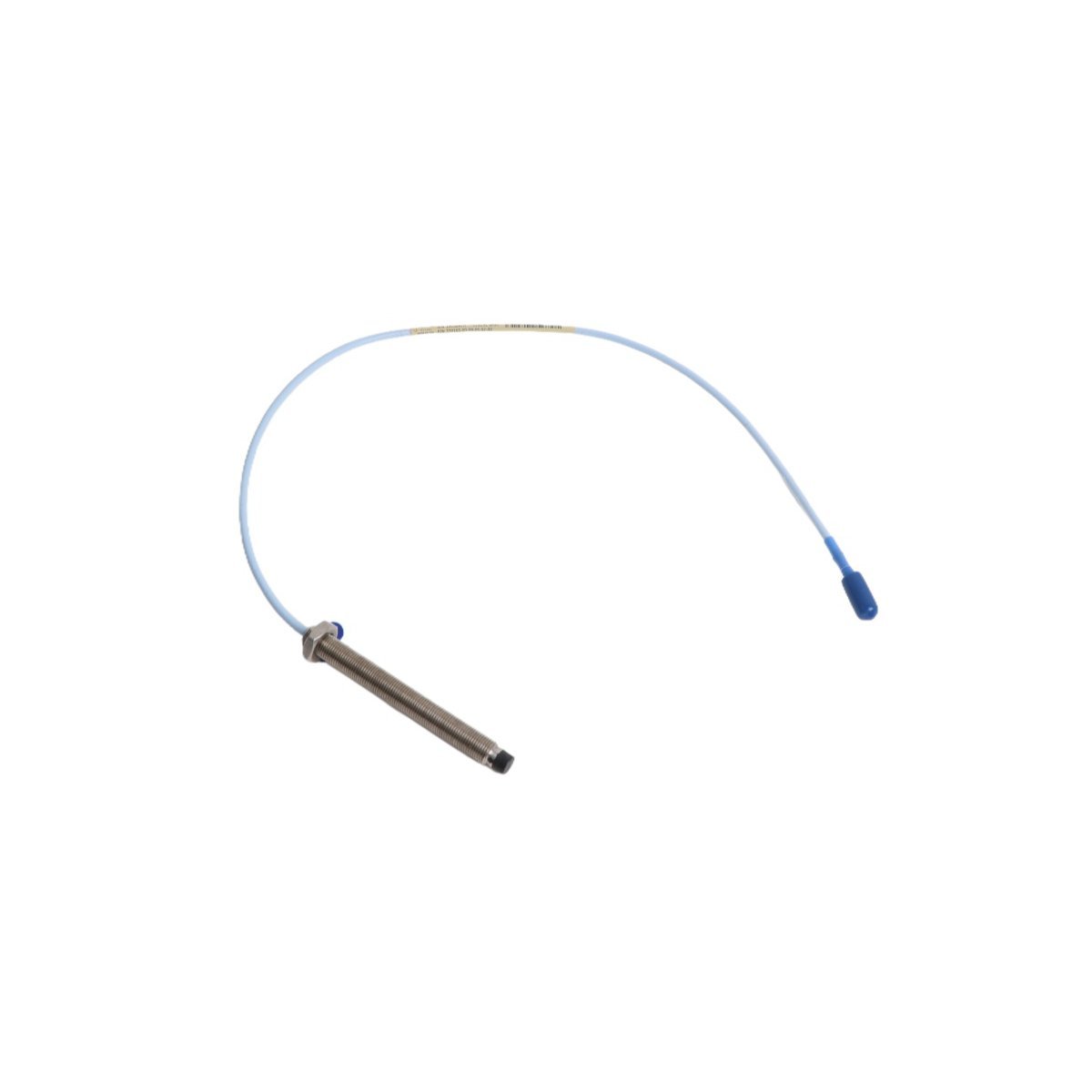

The Bently Nevada 330103-00-09-10-02-CN functions as a primary displacement sensor for rotating machinery. This 8mm probe detects the gap between the sensor tip and the observed metal surface. It translates this physical distance into a precise electrical signal for monitoring systems. Operators utilize this technology to identify early mechanical imbalances or shaft misalignments. Consequently, the probe serves as a foundational component for advanced predictive maintenance strategies.

Design Features and Construction

This specific model utilizes a metric M10 x 1 thread pattern for secure installation. The probe housing consists of high-grade stainless steel for maximum environmental protection. Furthermore, the polyphenylene sulfide tip provides a robust seal against moisture and oil. This unit includes a 1.0-meter integrated cable equipped with a specialized ClickLoc connector. This gold-plated connector ensures stable signal integrity even under high-vibration conditions. The compact form factor allows for integration into restricted machine spaces.

Product Specifications

System Connectivity and Benefits

The 3300 XL system hardware offers complete interchangeability without requiring complex recalibration. Users can replace probes or extension cables while maintaining consistent measurement accuracy. This design feature significantly simplifies onsite maintenance and reduces system downtime. Additionally, the probe demonstrates superior resistance to radio frequency interference. This capability ensures data reliability when sensors operate near high-voltage industrial equipment. It remains a standard choice for monitoring critical turbines and compressors.

Core Industrial Applications

• Monitoring radial vibration in fluid-film bearing assemblies.
• Measuring axial thrust position for steam and gas turbines.
• Analyzing shaft eccentricity in large-scale power generators.
• Tracking thermal growth in high-pressure industrial pumps.
• Providing phase reference signals for Keyphasor systems.
