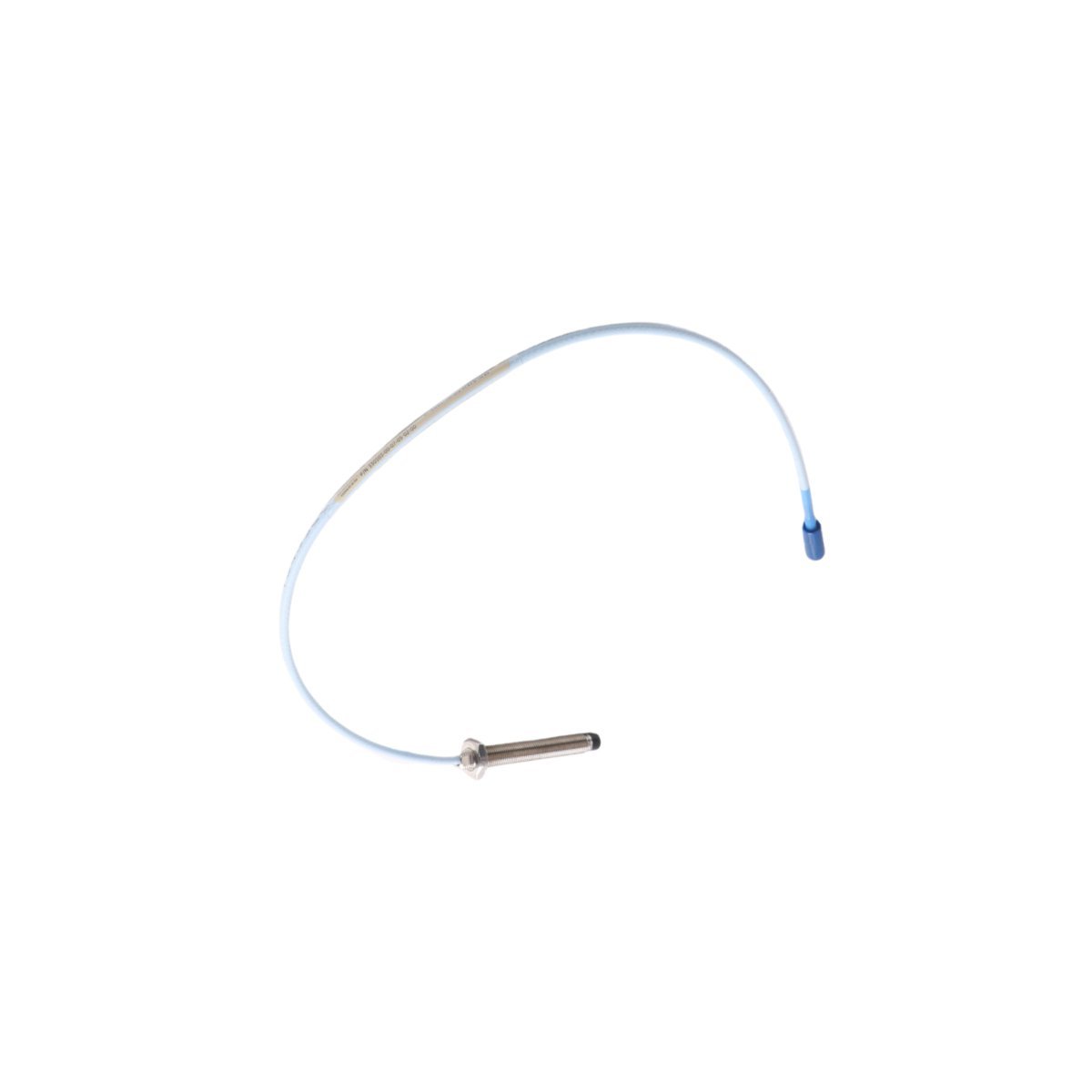

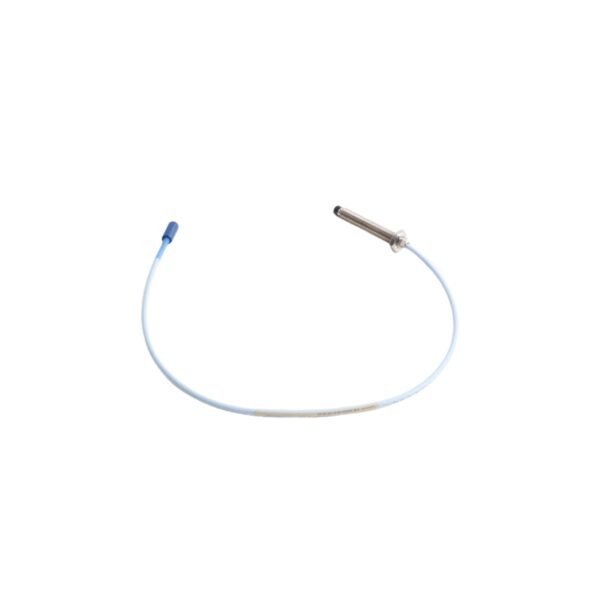

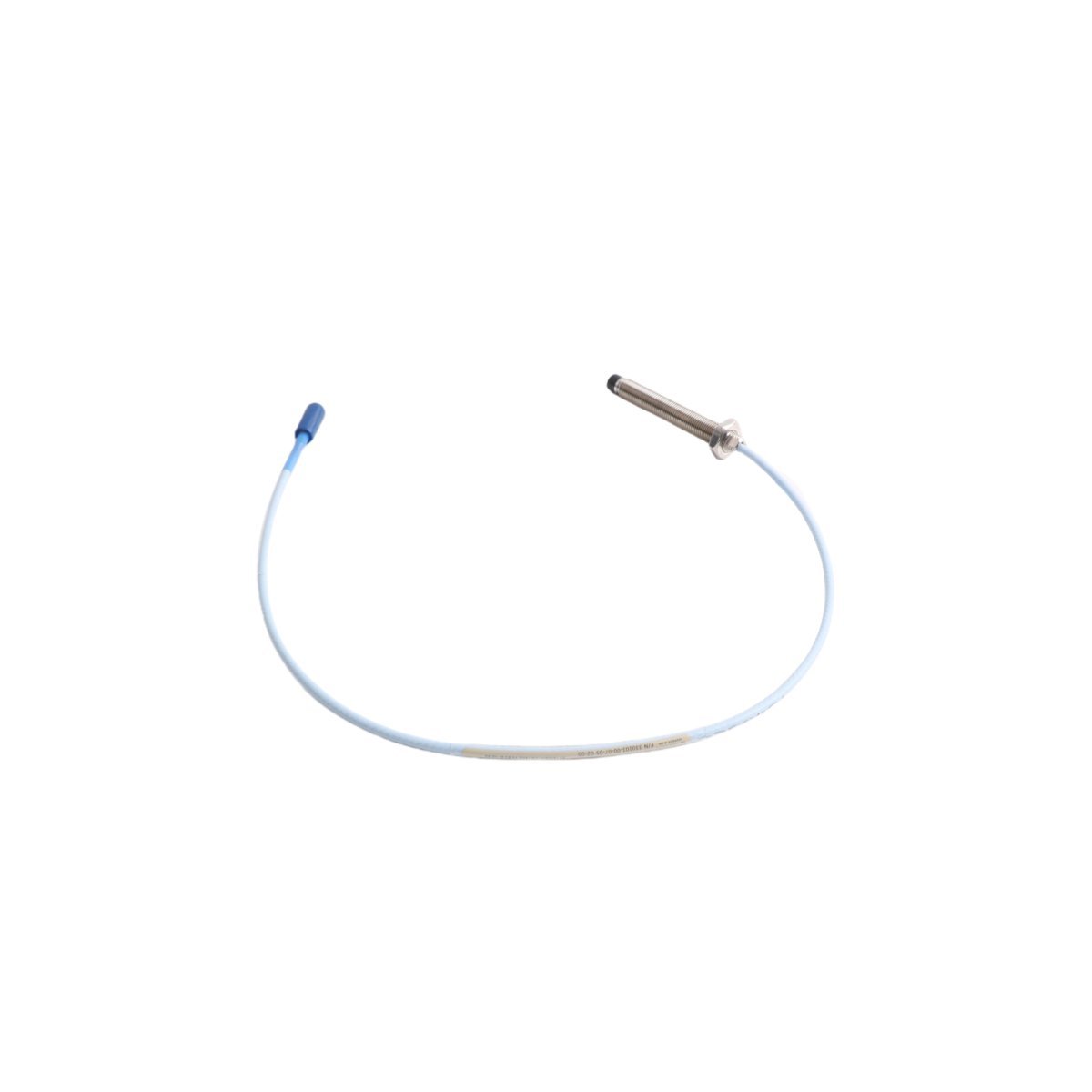

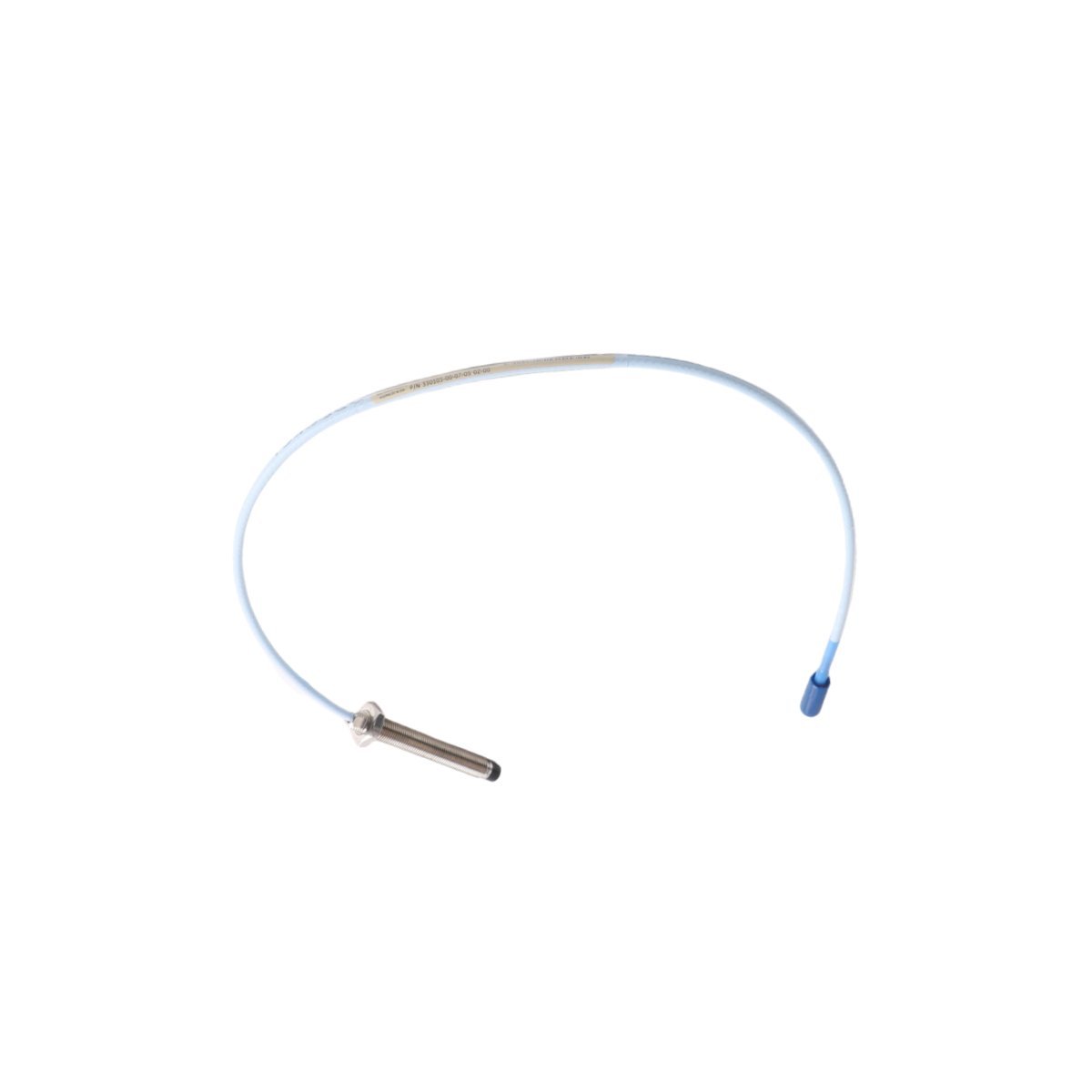

Bently Nevada 330103-00-07-05-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-00-07-05-02-00 is a high-performance non-contact displacement sensor designed for monitoring radial vibration and axial position on rotating machinery. As a core element of the 3300 XL 8 mm Proximity Transducer System, this probe provides a highly accurate voltage output proportional to the distance between the probe tip and the target shaft. This model is engineered to deliver precise measurements for critical assets, ensuring safety and efficiency in heavy industrial applications.

Precise Shaft Diagnostics and System Integration

This 8 mm proximity probe utilizes eddy current technology to track microscopic shaft movements without physical contact. Specifically, the 330103-00-07-05-02-00 is configured with a 0.5-meter cable and a specialized 3/8-24 UNF thread for secure mounting. Furthermore, the sensor is fully compatible with Bently Nevada 3500 and 2300 series monitor racks, allowing for seamless integration into plant-wide condition monitoring networks. As a result, operators can detect early signs of bearing wear, unbalance, or misalignment, facilitating data-driven maintenance decisions.

Technical Specification Matrix

Superior Reliability in Harsh Process Environments

The 330103-00-07-05-02-00 is built to withstand the volatile conditions of refineries, power plants, and chemical processing facilities. Moreover, the probe tip is constructed from polyphenylene sulfide (PPS), a high-performance plastic that resists chemical corrosion and moisture absorption. In addition, the gold-plated ClickLoc connectors provide a moisture-resistant seal and a vibration-proof interface, preventing signal drift or loss. Therefore, this sensor remains the industry standard for protecting high-speed turbines and compressors where unplanned downtime must be avoided at all costs.

FAQ

What is the significance of the 0.5-meter cable length?

The 0.5-meter integral cable is designed to be paired with a 4.5-meter or 8.5-meter extension cable. Specifically, the total electrical length of the probe and extension cable must match the calibration of the Proximitor sensor (typically 5 or 9 meters) to maintain linear accuracy.

Can this probe be used on non-steel shaft materials?

While calibrated for AISI 4140 steel, it can be used on other metals. Furthermore, if the shaft is made of stainless steel or aluminum, the system will require custom calibration to account for the different electrical conductivity of the target material.

Does the 02-00 suffix indicate a specific approval?

The suffix “02-00” in this configuration typically denotes multi-agency approvals for hazardous locations, including North American and European certifications. Accordingly, it is suitable for Class I, Division 1 and Zone 0 environments when used with appropriate safety barriers.

How does the ClickLoc connector prevent signal noise?

The ClickLoc design features a specialized locking ring that ensures a high-pressure contact between the gold-plated surfaces. Ultimately, this eliminates the “intermittent contact” issues common in standard threaded connectors subjected to high-frequency machine vibration.
