Description

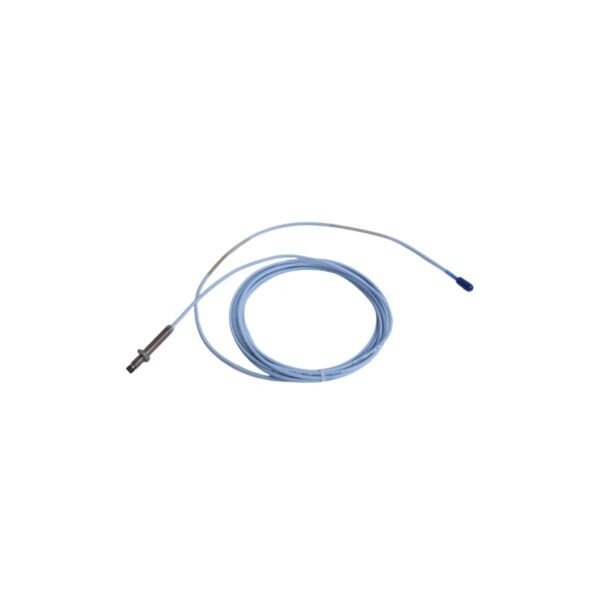

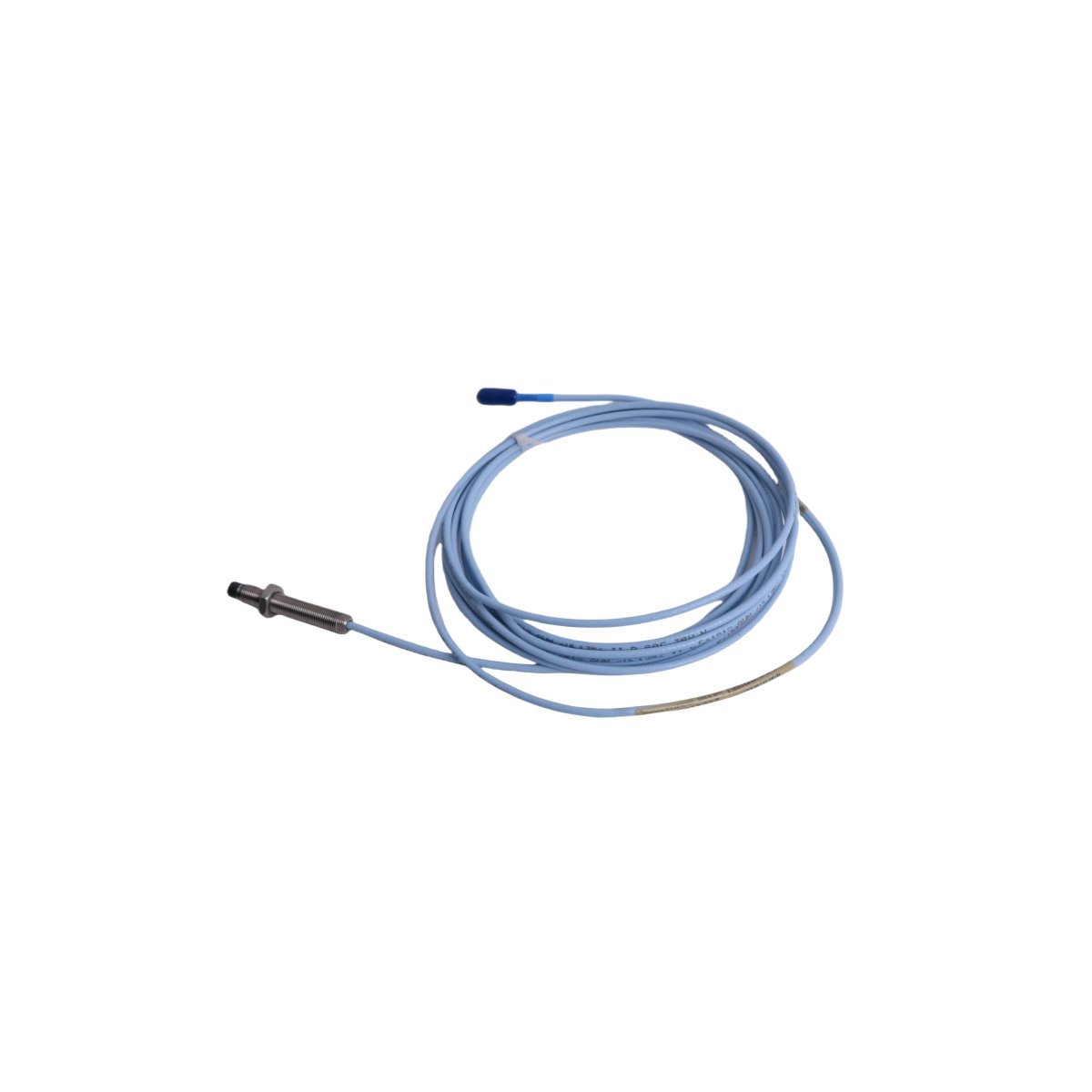

The Bently Nevada 330103-00-06-50-02-00 serves as a fundamental sensor for modern machinery protection systems. This 8mm proximity probe captures non-contacting measurements of vibration and axial position on rotating shafts. Because it utilizes eddy current technology, the transducer delivers high-resolution data regarding rotor stability. These precise measurements allow maintenance teams to identify mechanical faults before they cause system failure. Consequently, the probe acts as a critical early warning tool for industrial rotating assets. It primarily supports high-speed turbines, centrifugal compressors, and large-scale industrial pumps.

Environmental Resilience and Material Science

The sensor features a polyphenylene sulfide (PPS) tip for maximum resistance against chemical corrosion. Furthermore, the stainless steel body protects internal electronics from physical stress and impact. This design ensures stable performance in extreme temperatures and high-humidity environments. The FEP-jacketed cable prevents oil and moisture from degrading signal quality over time. Therefore, the transducer maintains high accuracy despite exposure to harsh industrial contaminants. These robust materials guarantee a long operational life in power plants and refineries.

System Compatibility and Integration

The 330103-00-06-50-02-00 integrates seamlessly with Bently Nevada 3500 series monitoring racks and Proximitor sensors. It fully adheres to API 670 standards for vibration and position measurements. The specialized Click-Loc connector provides a secure electrical bond even under heavy mechanical vibration. Additionally, the 5-meter cable length offers flexible installation options for large machinery housings. This probe supports predictive maintenance programs by delivering repeatable and linear data streams. This reliability helps plant operators maximize machinery uptime and operational efficiency.

Technical Configuration and Properties

• Sensor Series: 3300 XL 8mm Proximity Transducer
• Mounting Thread: 3/8-24 UNF (English threads)
• Unthreaded Length: 0.0 inches (Option 00)
• Overall Case Length: 0.6 inches (Option 06)
• Total Cable Length: 5.0 meters / 16.4 feet (Option 50)
• Connector Style: Miniature coaxial Click-Loc (Option 02)
• Agency Approval: Standard non-certified configuration (Option 00)
• Housing Material: AISI 303 stainless steel
• Approximate Weight: 0.6 kg
