Description

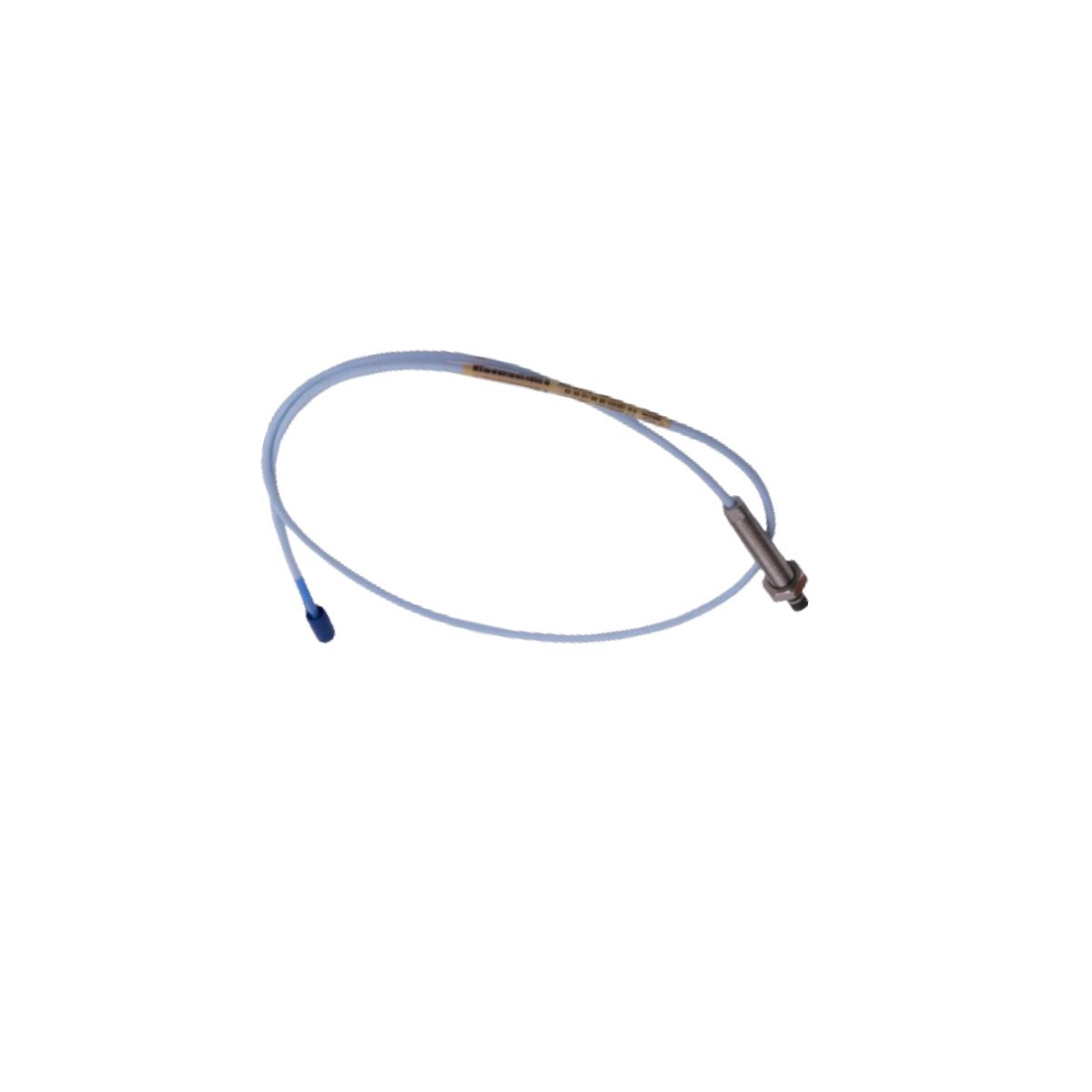

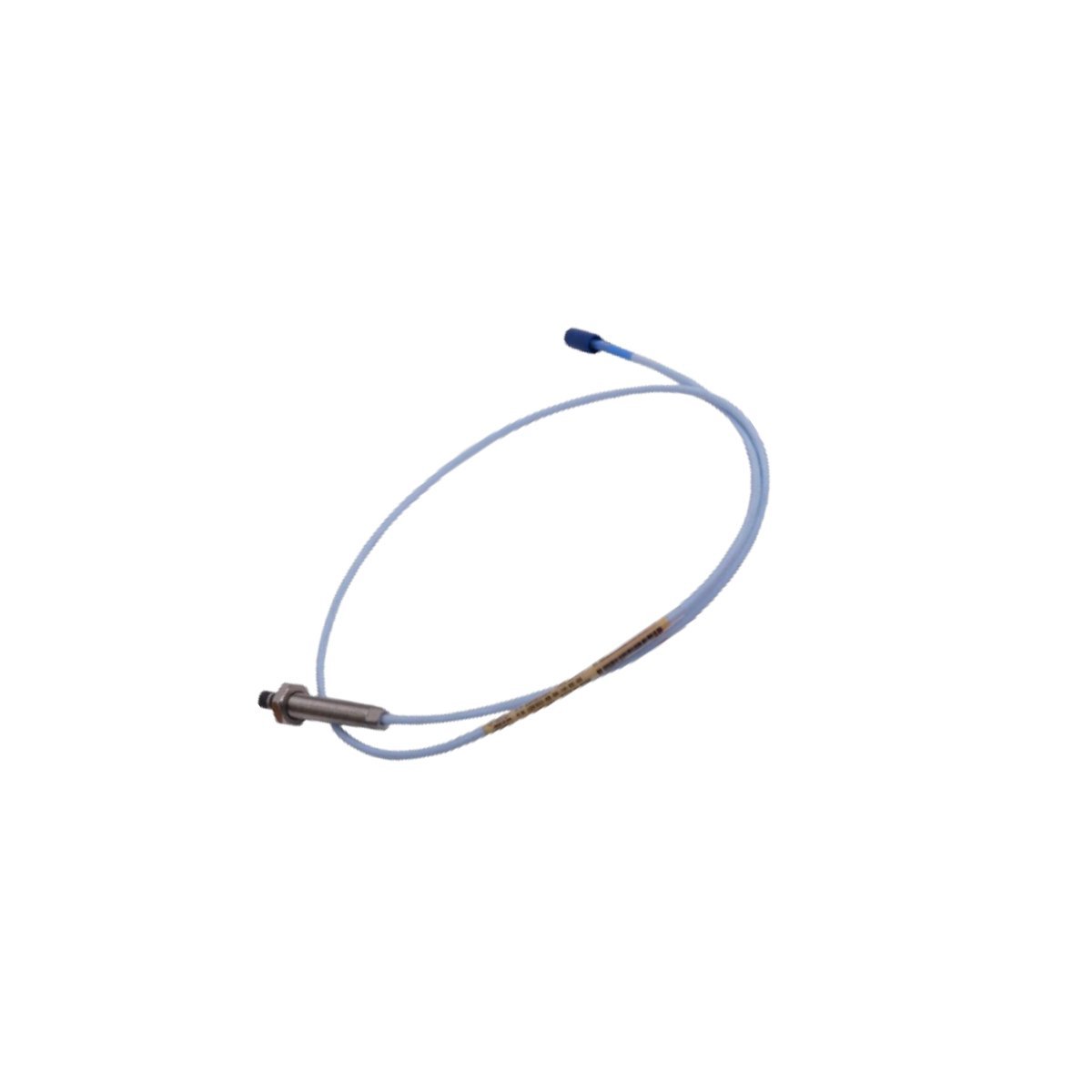

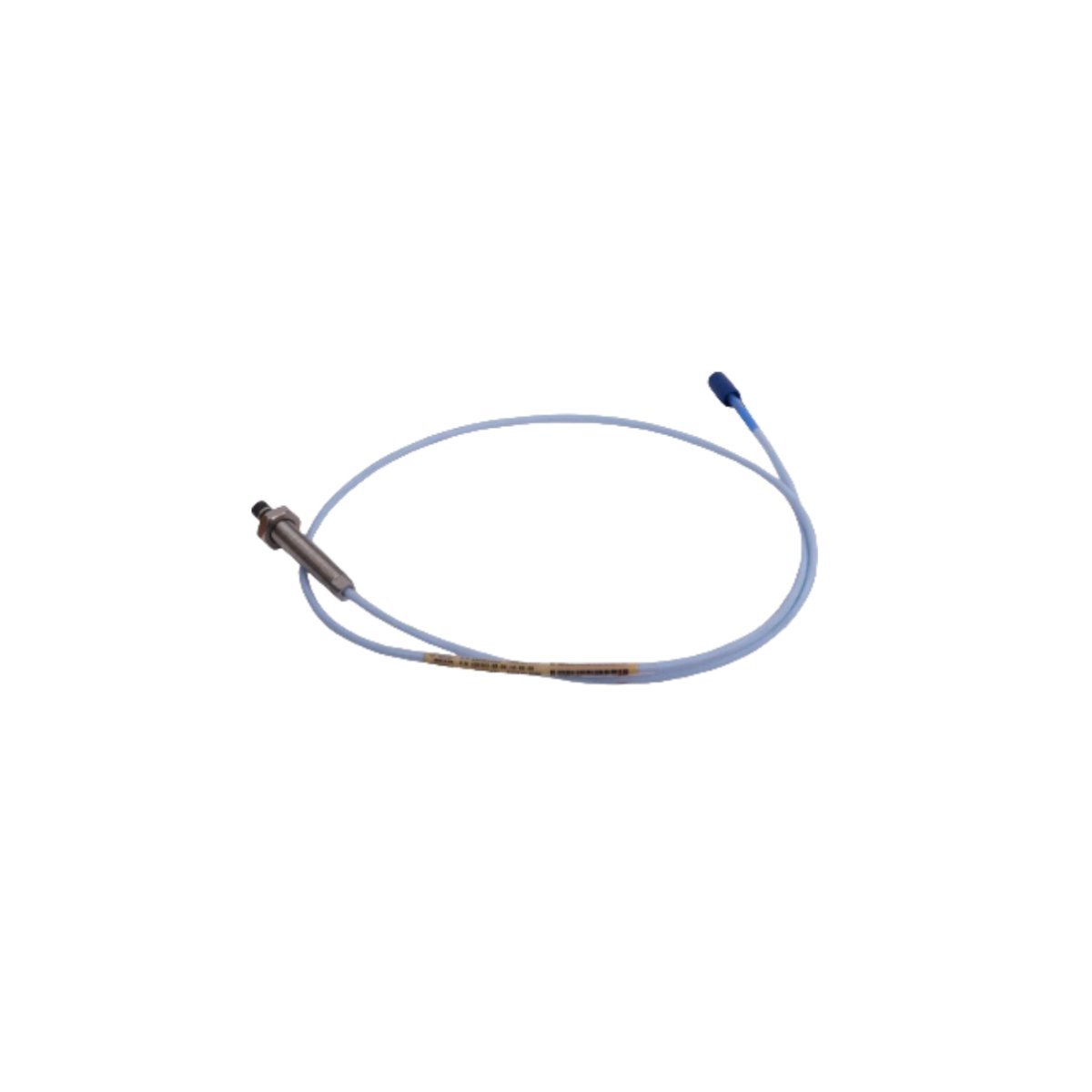

The Bently Nevada 330103-00-06-10-02-00 provides critical non-contacting measurements for industrial rotating assets. This 8mm proximity probe tracks shaft vibration and axial position with high fidelity. Because it utilizes advanced eddy current technology, the sensor captures minute gap changes accurately. These measurements help maintenance teams identify rotor instability before damage occurs. Consequently, the probe serves as a primary input for machinery protection systems globally. It effectively monitors high-speed turbines, centrifugal compressors, and large industrial motors.

Environmental Resilience and Performance

The probe features a polyphenylene sulfide (PPS) tip for superior chemical resistance. Furthermore, the stainless steel casing protects internal electronics from physical impact. This robust construction ensures stable performance in temperatures reaching 177°C. The FEP-jacketed cable effectively resists moisture, oil, and corrosive contaminants. Therefore, the sensor maintains signal integrity in the most demanding industrial environments. These design choices guarantee a long service life and reduce replacement frequency.

System Integration and Standards

The 330103-00-06-10-02-00 integrates seamlessly with Bently Nevada 3500 series monitoring racks. It fully complies with API 670 standards for vibration and position transducers. The Click-Loc connector provides a secure electrical bond despite high-frequency mechanical vibration. Additionally, the short 0.6-inch case length allows for installation in compact bearing housings. This model supports predictive maintenance programs by delivering reliable, repeatable data streams. This precision helps plant operators maximize machinery uptime and efficiency.

Technical Configuration and Specs

• Product Series: 3300 XL 8mm Proximity Transducer
• Thread Type: 3/8-24 UNF threads (English)
• Unthreaded Length: 0.0 inches (Option 00)
• Overall Case Length: 0.6 inches (Option 06)
• Total Cable Length: 1.0 meter / 3.3 feet (Option 10)
• Connector Style: Miniature coaxial Click-Loc (Option 02)
• Agency Approval: Standard non-certified configuration (Option 00)
• Housing Material: AISI 303 stainless steel
• Shipping Weight: 0.42 kg
