Description

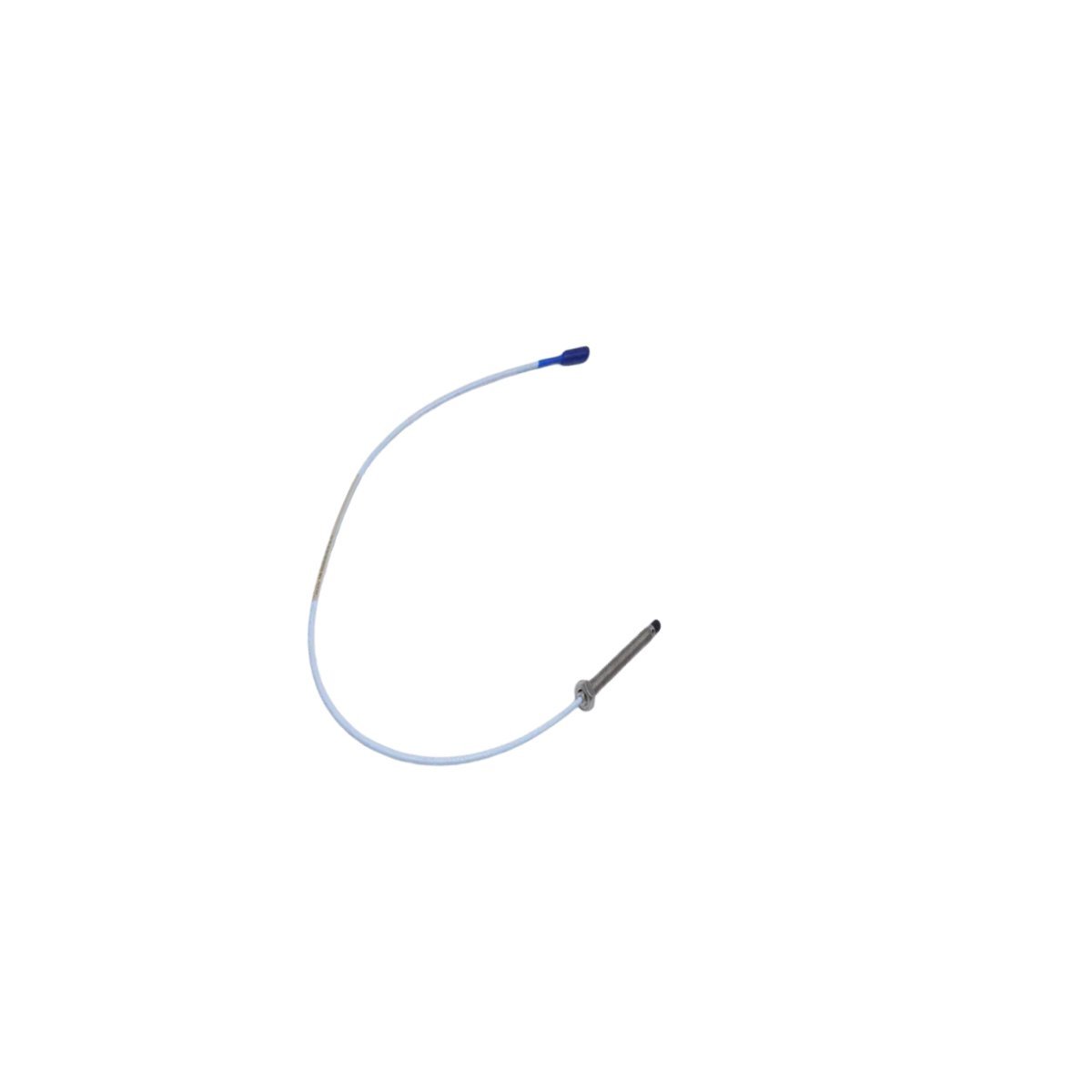

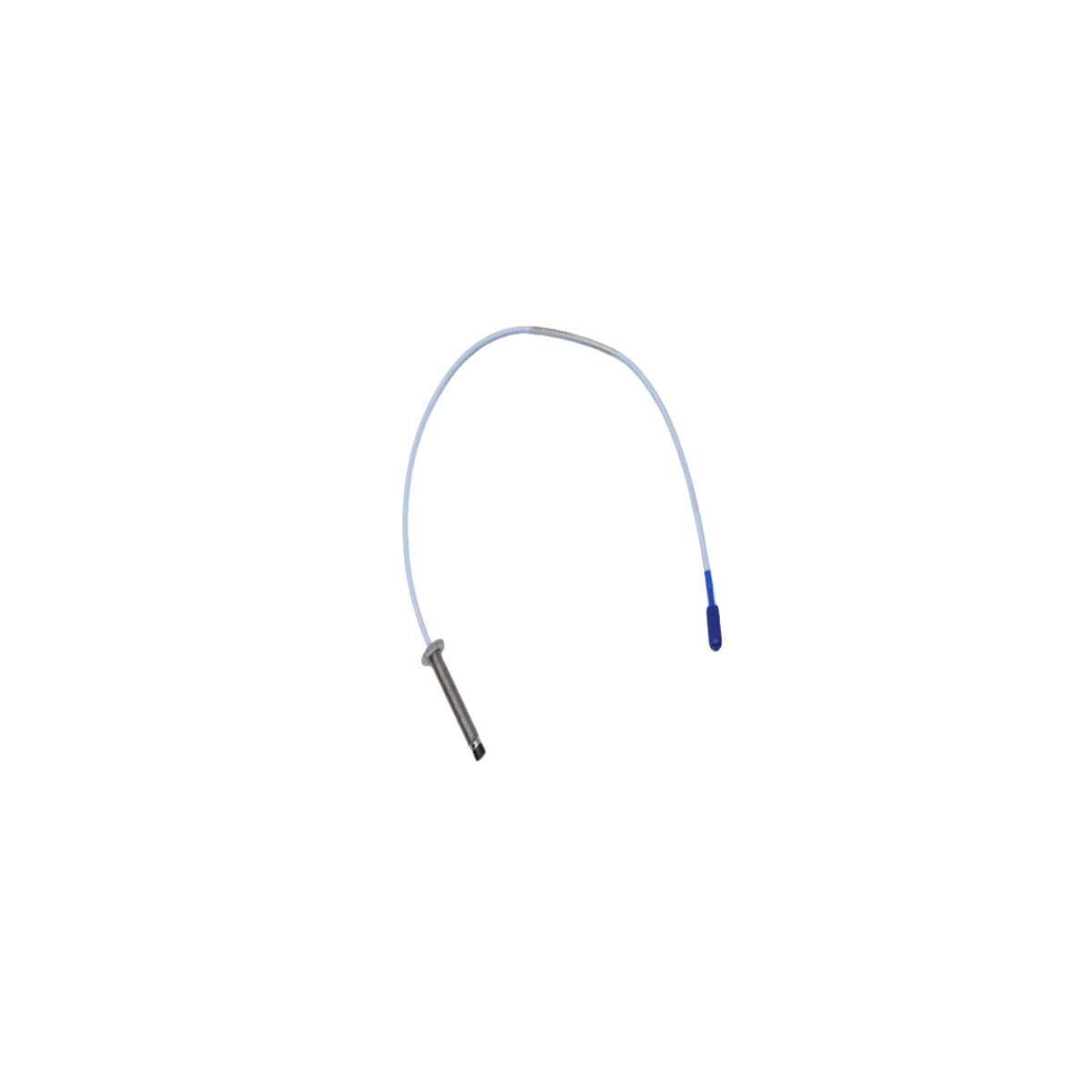

The Bently Nevada 330103-00-06-05-02-00 acts as a high-precision non-contacting sensor for industrial machinery. This probe measures shaft vibration and axial position with extreme accuracy. Consequently, it provides essential data for early mechanical fault detection. Engineers use this sensor to monitor vital equipment like steam turbines and centrifugal compressors. It converts physical displacement into a proportional voltage signal through a Proximitor sensor.

Specific Technical Parameters

• Transducer Series: 3300 XL 8mm Proximity System
• Unthreaded Length: 00 (0.0 inches)
• Overall Case Length: 06 (0.6 inches)
• Total Length: 05 (0.5 meters / 1.6 feet)
• Connector and Adapter Option: 02 (Miniature coaxial connector with click-loc)
• Agency Approval: 00 (No specific hazardous area approvals)
• Net Weight: 0.24 kg
• Country of Origin: United States

Material Design and Durability

This proximity probe features a polyphenylene sulfide (PPS) tip for superior chemical resistance. The stainless steel probe case protects internal components from high-pressure environments. Furthermore, the coaxial cable utilizes FEP insulation to withstand harsh industrial fluids. This robust construction ensures long-term stability in temperatures up to 177°C. Reliable signal transmission remains consistent even in high-moisture or oily conditions.

System Compatibility and Installation

The 330103-00-06-05-02-00 integrates perfectly with the 3500 series machinery protection system. It follows API 670 standards for vibration and position monitoring. Therefore, it allows for easy replacement of existing legacy 3300 probes. The compact case length facilitates installation in narrow bearing housings. Proper gapping ensures the sensor operates within its linear range for maximum sensitivity.
