Description

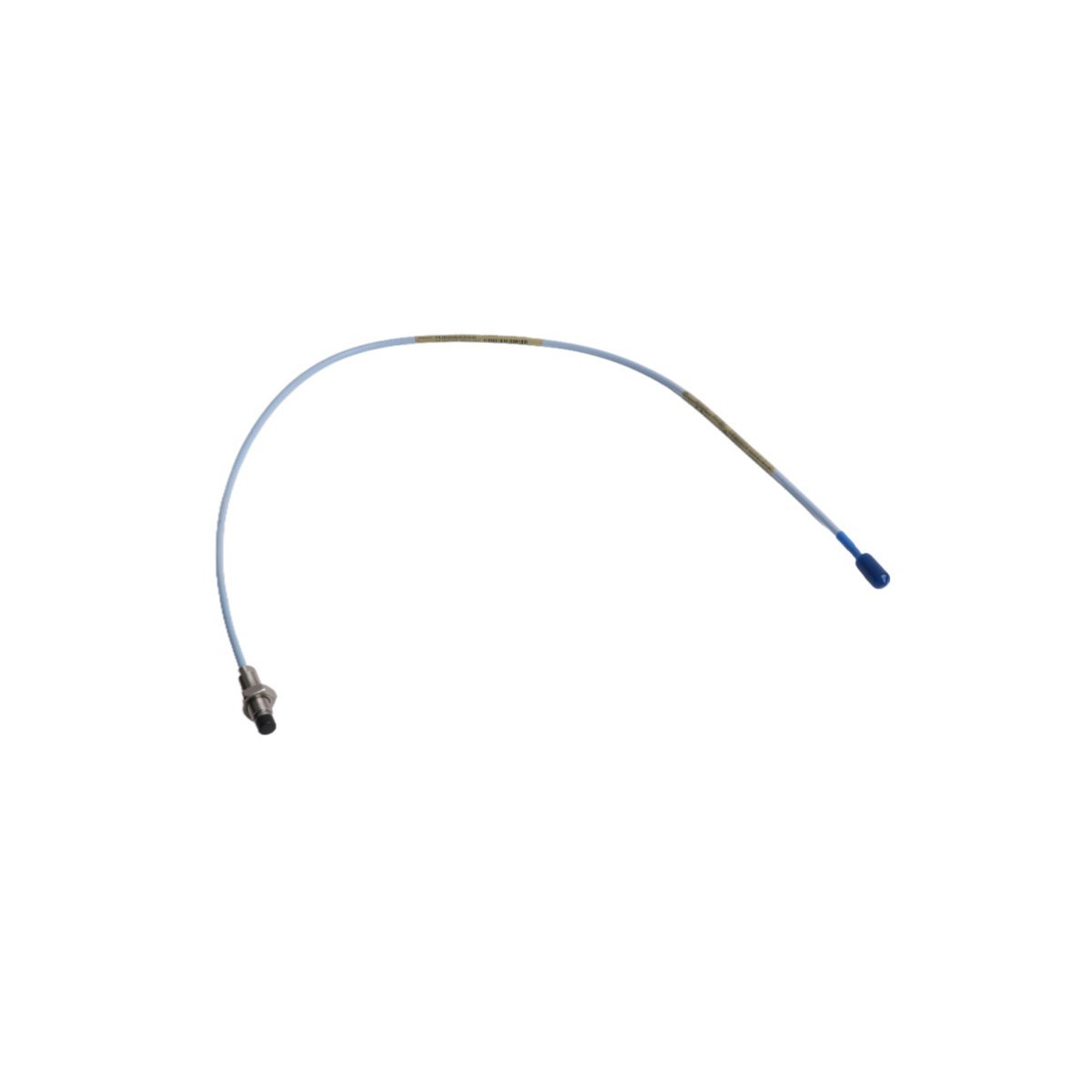

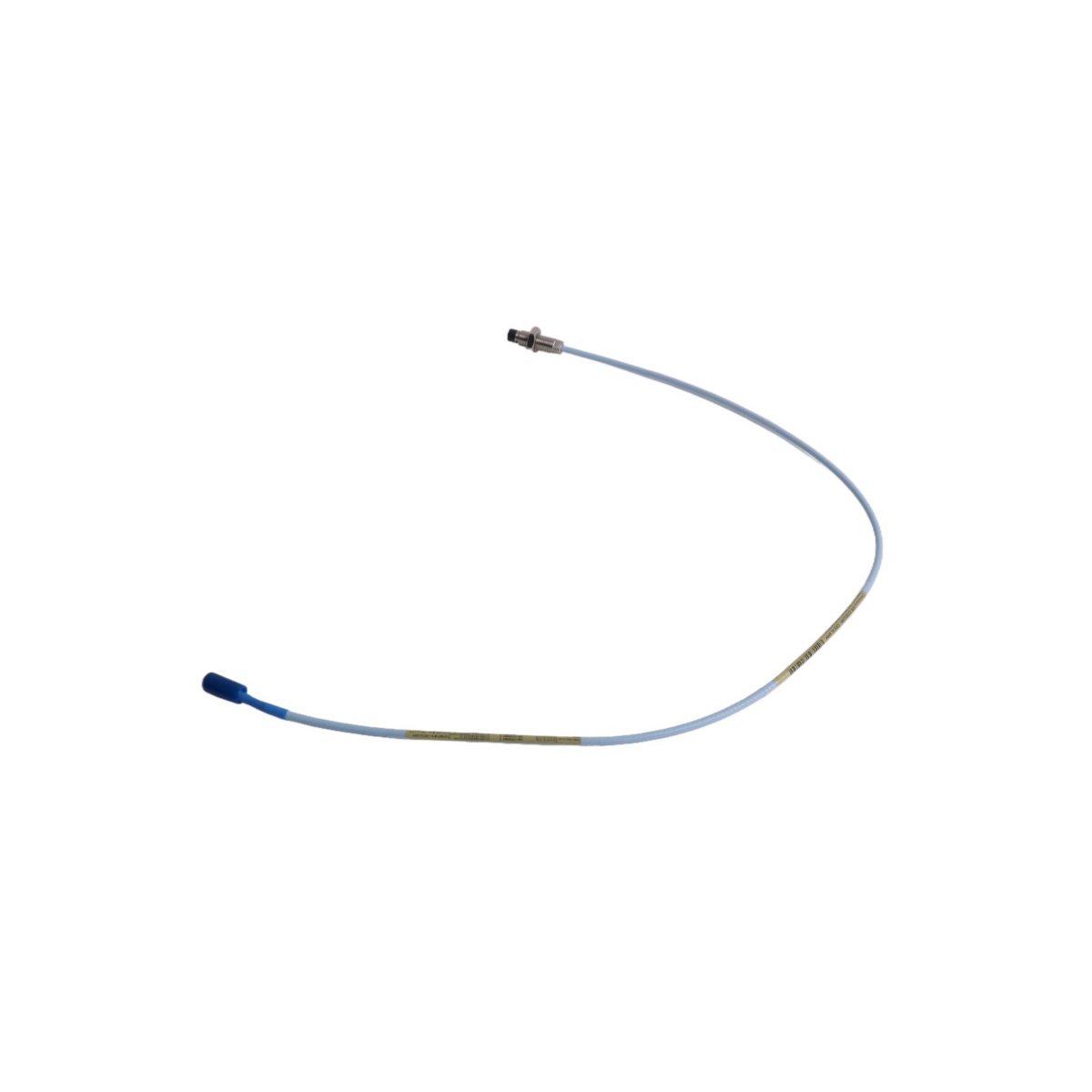

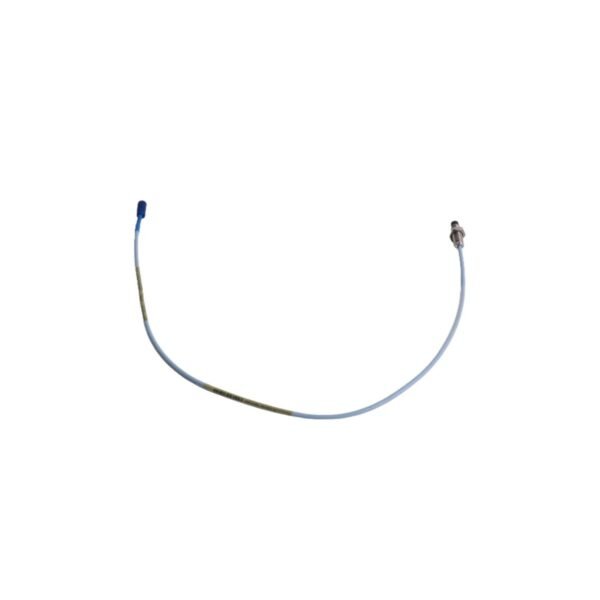

The Bently Nevada 330103-00-03-05-01-05 serves as a core component for machinery protection systems. This 8 mm proximity probe measures the gap between the sensor tip and conductive shafts. It converts these physical distances into highly accurate voltage signals. Consequently, the system tracks both static displacement and dynamic vibration in real-time. This technology remains vital for monitoring high-speed turbines and large industrial compressors. Modern facilities rely on these sensors to maintain operational safety and equipment longevity.

Technical Configuration and Connector Integrity

This model features a metric M10 x 1 threaded body for standard industrial mounting. The design excludes external armor to accommodate specific conduit or internal housing requirements. Furthermore, the unit includes a 0.5-meter cable terminating in a specialized ClickLoc connector. This miniature coaxial interface ensures a reliable electrical path to the proximitor sensor. The addition of a connector protector further shields the link from environmental contamination. These features collectively ensure signal purity in challenging industrial environments.

Technical Parameters and System Specifications

Reliability and Component Interchangeability

Bently Nevada engineered the 3300 XL series for maximum field flexibility. All 8 mm components allow for complete interchangeability without requiring manual bench calibration. Therefore, technicians can replace probes or extension cables without matching individual serial numbers. This standardization significantly reduces maintenance time during plant turnarounds. Moreover, the probe demonstrates exceptional temperature stability across its entire linear range. This consistency ensures accurate data for Keyphasor signals and radial vibration analysis.

Critical Machine Applications

• Radial vibration monitoring for fluid-film bearing equipment.
• Axial thrust position tracking in steam and gas turbines.
• Precise RPM measurements and overspeed protection triggering.
• Keyphasor reference signal generation for phase analysis.
• Thermal expansion monitoring in large machinery casings.
