Description

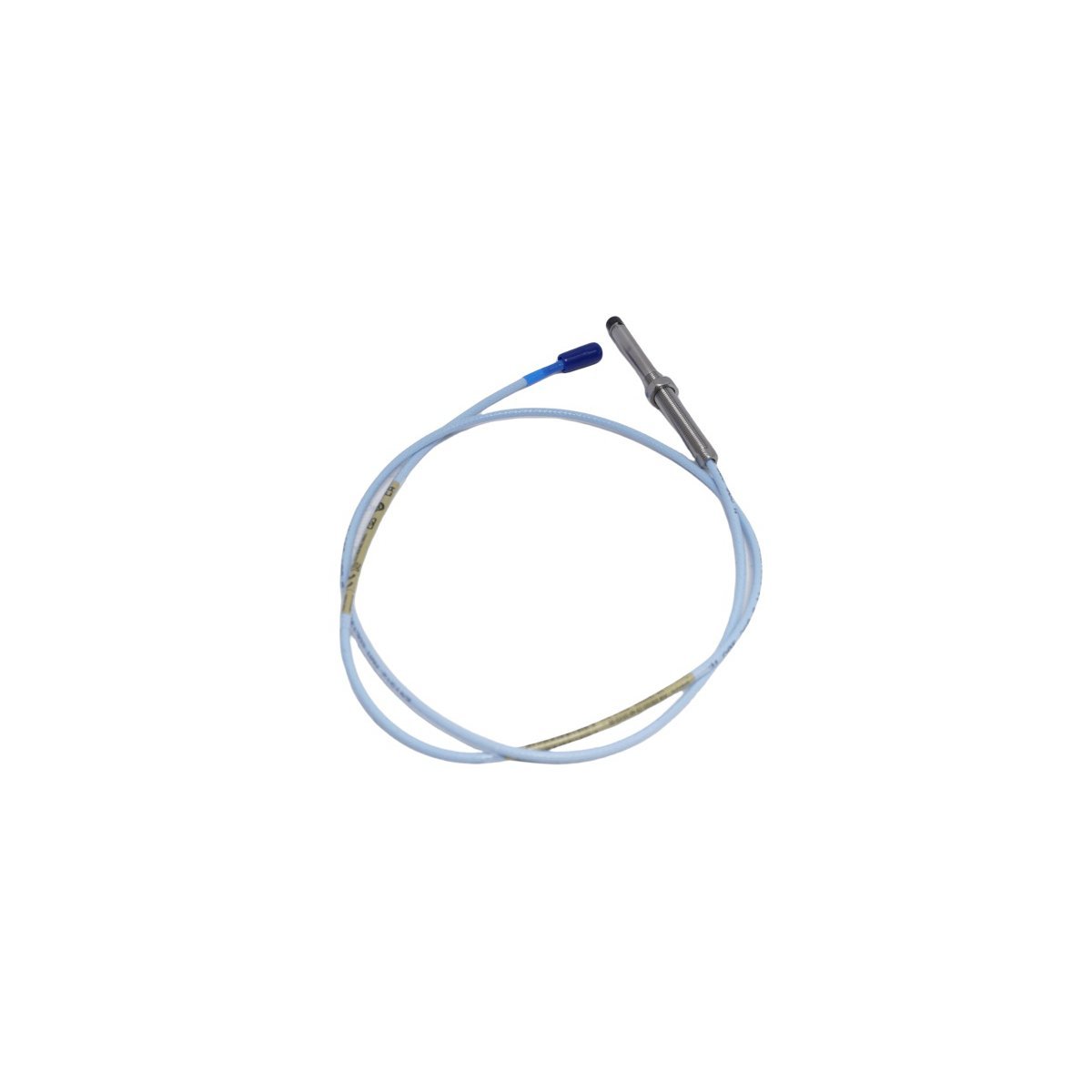

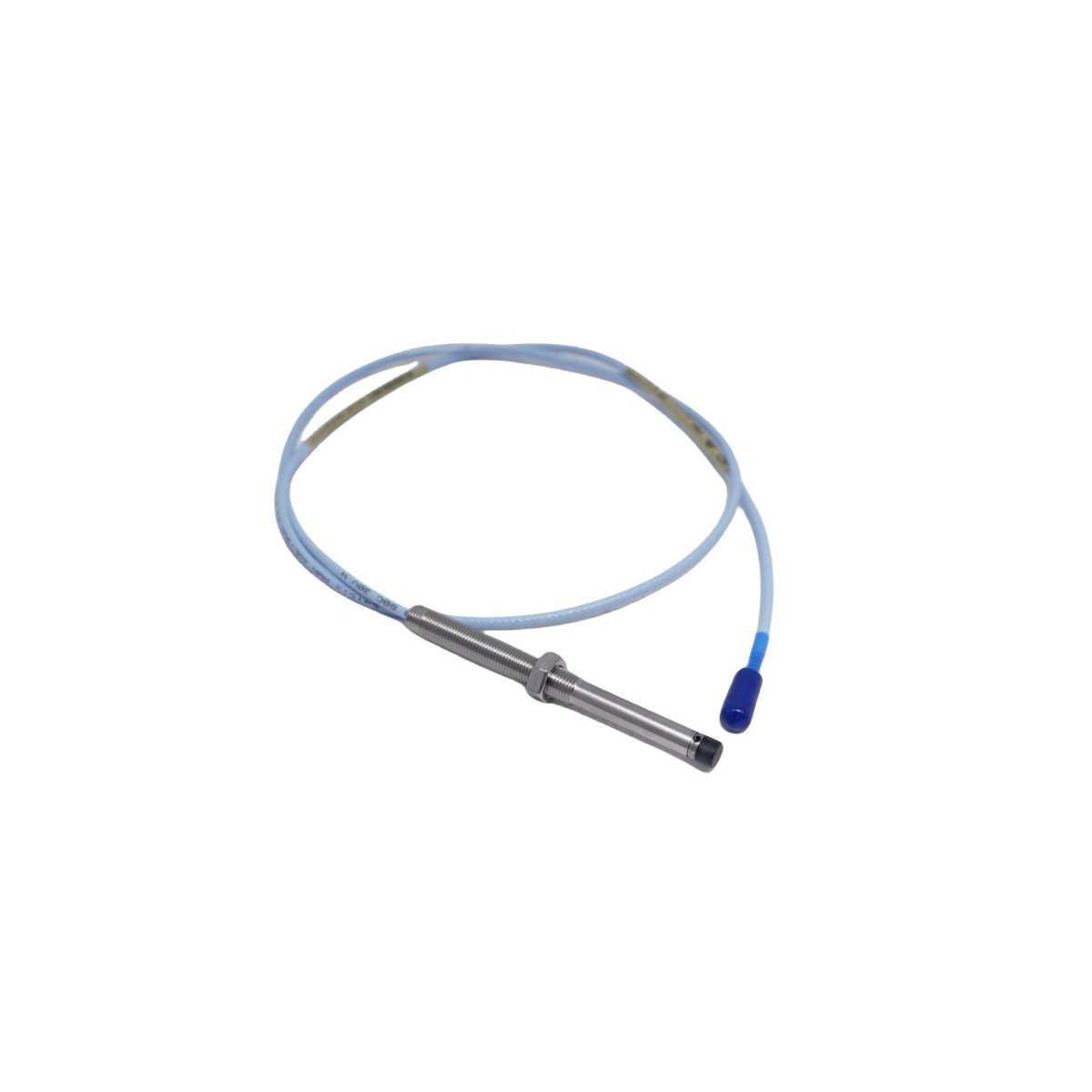

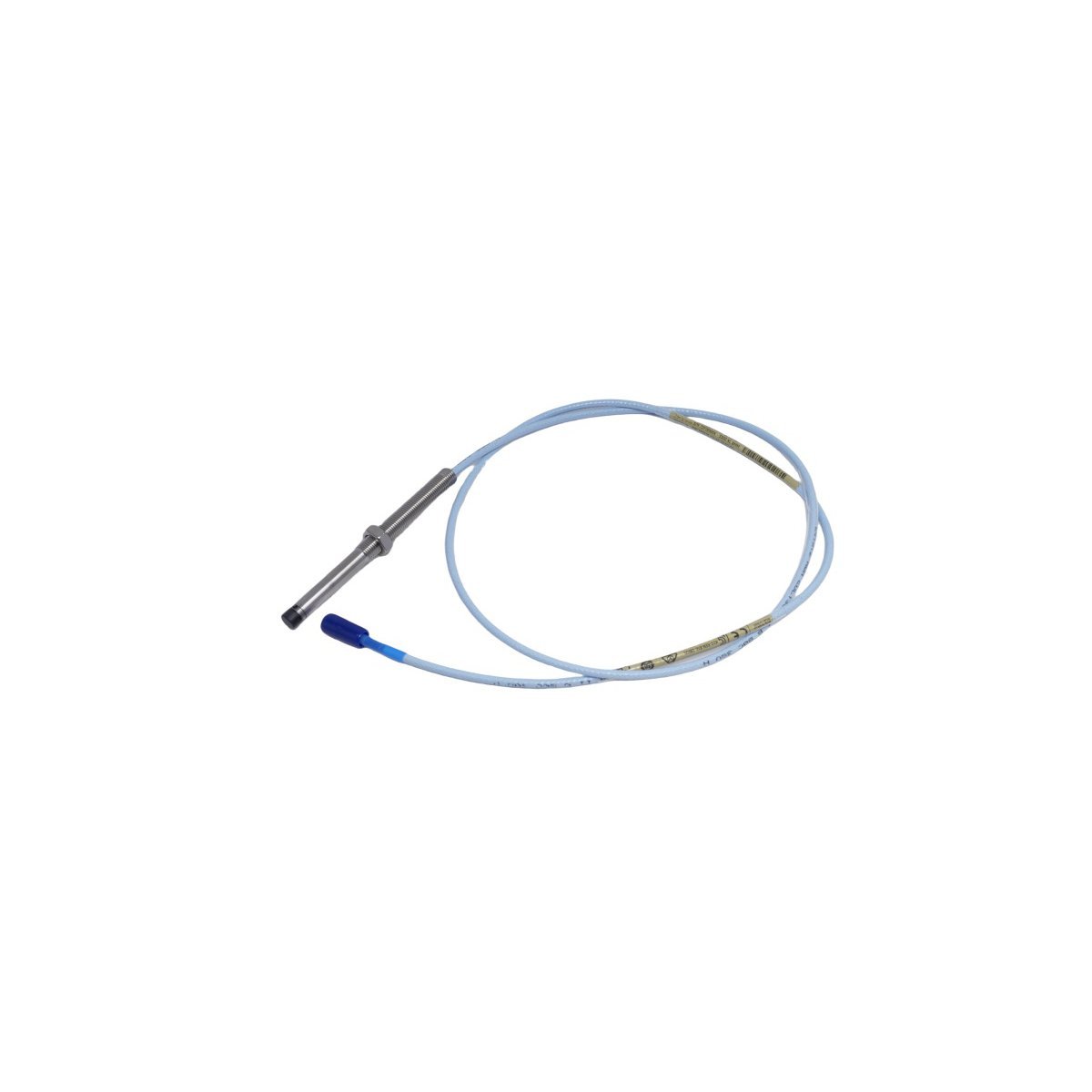

The Bently Nevada 330101-15-40-10-02-00 operates as a precision eddy current sensor for machinery diagnostics. This 8mm probe measures shaft vibration and axial position without making physical contact. Consequently, it provides real-time data to the 3500 monitoring system. Engineers use these measurements to identify mechanical issues like misalignment or rotor imbalance. This proactive monitoring helps industrial facilities avoid unexpected equipment failure and costly downtime.

Material Design and Environmental Resilience

The probe features a polyphenylene sulfide (PPS) tip for excellent chemical resistance. Furthermore, the stainless steel case ensures structural integrity in high-pressure environments. The FEP-insulated coaxial cable resists signal interference and chemical degradation. This robust construction maintains performance at temperatures reaching 177°C. Therefore, the sensor operates reliably in power plants and oil refineries.

Implementation and Maintenance

The 330101 series supports seamless integration with standard Proximitor sensors. The 1.0-meter cable length allows for flexible routing within bearing housings. Additionally, the click-loc connector prevents accidental disconnection during high-vibration events. This model works effectively for both new machinery installations and existing system retrofits. Bently Nevada’s standardized design ensures high interchangeability across different monitoring platforms.

Key Technical Characteristics

• System Family: 3300 XL 8mm Proximity Transducer System
• Thread Type: 3/8-24 UNF English thread configuration
• Unthreaded Length: 1.5 inches (Option 15)
• Overall Case Length: 4.0 inches (Option 40)
• Total Cable Length: 1.0 meter / 3.3 feet (Option 10)
• Connector Option: Miniature coaxial connector with click-loc (Option 02)
• Agency Approval: No hazardous area approvals (Option 00)
• Net Weight: 0.08 kg
• Manufacturing Origin: USA
