Description

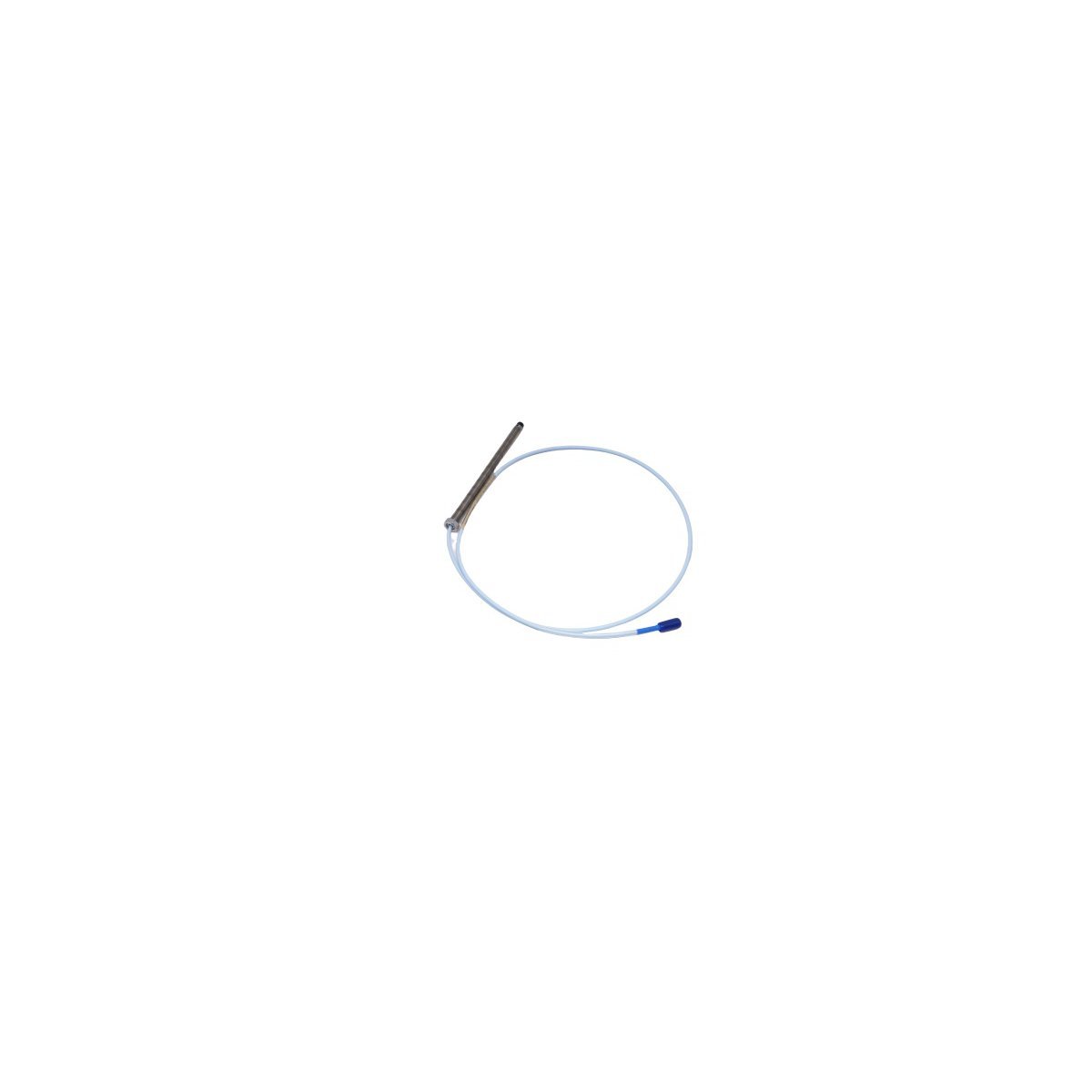

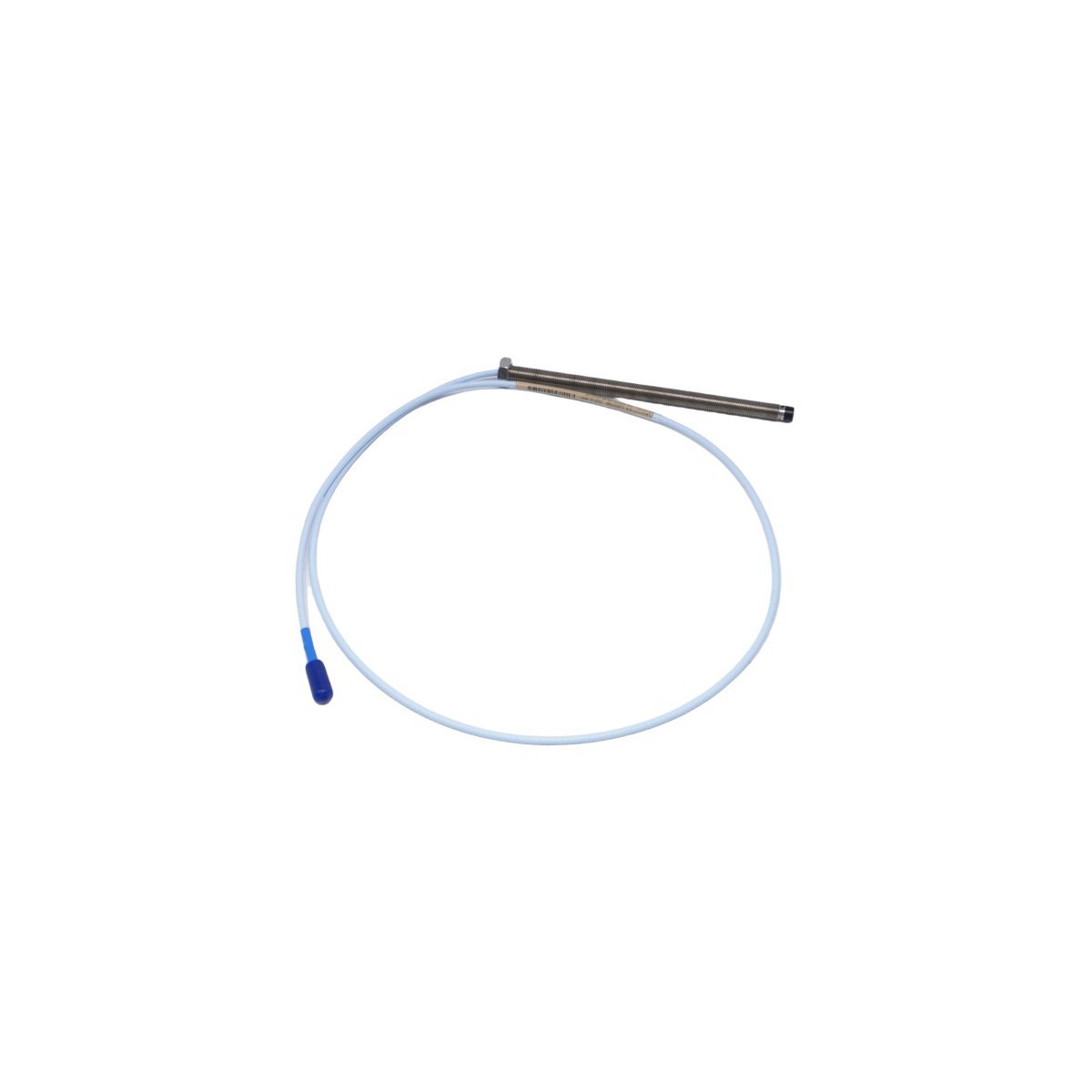

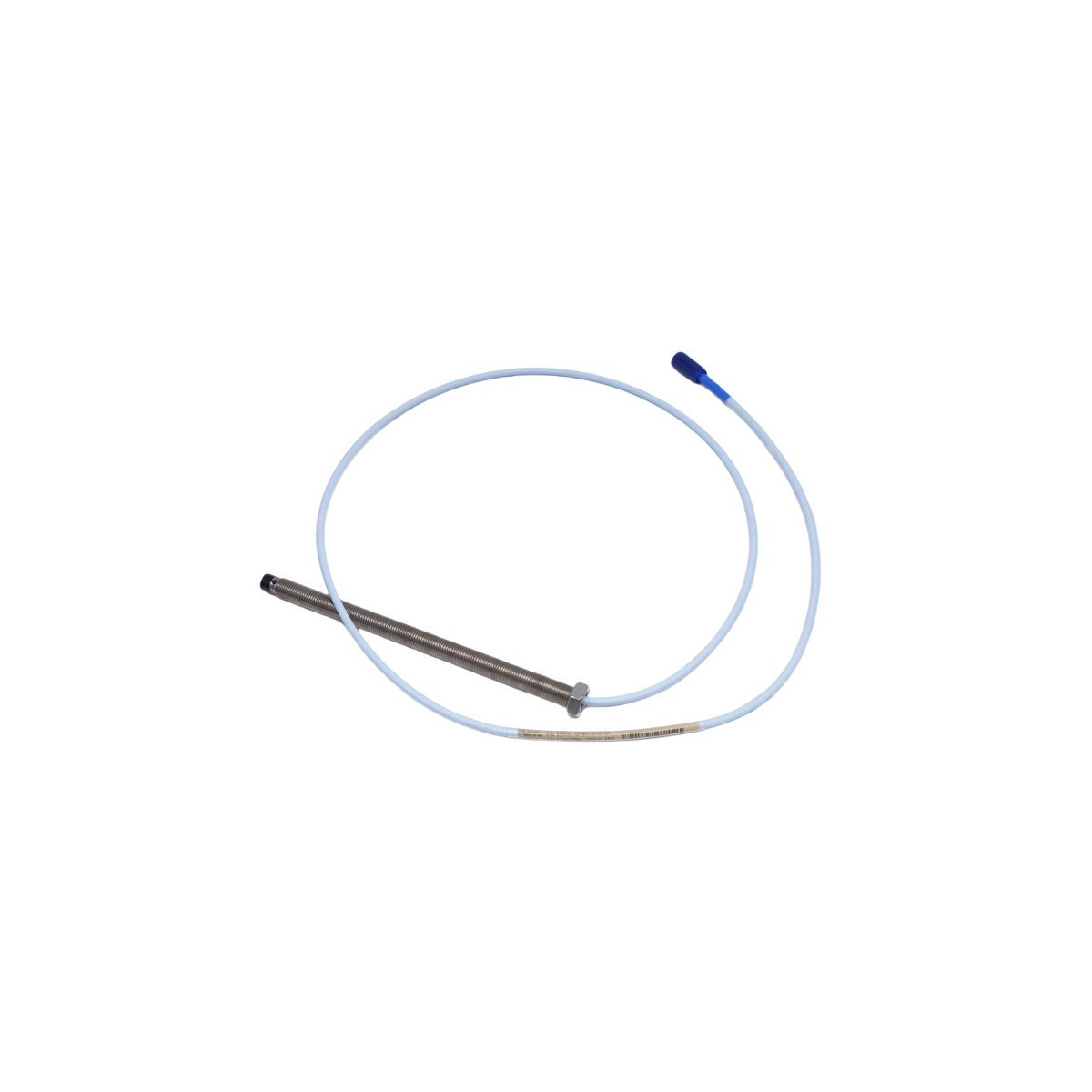

The Bently Nevada 330101-00-60-10-02-00 operates as a non-contacting transducer for displacement and vibration analysis. This 8mm eddy current probe measures the dynamic and static distance between the tip and target. It converts these physical gaps into precise electrical signals for monitoring systems. Consequently, the sensor provides essential data for detecting shaft misalignment or excessive vibration levels. This proactive monitoring helps prevent costly mechanical failures in high-speed machinery.

Design Configuration

This specific 3300 XL probe utilizes a 3/8-24 UNF thread for standard industrial mounting. The configuration includes a 0.0-inch unthreaded length and a 6.0-inch total case length. Additionally, the assembly features a 1.0-meter total cable length with a miniature coaxial ClickLoc connector. The polyphenylene sulfide (PPS) tip ensures structural integrity during high-pressure operation. These components work together to provide a linear range of 2.0 mm (80 mils).

Industrial Utility

Heavy industries deploy this proximity sensor in various Turbomachinery Instrumentation (TSI) applications. It monitors critical assets such as steam turbines, centrifugal compressors, and electric motors. Because the probe resists moisture and oil ingress, it thrives in hostile environments. Refineries and power generation plants use this technology to maintain continuous machinery uptime. The sensor integrates seamlessly with 3500 Series machinery protection systems for comprehensive asset management.

Performance Reliability

The 3300 XL system delivers exceptional stability and high-resolution output for precision diagnostics. Its design maintains accuracy despite significant temperature fluctuations in the machine casing. Since the probe supports interchangeable components, maintenance teams can replace parts without recalibration. This flexibility reduces labor costs and shortens repair windows during plant outages. Reliability remains the primary reason engineers select Bently Nevada for asset protection.

Technical Specifications

Operational Advantages

• Non-contacting technology eliminates physical wear between the probe and target surface.
• Gold-plated connectors provide superior electrical conductivity and resist chemical corrosion.
• Robust mechanical housing handles the vibrations found in heavy industrial zones.
• Shielded cable construction reduces interference from nearby high-voltage equipment.
• Flexible mounting options accommodate diverse machinery housing and bracket designs.
