Description

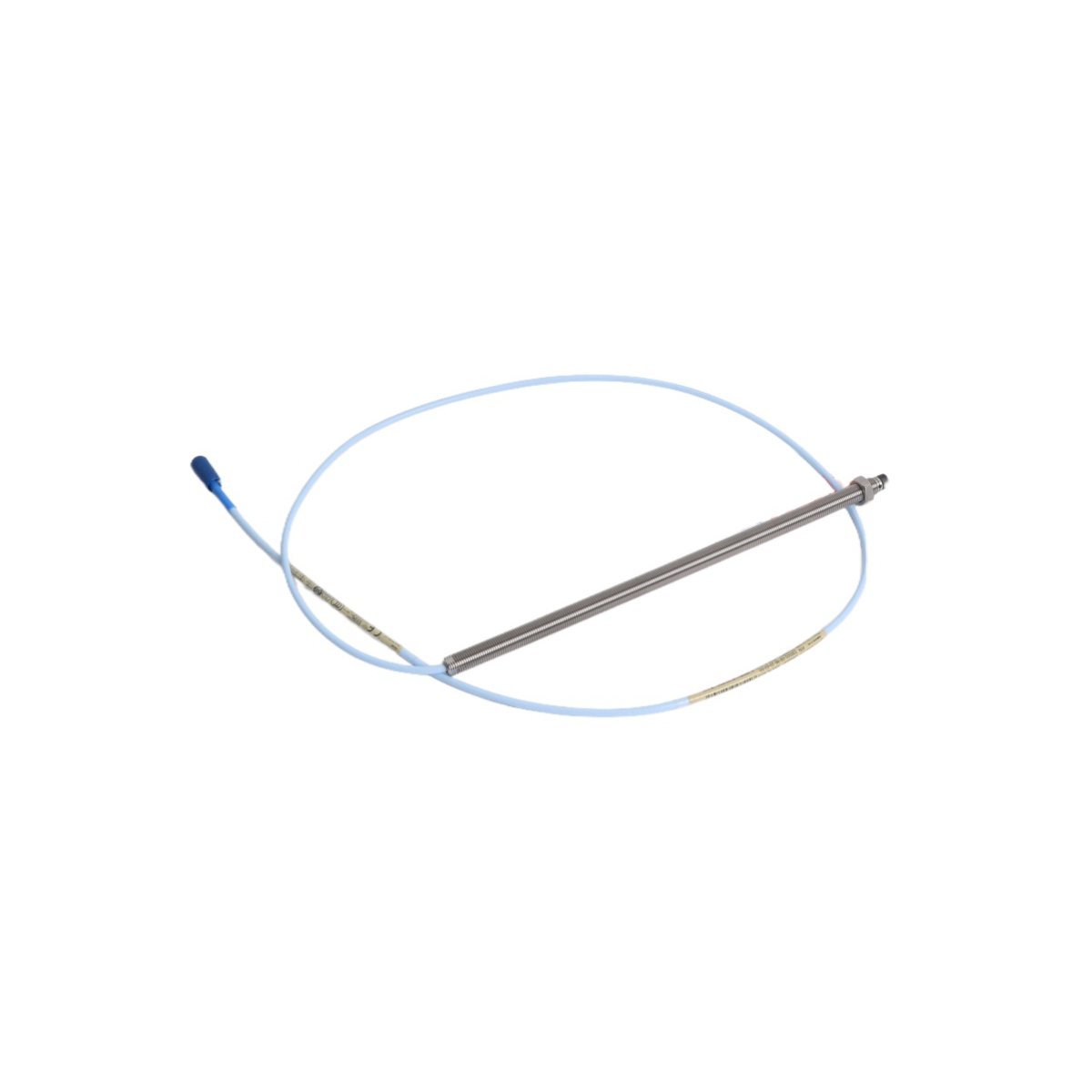

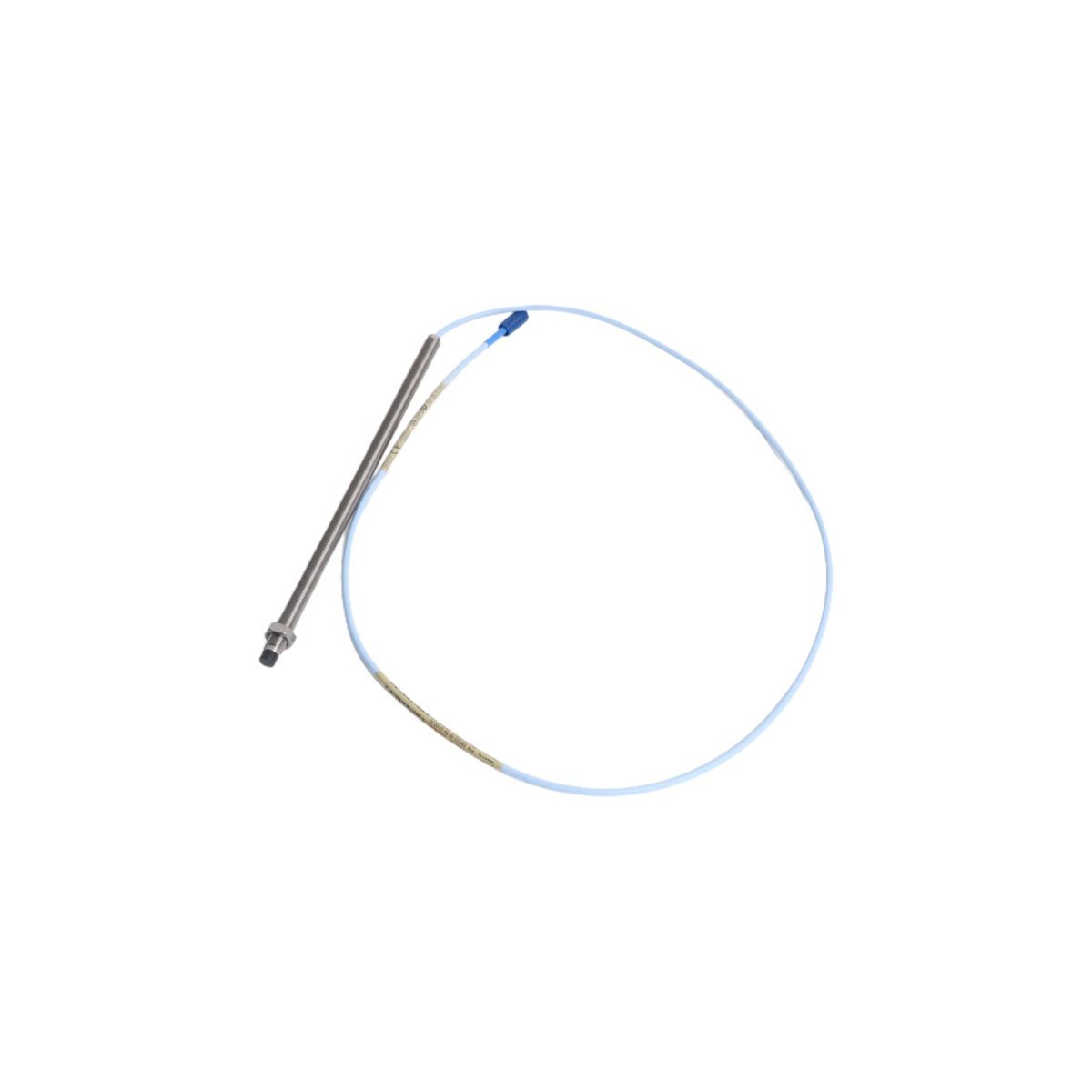

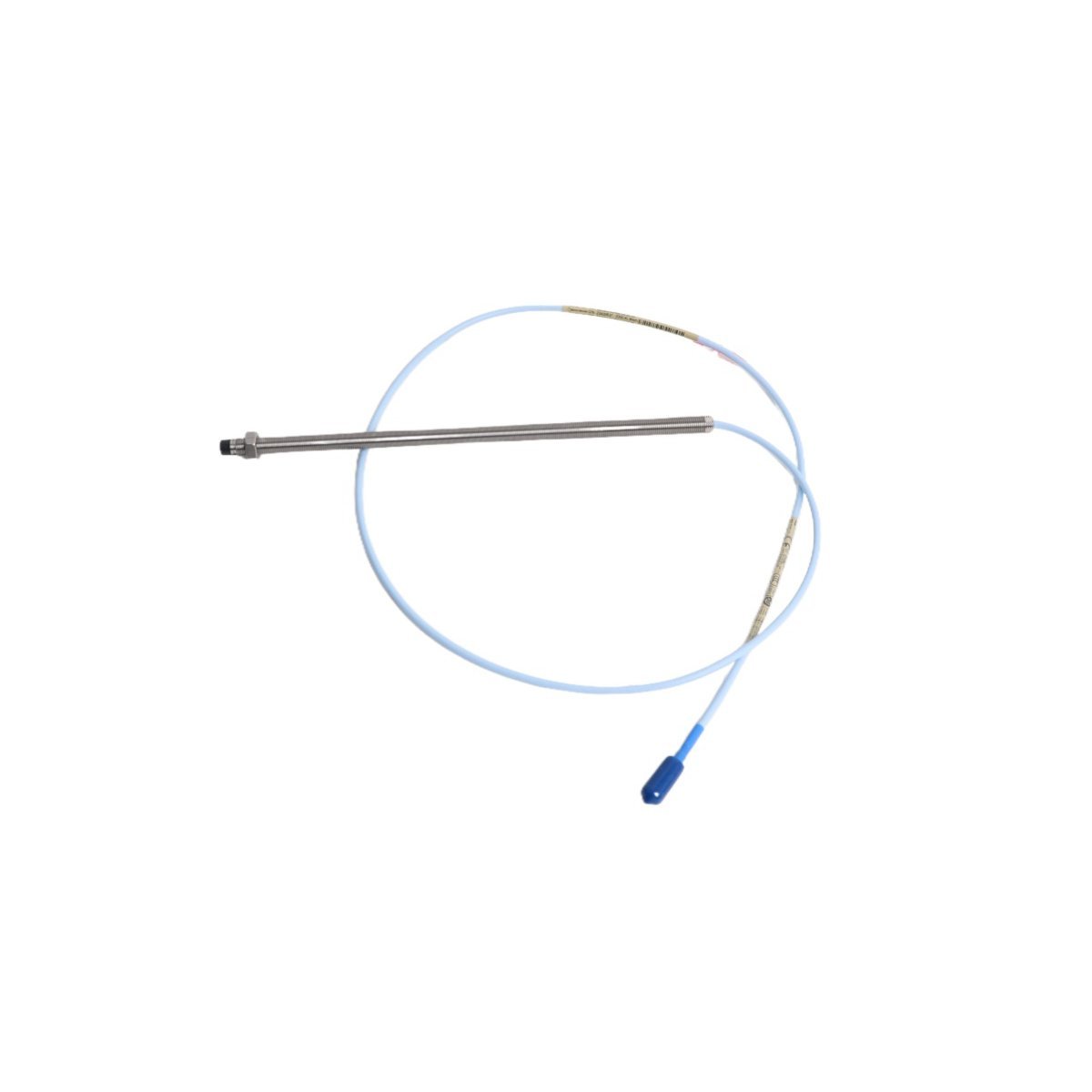

The Bently Nevada 330101-00-09-10-02-05 serves as a non-contact displacement sensor for rotating equipment. This 8mm eddy current probe precisely measures shaft vibration and static position. It converts mechanical movement into an electrical signal for monitoring systems. Operators utilize this data to ensure machinery safety and operational stability. The 3300 XL series provides a standard linear range of 2 mm. Consequently, it delivers high-resolution feedback for critical predictive maintenance tasks.

Design Features and Connectivity

This model features a 3/8-24 UNF thread for standard industrial mounting. The probe includes a 1.0-meter integrated cable with a miniature coaxial connector. Furthermore, the 02-05 configuration includes a connector protector for enhanced reliability. This protector shields the signal junction from moisture, dust, and lubricants. The probe tip uses high-performance PPS plastic to resist chemical exposure. Moreover, the stainless steel body ensures long-term structural integrity in harsh environments.

Technical Data Specifications

Performance Benefits and Integration

One major advantage is the complete interchangeability within the 3300 XL ecosystem. Users can swap probes and cables without performing manual calibrations. This capability significantly reduces downtime during sensor replacement or system upgrades. Additionally, the probe maintains stable accuracy across a wide temperature range. It integrates seamlessly with Bently Nevada 3500 series machinery protection racks. The gold-plated connectors ensure low-noise signal transmission for sensitive measurements.

Core Industrial Applications

• Monitoring radial vibration in high-speed centrifugal compressors.
• Measuring axial thrust position in steam and gas turbines.
• Analyzing shaft eccentricity for large-scale power generators.
• Providing phase reference signals for Keyphasor monitoring.
• Tracking thermal expansion in high-pressure industrial pumps.
