Description

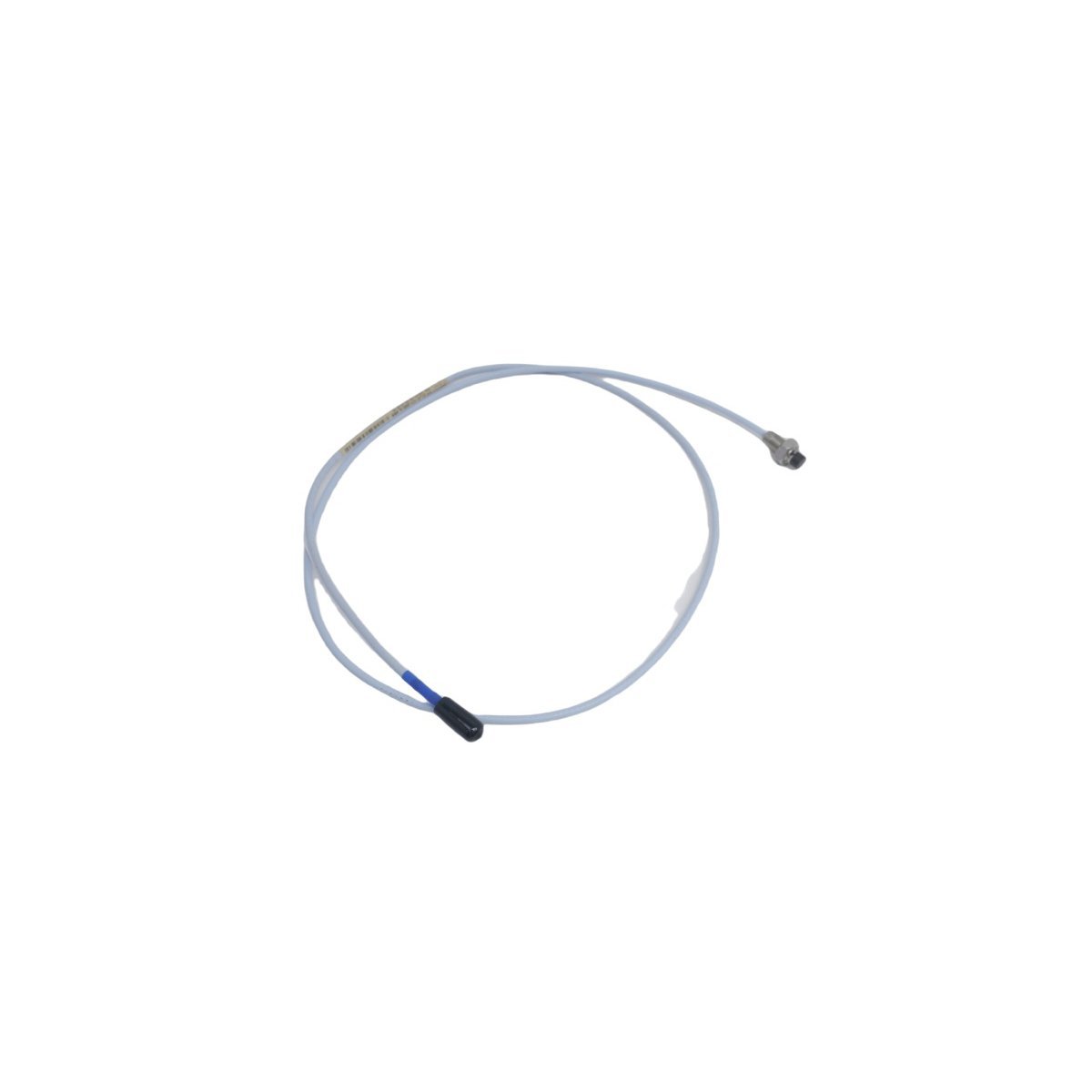

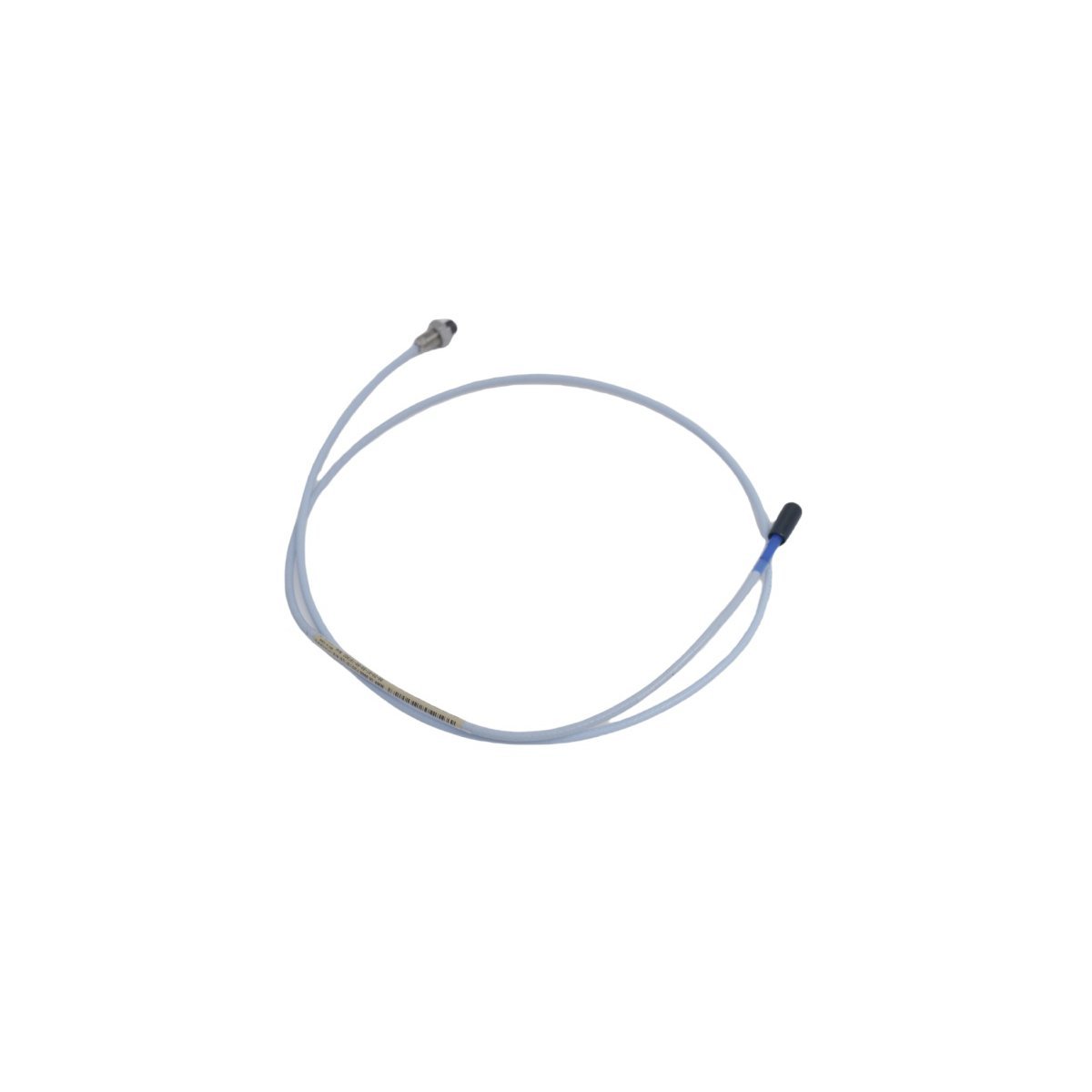

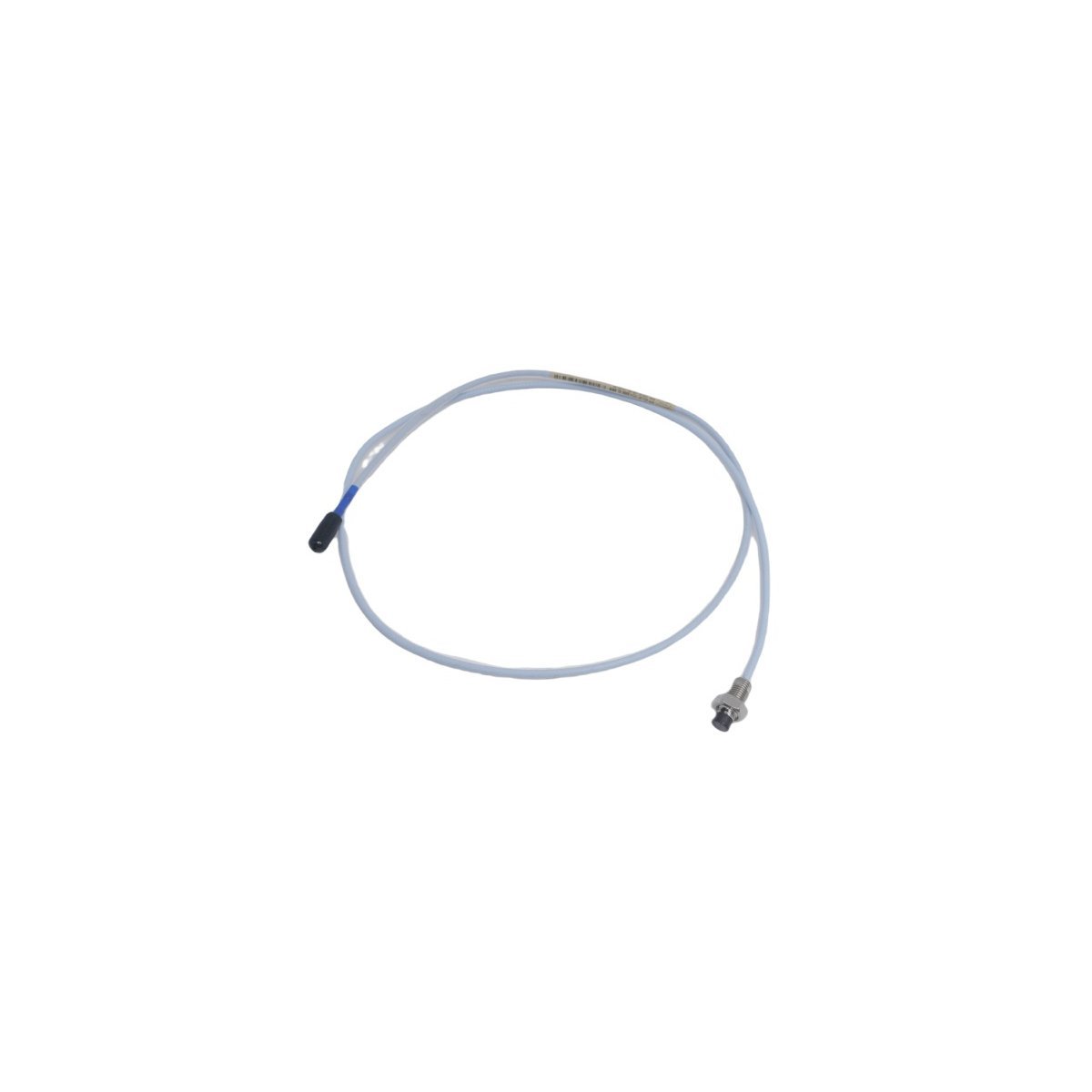

The Bently Nevada 330101-00-08-10-02-00 operates as a high-precision non-contacting sensor for industrial machinery. This probe measures shaft vibration and axial position with eddy current technology. Consequently, it provides essential feedback for machinery protection systems like the Bently Nevada 3500. Operators typically install this probe on critical assets such as gas turbines, pumps, and motors. It effectively tracks physical displacement to identify potential mechanical failures before they occur.

Material Design and Environmental Resistance

The probe features a polyphenylene sulfide (PPS) tip for superior chemical resistance. Furthermore, the stainless steel body ensures long-term durability in pressurized environments. The FEP-coated cable maintains signal integrity despite exposure to industrial oils and high moisture. This robust design allows the sensor to function at temperatures reaching 177°C. Therefore, it delivers consistent accuracy in the most demanding process conditions.

System Integration and Installation

The 330101-00-08-10-02-00 integrates seamlessly with 3300 XL Proximitor sensors and extension cables. It complies with API 670 standards for vibration and position monitoring. Additionally, the short 0.8-inch case fits perfectly into shallow mounting holes. The click-loc connector provides a secure electrical bond for reliable data transmission. This sensor remains a versatile choice for both new projects and system retrofits.

Core Technical Specifications

• Transducer Type: 3300 XL 8mm Proximity System
• Thread Configuration: 3/8-24 UNF English threads
• Unthreaded Length: 0.0 inches (Option 00)
• Overall Case Length: 0.8 inches (Option 08)
• Total Cable Length: 1.0 meter / 3.3 feet (Option 10)
• Connector Style: Miniature coaxial with click-loc (Option 02)
• Approvals: Standard, non-certified version (Option 00)
• Weight: 0.04 kg
• Origin: United States
