Description

Brief Product Description

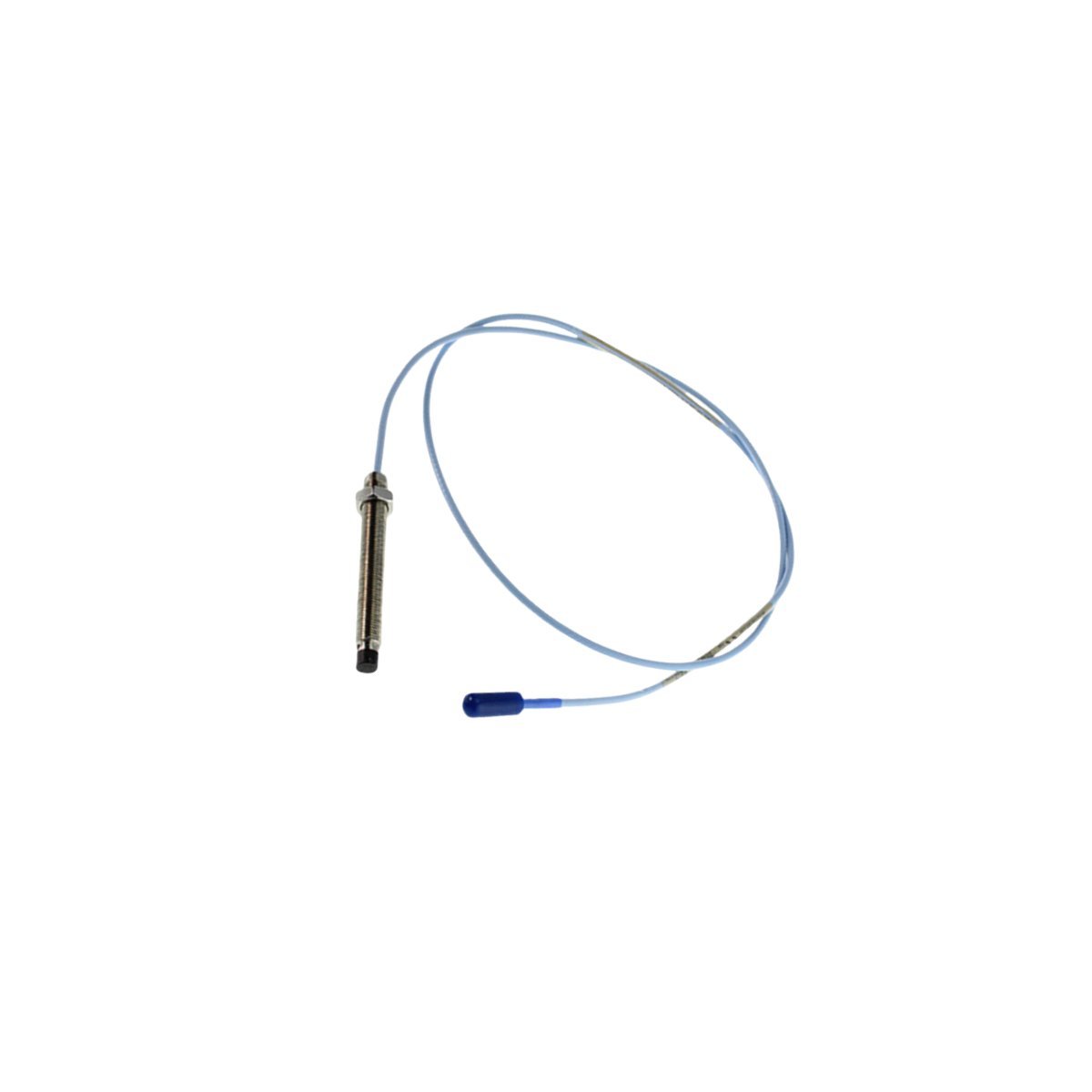

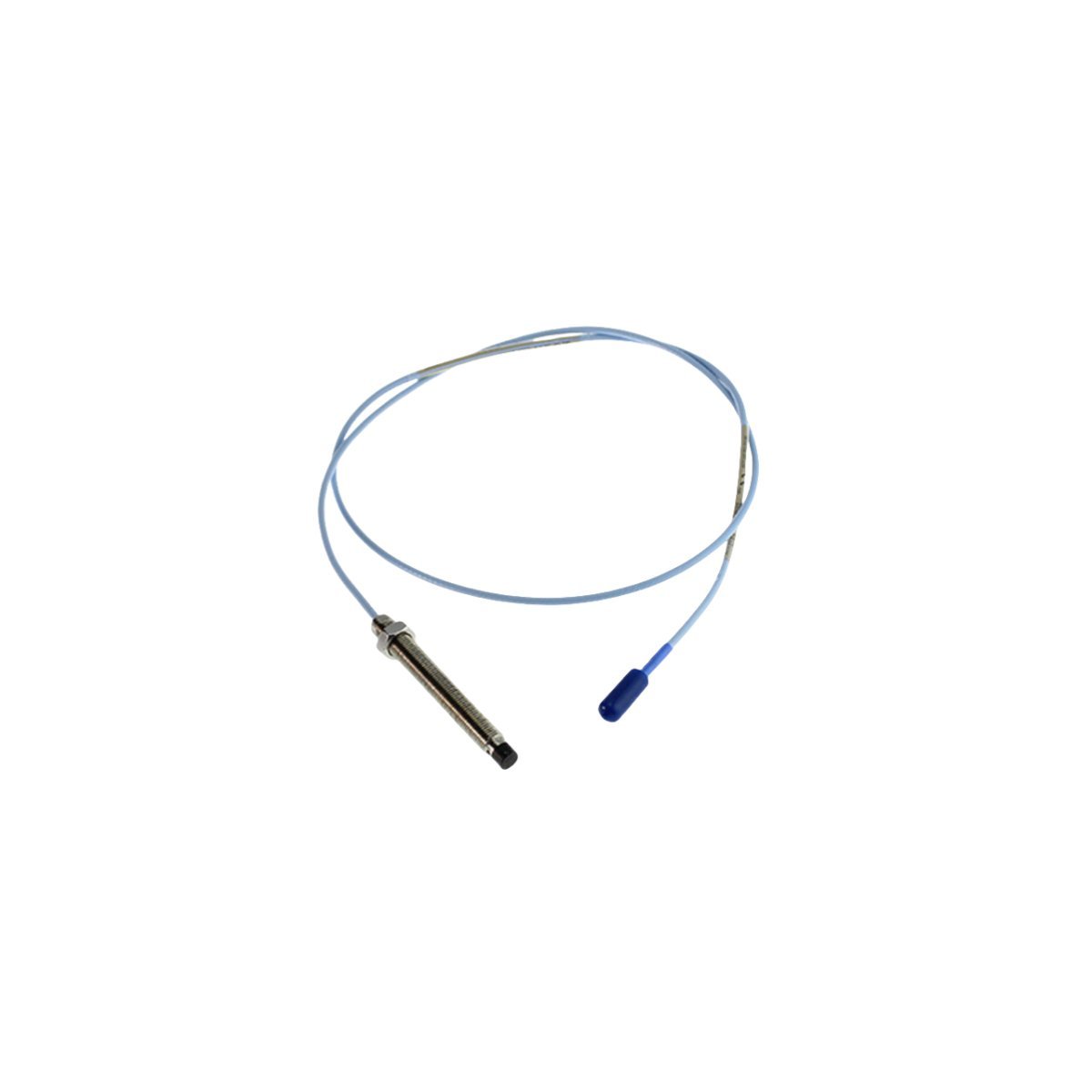

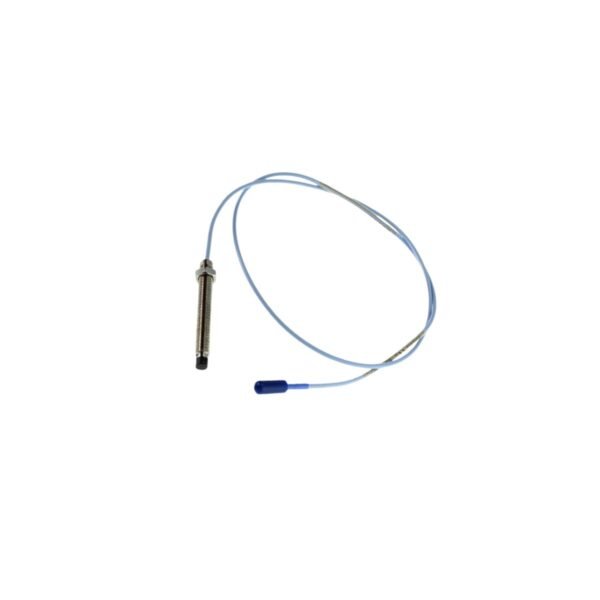

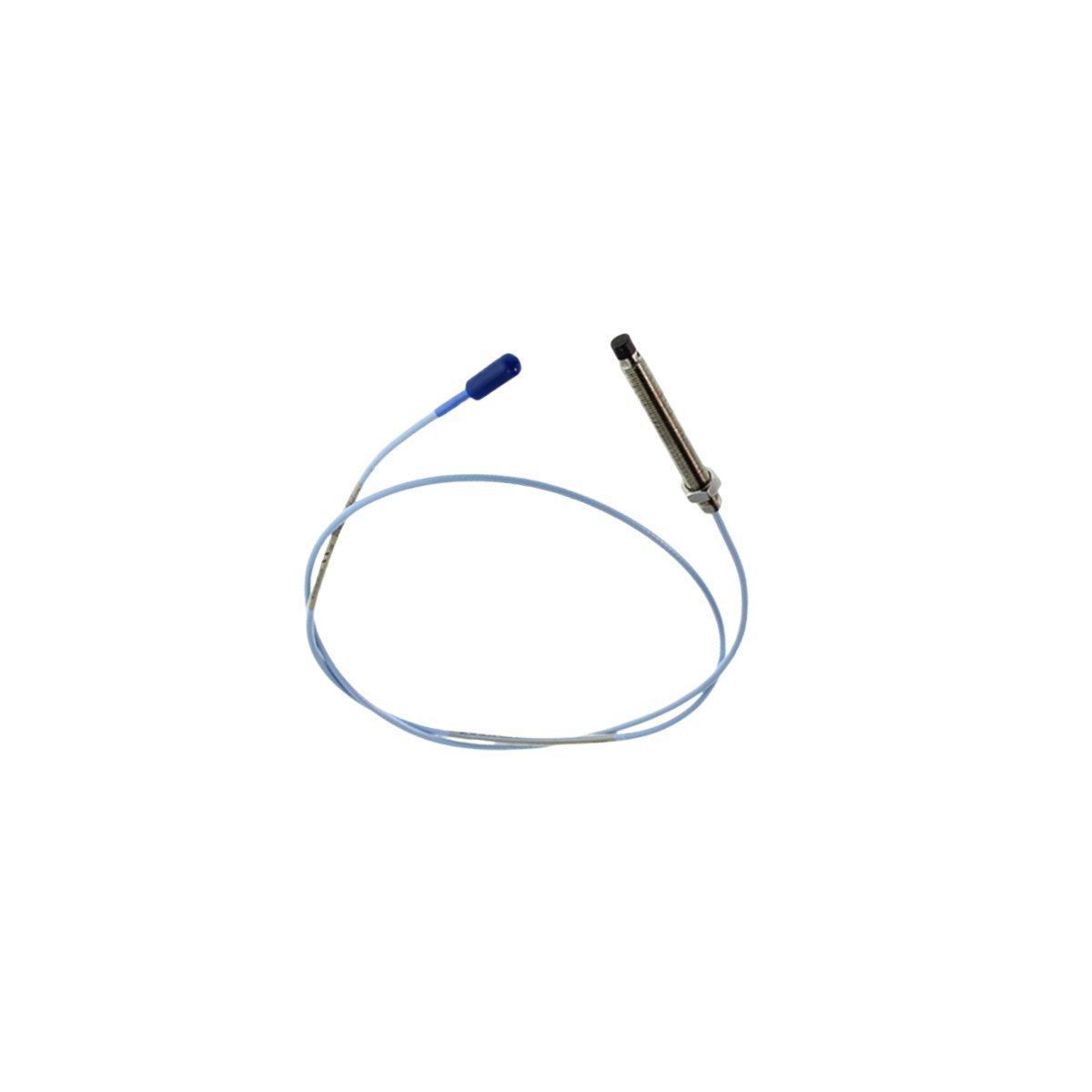

The Bently Nevada 330103-00-16-10-01-00 is a high-performance 3300 XL 8mm extension cable designed to link proximity probes with Proximitor sensors. It ensures the integrity of critical vibration and displacement signals across the 3300 XL monitoring chain in demanding industrial environments.

Essential Signal Connectivity for Machinery Protection

The 330103-00-16-10-01-00 extension cable serves as the vital link within the Bently Nevada 3300 XL 8mm Proximity Transducer System. This specialized cable carries low-voltage high-frequency signals from the probe tip to the Proximitor sensor, where they are converted into displacement data. By maintaining high electrical consistency and impedance matching, the cable ensures that the system accurately tracks shaft vibration and axial position. Consequently, this precise data transmission allows for the early identification of mechanical anomalies, such as rotor instability or bearing degradation, protecting high-value rotating assets from catastrophic failure.

Robust Engineering for Industrial Reliability

Bently Nevada utilizes advanced materials to construct the 330103 series, focusing on signal stability and physical resilience. The cable features FEP (Fluorinated Ethylene Propylene) insulation, which provides excellent resistance to corrosive industrial fluids and high-temperature exposure. Furthermore, the 330103-00-16-10-01-00 incorporates a coaxial design with a 75-ohm impedance, specifically tuned to prevent signal attenuation over the total system length. This engineering approach guarantees that the proximity system remains immune to electromagnetic interference (EMI), delivering clean and repeatable telemetry even when routed near high-voltage industrial equipment.

Seamless System Integration and Application

The 330103-00-16-10-01-00 integrates natively with the 3300 XL and 3300 XL NSv proximity probe families. Its standardized connectors facilitate quick and secure field installation, reducing the time required for sensor replacement or system commissioning. Transitioning to this cable configuration allows plants to optimize their Turbine Supervisory Instrumentation (TSI) setups across diverse machinery types, including steam turbines, centrifugal compressors, and large-scale industrial motors. By ensuring a reliable connection between the sensing element and the control rack, this extension cable helps maintenance teams implement robust predictive maintenance strategies and extend machinery service life.

Key Technical Characteristics

• Precise Impedance Matching: Optimized 75-ohm coaxial design prevents signal loss and measurement error.
• Durable FEP Insulation: Resists chemical degradation and maintains integrity in harsh thermal conditions.
• Gold-Plated Connectors: Ensures low-resistance contact and long-term protection against terminal corrosion.
• Shielded Construction: Provides superior rejection of electrical noise and electromagnetic interference.
• Standardized Compatibility: Designed for universal use with Bently Nevada 3300 XL 8mm proximity systems.
• High Temperature Tolerance: Engineered to operate reliably in unconditioned industrial zones.
