Product Overview

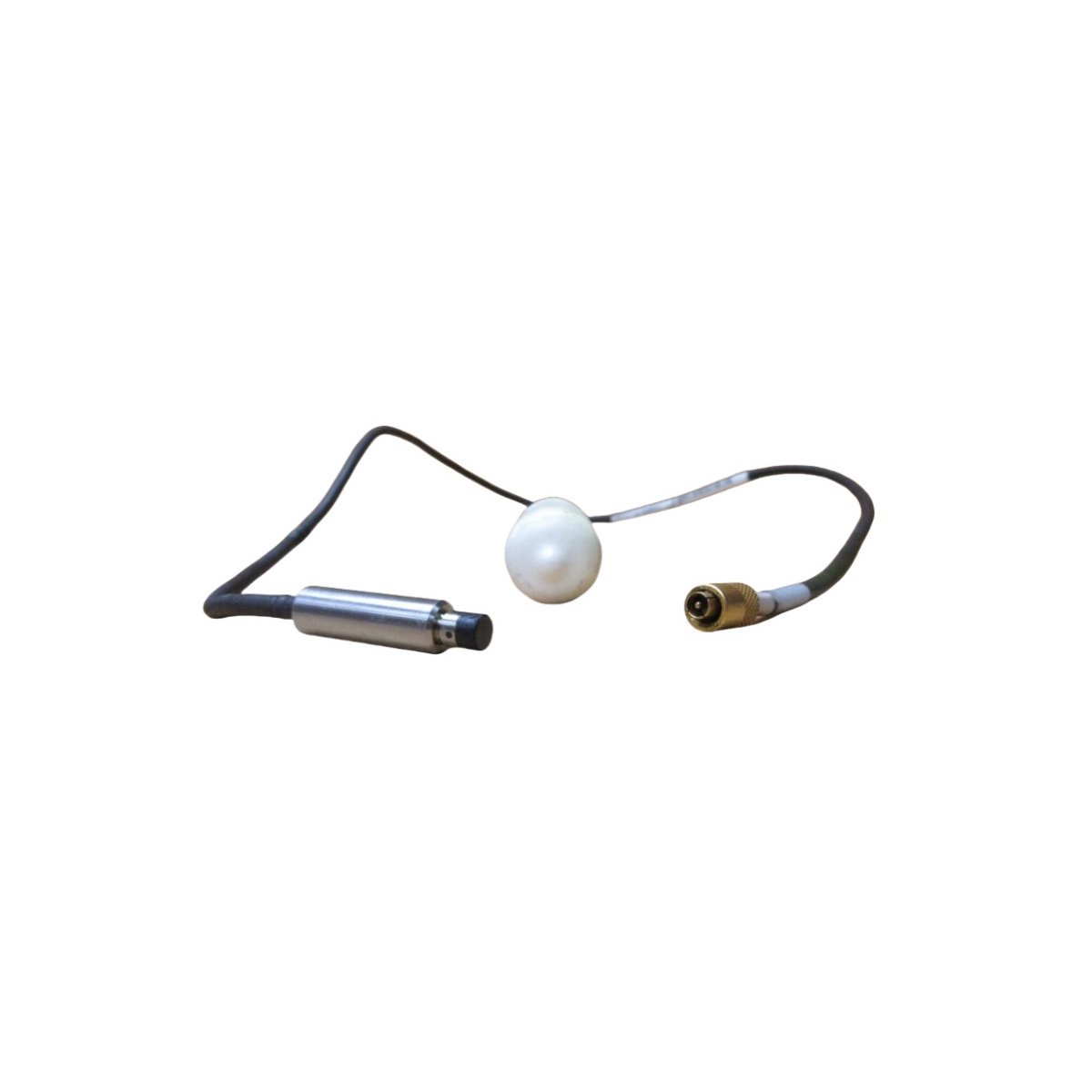

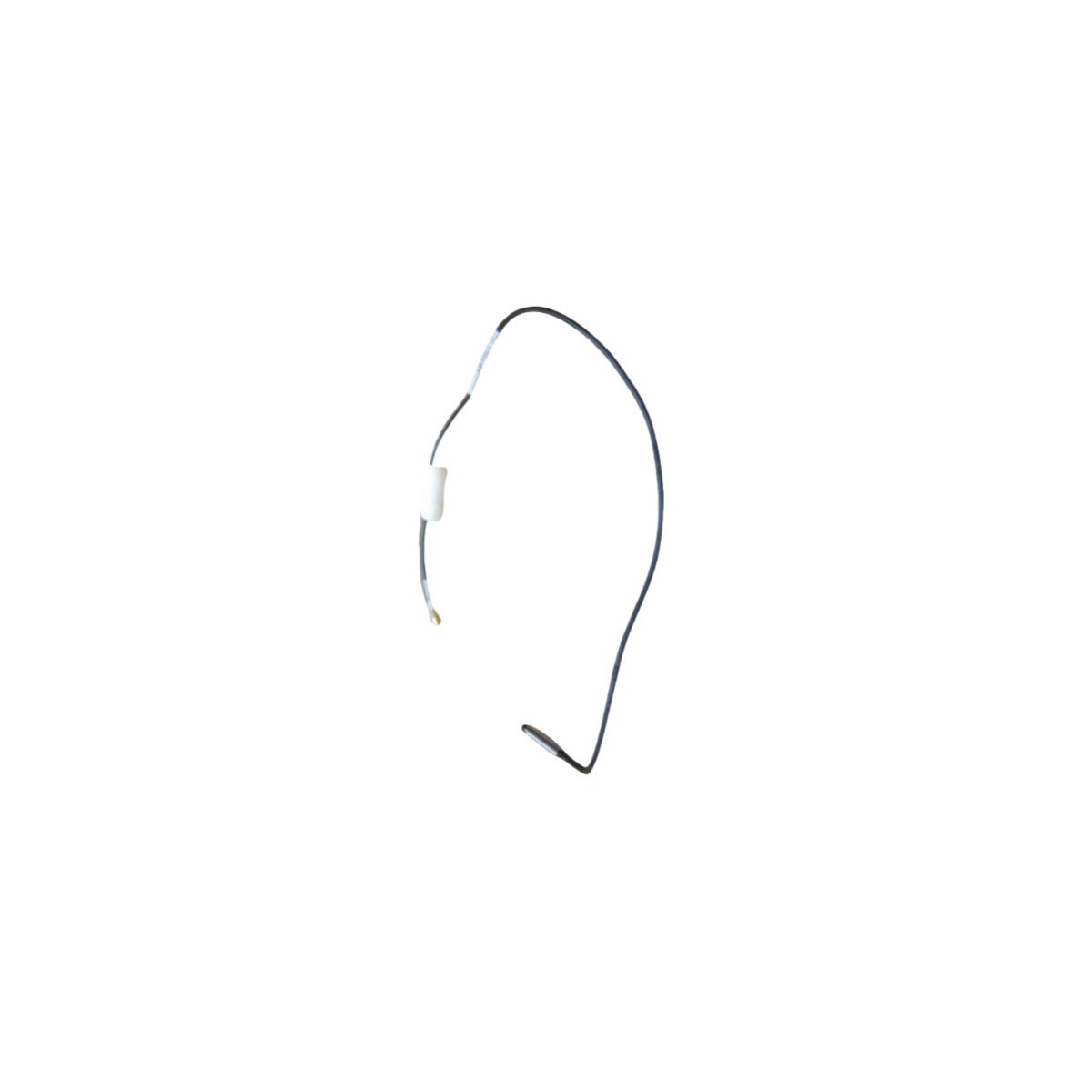

The Bently Nevada 123616-01 is a high-performance 3300 XL NSv Proximitor Sensor designed to convert signals from eddy-current proximity probes into linear voltage outputs for machinery protection systems. This specialized “Narrow Side View” (NSv) version enables precise vibration and position monitoring in confined industrial spaces where standard sensors encounter signal interference.

Precision Signal Processing and Diagnosis

The 123616-01 serves as the electronic core of the 3300 XL NSv transducer system. By processing the complex impedance changes from the probe, the sensor generates a highly accurate voltage signal proportional to the distance between the probe tip and the target shaft. This advanced signal conditioning allows maintenance teams to identify minute shaft displacements and radial vibrations in real-time. Consequently, the sensor facilitates the early detection of mechanical instabilities such as misalignment or oil whirl, which protects high-speed compressors and turbines from catastrophic damage.

Engineered for Rigorous Industrial Environments

Reliability remains a cornerstone of the 123616-01 design, especially when deployed in the demanding conditions of oil, gas, and power generation facilities. The unit features a robust housing that provides exceptional immunity to electromagnetic interference (EMI) and radio frequency interference (RFI). Furthermore, the internal circuitry is built to withstand extreme thermal fluctuations and mechanical stress without signal drift. Because the sensor maintains a stable ±0.5% linearity, it ensures consistent data accuracy across its entire operating range, even in the presence of the parasitic electrical noise common in industrial plants.

Seamless Integration and API Compliance

The 123616-01 aligns fully with American Petroleum Institute (API) 670 standards, making it the industry-standard choice for machinery protection. The sensor supports seamless integration into Bently Nevada 3500 monitoring racks or other PLC/DCS platforms via standard analog interfaces. Its modular mounting footprint allows for rapid installation on DIN rails or in specialized weather-proof housings. By offering both high-resolution data output and hazardous area certifications, this Proximitor sensor provides a scalable and future-proof solution for upgrading legacy vibration monitoring infrastructure.
