Description

Brief Product Description

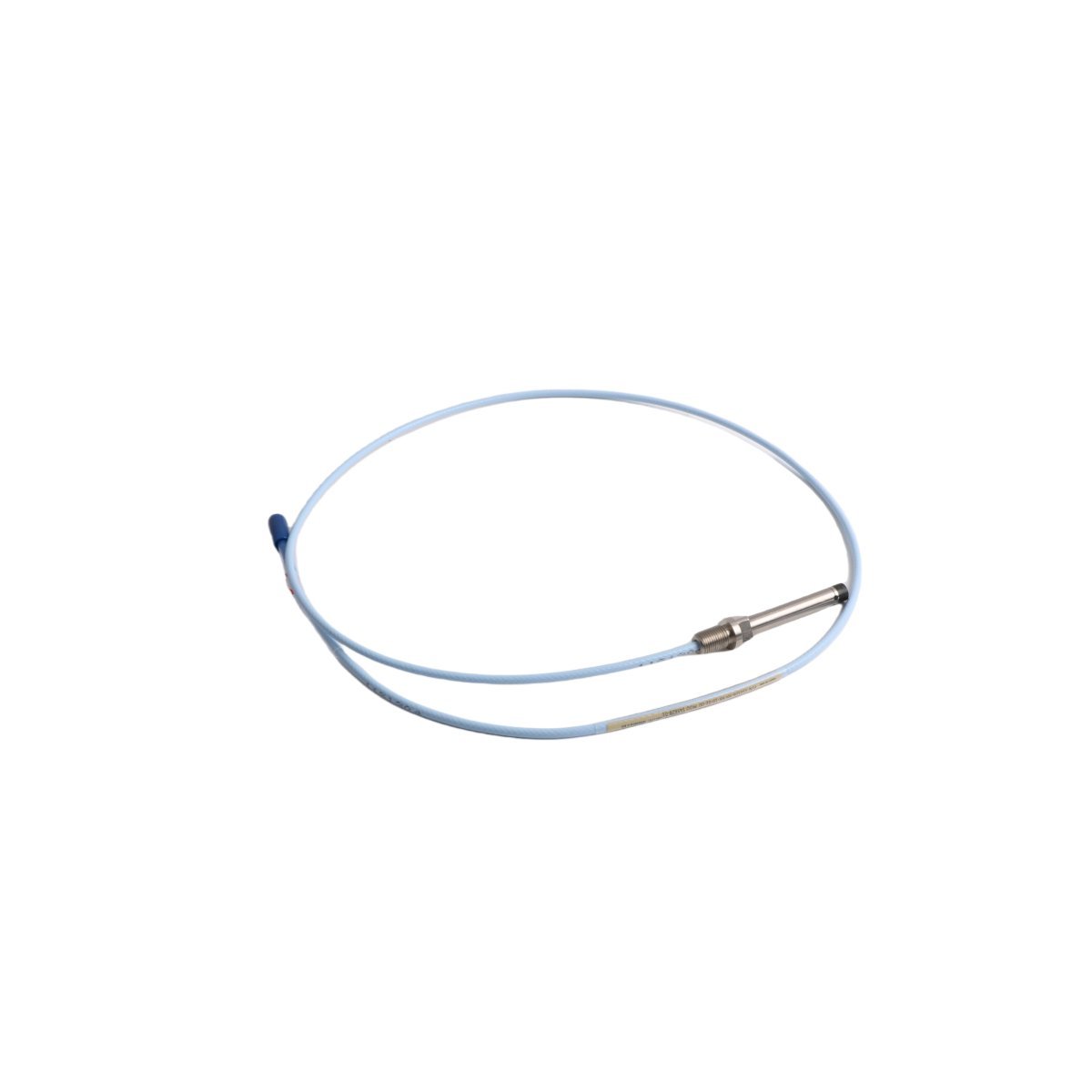

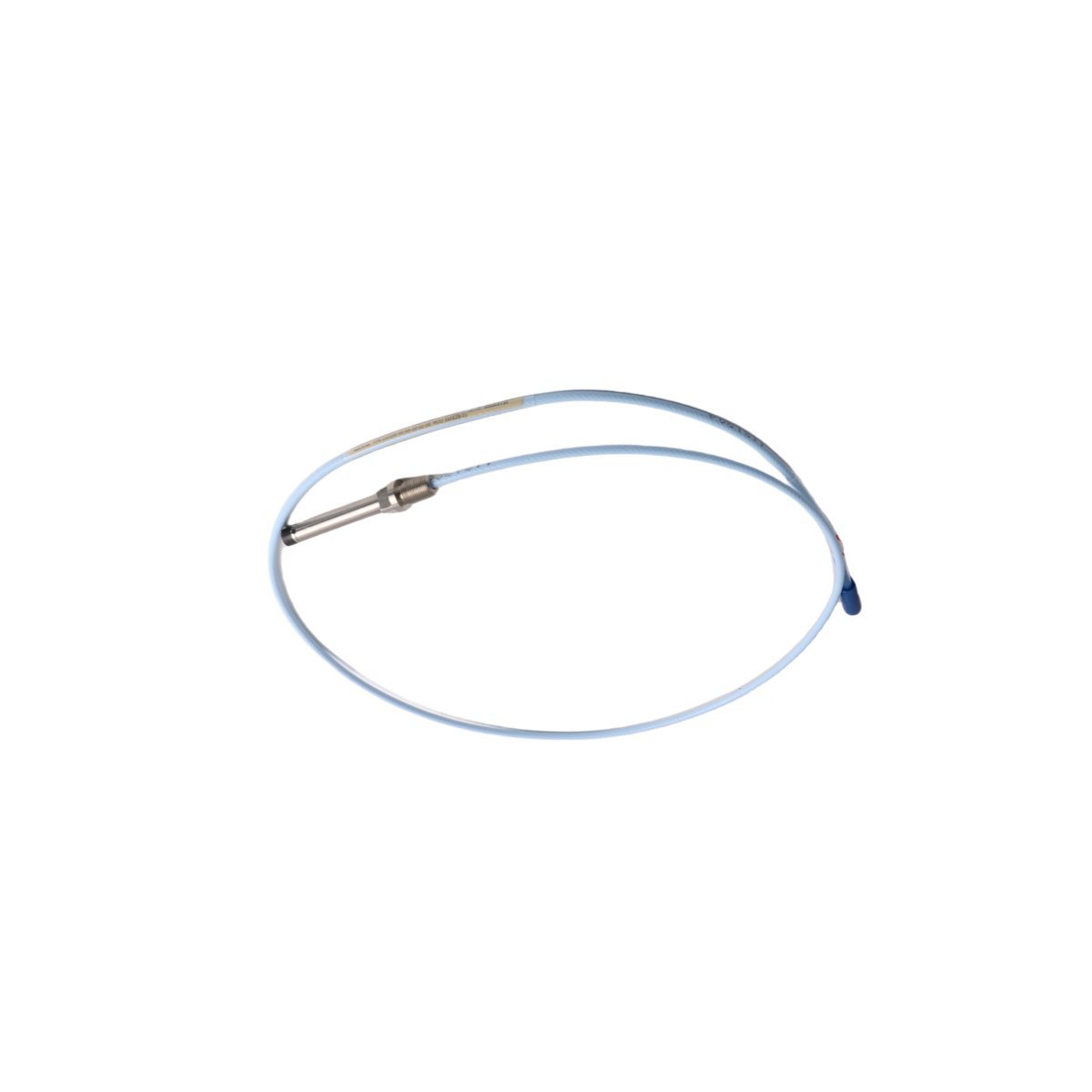

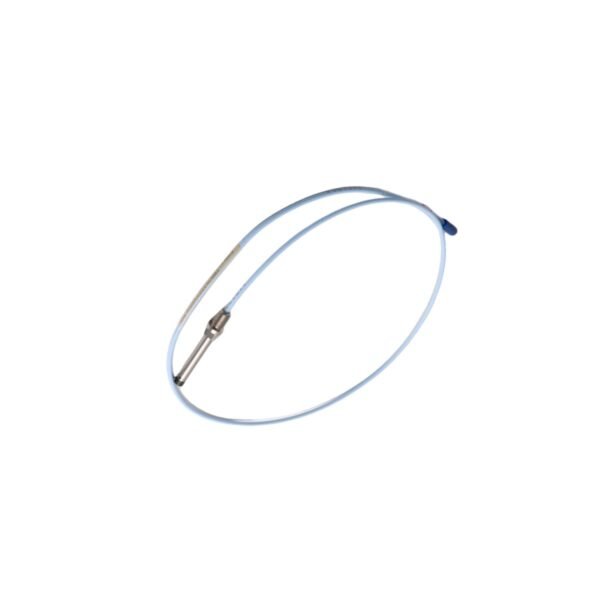

The Bently Nevada 330106-XX-XX-10-02-00 is a specialized 3300 XL 8mm reverse mount proximity probe designed for non-contacting vibration and displacement measurements. This modified transducer model provides critical machinery protection by capturing high-precision data on shaft position and vibration in demanding industrial turbine and compressor applications.

High-Precision Machinery Protection and Vibration Analysis

The 330106-XX-XX-10-02-00 proximity transducer functions as a primary sensor for Turbine Supervisory Instrumentation (TSI). By utilizing eddy current technology, the probe measures the distance between the probe tip and the rotating shaft without physical contact. This capability allows the system to observe minute changes in radial vibration and axial thrust position. Consequently, maintenance teams can identify early warning signs of mechanical degradation, such as rotor unbalance, shaft misalignment, or bearing failures, before they escalate into catastrophic equipment damage.

Versatile Industrial Applications and System Integration

Engineered for flexibility, this 3300 XL 8mm modified probe interfaces seamlessly with 3300 and 3500 series monitoring racks. The reverse mount configuration specifically addresses installation requirements where space is limited or where the probe must be secured from the exterior of the bearing housing. Furthermore, the sensor supports a wide variety of rotating equipment, including high-speed centrifugal compressors, steam turbines, and industrial motors. Because it provides a standardized output signal, the 330106-XX-XX-10-02-00 facilitates centralized data acquisition, allowing for sophisticated predictive maintenance strategies across the power generation and oil and gas sectors.

Environmental Resilience and Long-Term Reliability

Bently Nevada constructed the 330106 series to perform reliably in the world’s most taxing industrial environments. The probe tip and cable assembly resist chemical exposure and operate effectively in high-temperature zones. Additionally, the shielded design minimizes the impact of electromagnetic interference (EMI), ensuring that signal integrity remains uncompromised. This robust construction significantly reduces the need for frequent recalibration or sensor replacement. By providing a stable and repeatable signal over years of continuous operation, the 3300 XL system maximizes machinery uptime and lowers the total cost of ownership for vibration monitoring infrastructure.

Key Technical Characteristics

• Non-Contact Measurement: Employs eddy current technology for precise vibration and position monitoring.
• Reverse Mount Design: Optimized for specialized installation scenarios where internal access is restricted.
• 3300 XL Compatibility: Fully compatible with Bently Nevada 3300 XL Proximitor sensors and extension cables.
• Enhanced Signal Stability: High sensitivity and accuracy enable the detection of subtle machinery malfunctions.
• Ruggedized Construction: Designed to withstand high-vibration environments and extreme thermal fluctuations.
• EMI Resistance: Advanced shielding protects data transmission from electrical noise in industrial plants.

Technical Specifications
