Description

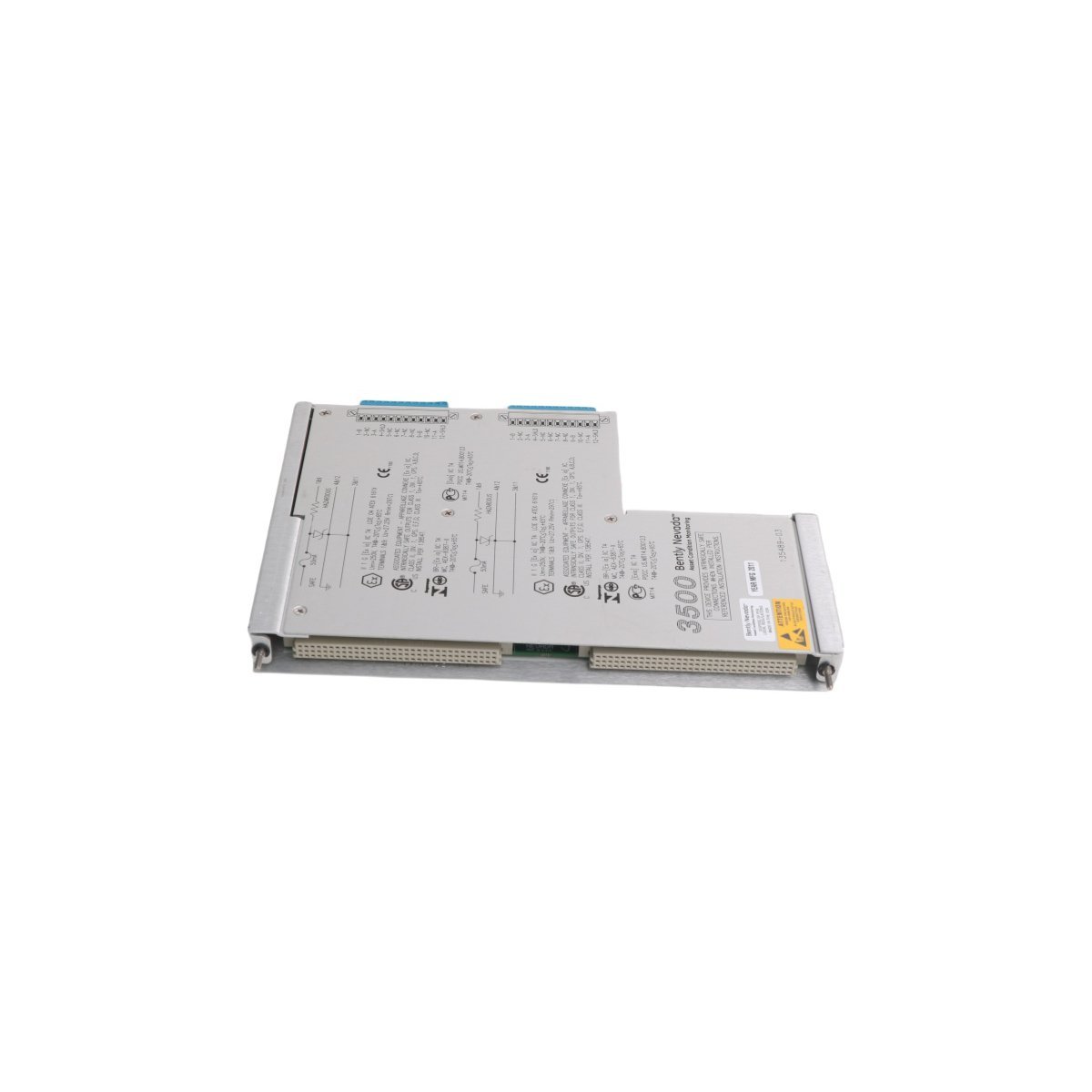

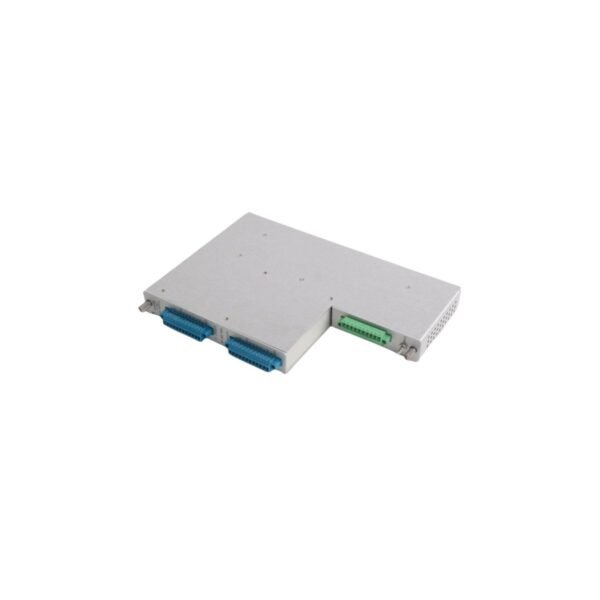

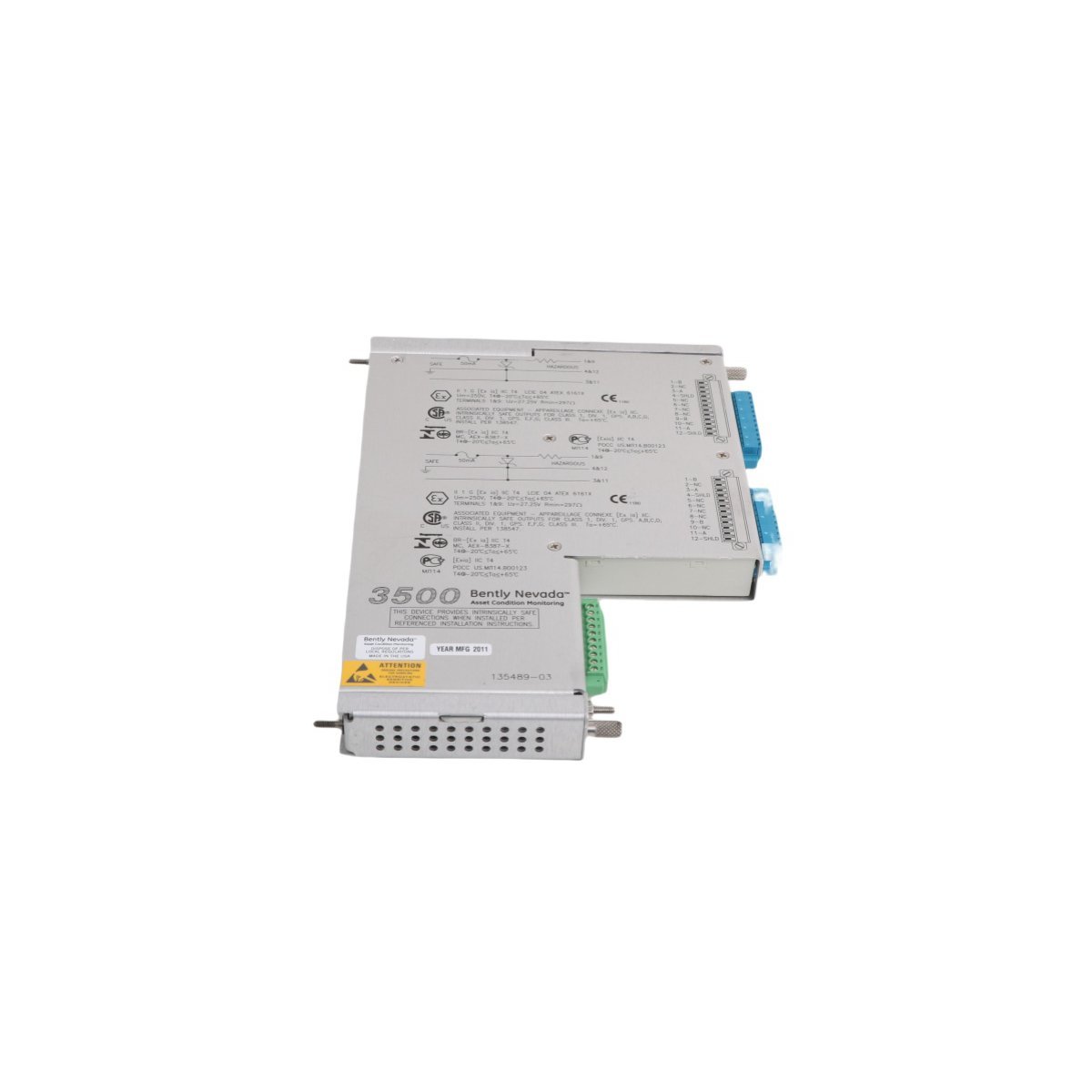

Bently Nevada 135489-03 | 3500 Series Barriers Seismic I/O Module

This module incorporates internal safety barriers to provide a secure interface for seismic transducers operating in hazardous areas. It primarily functions by receiving signals from velocity sensors or accelerometers and transmitting that data to the associated monitor card within the 3500 rack. By integrating intrinsic safety barriers directly into the I/O architecture, the 135489-03 eliminates the need for external barrier hardware. This design choice simplifies the wiring process and reduces the footprint required within the control cabinet. It is a critical component for monitoring casing vibration on large rotating assets, ensuring that machinery operates within safe seismic limits.

Technical Specifications

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 135489-03
• Product Type: Barriers Seismic I/O Module
• System Compatibility: Bently Nevada 3500 Series
• Transducer Types: Accelerometers and Velocity Transducers
• Barrier Type: Internal Intrinsic Safety Barriers
• Operating Temperature: -30 °C to +65 °C (-22 °F to +149 °F)
• Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
• Humidity: 95% non-condensing
• Dimensions: 2.5 cm x 18.5 cm x 14.0 cm
• Weight: 0.96 kg (2.12 lbs)
• Agency Approvals: CSA, ATEX, and IECEx for hazardous areas

Industrial Applications and Strategic Utility

Reliability engineers frequently utilize the 135489-03 in sectors where explosive atmospheres are a constant concern. For instance, it has become a standard choice for monitoring systems in oil refineries, gas processing plants, and offshore platforms. In these specific settings, the module is typically deployed to track the casing vibration of steam turbines, gas turbines, and large industrial fans. By providing a direct and protected path for seismic data to reach 3500/42M or 3500/44M monitors, the module enables the execution of sophisticated alarm and trip logic. In addition to improving safety, the integration of internal barriers lowers the total cost of ownership by reducing the complexity of the safety loop. Ultimately, this streamlined architecture allows plant operators to focus more on predictive maintenance schedules, which helps to maximize the uptime of mission-critical equipment.

Frequently Asked Questions

Does the 135489-03 support proximity probes?

No, this specific I/O module is designed exclusively for seismic transducers like accelerometers. If your current application requires the use of proximity probes for radial vibration or axial position, you will need to select a dedicated Proximitor I/O module instead.

Is this module suitable for use in Class I, Division 1 areas?

Yes, because the 135489-03 features internal intrinsic safety barriers, it is capable of interfacing with transducers located in high-risk zones. However, it is important to remember that the entire loop must be installed and grounded according to Bently Nevada’s specific hazardous area documentation to remain compliant.

What is the primary benefit of the internal barrier over an external one?

The most significant advantages involve both physical space and system reliability. By using internal barriers, you save substantial rack space and reduce the total number of connection points in the signal path. Consequently, this reduction in complexity minimizes the risk of wiring errors and removes potential points of failure.

How do I confirm the compatibility with my current 3500 monitor?

The 135489-03 is fully compatible with 3500/42M and 3500/44M seismic monitor cards. To ensure a seamless integration, you should first verify your hardware configuration using the 3500 Rack Configuration Software. Furthermore, checking your current firmware version is a helpful step to ensure all diagnostic features are fully operational.
