Description

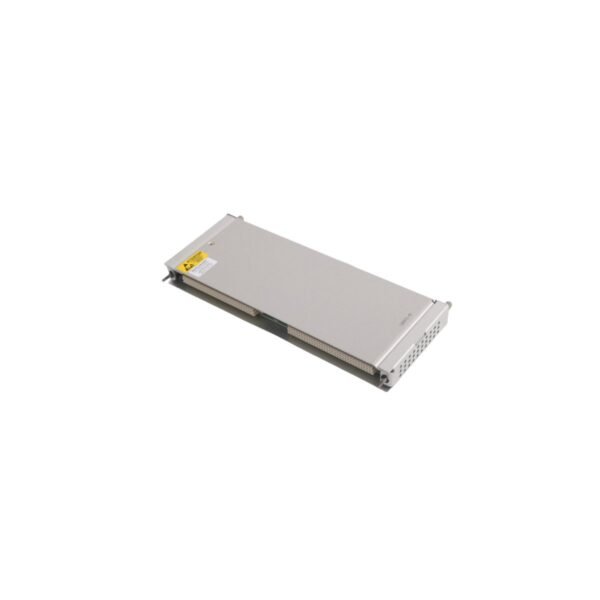

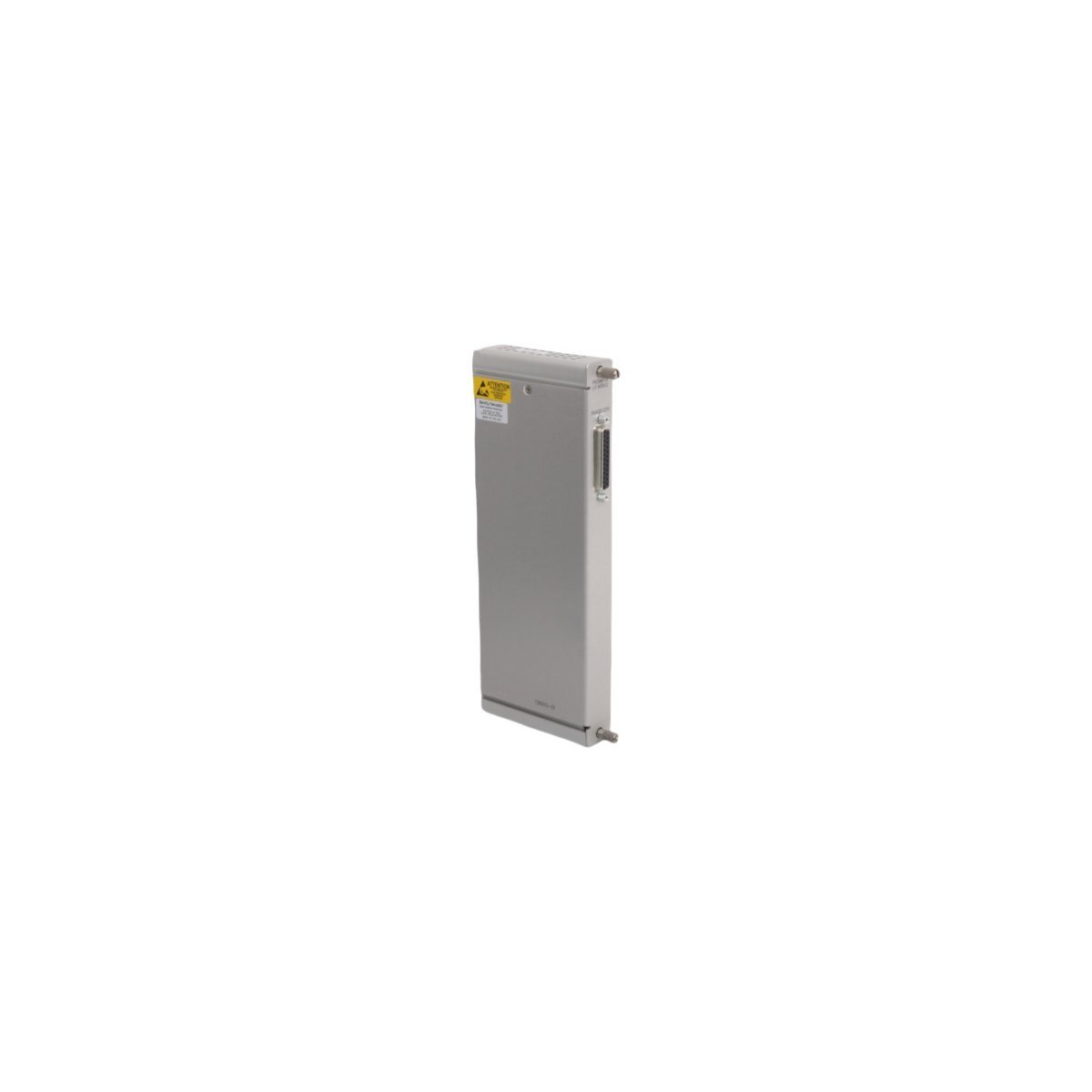

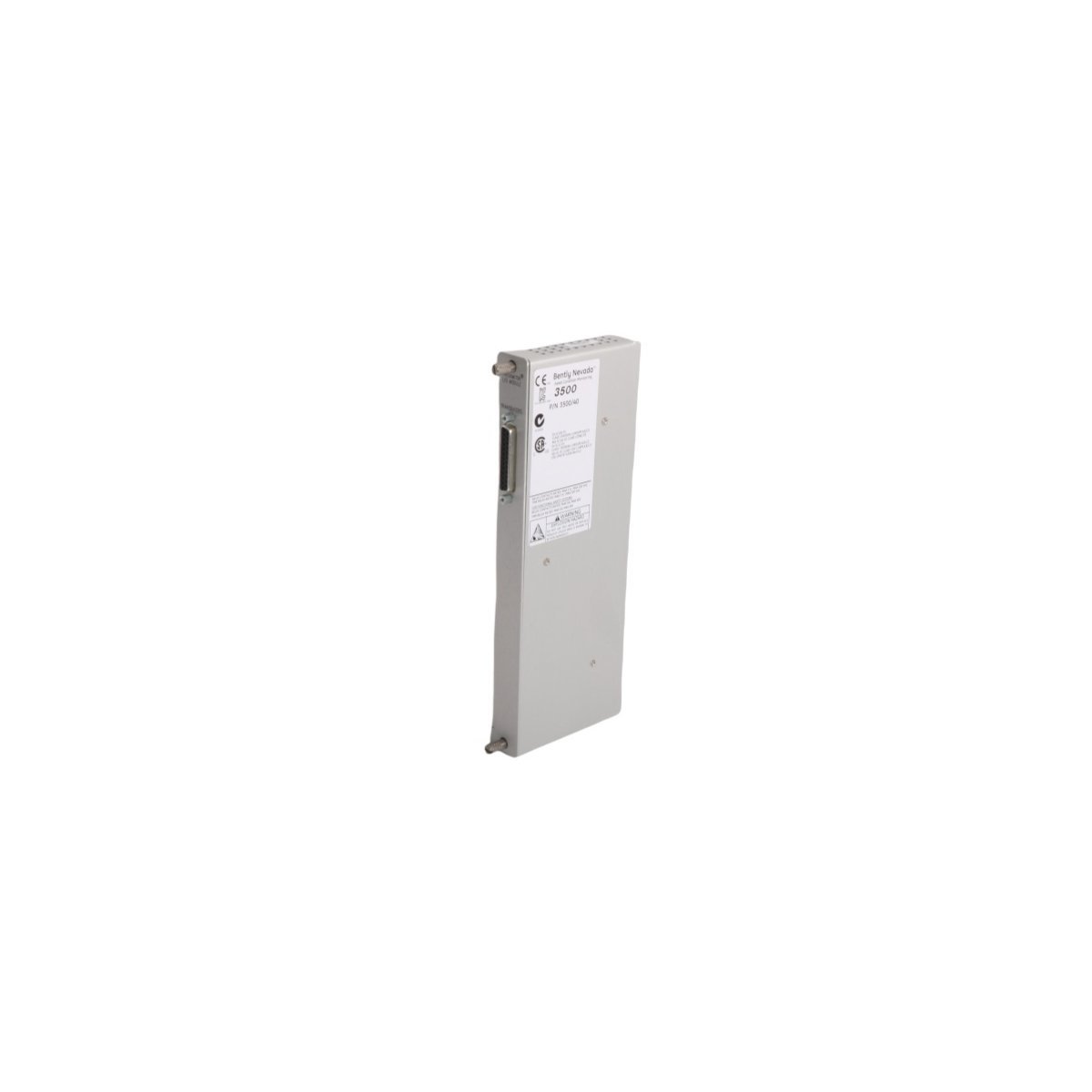

Bently Nevada 126615-01 Proximitor Monitor I/O Module

The Bently Nevada 126615-01 is a high-performance I/O module designed specifically for the 3500/40M Proximitor Monitor within the 3500 Series Machinery Protection System. This module acts as the physical interface for proximity transducer inputs, facilitating the continuous monitoring of radial vibration, shaft axial position, and eccentricity in critical rotating assets. By processing raw signals from eddy current probes, the 126615-01 provides the high-fidelity data necessary for turbine supervisory instrumentation and machinery diagnostics.

Technical Architecture and Signal Processing

The 126615-01 is engineered to maintain signal integrity in demanding industrial environments. Specifically, it features internal termination points that connect to Proximitor sensors via extension cables, converting displacement measurements into standardized voltage signals. Furthermore, the module is designed for the 3500 system’s backplane, providing seamless integration with the main monitor card to allow for real-time alerting and machinery protection. As a result, this I/O configuration ensures that critical displacement data is transmitted with negligible latency and high immunity to electromagnetic interference (EMI).

Technical Specification Matrix

Industrial Utility and System Maintenance

For maintenance teams managing large-scale turbines, compressors, and pumps, the 126615-01 is a vital component for ensuring uptime. Moreover, the module supports “hot-swappable” functionality when paired with the 3500/40M monitor, allowing for card replacement without powering down the entire protection rack. In addition, the robust design of the I/O interface ensures long-term reliability even when exposed to the vibrations and thermal variations common in power plants and refineries. Therefore, the 126615-01 remains a global standard for facilities requiring stringent adherence to API 670 machinery protection requirements.

FAQ

What is the difference between internal and external termination I/O modules?

The 126615-01 is an internal termination module. Specifically, this means that field wiring from the Proximitor sensors connects directly to the screw terminals on the module itself. Conversely, external termination versions require a separate terminal block connected via a multi-conductor cable.

Which monitors are compatible with the 126615-01?

This I/O module is primarily designed to work with the 3500/40M Proximitor Monitor. Furthermore, it is not compatible with other monitor types such as the 3500/42M or 3500/25 unless specifically noted in the system configuration software. As a result, always verify your monitor card model before ordering.

How does this module handle hazardous area signals?

When used with appropriate zener barriers or galvanic isolators, the 126615-01 can process signals originating from probes located in Class I, Division 1 or Zone 0/1 areas. Consequently, it is a versatile solution for hazardous industrial processes in the chemical and energy sectors.

Is calibration required for the I/O module?

The 126615-01 itself does not require manual calibration; however, the Proximitor sensors and probes connected to it must be calibrated as a system. Ultimately, the I/O module simply provides the transparent electrical path and necessary buffering for the 3500/40M monitor to interpret the scale factor correctly.
