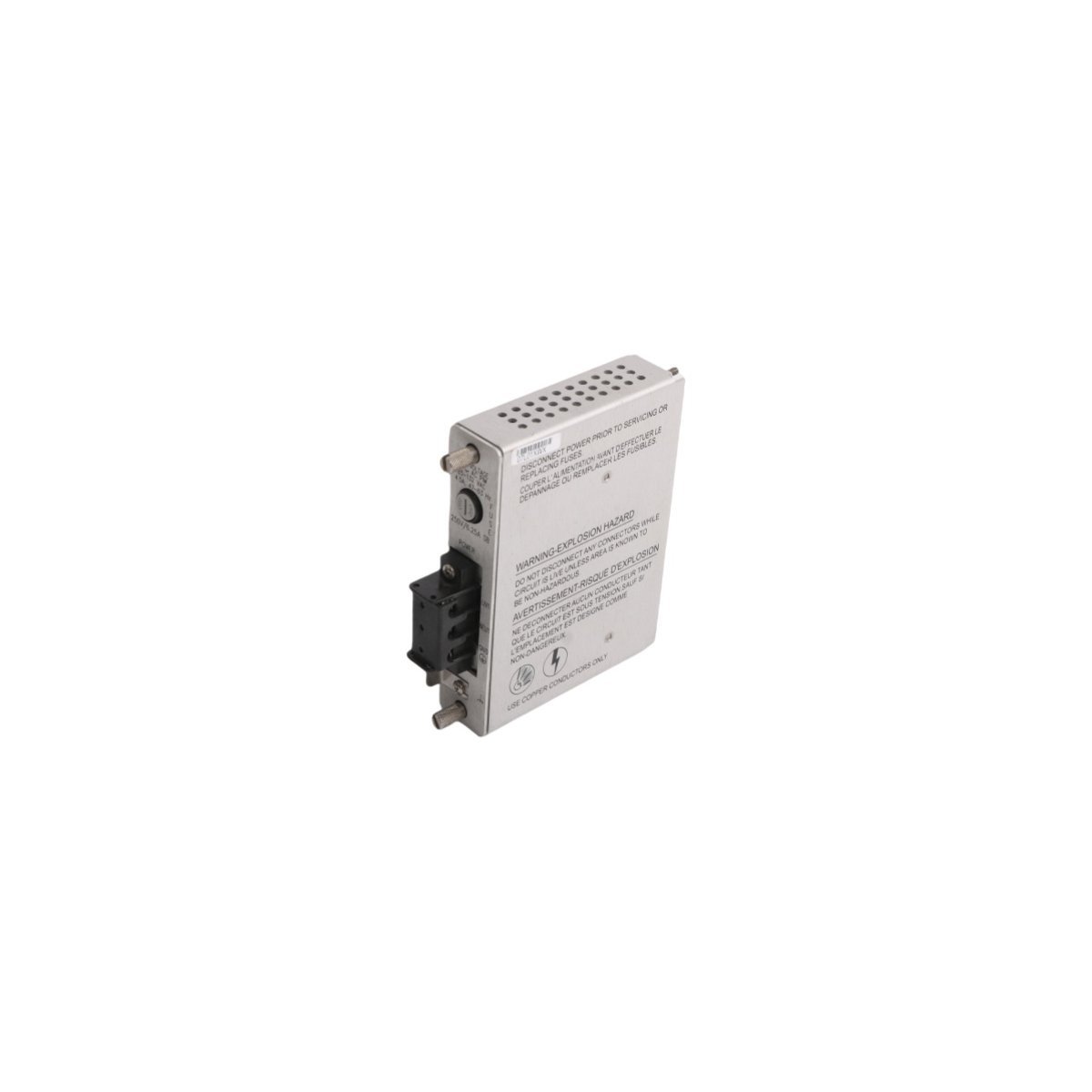

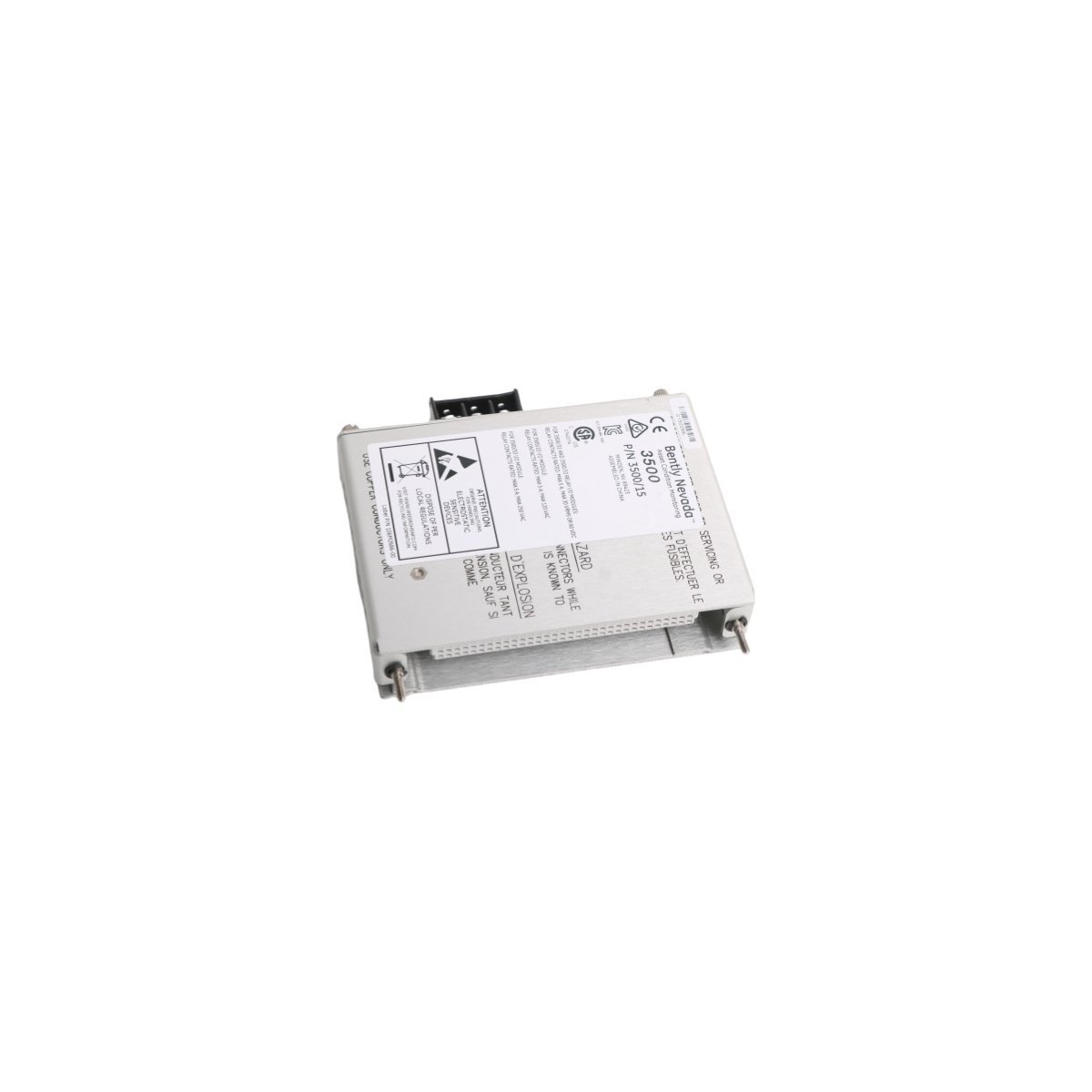

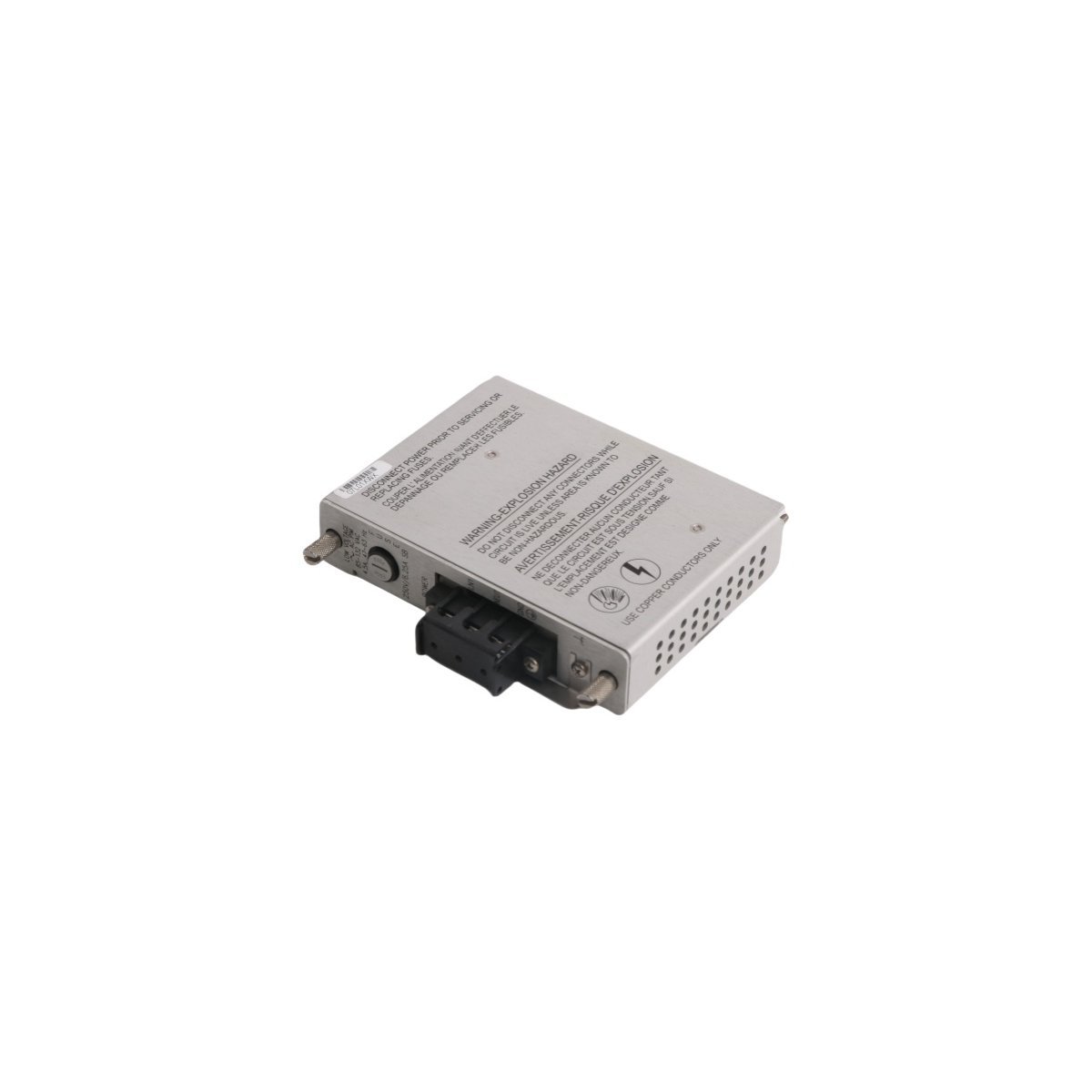

Bently Nevada 125840-02 | 3500 Series Low Voltage AC Power Input Module

The Bently Nevada 125840-02 is a specialized Low Voltage AC Power Input Module (PIM) engineered specifically for the 3500 Machinery Protection System. This critical component serves as the primary interface between your industrial power source and the 3500 system’s internal power supply modules. Because it handles input voltages ranging from 85 to 132 VAC, it provides the versatility needed for diverse global power grids. The module effectively filters and manages incoming power to ensure that sensitive monitoring electronics remain protected from electrical noise. Moreover, its robust industrial-grade construction guarantees long-term operational stability in the high-vibration environments typical of large rotating machinery. Consequently, this power input module is an essential anchor for any Turbine Supervisory Instrumentation (TSI) setup requiring maximum uptime.

Precision and reliability are non-negotiable when protecting multi-million dollar assets like turbines, compressors, and large industrial pumps. This module employs advanced shielding and high-grade materials to maintain superior resistance to harsh environmental conditions and electromagnetic interference. Furthermore, the compact design allows for seamless integration into the rear of a 3500 rack without complicating cabinet cable management. Although the 3500 system is a complex architecture, the 125840-02 simplifies power distribution by providing a stable and regulated input path. Therefore, utilizing this original Bently Nevada module is the most effective way to ensure consistent performance over extended operational periods. Investing in this genuine component empowers operators to focus on data-driven decisions rather than worrying about power-related system failures.

​Technical Specifications

Typical Applications & System Integration

The 125840-02 is a staple in high-stakes industries where machinery protection is a fundamental requirement for plant safety. For instance, it is widely utilized in thermal power plants to power the monitoring systems of steam and gas turbines. In addition, petrochemical refineries rely on this module to ensure that critical compressors are constantly monitored for vibration and displacement. Because it integrates directly into the 3500 rack, it supports unified power management across all vibration transducer and communication modules. Therefore, this power input module serves as the primary safety layer for any facility utilizing Bently Nevada for machinery protection.

Frequently Asked Questions (FAQ)

Can the 125840-02 be used in a high-voltage AC environment?

No, this module is rated specifically for low voltage (85-132 VAC); for 220 VAC applications, you must use the High Voltage PIM variant.

Does this module include the power supply itself?

This is the Power Input Module (PIM) that mounts to the back of the rack; it works in conjunction with the internal power supply module.

Is it possible to hot-swap this module during system operation?

While many 3500 modules are hot-swappable, you should always consult the 3500 system manual regarding power input components to prevent rack-wide shutdowns.

What is the benefit of the HS Code 8537101190 for international shipping?

This code classifies the module as a standard electrical control apparatus, which simplifies customs clearance for global industrial spare parts distribution.
