Description

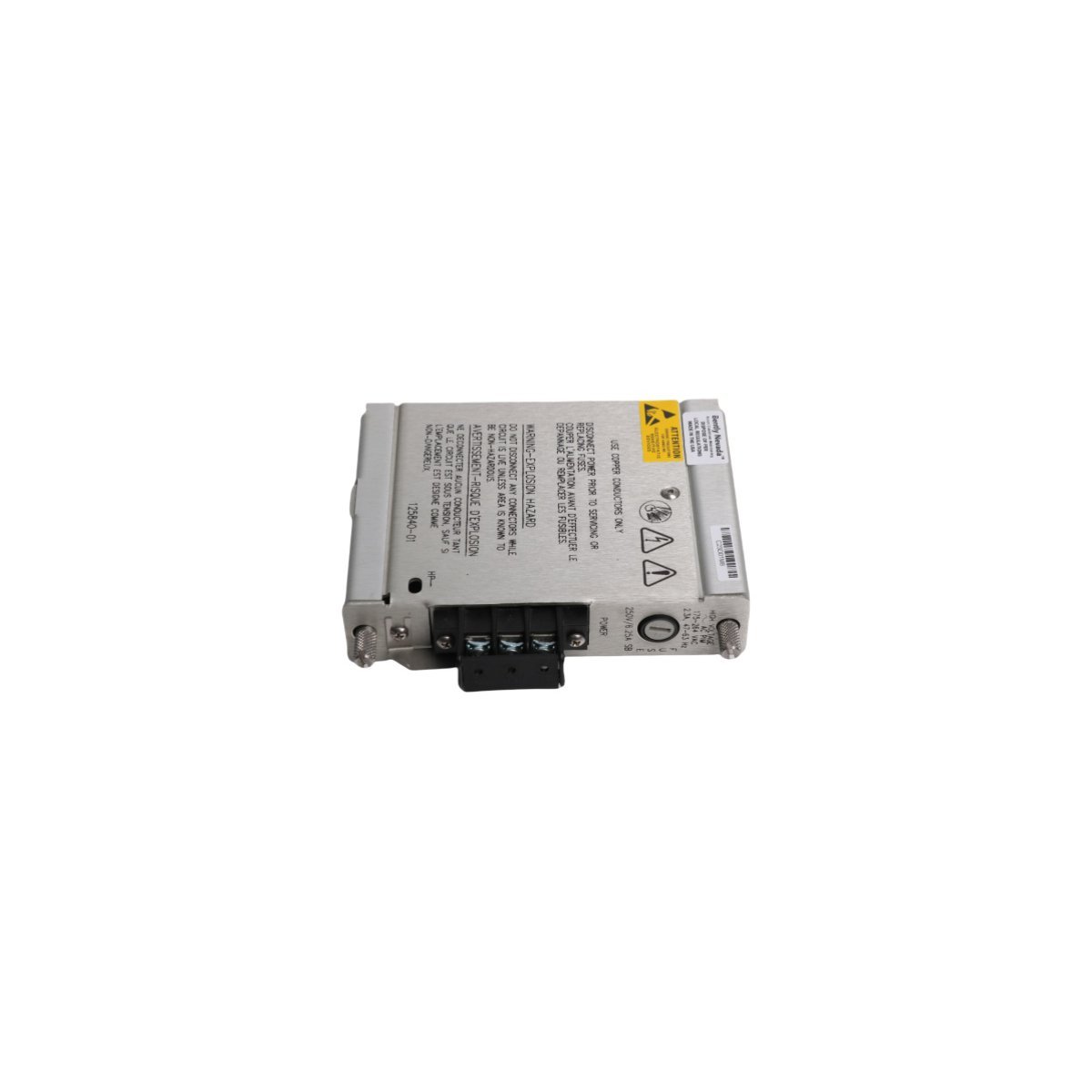

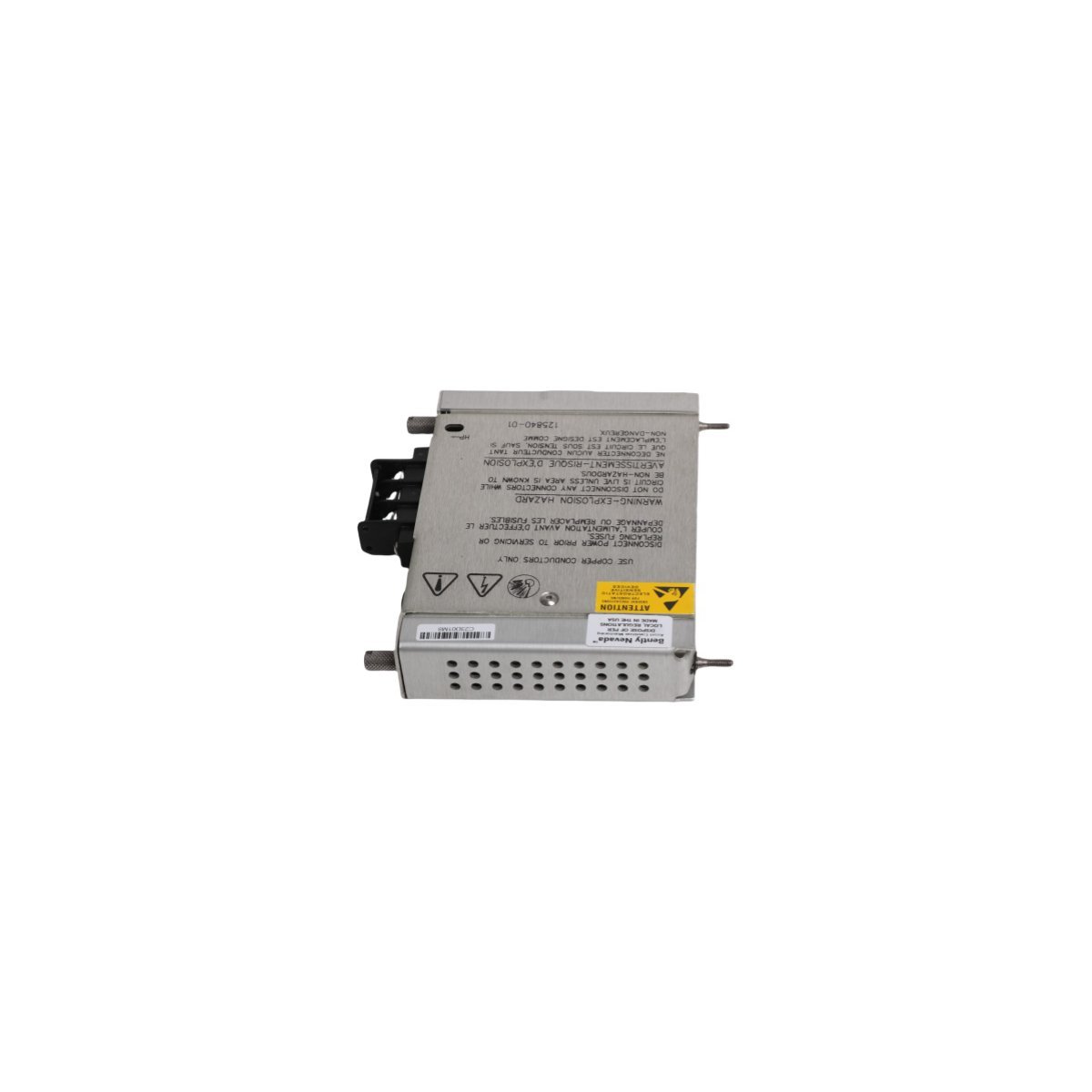

Bently Nevada 125840-01 High Voltage AC Power Input Module (3500/15 PIM)

The Bently Nevada 125840-01 operates as the essential electrical gateway for the 3500 Series Machinery Protection System. This specific Power Input Module (PIM) manages high-voltage alternating current (AC) entry. It installs into the rear portion of the 3500 rack, directly behind the power supply. The module accepts external line power and conditions it before distribution to the internal chassis components. Because it provides a filtered connection point, it protects the monitoring system from raw grid fluctuations. This ensures that critical monitoring tasks, such as turbine vibration analysis and asset protection, continue without interruption.

Surge Suppression and Environmental Resilience

Industrial power environments often suffer from electrical noise and voltage spikes. To combat this, the 125840-01 incorporates high-performance filtering hardware to suppress electromagnetic interference (EMI). These components block incoming surges and prevent data corruption within the rack’s sensitive processing cards. Furthermore, the module features a resilient thermal architecture designed for harsh plant conditions. It functions effectively in unheated cabinets and high-temperature equipment rooms alike. By adhering to rigorous UL, CE, and CSA safety standards, the module provides a reliable power foundation for global industrial facilities.

Technical Specifications

• Brand: Bently Nevada (Baker Hughes)
• Part Number: 125840-01
• Product Type: High Voltage AC Power Input Module
• Compatible System: 3500 Series Rack
• Input Voltage Requirement: 175 to 250 Vac
• Frequency Support: 47 to 63 Hz
• Physical Profile: Half-height rear-mount architecture
• Operational Temperature: -30 °C to +65 °C (-22 °F to +149 °F)
• Storage Temperature Range: -40 °C to +85 °C (-40 °F to +185 °F)
• Regulatory Compliance: ISO 9001, UL, CE, CSA
• Net Weight: 0.30 kg (0.66 lbs)
• Module Dimensions: 2.6 cm x 12.0 cm x 12.0 cm

System Availability and Redundant Configurations

Reliability engineers often utilize the 125840-01 to establish redundant power architectures. When a rack contains two Power Input Modules, the system can draw from separate AC sources simultaneously. If one power feed fails, the active failover mechanism maintains system operation with zero latency. This capability is vital for mission-critical operations in refineries, power stations, and chemical plants where a monitoring blackout could lead to safety risks. Additionally, the terminal block design facilitates fast field wiring and simplifies component swaps during routine maintenance. By using this genuine Bently Nevada module, operators preserve the integrity of their machine protection loops.

Frequently Asked Questions

Does this module support 24 Vdc power sources?

This module does not support DC power. The 125840-01 is built exclusively for high-voltage AC inputs (175-250 Vac). Connecting a DC source to this module will prevent the system from powering up and may cause damage. For DC applications, please use the 125840-02 or 125840-04 variants.

Where exactly is this module installed in the 3500 rack?

The 125840-01 is a rear-access module. It mounts into the back of the 3500 chassis in the slot corresponding to the 3500/15 Power Supply. This allows for a clean separation between high-voltage field wiring at the back and low-voltage logic monitoring at the front.

How does this PIM protect against electrical line noise?

The module contains integrated line filters that neutralize high-frequency noise and electromagnetic interference. This conditioning ensures that the power entering the DC conversion stage is stable, which prevents “ghost” alarms and protects internal microprocessors from premature wear.

Is external circuit protection required for the 125840-01?

While the PIM manages internal filtering, Bently Nevada recommends installing external fuses or breakers on the AC supply line. This practice complies with most local electrical codes and provides a necessary safety disconnect point for technicians during maintenance.
