Description

Brief Product Description

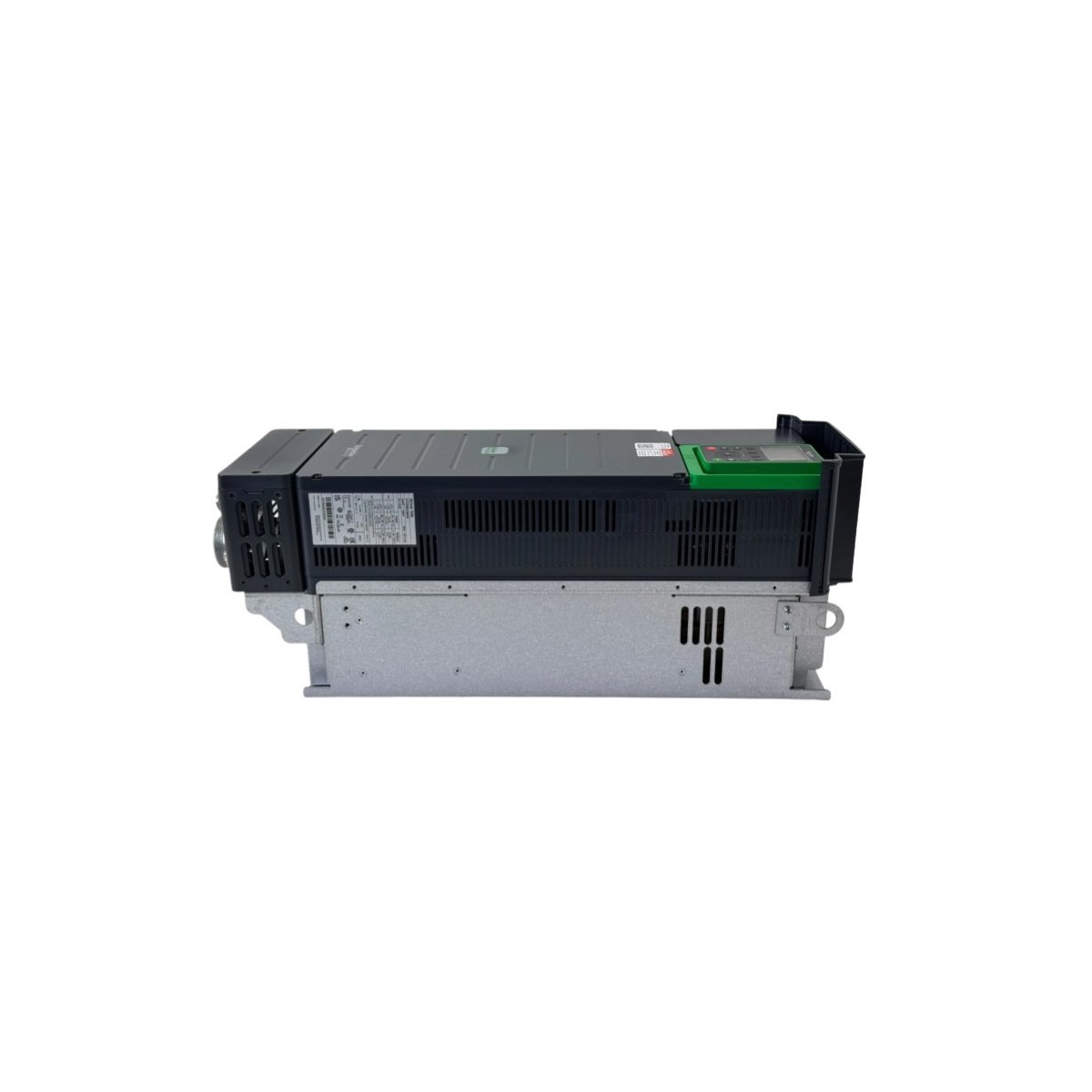

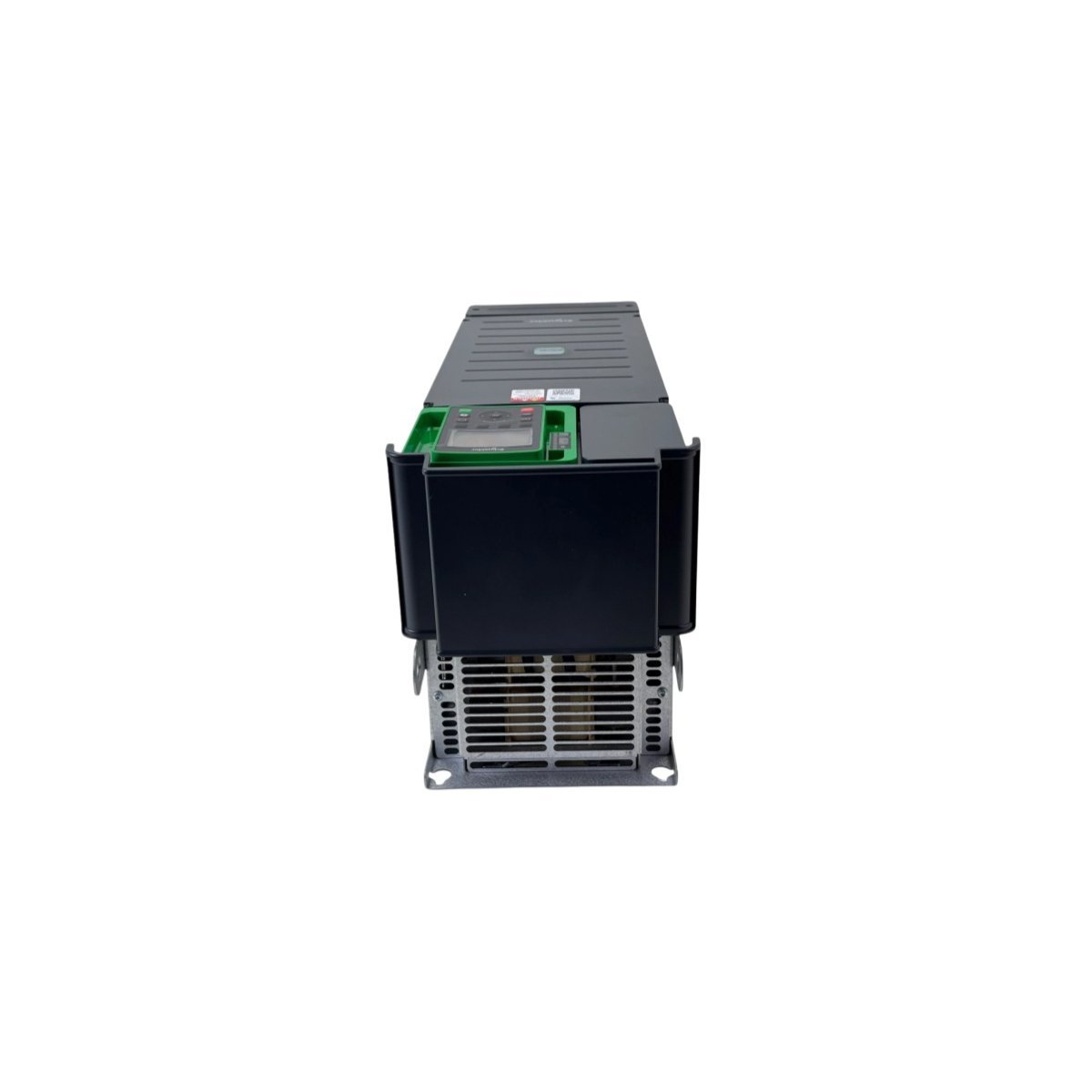

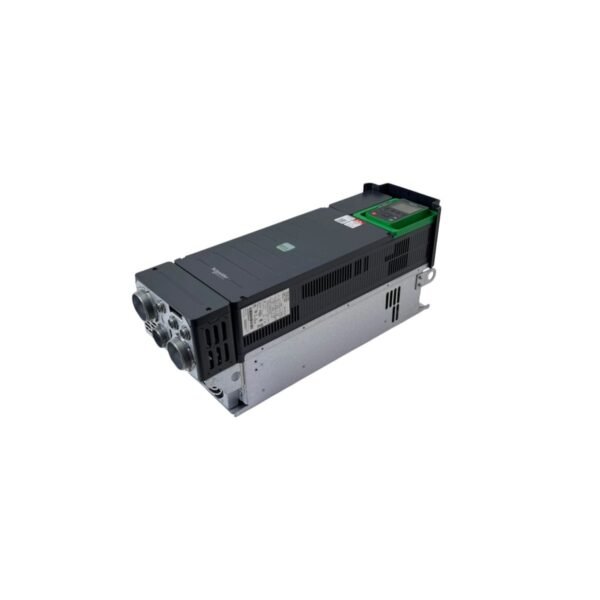

The Schneider Electric ATV930D30N4 is a high-performance 30 kW (40 HP) variable speed drive designed for the complex demands of process industrial applications. This Altivar Process 900 series unit provides advanced motor control and integrated intelligence for synchronous and asynchronous motors in 380V to 480V environments.

Product Description

High-Performance Process Control

The Schneider Electric ATV930D30N4 belongs to the Altivar Process ATV900 family, specifically engineered to optimize the performance of heavy-duty industrial assets. This variable speed drive excels at managing 30 kW (40 HP) motors, supporting a continuous overload capacity of up to 120%. By utilizing sophisticated motor control algorithms, the drive ensures maximum torque and precision for both synchronous and asynchronous motors. It specifically addresses the needs of critical infrastructures, such as water treatment facilities, mining operations, and oil and gas refineries, where operational reliability directly impacts the bottom line.

Intelligence and Network Resilience

Advanced digital integration sets the ATV930D30N4 apart from standard motor controllers. The drive features an embedded web server and comprehensive data logging capabilities, which empower maintenance teams to perform proactive diagnostics and rapid troubleshooting. Furthermore, the system includes native network services that preserve operational continuity; even if a communication link fails, the drive maintains its control logic to prevent sudden process stops. This “intelligence at the edge” reduces the risk of unplanned downtime and enhances the overall efficiency of complex automated systems.

Seamless Automation Integration

The ATV930D30N4 offers native connectivity via dual-port EtherNet/IP and Modbus TCP protocols, ensuring easy embedding into PLC architectures and SCADA systems. This connectivity provides engineers with deep visibility into motor health and energy consumption. Physically, the drive supports vertical wall-mounting with an IP21 protection rating, making it suitable for standard electrical rooms. The integrated braking unit and support for master/slave configurations further extend its utility in high-inertia applications that require synchronized movement or rapid deceleration.

Technical Specifications
