Product Overview

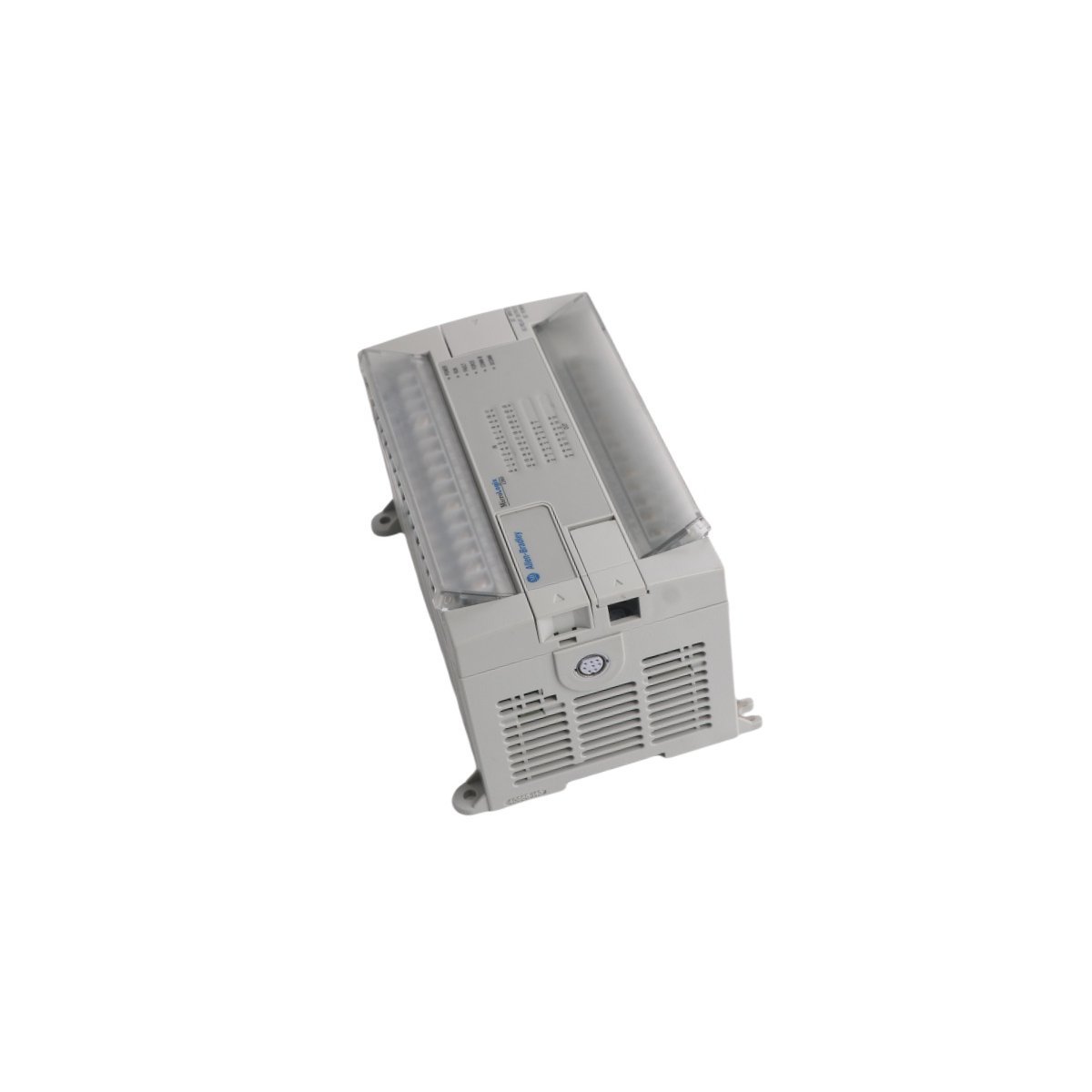

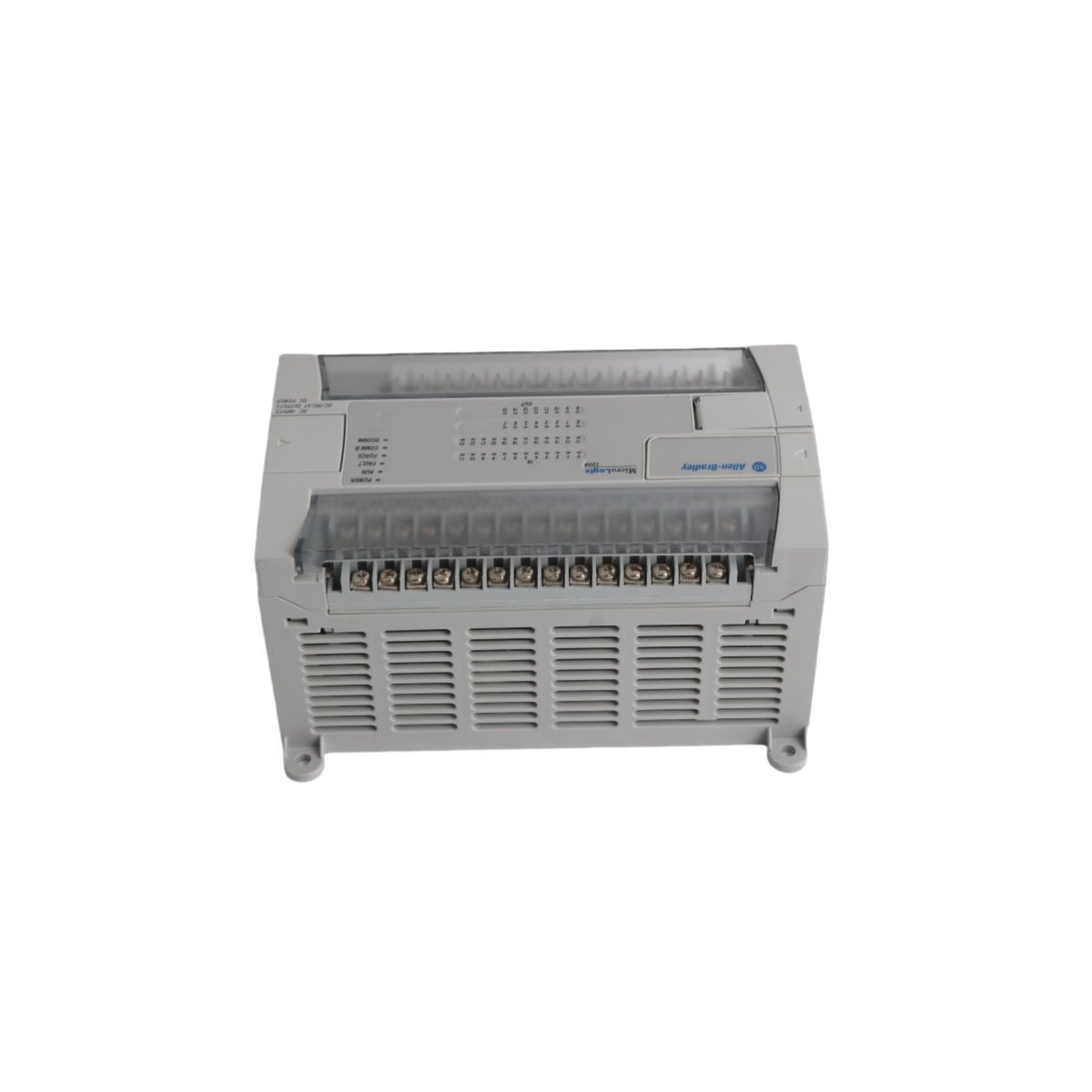

The Allen-Bradley 1761-L16BWB is a high-performance MicroLogix 1000 programmable logic controller engineered to provide sophisticated control in a space-saving form factor. This unit serves as a powerful replacement for traditional relay-based logic, offering 10 digital inputs and 6 relay outputs to streamline small-scale industrial automation.

Efficient Digital and Analog Processing

The 1761-L16BWB manages complex tasks through a balanced mix of I/O capabilities. It operates on a 24V DC power supply and utilizes ten 24V DC sink/source digital inputs alongside six robust relay outputs. Each relay point supports a continuous current of 2.0 Amps, allowing the controller to drive solenoids, motor starters, and indicators directly. Furthermore, this specific model incorporates high-speed response times of approximately 10 ms for digital switching. While primarily known for digital control, the internal architecture supports precise data handling through 16-bit signed integers, ensuring compatibility with various monitoring requirements in HVAC, water treatment, and general machinery control.

Reliable Memory and Communication Architecture

Rockwell Automation equipped the 1761-L16BWB with 1 KB of non-volatile EEPROM memory, which securely stores up to 737 instruction words. This onboard storage ensures that the user program remains intact even during a total loss of power, eliminating the need for battery maintenance. To facilitate seamless integration into broader factory networks, the controller features an RS-232 communication port. This port supports multiple protocols, including DF1 for point-to-point links and DH-485 for networked configurations. By using standard programming cables like the 1761-CBL-PM02, engineers can quickly interface the PLC with Human Machine Interfaces (HMIs) or SCADA software for real-time data visualization.

Versatile Application and Implementation

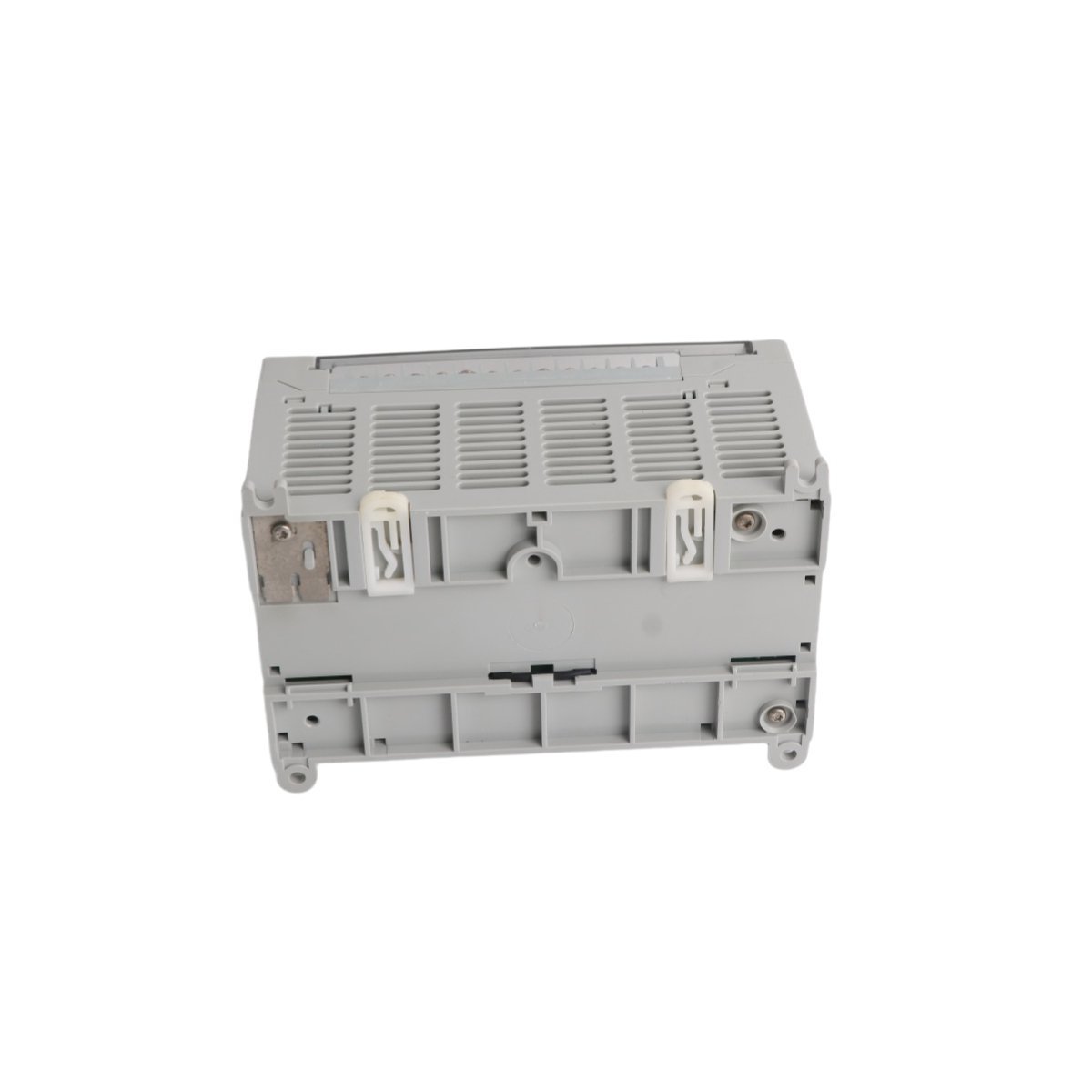

The compact physical footprint of the MicroLogix 1000 makes it an ideal choice for localized control panels where mounting space is at a premium. Beyond standard DIN rail mounting, the 1761-L16BWB supports the MicroLogix 1000 Hand-Held Programmer, which allows technicians to perform on-site troubleshooting and program modifications without a laptop. Its proven reliability in harsh environments makes it a staple for secondary control loops in larger facilities or as the primary processor for standalone machine automation.
