Description

Brief Product Description

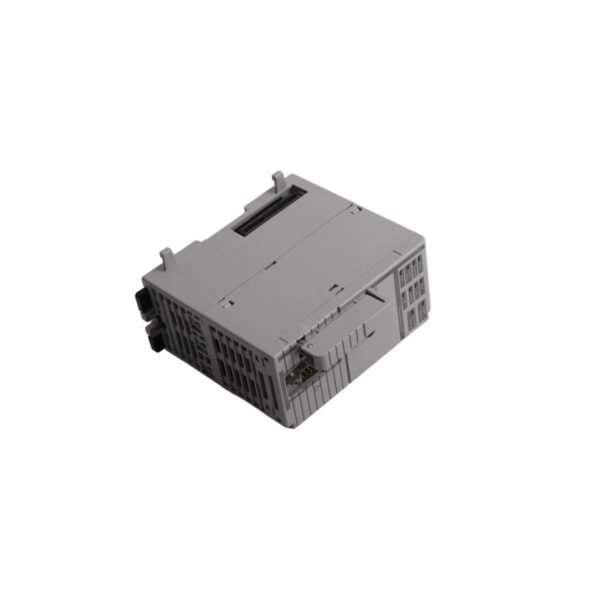

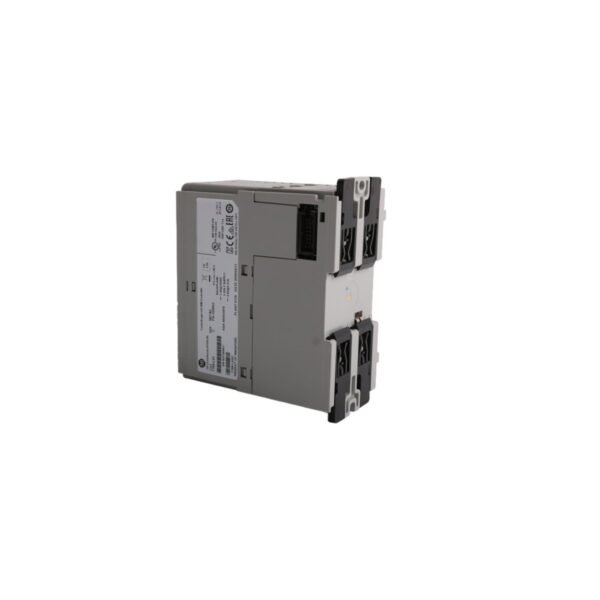

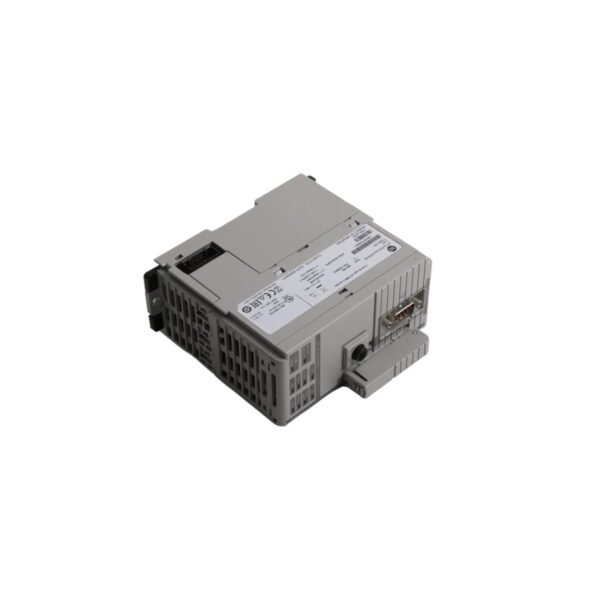

The Allen-Bradley 1768-L43 is a high-performance CompactLogix processor designed for integrated motion and complex automation tasks.² It features 2MB of user memory and supports high-speed 1768 backplane modules alongside standard 1769 I/O expansion.³

Product Description

Advanced Motion Control Capabilities

The Allen-Bradley 1768-L43 functions as the central processing hub for the CompactLogix L4x system, specifically targeting applications that require coordinated motion control. By utilizing the 1768 backplane, this controller manages high-speed motion axes and communication modules that exceed the capabilities of standard 1769-based processors. This module effectively bridges the gap between small-scale micro controllers and large-scale chassis-based systems, providing a cost-effective solution for mid-range machinery and assembly lines. Consequently, engineers can implement precise synchronization and multi-axis movement within a compact footprint.

Memory Architecture and Data Integrity

Equipped with 2MB of built-in user memory, the 1768-L43 accommodates sophisticated program logic and extensive data tagging.⁴ To ensure long-term reliability and easy maintenance, the unit supports optional CompactFlash cards for non-volatile storage and rapid program transfers.⁵ The processor also features a front-mounted RS-232 serial port for direct peripheral connectivity and local programming.⁶ Because the system utilizes a dedicated power supply through the 1768 bus, it maintains stable voltage levels across the backplane, even when supporting the maximum load of sixteen 1769 I/O modules.

Industrial Flexibility and Programming

The 1768-L43 controller simplifies complex system design by supporting multiple IEC 61131-3 programming languages, including Ladder Diagram (LD), Structured Text (ST), and Function Block Diagram (FBD). This versatility allows developers to select the most efficient logic for specific tasks, such as PID loops or motion profiles. Furthermore, the front panel includes a secure key switch for manual mode selection and a comprehensive array of diagnostic LEDs. These status indicators provide immediate visual feedback regarding controller health, battery status, and I/O activity, which significantly accelerates troubleshooting during routine plant operations.
