Description

Brief Product Description

The Allen-Bradley 81001-451-63-R is a high-power electronics assembly consisting of a matched set of three Symmetrical Gate Commutated Thyristors (SGCT).³ Specifically engineered for PowerFlex 7000 drives, this 1500A rated module manages high-speed switching and phase balancing in heavy industrial motor control applications.

High-Capacity Switching for PowerFlex 7000 Drives

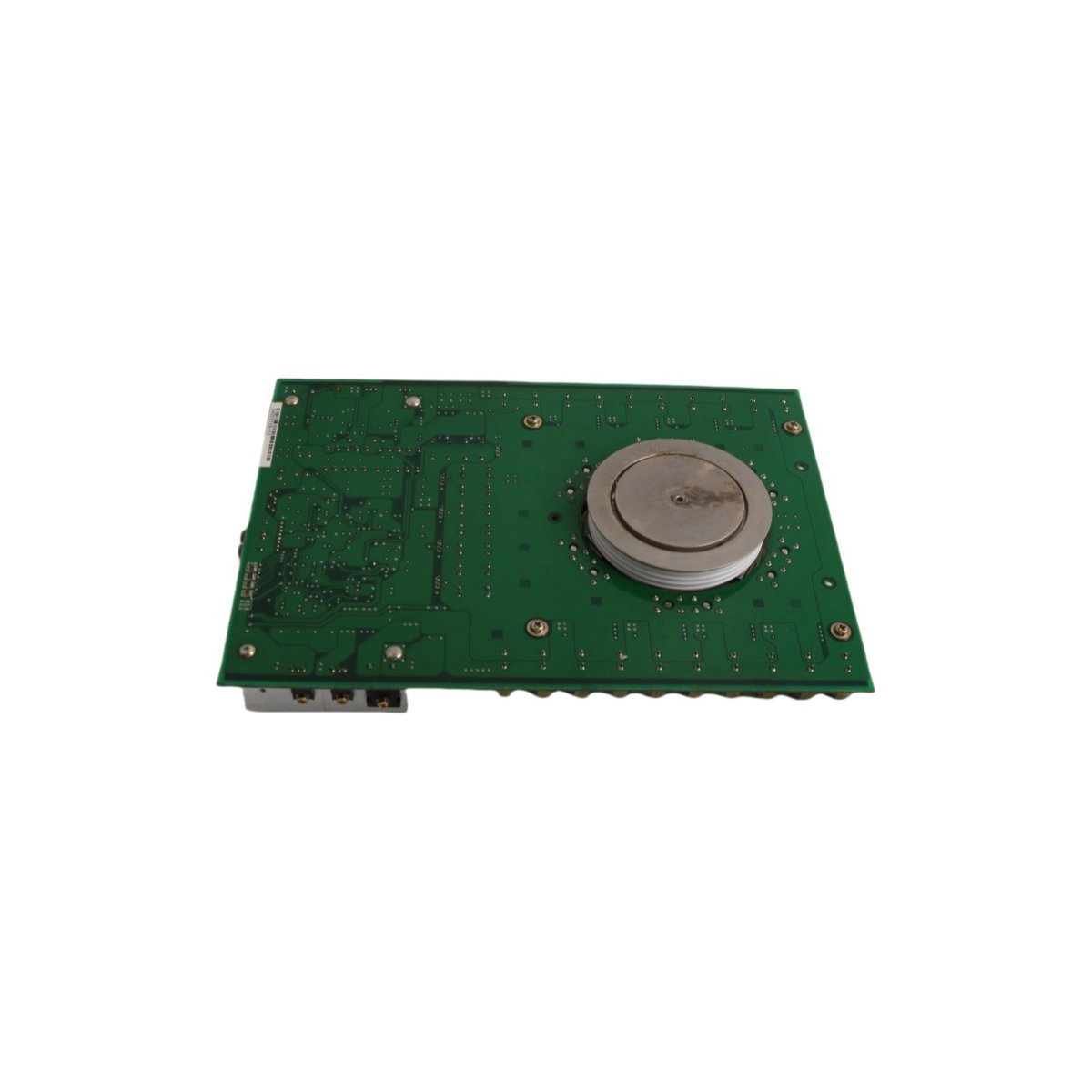

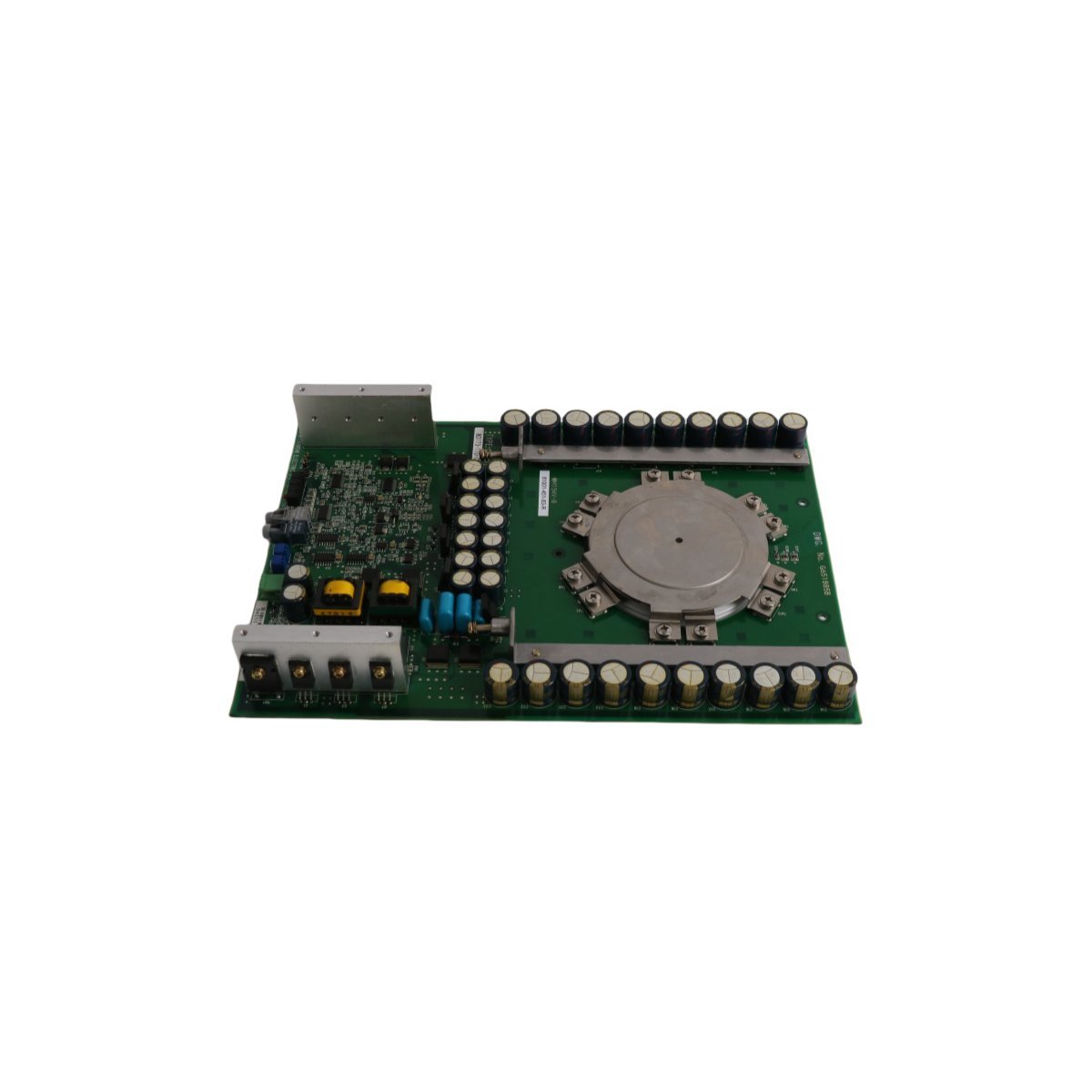

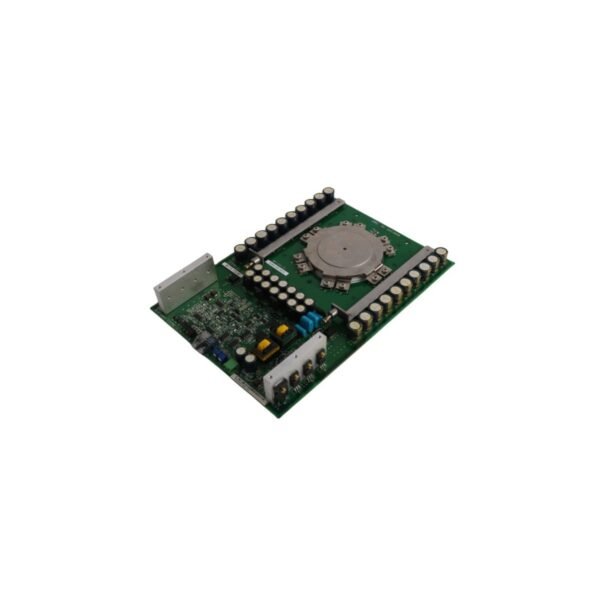

The Allen-Bradley 81001-451-63-R functions as a critical power switching component within the PowerFlex 7000 medium voltage drive family. This circuit board assembly utilizes SGCT (Symmetrical Gate Commutated Thyristor) technology to handle demanding 1500 amp industrial loads.⁴ By integrating three matched components into a single functional set, the module ensures precise synchronization across all electrical phases. This design choice prevents phase imbalance, which is vital for protecting large-scale motors and ensuring smooth torque delivery. Consequently, heavy-duty industries rely on this module to maintain the operational integrity of their most power-intensive machinery.

Engineered Phase Stability and Power Control

Precision and balance define the technical objective of the 81001-451-63-R PCB. Because high-power motor control requires uniform switching characteristics, Rockwell Automation designed these boards as a matched set to eliminate timing variances between phases. This coordination optimizes the power conversion process and reduces harmonic distortion within the drive system. Furthermore, the robust architecture of the board supports high-frequency switching even in electrically noisy environments. Although the manufacturer transitioned this specific model to a discontinued status in late 2016, it remains a vital asset for maintaining legacy medium-voltage infrastructure. The successor model, 81001-451-83-R, continues this lineage by offering enhanced compatibility for modern system upgrades.

Lifecycle Management and Legacy Support

Maintaining legacy PowerFlex systems requires access to high-quality power electronics like the 81001-451-63-R. While newer installations utilize updated variants, many existing plants continue to depend on the reliable 1500A switching capabilities of this original PCB set. The module’s compact dimensions and specialized mounting facilitate straightforward replacement during scheduled maintenance intervals. Transitioning to the recommended replacement variant is often necessary for long-term system modernization; however, the 81001-451-63-R still represents a high-standard solution for immediate repair needs. This ensures that critical operations in sectors like mining, oil and gas, and heavy manufacturing can sustain productivity without the immediate need for a total system overhaul.

Key Technical Characteristics

• Matched Set Configuration: Includes three synchronized SGCT components to ensure perfectly balanced phase switching.
• 1500A High-Current Rating: Designed specifically for heavy-duty medium voltage drive applications.⁵
• SGCT Technology: Provides superior high-speed switching performance for industrial motor control.
• PowerFlex 7000 Compatibility: Serves as a direct-fit component for the PowerFlex 7000 series drive architecture.⁶
• Precise Thermal Management: Optimized board layout facilitates efficient heat dissipation during high-current operations.
• Legacy Integration: Supports the continued operation of existing industrial drives with proven power electronics technology.

Technical Specifications
