Description

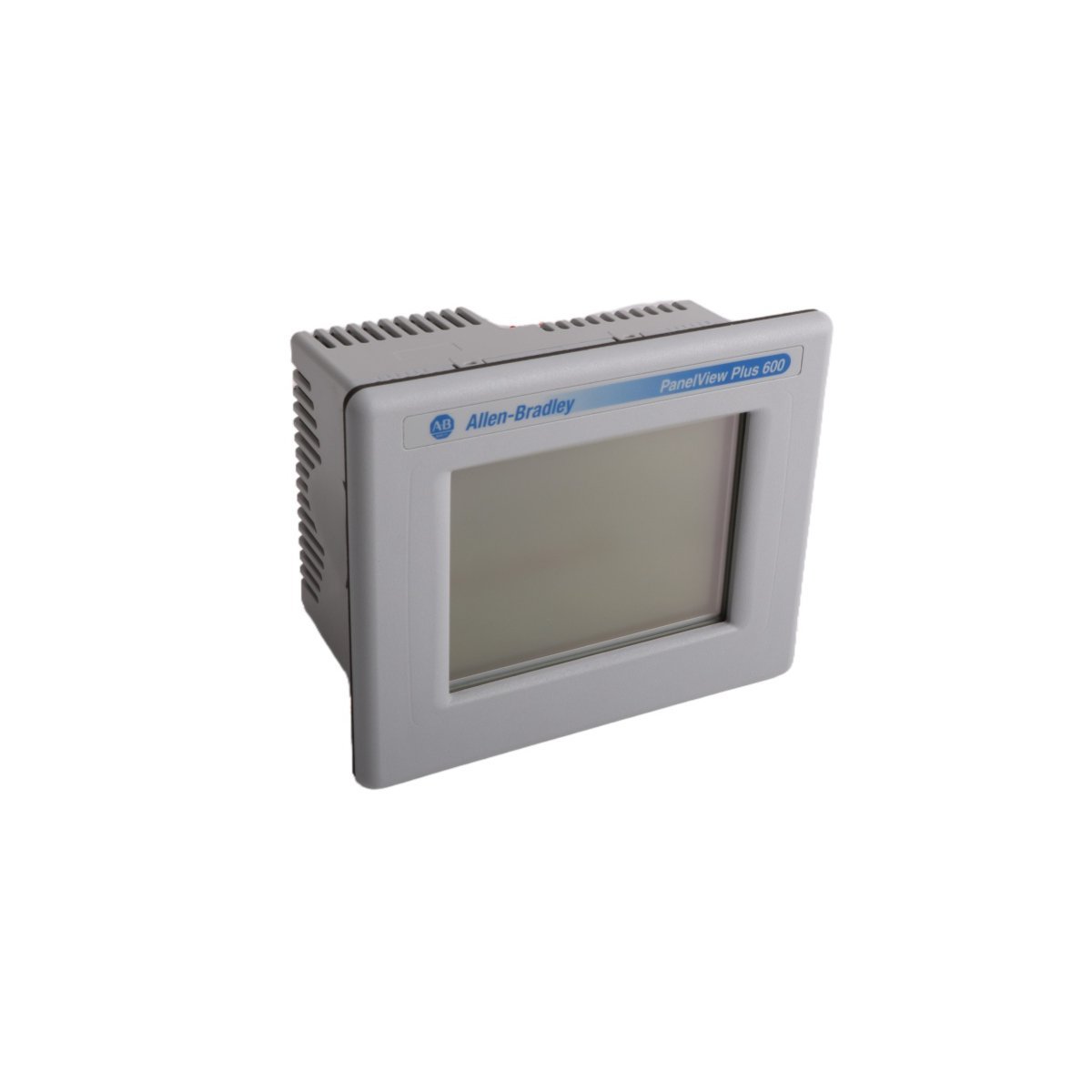

The Allen Bradley 2711P-T6M5D8 serves as a specialized human-machine interface for streamlined industrial applications. This 600 series terminal features a 5.7-inch monochrome TFT LCD screen. It utilizes 16-level grayscale to display process data with high contrast. Operators interact with the system via an analog resistive touchscreen. This touch interface supports up to one million actuations for long-term service. Furthermore, the 320 x 240 resolution provides sufficient clarity for essential machine diagnostics.

System Memory and Communication Architecture

This PanelView Plus 6 terminal contains 256MB of RAM for efficient runtime execution. It also includes 512MB of non-volatile storage for application files and logs. Users can expand storage capacity through an integrated SD card slot. For connectivity, the module provides a built-in RS-232 serial port. This port supports DF1 and DH-485 protocols for direct controller links. Additionally, the unit features USB host and device ports for external peripherals.

Power Requirements and Mechanical Design

The 2711P-T6M5D8 operates on a standard 24V DC input voltage range. Its compact hardware design facilitates easy integration into small control panels. The unit weighs approximately 0.58 kg and measures 21 x 13.6 x 4.4 cm. This lightweight construction simplifies the installation process for OEM equipment manufacturers. Moreover, the terminal maintains operational stability in diverse industrial environments. Its rugged front bezel protects internal electronics from typical factory floor hazards.
