Description

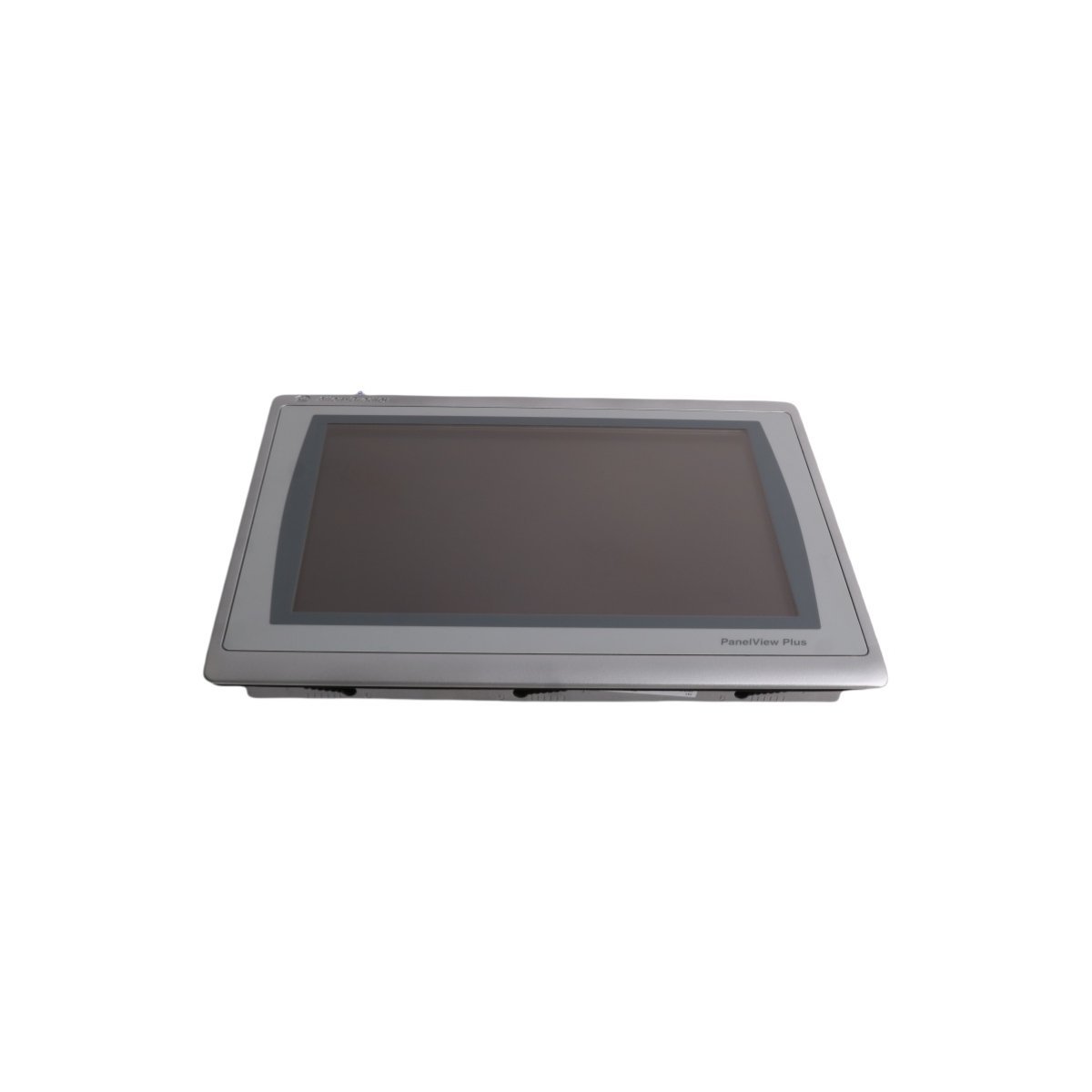

The Allen Bradley 2711P-T19C22D9P functions as a high-tier operator interface for complex industrial systems. This 19-inch widescreen terminal provides expansive space for detailed process monitoring. Its projected capacitive touch screen supports intuitive gestures for modern machine control. Consequently, operators can navigate sophisticated automation environments with significant precision. The high-resolution 1366 x 768 display ensures crisp graphics and clear data readouts.

Industrial Software and Operating Environment

This PanelView Plus 7 Performance model runs on the Windows 10 IoT Core platform. It executes FactoryTalk View Machine Edition (ME) software to manage local machine-level applications. The terminal handles high-speed data processing for real-time diagnostic reporting. Furthermore, the hardware supports various file viewers and remote desktop connections. These features allow maintenance teams to access critical documents directly at the machine.

Networking and System Connectivity

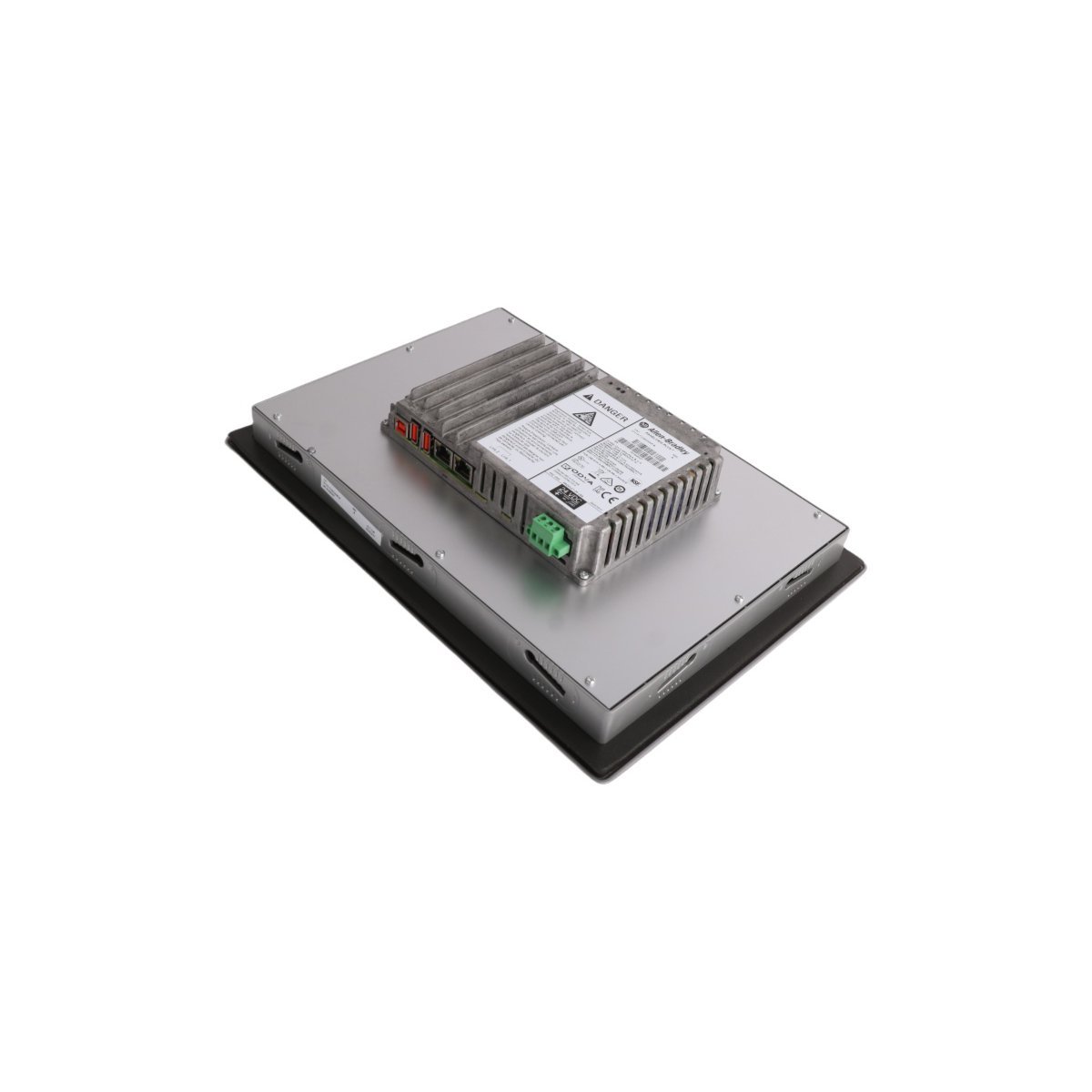

The 2711P-T19C22D9P features dual Ethernet ports to facilitate robust network communication. It supports Device Level Ring (DLR) topologies to ensure system resiliency during cable failures. The terminal connects effortlessly to CompactLogix and ControlLogix controllers via EtherNet/IP protocols. Because it supports premier integration, users can easily reference controller tags within the HMI project. This streamlined connectivity reduces engineering time and configuration errors.

Technical Specifications
