Description

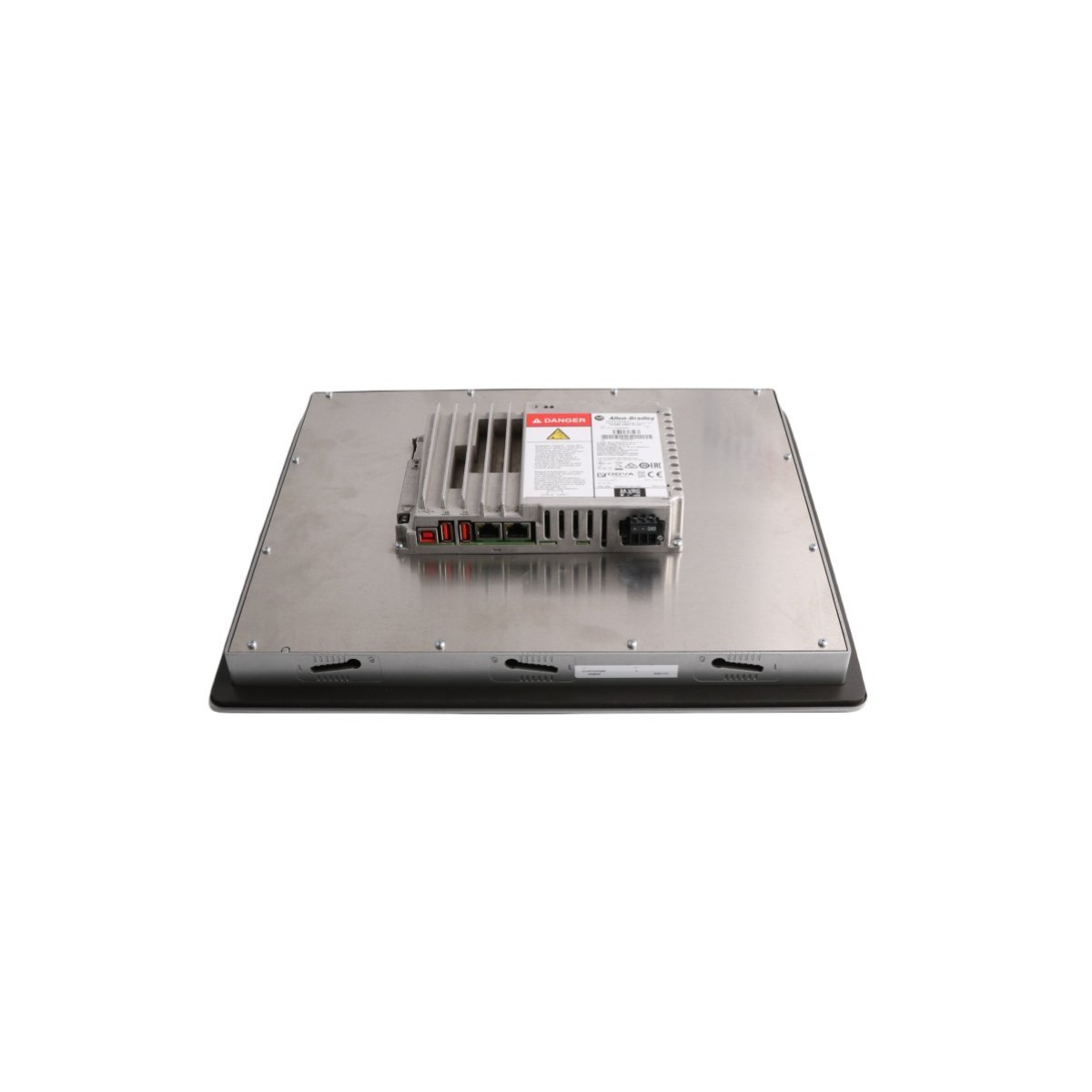

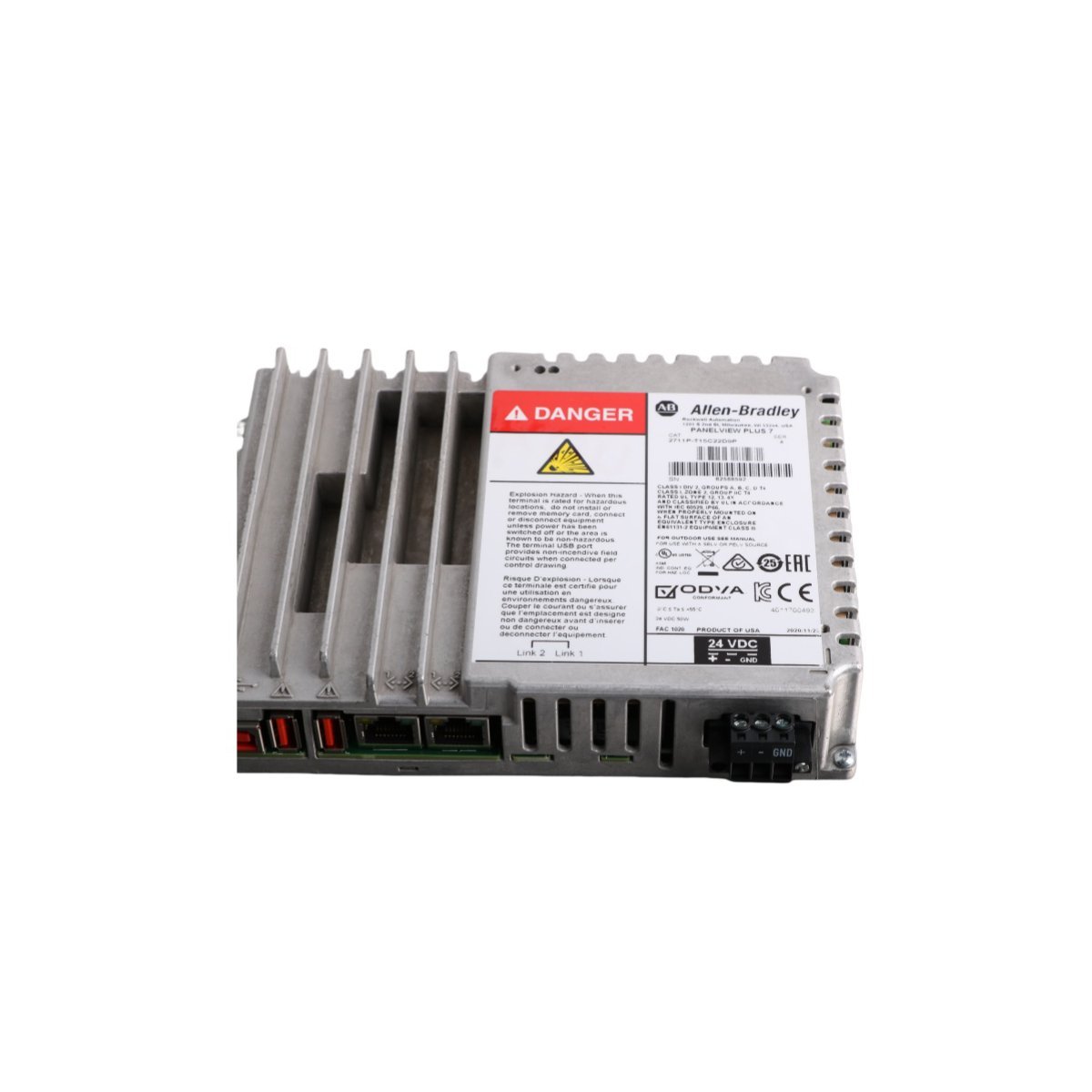

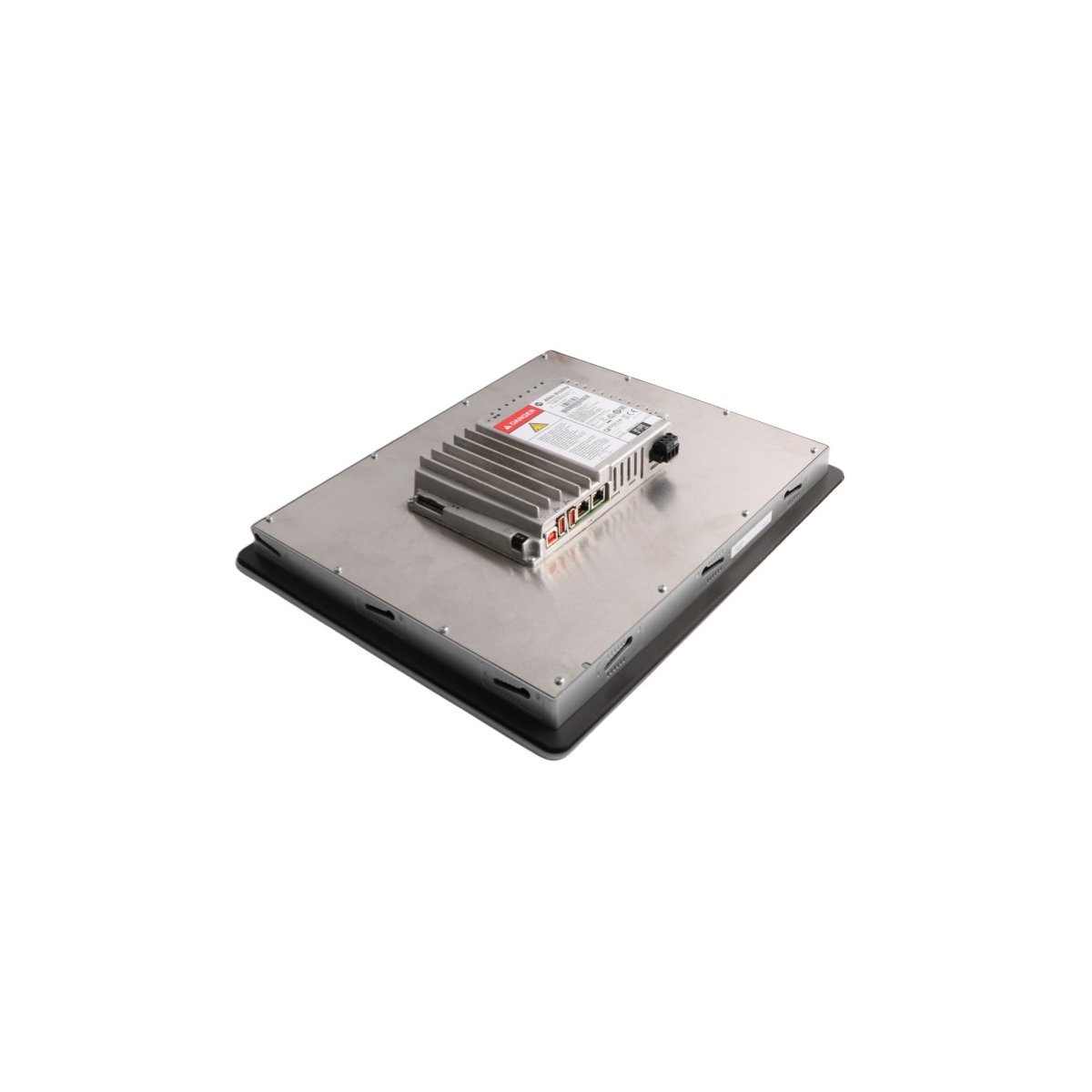

The Allen Bradley 2711P-T15C22D9P functions as a premier Human-Machine Interface for complex automation systems. This 15-inch color display provides crystal-clear visualization for monitoring critical plant operations. It integrates seamlessly with Logix-based controllers via high-speed EtherNet/IP connectivity. Furthermore, the terminal features a responsive resistive touchscreen for intuitive operator interaction. A powerful 1.5GHz dual-core processor drives the system to ensure smooth animation rendering. This hardware capability allows for rapid data refreshing across complex graphical displays. Consequently, operators can make faster decisions based on real-time process information.

Advanced Networking and System Flexibility

This PanelView Plus 7 Performance model supports sophisticated network configurations to enhance system uptime. It includes dual Ethernet ports to facilitate Device Level Ring (DLR) topologies. This feature provides a redundant path for data if a cable fails. Additionally, the terminal runs on the Windows 10 IoT Core operating system. This platform enables advanced functionalities such as remote desktop access and web browsing. Users can also view PDF manuals or office documents directly on the screen. Therefore, it serves as a multifunctional workstation rather than a simple display unit.

Rugged Design for Demanding Environments

The 2711P-T15C22D9P features a robust construction suitable for harsh industrial settings. Its front bezel carries an IP66 and NEMA 4X rating for superior protection. This rating ensures the unit resists high-pressure water jets and corrosive cleaning agents. Moreover, the sunlight-readable display maintains visibility even in high-ambient light conditions. The module also supports an SD card slot for quick program backup and restoration. This physical durability makes it ideal for food processing and chemical manufacturing plants. It continues to operate reliably in temperatures ranging from 0°C to 55°C.

Technical Specifications
