Description

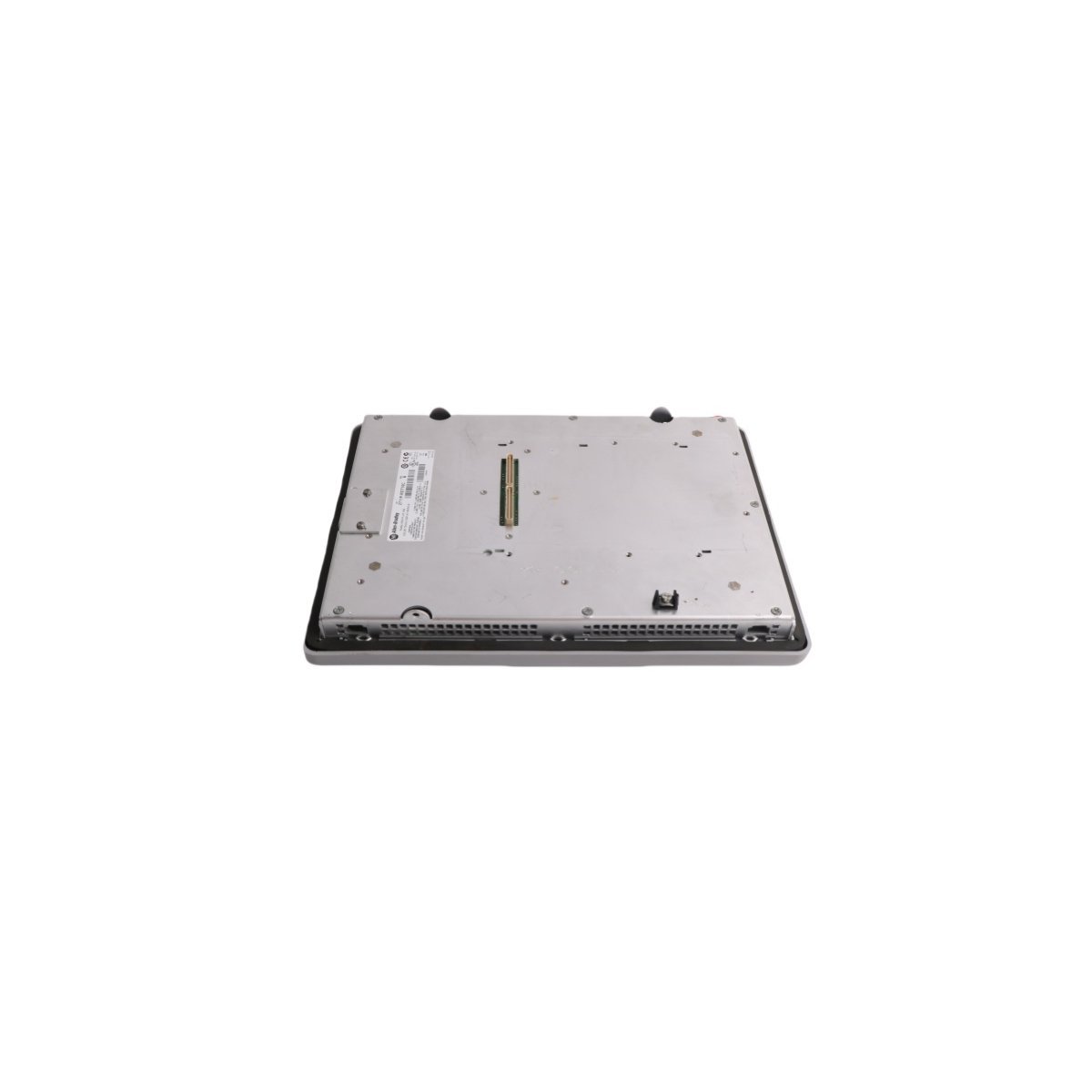

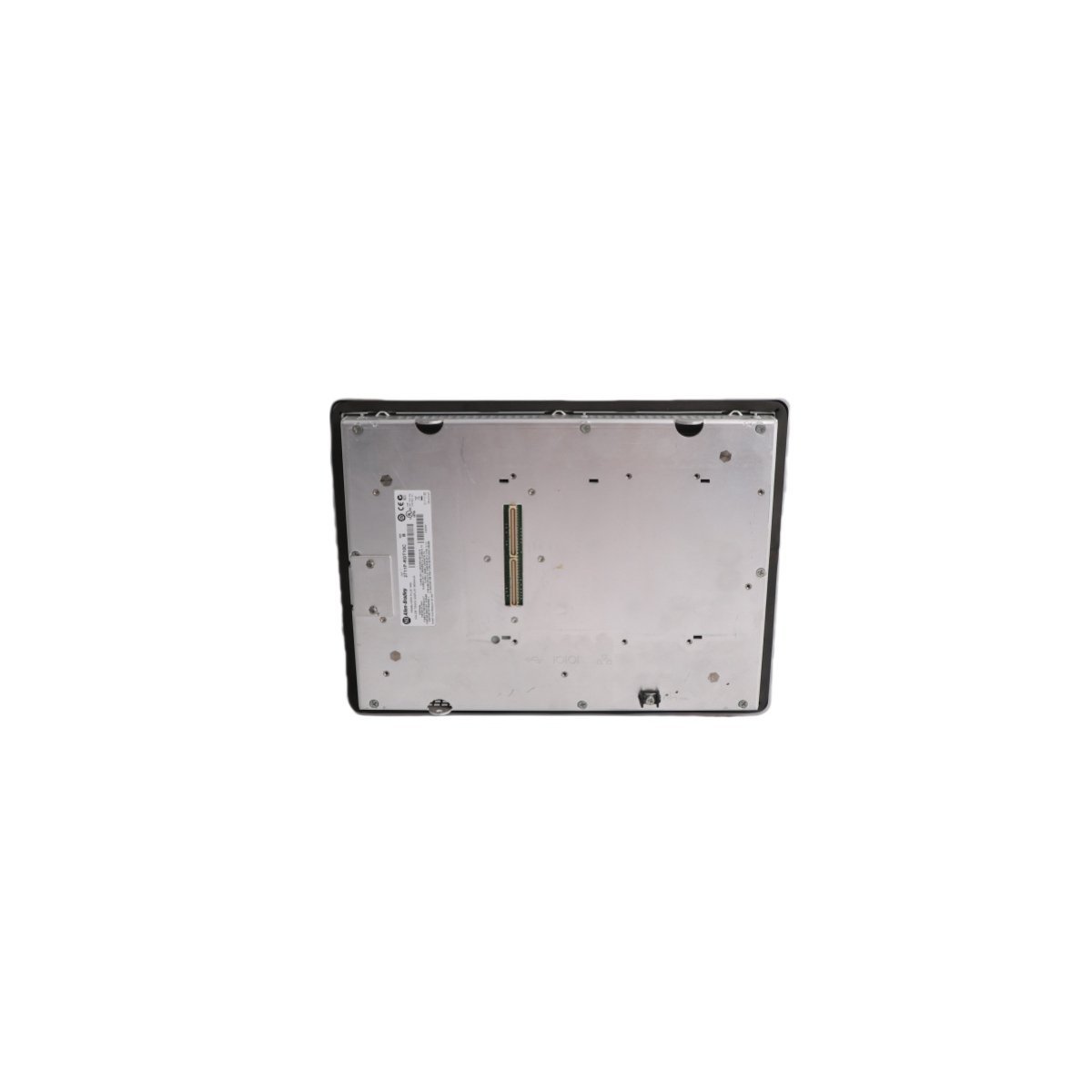

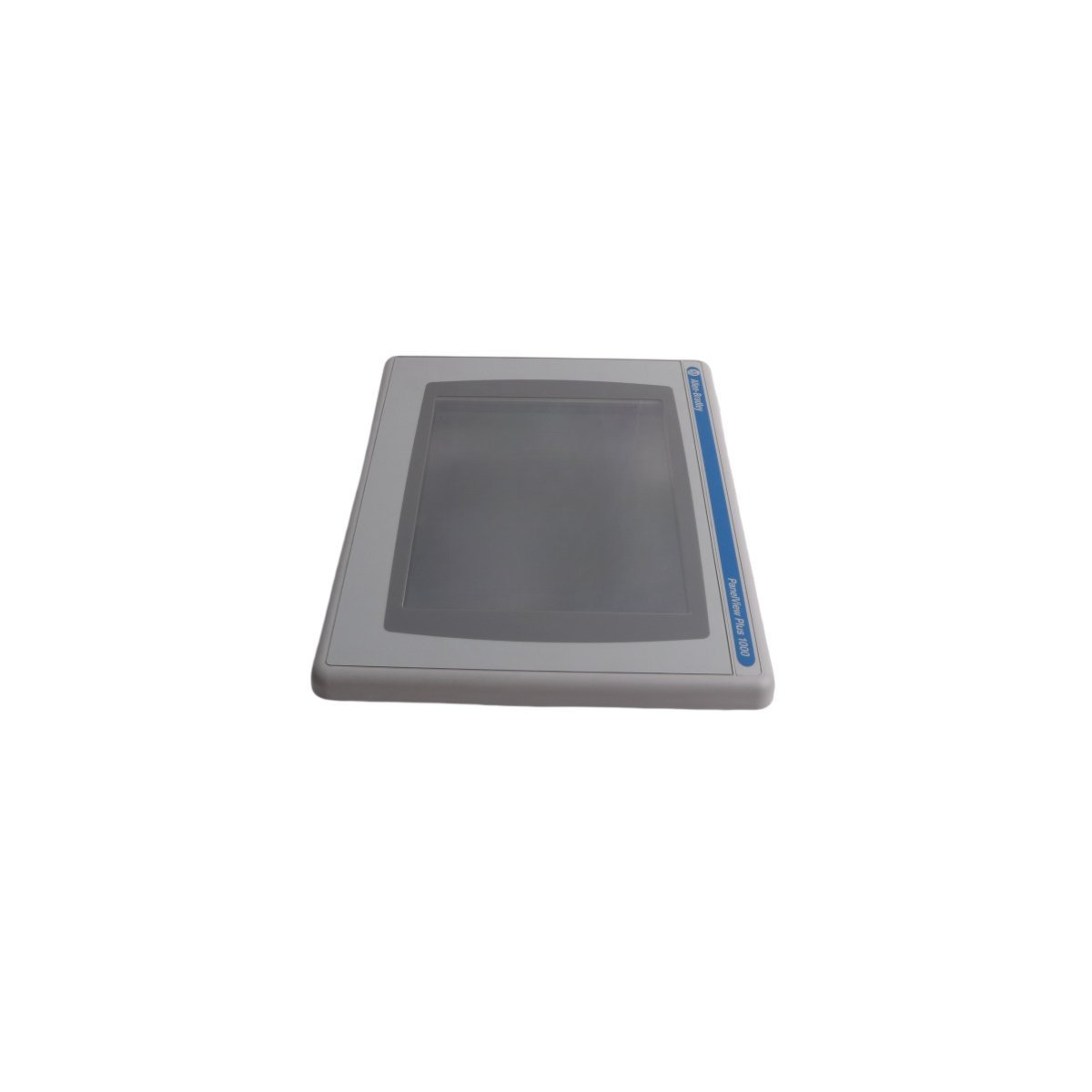

The Allen-Bradley 2711P-RDT10C serves as a primary HMI interface for the PanelView Plus 6 1000 series. This 10.4-inch color display module utilizes a high-resolution TFT liquid crystal screen. It provides operators with vivid data visualization for complex machine processes. Furthermore, the integrated analog resistive touchscreen allows for precise user input in industrial settings. This hardware ensures efficient interaction between personnel and automated control systems.

Hardware Integration and Operating System

This display module pairs seamlessly with PanelView Plus 6 logic modules. It relies on the Windows CE operating system to execute diverse automation software. The internal architecture supports high-speed data processing for real-time monitoring. Consequently, users experience smooth screen transitions and rapid response times. This combination of robust hardware and stable software optimizes overall system productivity.

Industrial Connectivity and Networking

The 2711P-RDT10C facilitates reliable communication through standardized Ethernet protocols. This interface allows the HMI to exchange critical data with PLCs and other network devices. Furthermore, the module supports centralized monitoring across large-scale manufacturing facilities. Its communication versatility makes it a versatile choice for modern industrial IoT infrastructures.

Technical Specifications
