Description

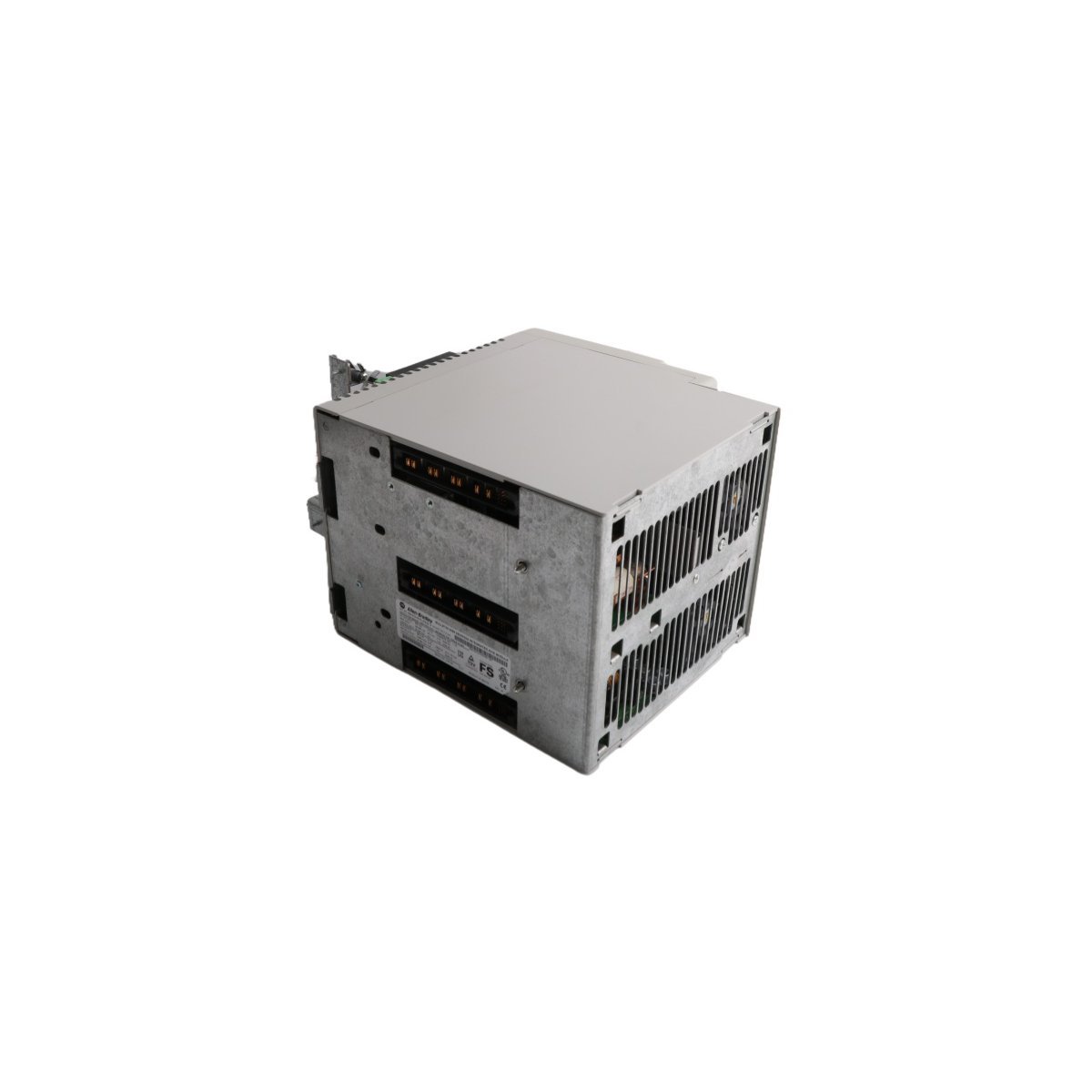

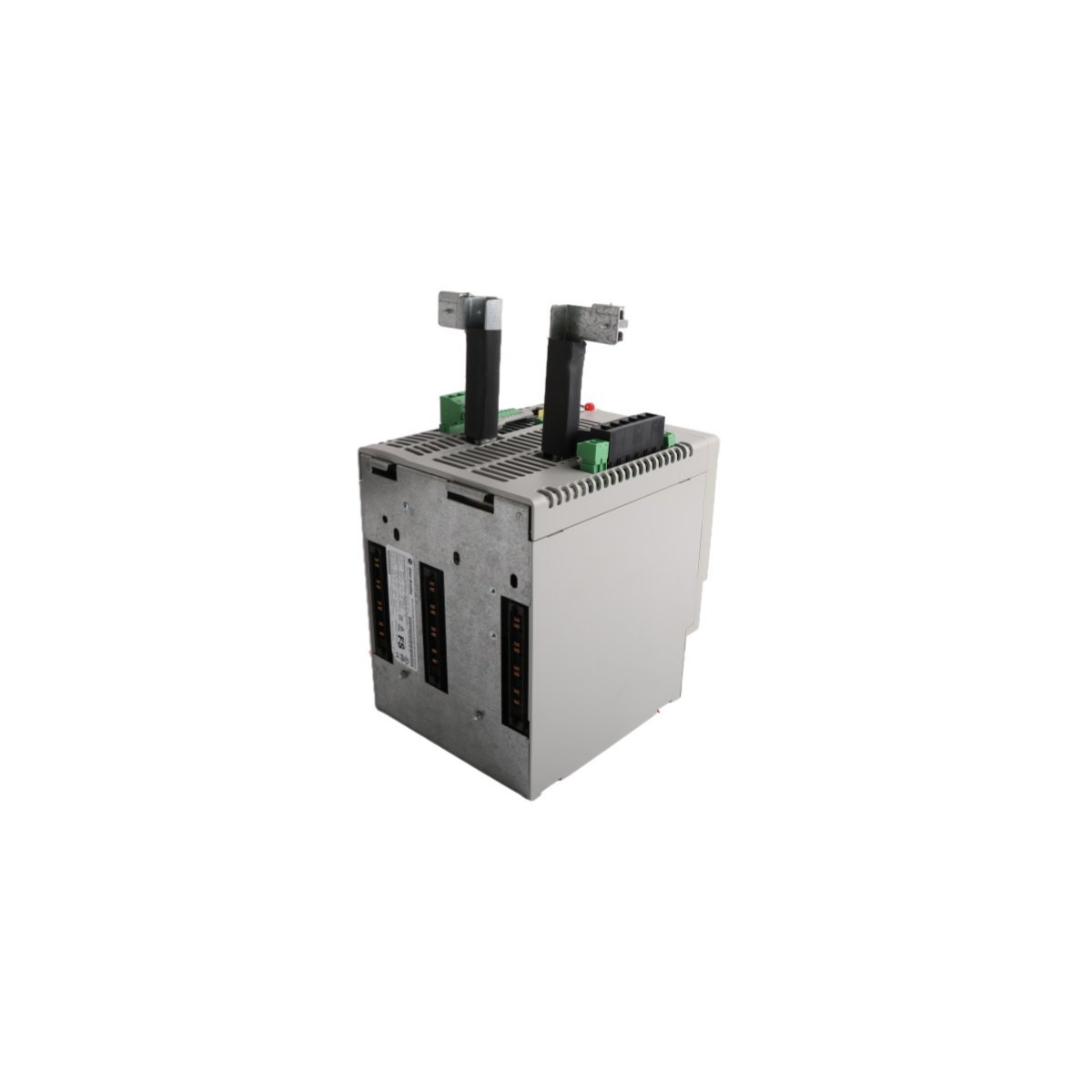

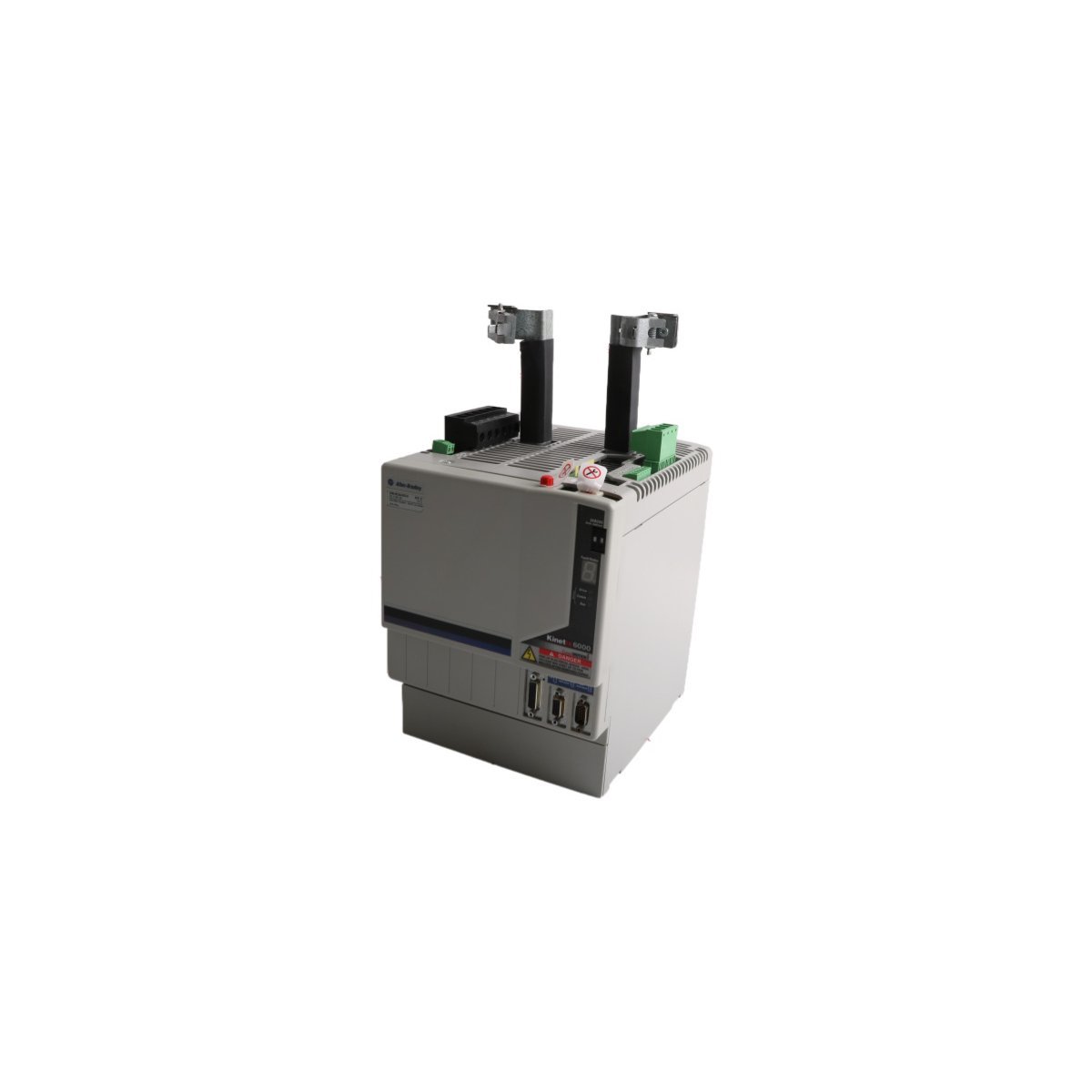

The Allen-Bradley 2094-BC04-M03-S serves as a primary power component for the Kinetix 6000 multi-axis servo system. This Integrated Axis Module (IAM) combines converter and inverter functions into a single compact unit. It manages high-performance motor control while supplying power to adjacent axis modules on the same rail. Consequently, this design reduces the total footprint of the motion control assembly. The unit specifically targets demanding automation tasks requiring high torque and precise speed regulation.

Electrical Performance and Power Management

This module supports a wide input voltage range of 324V to 528V AC three-phase. It delivers a substantial 28kW output with a continuous current rating of 30 Amperes. Furthermore, the hardware handles DC input voltages from 458V to 747V for versatile power configurations. Peak current capabilities vary by series, with Series B and C offering a 250% overload capacity. These high ratings ensure the system maintains stability during rapid acceleration and heavy load cycles.

Safety Features and Mechanical Installation

Safety remains a priority with the inclusion of built-in Safe Torque-Off (STO) functionality. This feature prevents the drive from restarting unexpectedly during maintenance or emergency stops. For installation, the 2094-BC04-M03-S must occupy the leftmost position on the Kinetix 2094 power rail. This specific placement allows the IAM to distribute the DC bus and control power correctly. Installers must also configure the ground jumper based on the local power grid impedance.

Technical Specifications
