Description

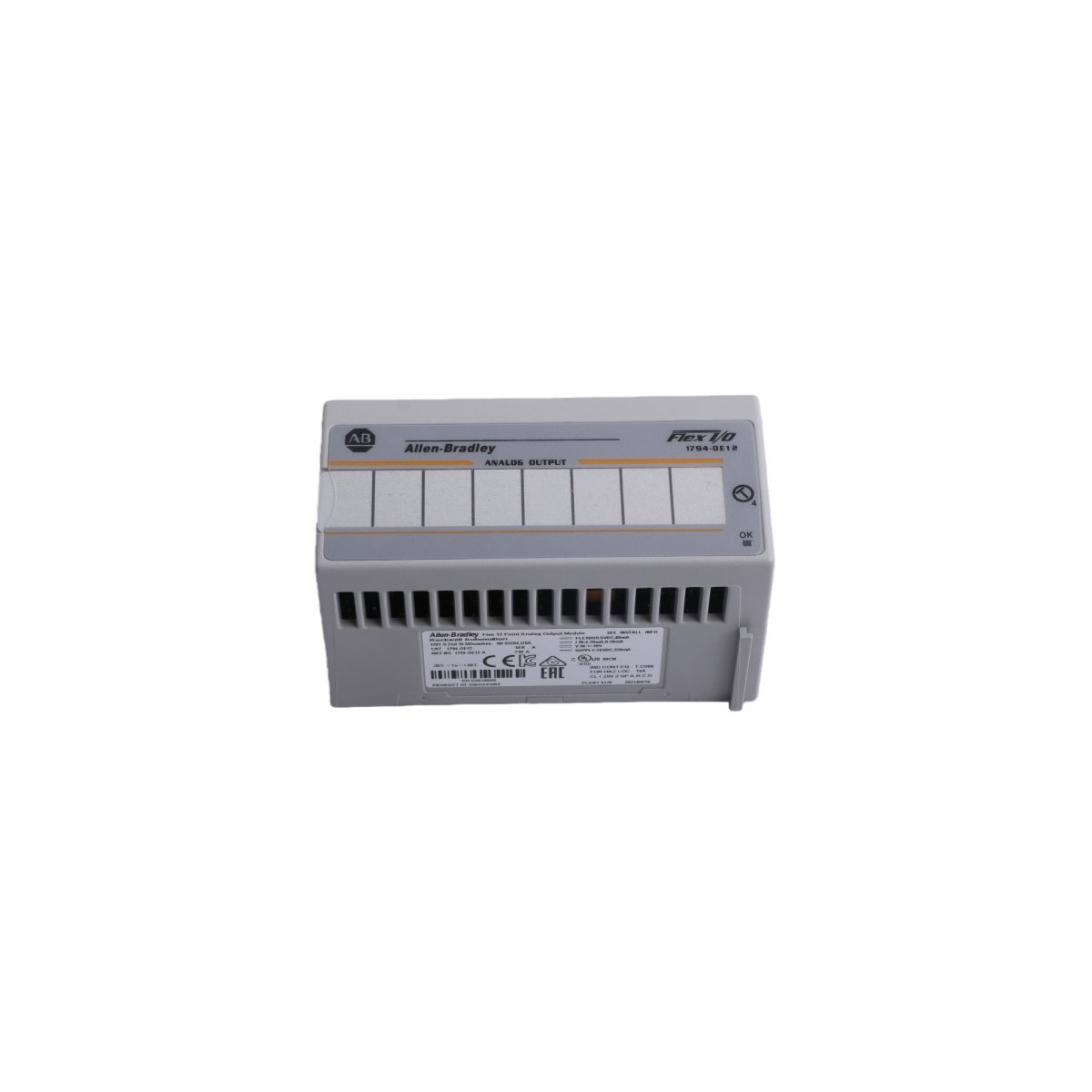

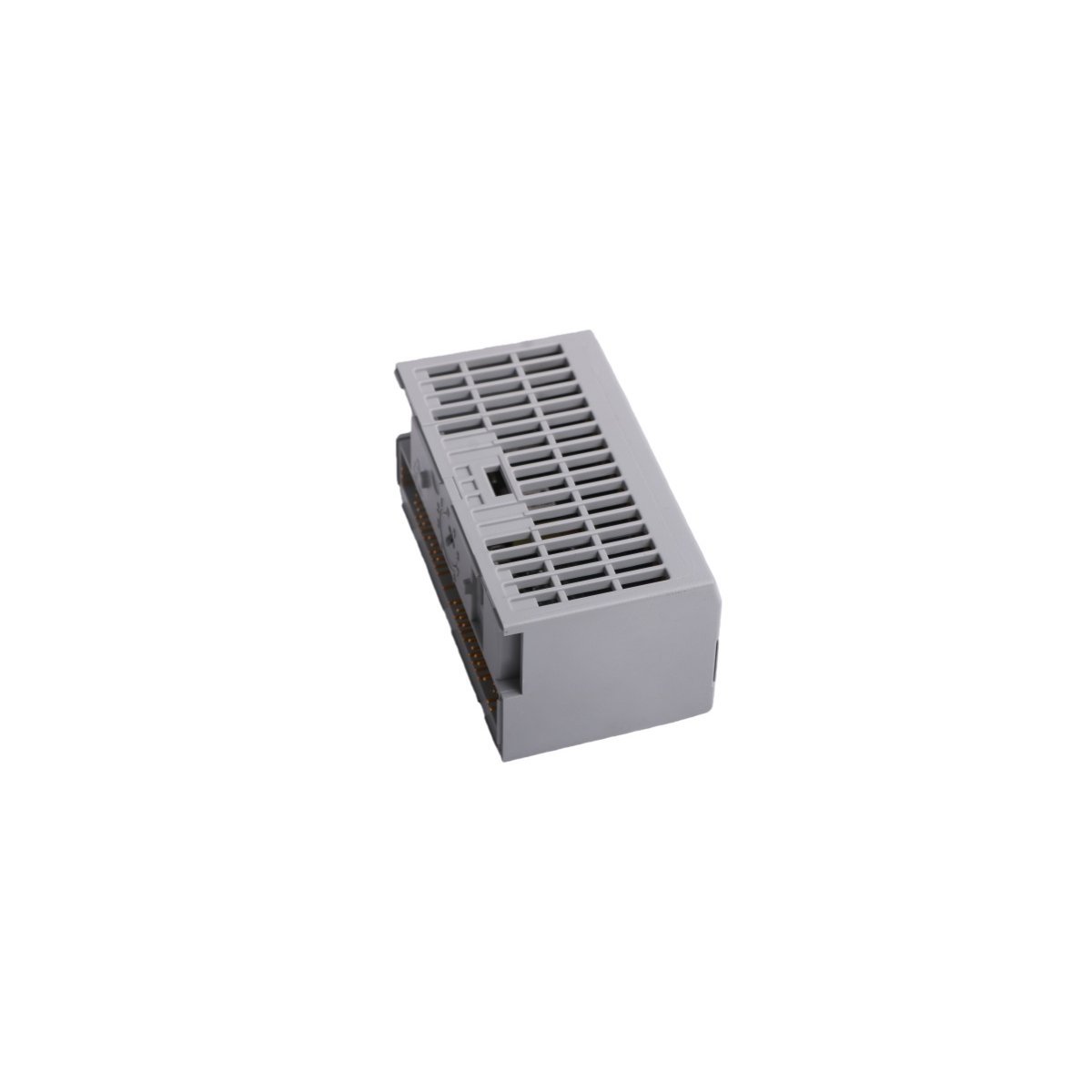

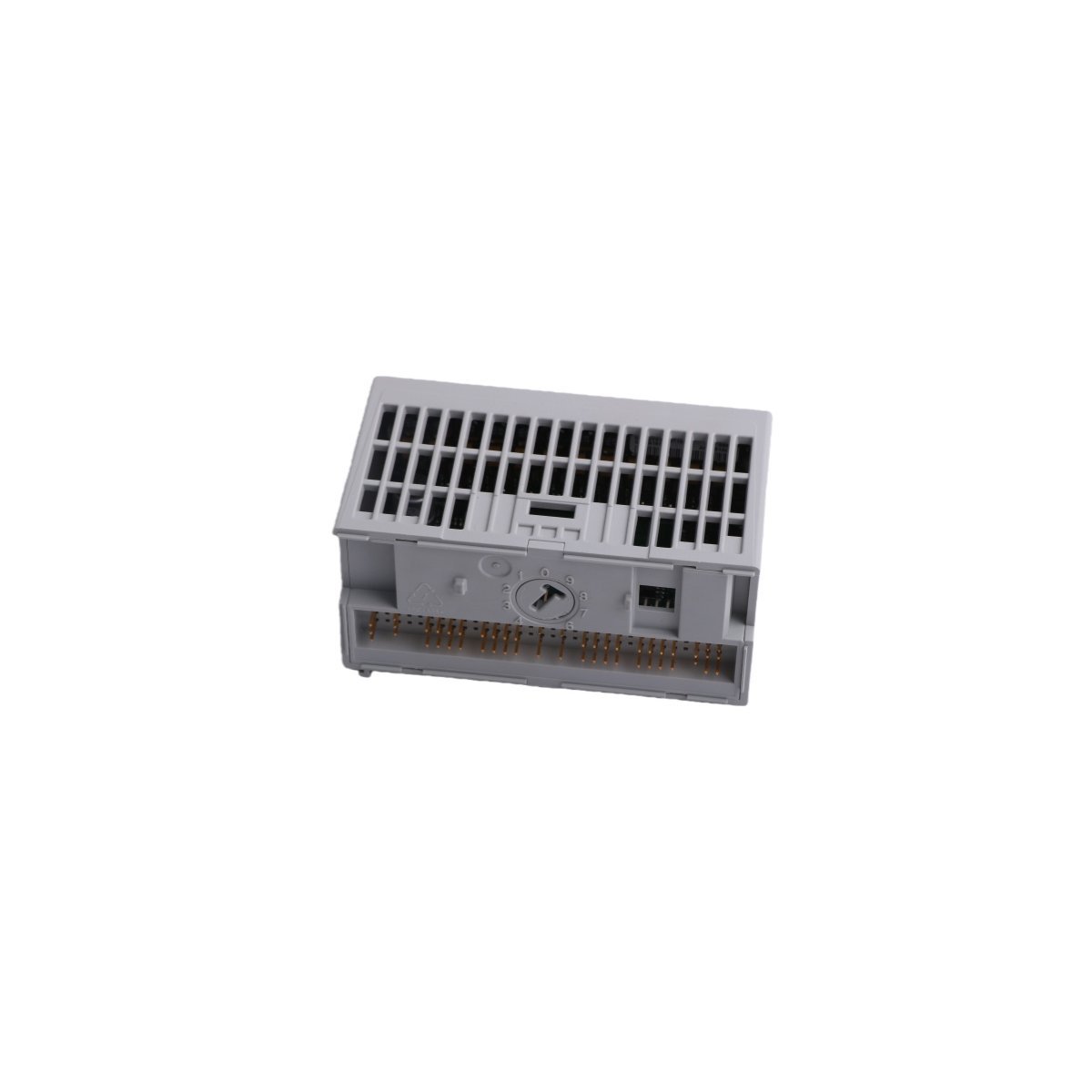

The Allen-Bradley 1794-OE12 provides high-density analog signal generation within the versatile FLEX I/O platform. This module serves as a critical bridge between industrial controllers and field-side actuators. It features twelve independently configurable channels to manage complex process control tasks. Because of its compact footprint, it excels in distributed control architectures with limited cabinet space. The unit supports various signal types to ensure compatibility with diverse industrial equipment.

Key Technical Performance Data

Precision Signal Control and Conversion

The 1794-OE12 utilizes advanced 16-bit digital-to-analog conversion for superior signal granularity. Voltage outputs provide a refined resolution of 320 μV per count for precise positioning. Meanwhile, current loop outputs deliver 0.641 μA per count for accurate flow or speed control. This high level of precision allows the module to drive sensitive control valves and high-performance drives. It maintains stable operation even when facing variations in ambient industrial temperatures.

Installation and Mechanical Versatility

System designers benefit from the modular terminal base design of the FLEX I/O series. The 1794-OE12 installs into a terminal base that remains wired during module replacement. Consequently, maintenance teams can swap modules without disturbing existing field connections. This feature significantly reduces system downtime during scheduled servicing or emergency repairs. Furthermore, the keyswitching mechanism prevents the insertion of incorrect modules into the base. This physical interlock protects the hardware from potential electrical damage during installation.

Robust Environmental Resilience

The hardware withstands the rigorous demands of heavy manufacturing and process plants. It maintains operational integrity under 30g shock loads and 5g vibration levels. The module effectively manages heat through a power distribution design of 7.68W at nominal voltage. Moreover, it supports long-distance signal transmission through shielded twisted-pair cabling. This durability ensures a long service life in sectors like oil and gas or water treatment.
