Description

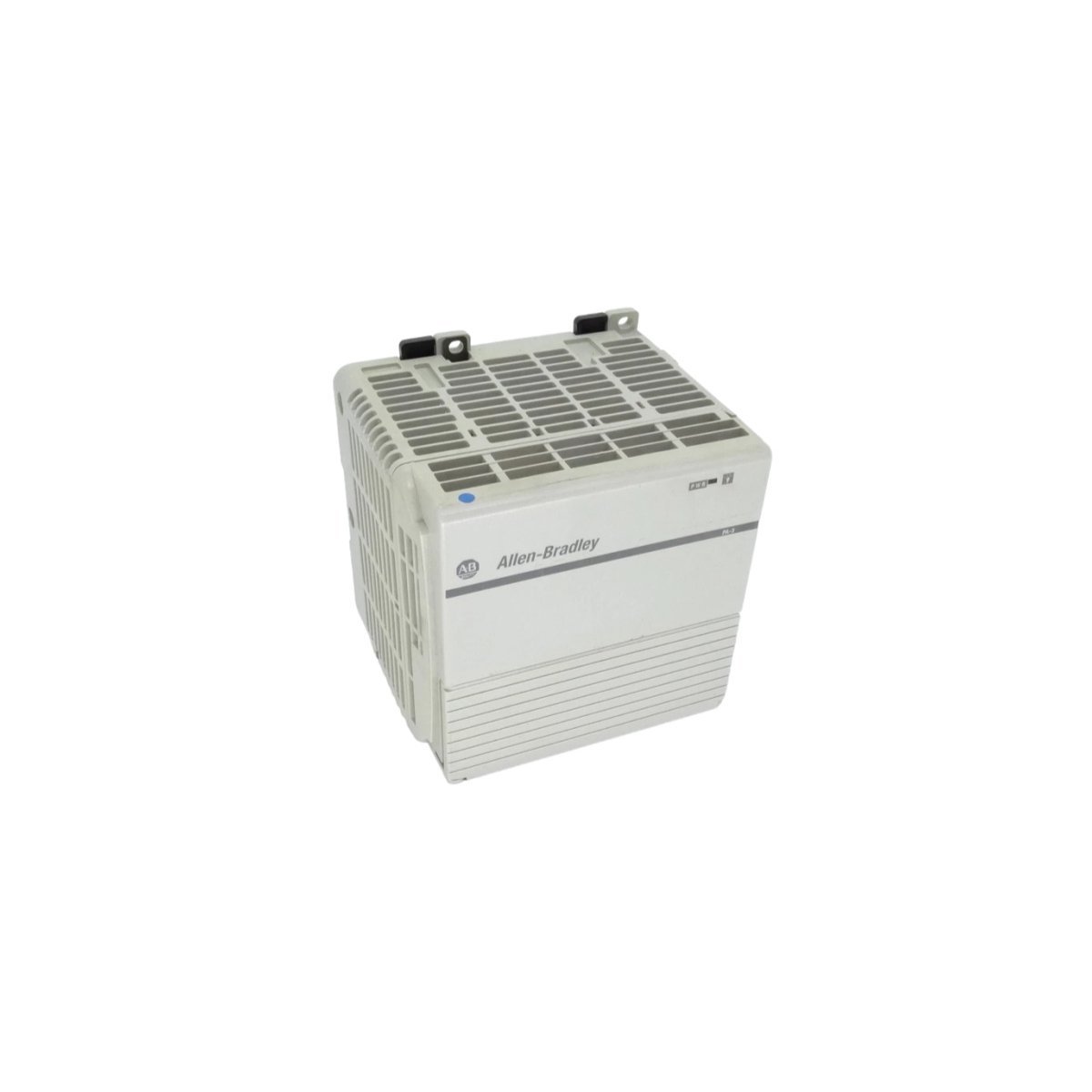

The Allen-Bradley 1768-PA3 serves as the primary energy source for high-performance 1768 CompactLogix systems. This module provides essential backplane power to the processor and adjacent expansion components. It specifically supports specialized controllers including the L43, L43S, L45, and L45S models. Furthermore, the unit manages power distribution for up to eight 1769 series I/O modules within a single bank. This dedicated architecture ensures stable operation for complex motion and safety control tasks.

Input Versatility and Performance Efficiency

This power supply offers significant flexibility regarding electrical input requirements. It accepts a broad AC range from 85V to 265V or a steady 120V DC source. Users can manually select the appropriate input voltage to match local utility standards. The 1768-PA3 typically operates with an efficiency rating of 75% under standard industrial loads. Additionally, the unit features a maximum power consumption of 120VA to maintain thermal stability.

Diagnostics and Fault Monitoring

Integrated LED indicators provide real-time visual feedback regarding the health of the power system. A solid green light confirms that the module is delivering stable voltage to the backplane. Conversely, a red light indicates a critical failure in the controller or a backplane power fault. If the LED remains unlit, the system may have an input power loss or a blown fuse. These diagnostic tools allow maintenance teams to troubleshoot power issues without specialized meters.
