Description

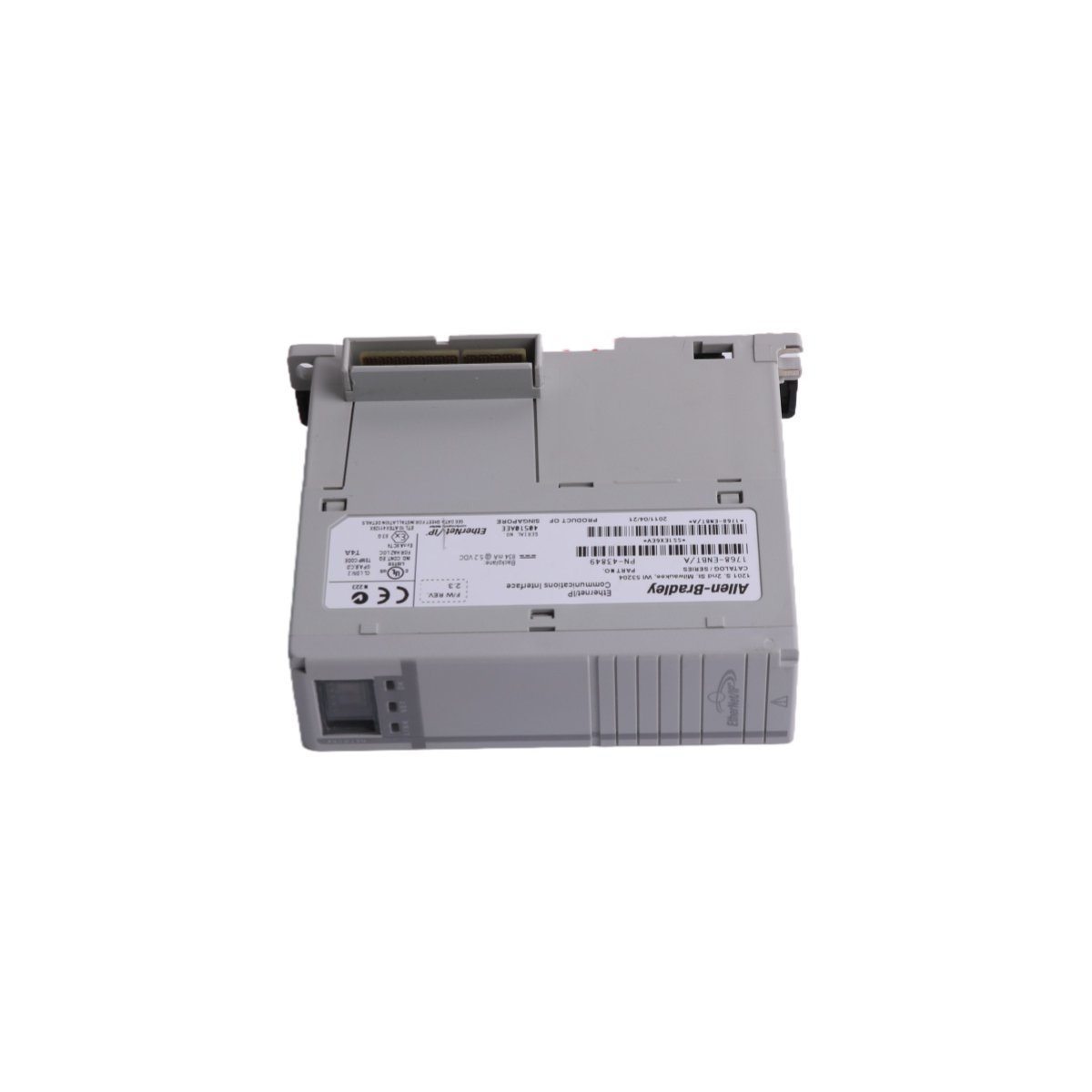

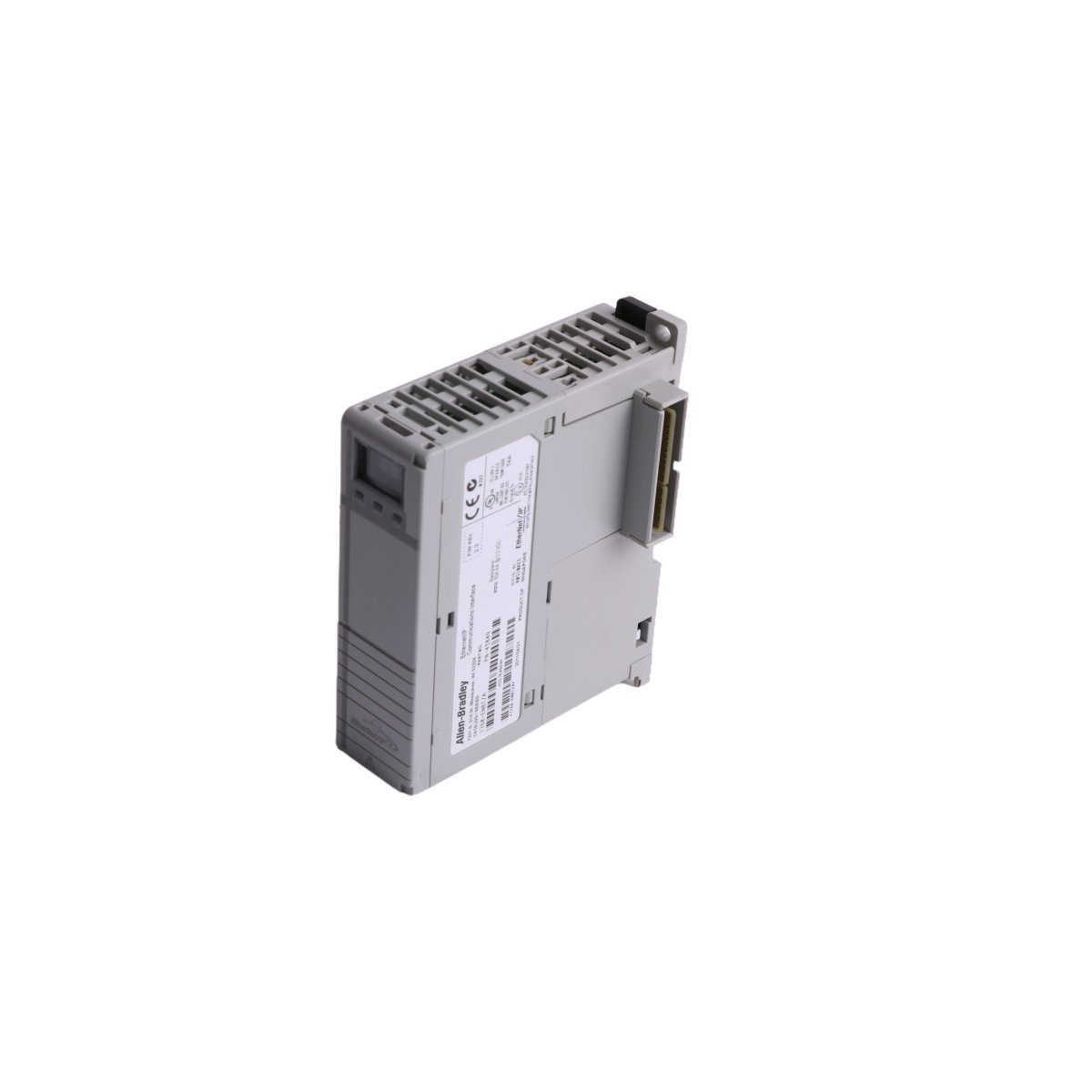

The Allen-Bradley 1768-ENBT acts as a high-speed gateway for CompactLogix 1768 controller systems. This module provides essential EtherNet/IP connectivity for L43 and L45 processors. It facilitates seamless data transmission between industrial controllers and plant-wide networks. Consequently, users can integrate real-time control with enterprise-level management systems effortlessly.

Technical Specifications and Performance

Network Integration and Connectivity

The 1768-ENBT supports complex industrial architectures through standard Ethernet infrastructure. It utilizes auto-negotiation to match the speed of connected switches or routers. Furthermore, the bridge handles both messaging and I/O control traffic simultaneously. This dual capability ensures efficient communication with variable frequency drives and remote I/O. It also enables high-speed data exchange with HMI and SCADA software interfaces.

System Capacity and Expansion

System scalability remains a core advantage of the 1768 platform. A single 1768-L43 controller supports up to two communication modules. In contrast, the 1768-L45 controller accommodates up to four modules. This expansion capability allows for network segmentation and increased throughput. Additionally, the module supports standard CAT5 or CAT6 copper cabling for flexible installation.

Diagnostic Tools and Reliability

The front panel features multiple LED indicators for immediate hardware diagnostics. These displays show network activity, link status, and module health at a glance. Therefore, maintenance teams can identify connectivity issues without external software tools. The rugged design ensures stable operation in harsh manufacturing environments. However, technicians must observe proper grounding and ESD procedures during physical installation.
