Description

Core Functionality and System Role

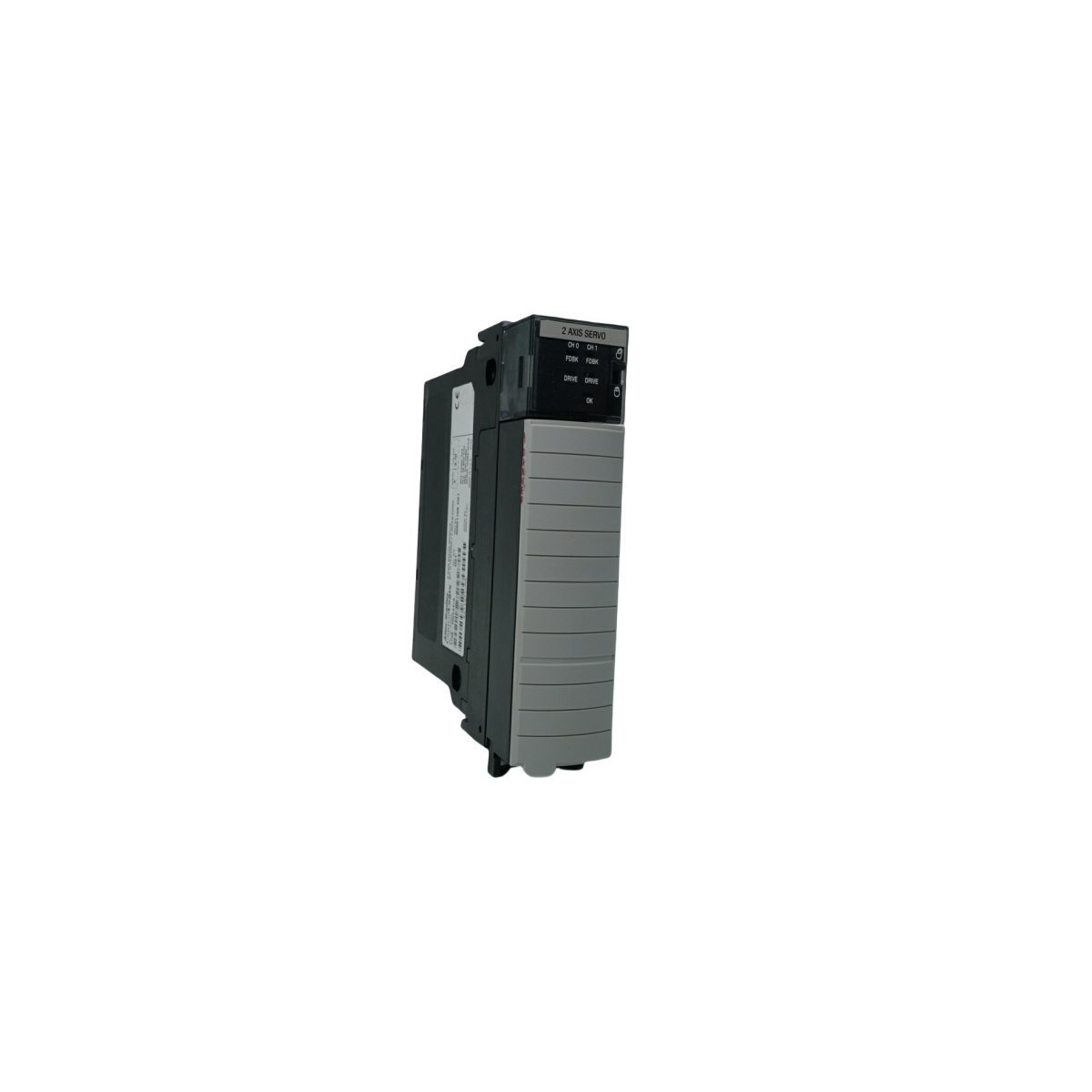

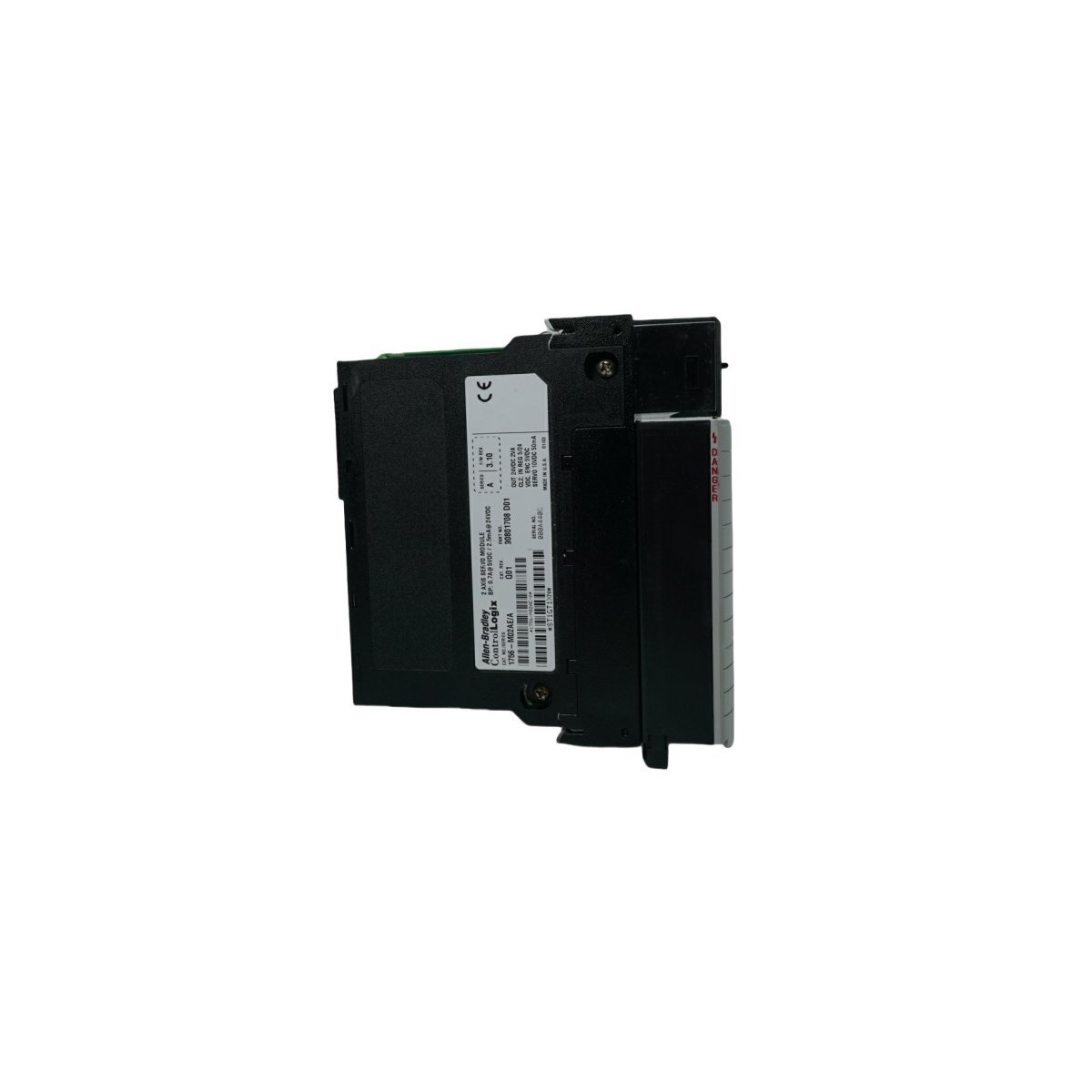

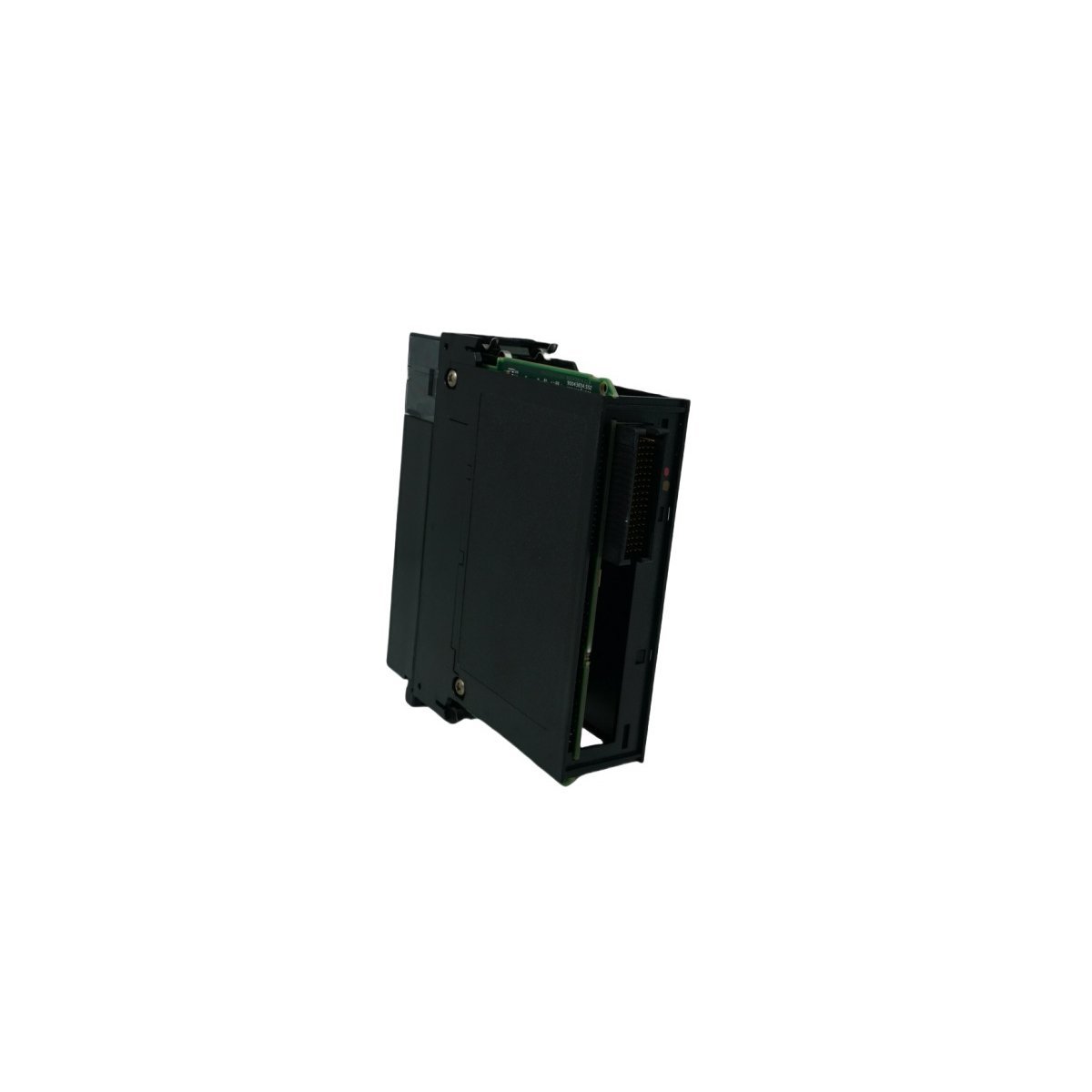

The Allen-Bradley 1756-M02AE operates as a high-performance motion control interface within the ControlLogix ecosystem. This module specifically manages two axes of motion by providing a $\pm10V$ analog output, which functions as either a velocity or torque reference for external drives. By integrating quadrature encoder feedback, the 1756-M02AE closes the control loop to ensure precise mechanical positioning. Engineers typically deploy this module to bridge the gap between digital PLC logic and analog actuator hardware, allowing for sophisticated motion profiles in a modular chassis environment.

Technical Performance Characteristics

Automation professionals utilize the 1756-M02AE because it features a rapid processing architecture designed for high-speed synchronization. The module executes position loop updates every 500 $\mu s$ and velocity loop updates every 250 $\mu s$, which minimizes latency in dynamic applications. Furthermore, the nested PI algorithm regulates the servo loops to maintain high stability across varying loads.

Key technical specifications include:

• Axis Support: 2-Axis Analog (Servo)
• Feedback Type: Incremental AB Quadrature Encoder
• Maximum Encoder Rate: 4 MHz
• Position Range: $\pm1,000,000,000$ counts
• Backplane Current: 700 mA @ 5.1V DC; 2.5 mA @ 24V DC
• Power Dissipation: 5.5 Watts maximum
• Isolation Voltage: 50V (continuous) between signals and backplane

Integration and Field Connectivity

To facilitate physical installation, the 1756-M02AE requires a Removable Terminal Block (RTB), such as the 1756-TBCH or 1756-TBS6H. This design allows for pre-wiring of the field devices and simplifies module replacement. Regarding compatibility, the module fits into any standard ControlLogix chassis (1756-A4, A7, A10, A13, or A17). Beyond basic motion, the interface incorporates dedicated I/O for safety and sequencing, including home limit switch inputs, drive fault monitoring, and drive enable outputs. Consequently, the module provides a comprehensive safety handshake between the controller and the motor drive.

Application and Reliability

Industrial facilities rely on the 1756-M02AE for applications involving rotary or linear transducers that demand high-resolution feedback. Because the module uses optical isolation, it effectively protects the ControlLogix backplane from electrical noise commonly found in motor environments. Additionally, the 1756-M02AE supports both open-loop testing and closed-loop production modes, offering flexibility during the commissioning phase. While this specific model was discontinued on March 15, 2024, it remains a vital component for maintaining existing legacy systems that require precise analog servo control.
