Description

Brief Product Description

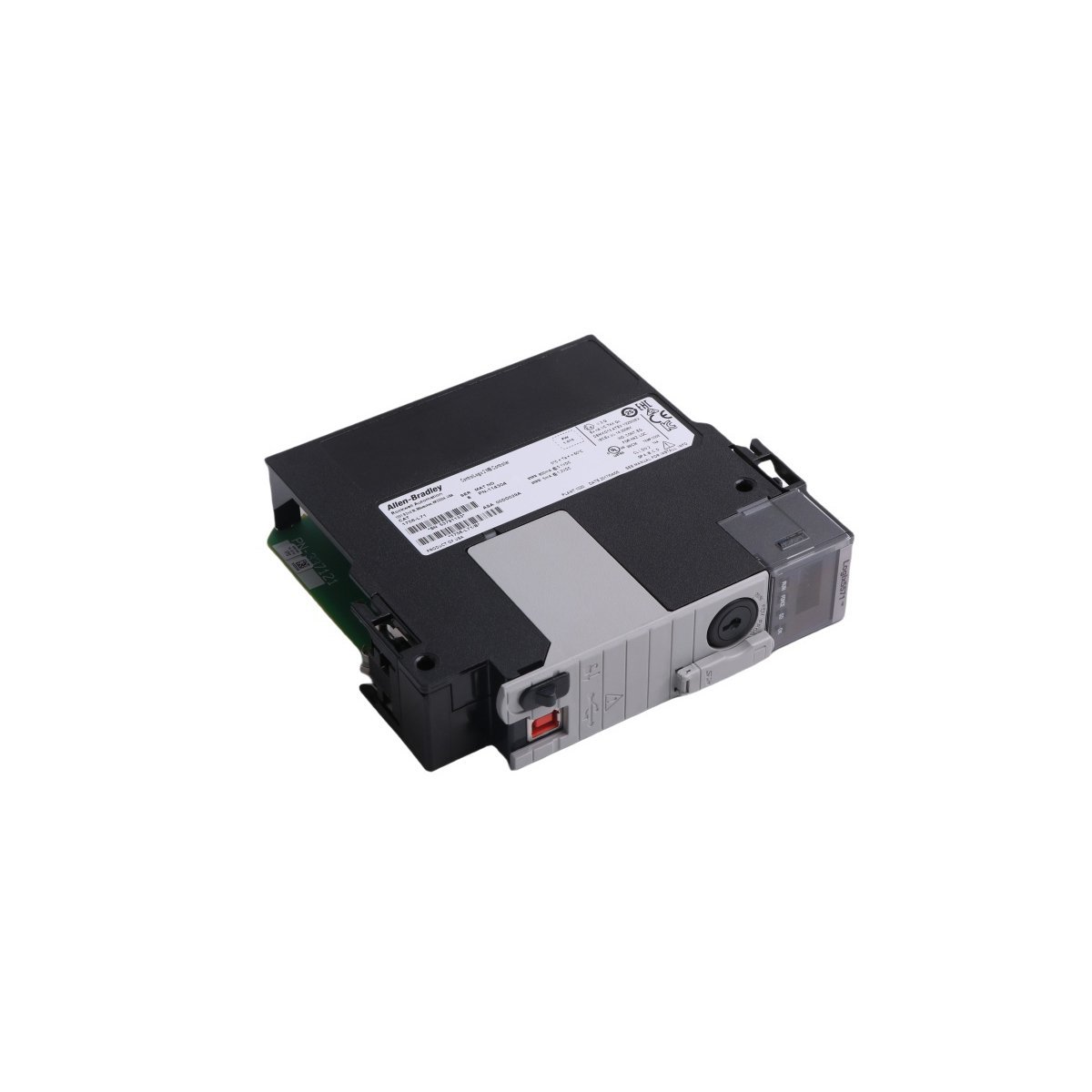

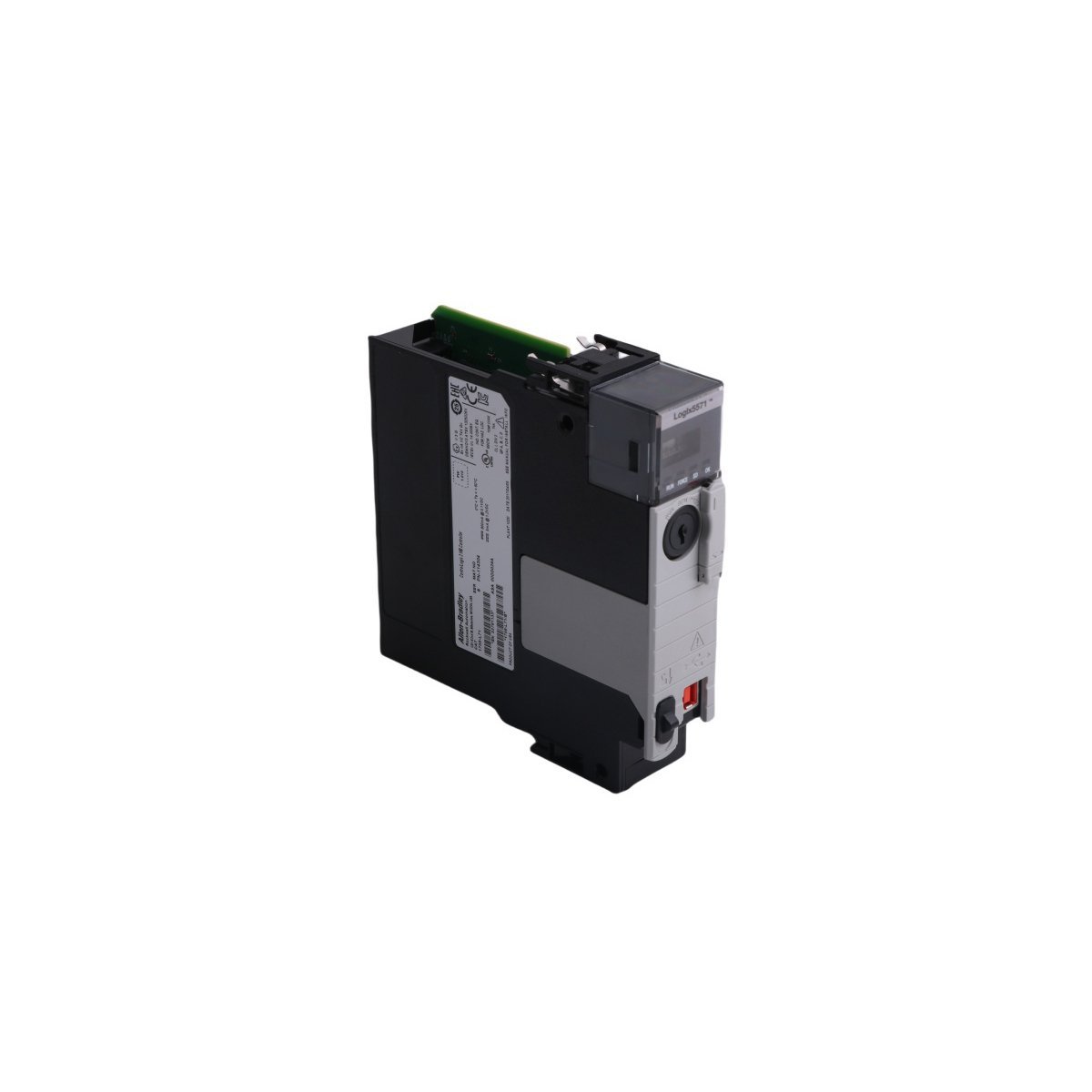

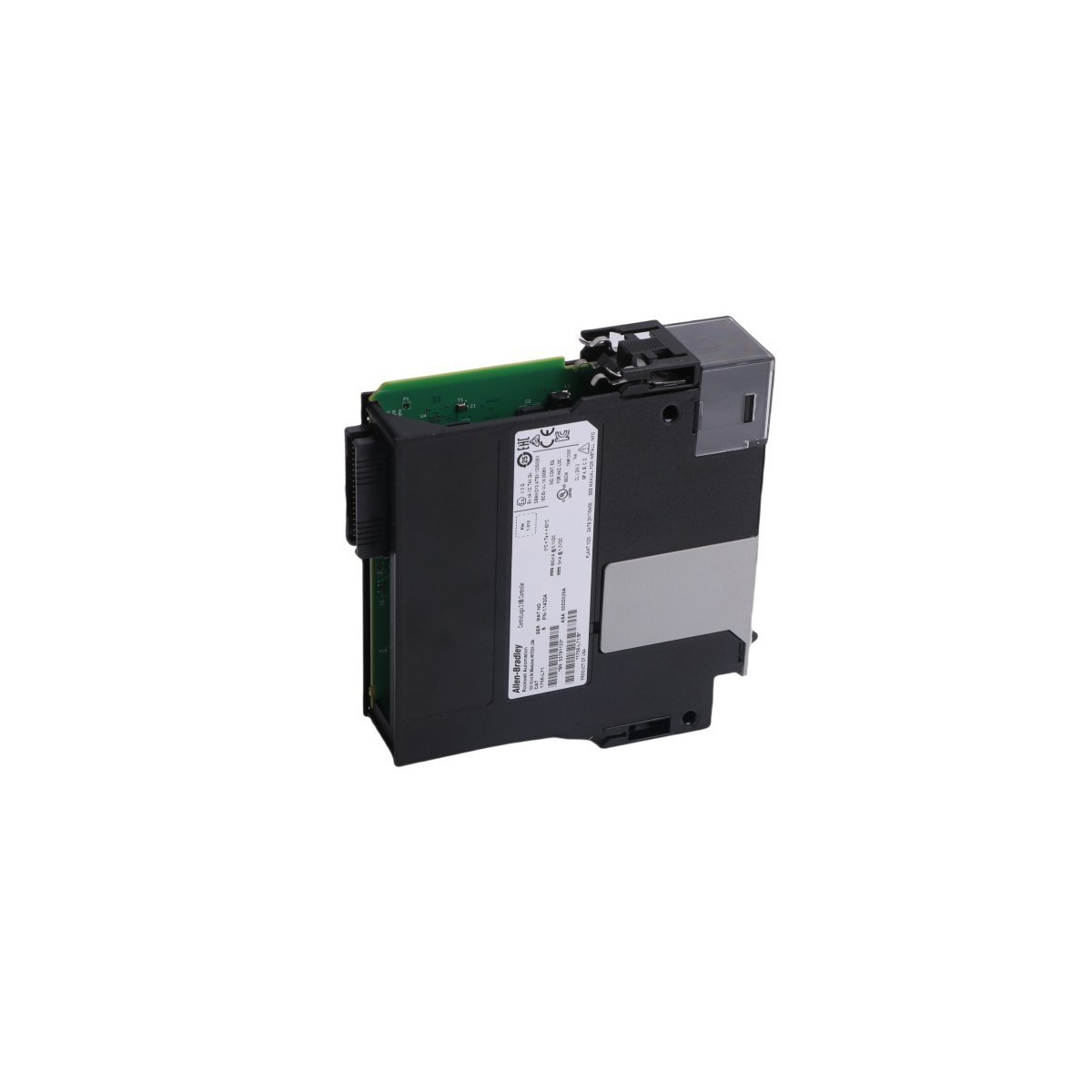

The Allen-Bradley 1756-L71S is a high-performance GuardLogix 5570 controller designed for integrated safety and standard control. It provides 2MB of user memory and achieves SIL 3 safety ratings when paired with its dedicated safety partner module.

Integrated Safety and Logic Processing

The Allen-Bradley 1756-L71S belongs to the GuardLogix 5570 family, providing a unified control architecture for standard and safety-critical functions. This processor streamlines industrial operations by managing both high-speed motion and complex logic tasks within a single chassis. To reach the highest safety integrity levels, including SIL 3 and PLe (Category 4), users must pair this primary controller with a 1756-L7SP safety partner. Because the system automatically configures the safety partner, engineers save significant time during the commissioning and project development phases.

Robust Memory and Extensive I/O Capacity

This module features a balanced memory architecture to handle diverse industrial workloads. The 1756-L71S provides 2MB of standard user memory alongside 1MB of dedicated safety memory to ensure code separation and integrity. Additionally, the processor supports a massive I/O footprint, managing up to 128,000 digital points and 4,000 analog points. While the unit draws minimal power from the backplane, it offers exceptional performance for data-intensive applications. For permanent storage, a 1GB Secure Digital (SD) card comes standard, though operators can upgrade this to 2GB for expanded non-volatile data logging.

Versatile Communication and Industrial Programming

Connectivity remains a core strength of the 1756-L71S, as it supports up to 500 simultaneous controller connections across major industrial protocols. The module interfaces seamlessly with EtherNet/IP, ControlNet, and DeviceNet, ensuring compatibility with existing plant-floor infrastructure. Furthermore, the controller utilizes the Studio 5000 environment, allowing programmers to use Relay Ladder Logic (RLL) for safety routines while employing Structured Text or Function Block Diagrams for standard logic. An integrated front-panel display enhances onsite troubleshooting by providing real-time status and diagnostic codes at a glance.

Key Technical Characteristics

• Dual-Processor Safety Architecture: Achieves SIL 3/PLe certification when utilized with the 1756-L7SP safety partner.
• Unified Control Platform: Eliminates the need for separate safety and standard PLCs, reducing hardware costs and footprint.
• Expandable Non-Volatile Storage: Includes a 1GB SD card for program backup and non-volatile memory protection.
• Advanced Diagnostic Display: Features an onboard scrolling display for rapid identification of faults and runtime status.
• High-Performance Motion: Executes complex multi-axis motion profiles through integrated motion on EtherNet/IP.
• Energy Efficient Design: Maintains low thermal dissipation of 8.5 BTU/hr, optimizing cabinet cooling requirements.
