Description

Brief Product Description

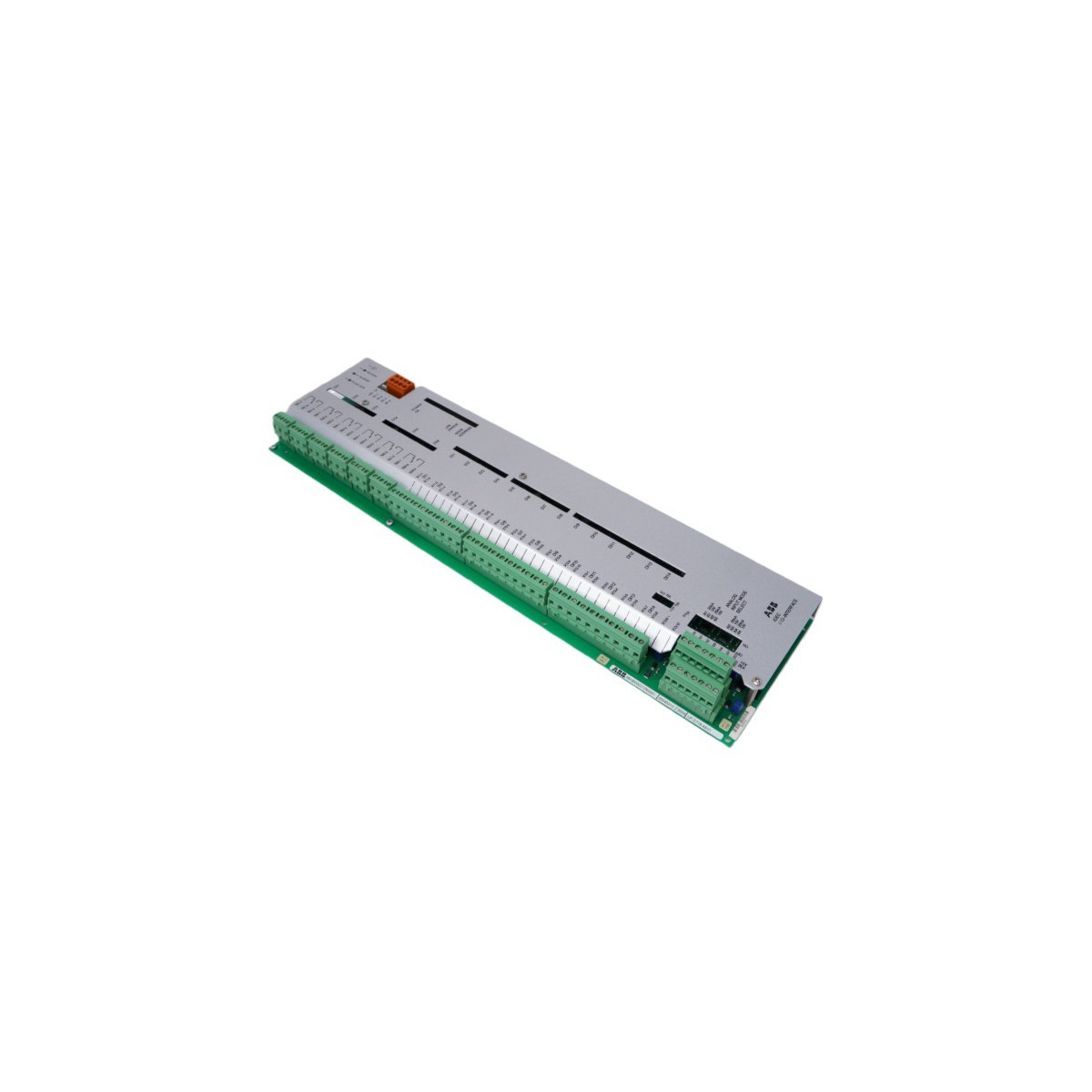

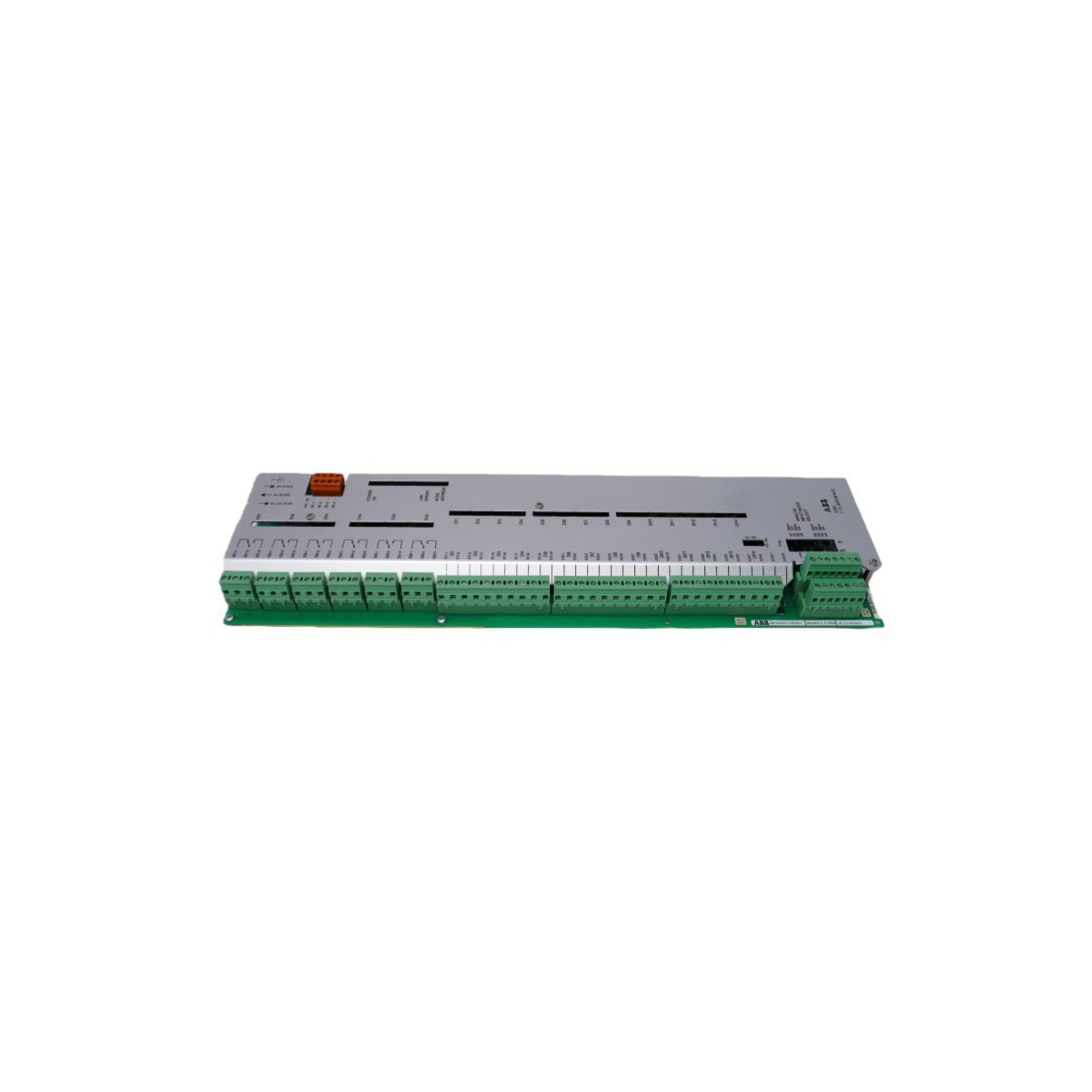

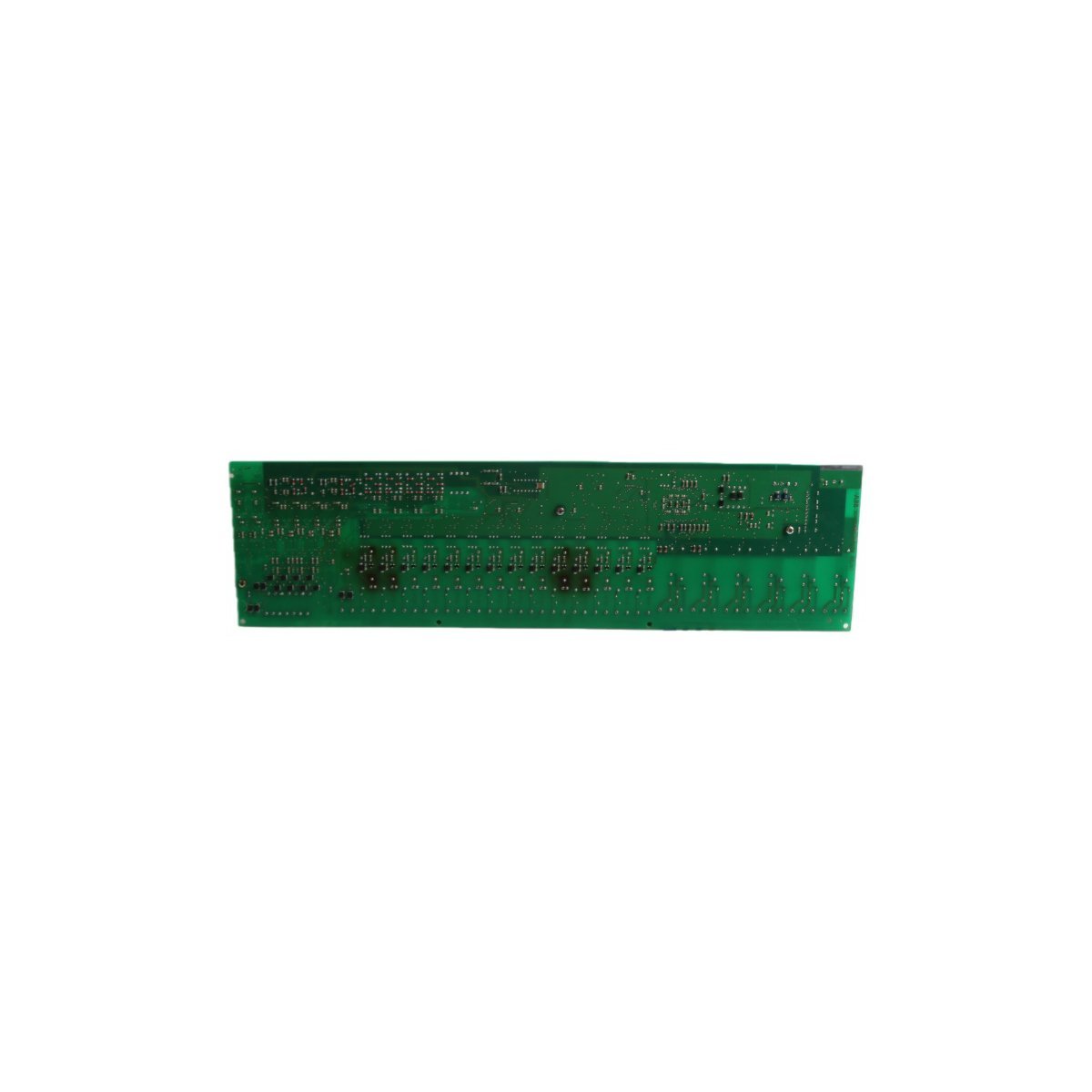

The ABB UFC719AE01 3BHB000272R0101 is a high-performance IOEC interface module designed to bridge field-level signals with centralized control networks. It provides a ruggedized, high-density solution for managing both digital and analog data streams in demanding power electronics and automation environments.

Product Description

Integrated Signal Processing and High-Density I/O

The ABB UFC719AE01 3BHB000272R0101 acts as a central nervous system for complex industrial machinery, providing extensive input and output capabilities. This IOEC (I/O Electronics) interface accommodates a high channel density, specifically managing up to 32 digital signals and 8 analog channels. By consolidating these diverse signal types onto a single board, the module reduces the need for multiple peripheral devices and simplifies the overall control architecture. Engineers utilize this board to capture precise sensor data and execute real-time commands, ensuring that automated processes remain synchronized and responsive.

Multi-Protocol Communication and Connectivity

Versatility remains a hallmark of the 3BHB000272R0101 interface board. It natively integrates with essential industrial communication protocols, including Modbus and CANopen, to ensure broad compatibility with existing PLC and DCS frameworks. Furthermore, the module features an integrated Ethernet port that facilitates high-speed data transmission for remote monitoring and Industrial IoT (IIoT) applications. This connectivity allows maintenance teams to perform remote diagnostics and configuration adjustments, which significantly lowers the total cost of ownership and improves system agility in modern “smart” factories.

Ruggedized Engineering for Extreme Environments

ABB specifically engineered the UFC719AE01 to survive where standard electronics fail. Boasting an IP65-rated construction, the module effectively resists the ingress of dust and moisture, making it suitable for installation in wash-down areas or high-humidity zones. It maintains operational stability across an expansive temperature gradient from -25°C to +70°C. This thermal resilience, combined with secure DIN rail mounting and vibration-resistant screw terminals, ensures that the board delivers reliable performance even in heavy industrial sectors such as power generation, marine propulsion, and chemical processing.
