Description

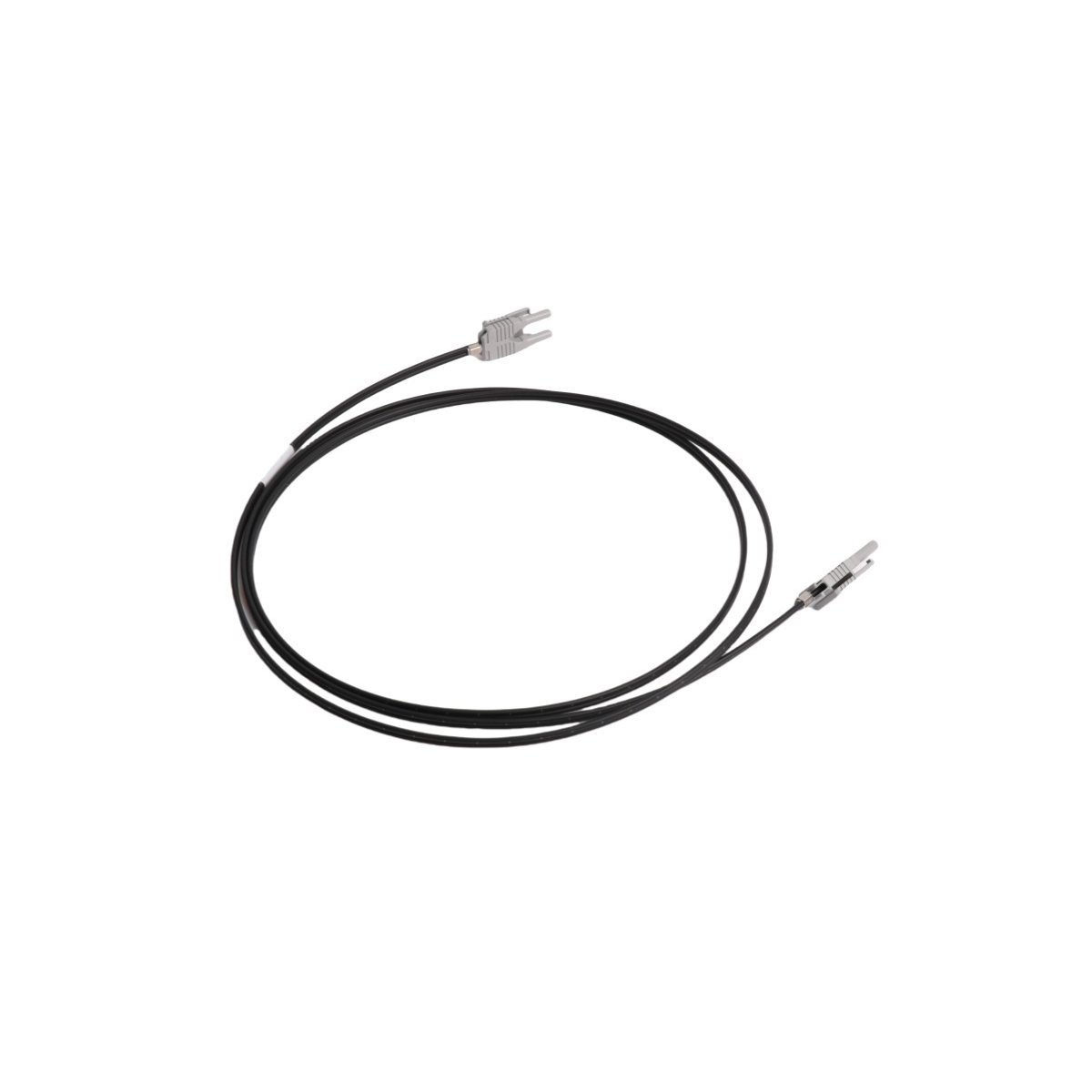

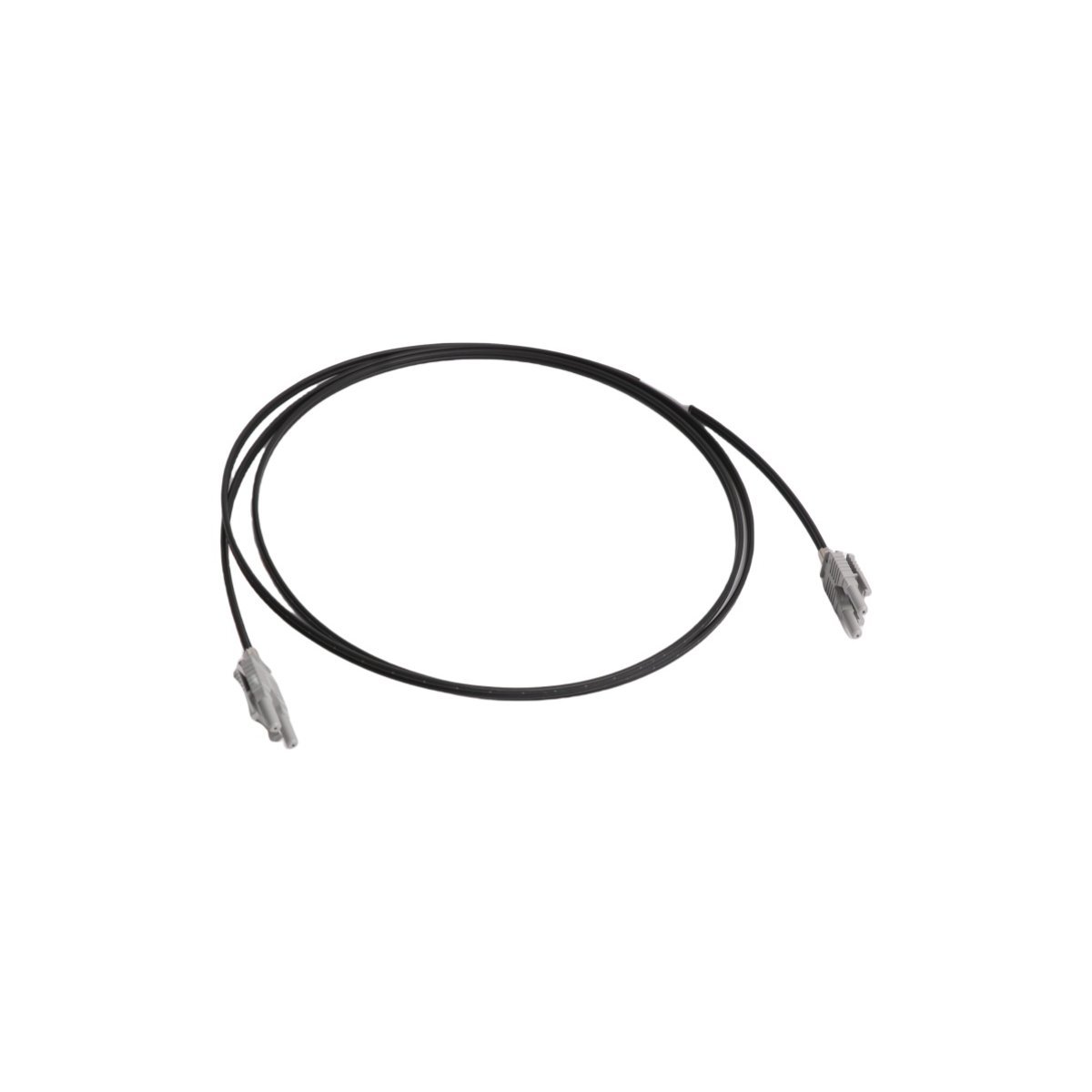

The ABB TK811V015 3BSC950107R1 serves as a high-reliability optical link for Advant OCS and 800xA control systems. This Plastic Optical Fiber (POF) ensures high-speed data transfer between controllers and peripheral hardware. It utilizes a 650 nm red light wavelength to facilitate signal transmission. Furthermore, the optical medium provides total immunity against electromagnetic interference. This characteristic makes it superior to traditional copper wiring in high-voltage industrial environments.

Technical Specifications

• Brand: ABB
• Model Designation: TK811V015
• Global Part Number: 3BSC950107R1
• Component Category: Fiber Optic Cable (POF)
• Cable Length: 1.6 Meters (160 cm)
• Optical Core Wavelength: 650 nm
• Numerical Aperture: 0.50 ± 0.02
• Attenuation Rating: ≤ 3.5 dB/km
• Jacket Material: Flame-retardant Orange PVC (IEC 60332-1)
• Tensile Strength: 70 N
• Operating Range: -25°C to +60°C

Mechanical and Functional Features

This cable features a durable orange jacket designed for visibility and mechanical protection. Its flexible design allows a 15 mm static bend radius for compact cabinet routing. Additionally, the keyed crossover configuration simplifies the connection between transmitter and receiver ports. The flame-retardant properties meet strict international safety standards for industrial control panels. Because it uses plastic fiber, the cable remains lightweight at only 0.01 kg. This low mass prevents strain on delicate optical transceiver ports.

Industrial Network Applications

System integrators primarily deploy the TK811V015 within ABB AC 800M controller architectures. It provides the essential backbone for real-time communication in power plants and refineries. The cable excels in automated manufacturing where electrical noise often disrupts copper-based signals. Moreover, its UV-resistant coating supports reliable performance in diverse plant conditions. This component remains a vital spare part for maintaining continuous DCS network synchronization.

Safety and Compliance

The 3BSC950107R1 adheres to global industrial standards for communication equipment. It carries a specific HS code of 8537101190 for international trade and customs classification. The rugged construction minimizes signal loss even during intense mechanical vibrations. Consequently, users experience reduced packet loss and improved system uptime across the plant network.
