Description

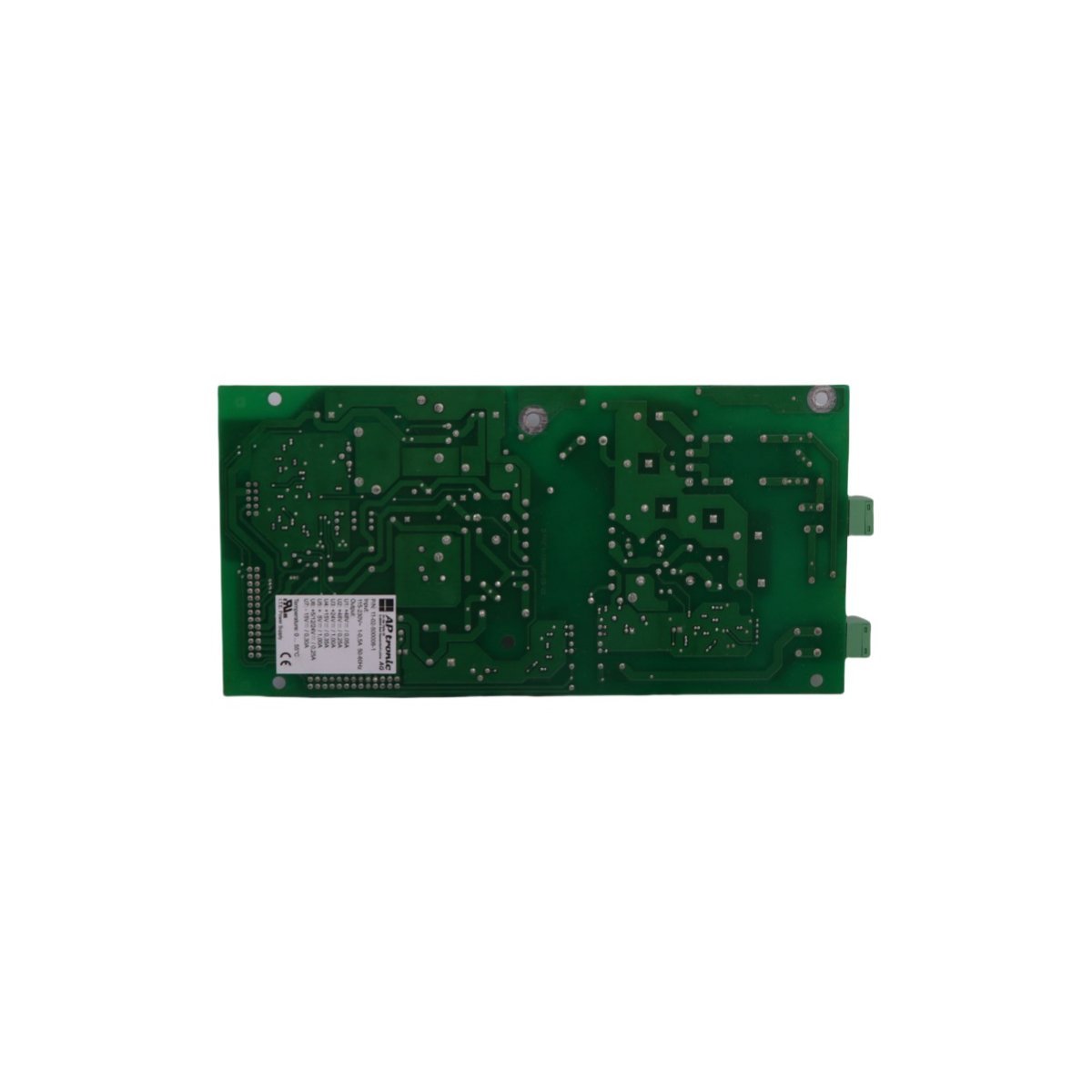

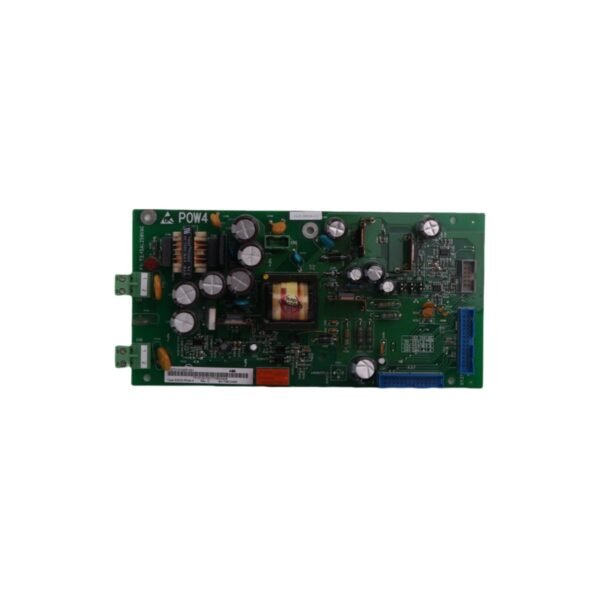

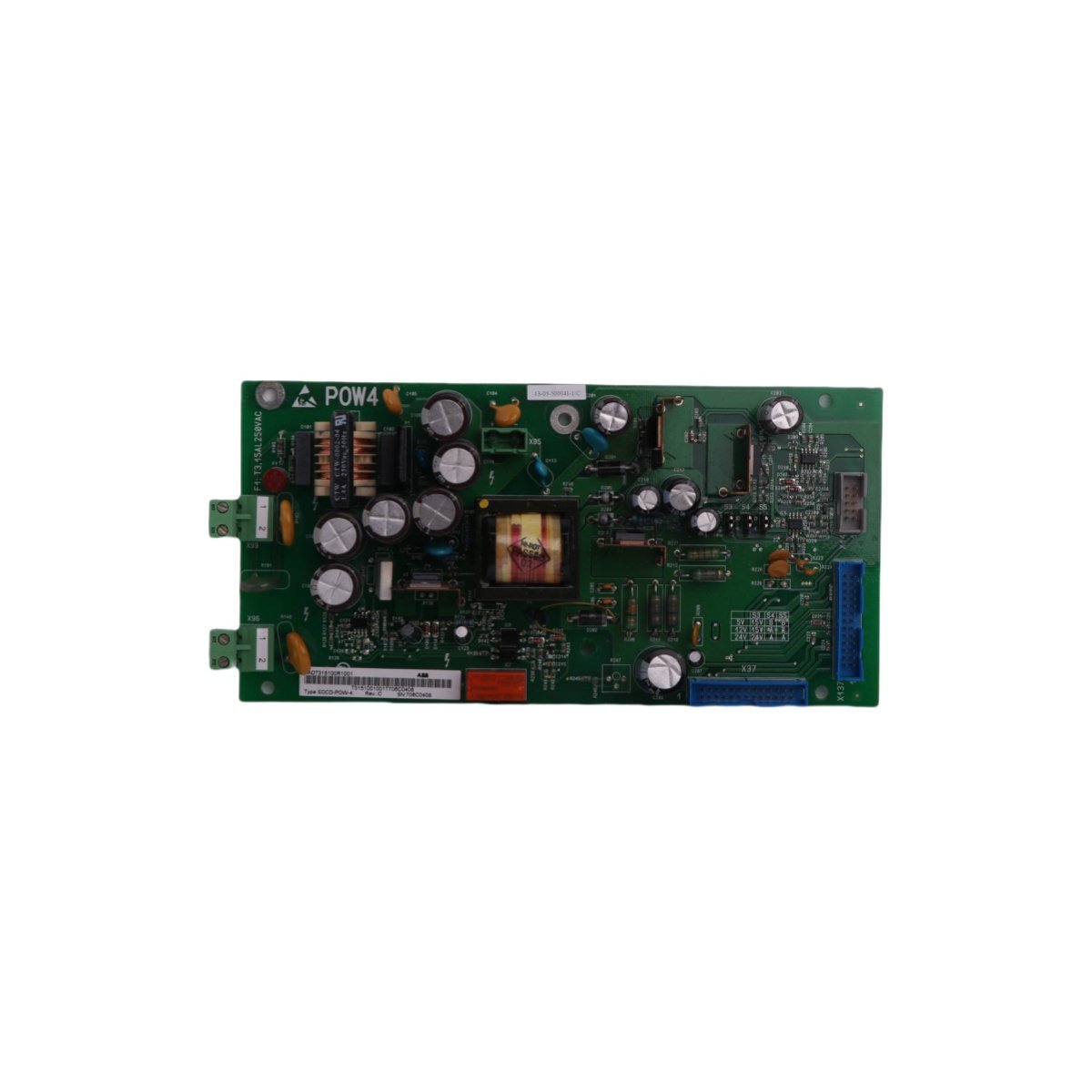

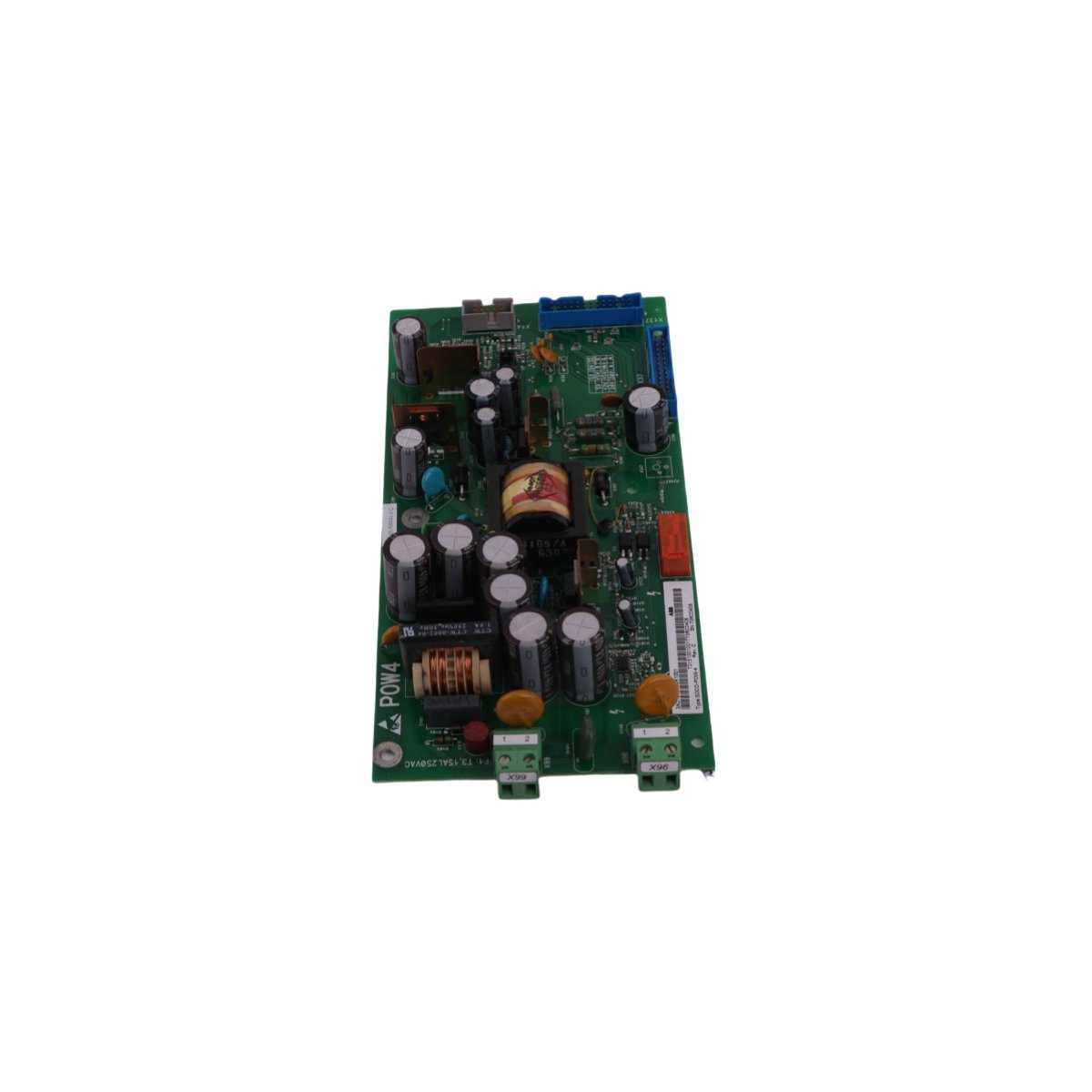

The ABB SDCS-POW-4 functions as a sophisticated power distribution center for high-performance industrial drives and control systems. This module delivers a regulated 24V DC output to ensure consistent electronic performance. It maintains operational stability even during significant input voltage fluctuations. Furthermore, the board features a specialized 4-channel architecture for precise load management. This design prevents localized electrical faults from disrupting the entire automation cabinet.

Technical Specifications

• Brand: ABB
• Model Designation: SDCS-POW-4
• Part Number: 3ADT315100R10001
• Device Category: Power Supply / Drive Component
• Output Voltage: 24V DC
• Conversion Efficiency: Approximately 95%
• Dimensions: 23 x 11 x 3.4 cm
• Net Weight: 0.35 kg
• Origin: Sweden
• Mean Time Between Failures (MTBF): > 100,000 Hours

Engineering and Durability

Engineers developed the SDCS-POW-4 using military-grade components to withstand extreme industrial stressors. The board resists high-frequency vibrations and operates reliably in elevated thermal environments. Additionally, the integrated overload protection safeguards sensitive downstream logic circuits. This proactive safety layer minimizes the risk of hardware damage during power surges. Because it meets IEC 61000-4 standards, the unit effectively filters electromagnetic interference.

Operational Integration

This power supply module integrates seamlessly with PROFIBUS and Modbus industrial communication protocols. Users benefit from the plug-and-play mechanical interface which simplifies hardware installation. This streamlined assembly process typically reduces cabinet setup time by nearly 40%. Moreover, the SDCS-POW-4 supports advanced remote diagnostics for real-time health monitoring. Consequently, maintenance teams can identify potential power issues before they lead to system downtime.

Application Environments

The SDCS-POW-4 is a critical component for the automotive manufacturing and food processing sectors. These industries require absolute power stability to maintain high-speed production cycles. The module’s compact 23cm footprint allows for high-density installation in standardized control racks. Additionally, the unit’s low energy consumption supports corporate sustainability initiatives. Its reliable performance ensures that critical DCS networks remain synchronized across various plant sections.
