Description

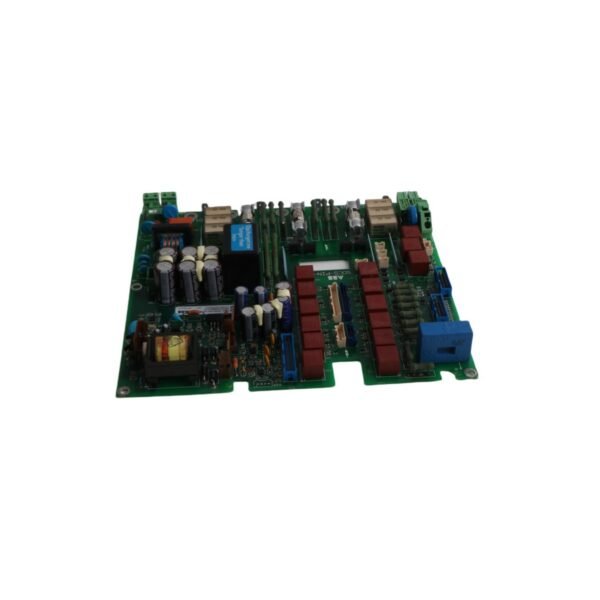

The ABB SDCS-PIN-4B serves as a vital power interface and signal distribution board for industrial DC drives. This 3ADT316300R1510 module coordinates essential timing functions and relay outputs within the drive cabinet. Furthermore, it manages the flow of control data to ensure synchronized motor performance. The board effectively bridges the gap between high-level control logic and physical power components. Consequently, it maintains precise regulation over various automation tasks in complex DCS architectures.

Stability in Challenging Environments

Engineered for industrial resilience, this board operates across a temperature spectrum of -40°C to +85°C. The hardware design focuses on low-noise signal processing to prevent electromagnetic interference. Additionally, the unit incorporates a high-quality onboard transformer for localized voltage stepping. This level of stability makes it suitable for Point-of-Load (POL) power architectures. It safely supplies energy to critical components like DSPs, microprocessors, and memory units. Reliable Swedish engineering ensures the board withstands the mechanical stresses of heavy manufacturing.

Versatile Output and Compact Integration

The SDCS-PIN-4B module offers flexible analog outputs for diverse process requirements. It supports standard 0–10V DC voltage signals and 0–20mA current loops for feedback loops. Moreover, the unit accepts a 24V DC input for standard compatibility with existing control panels. Its relatively small footprint allows for direct mounting on larger printed circuit boards. This design facilitates efficient space utilization within crowded electrical enclosures. Operators benefit from the seamless integration of this module into modern ABB drive platforms.

Technical Specifications

Core Functional Applications

• Pulse transformer interfacing for high-power thyristor bridges.
• Specialized power distribution for ASICs and FPGAs in control units.
• Signal isolation and relay management in DCS environments.
• Retrofitting and maintaining legacy ABB DC motor drive systems.
• High-precision current and voltage monitoring in power networks.
