Description

Product Overview

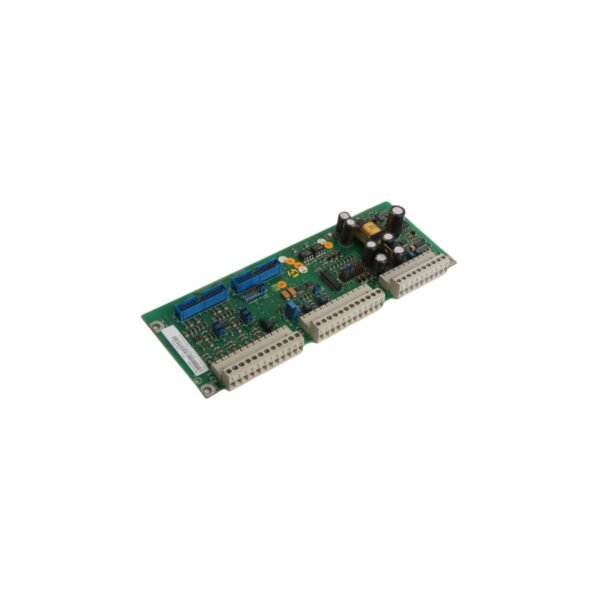

The ABB SDCS-IOB-3 3BSE004086R1 is a high-performance control connection PCB designed specifically for the DCS800 DC drive series. This interface board facilitates reliable signal routing and electrical isolation between external field devices and the drive’s primary control unit.

Enhanced Signal Processing and Isolation

The SDCS-IOB-3 serves as a critical bridge for digital and analog signals within the industrial drive ecosystem. By utilizing high-quality optocouplers and precision circuitry, the board effectively isolates sensitive control logic from external electrical noise and transients. This isolation prevents ground loops and protects the drive’s main processor from damage. Furthermore, the board streamlines the wiring process by centralizing terminal connections, which significantly reduces the potential for wiring errors during complex installations.

Industrial Connectivity and Protocols

To ensure maximum flexibility in modern automation environments, the 3BSE004086R1 supports integration with various industrial networks. While the board primarily interfaces directly with ABB’s proprietary drive bus, it enables the system to communicate status and diagnostic data to higher-level controllers via standard protocols like Modbus or Profinet when paired with appropriate gateway modules. Consequently, operators can monitor real-time I/O states and respond to system alarms with greater speed and accuracy.

Robust Construction for Demanding Environments

ABB manufactured this PCB to withstand the rigorous conditions found in heavy industries such as mining, metals, and pulp and paper. The board utilizes corrosion-resistant copper alloys and protective coatings to maintain conductivity in humid or chemically active atmospheres. Additionally, the compact mechanical footprint allows for dense mounting within control cabinets, optimizing space while maintaining sufficient airflow for thermal management. Because the board supports wire sizes up to 10 AWG, it accommodates heavy-duty industrial cabling without requiring specialized adapters.

Technical Specifications
