Description

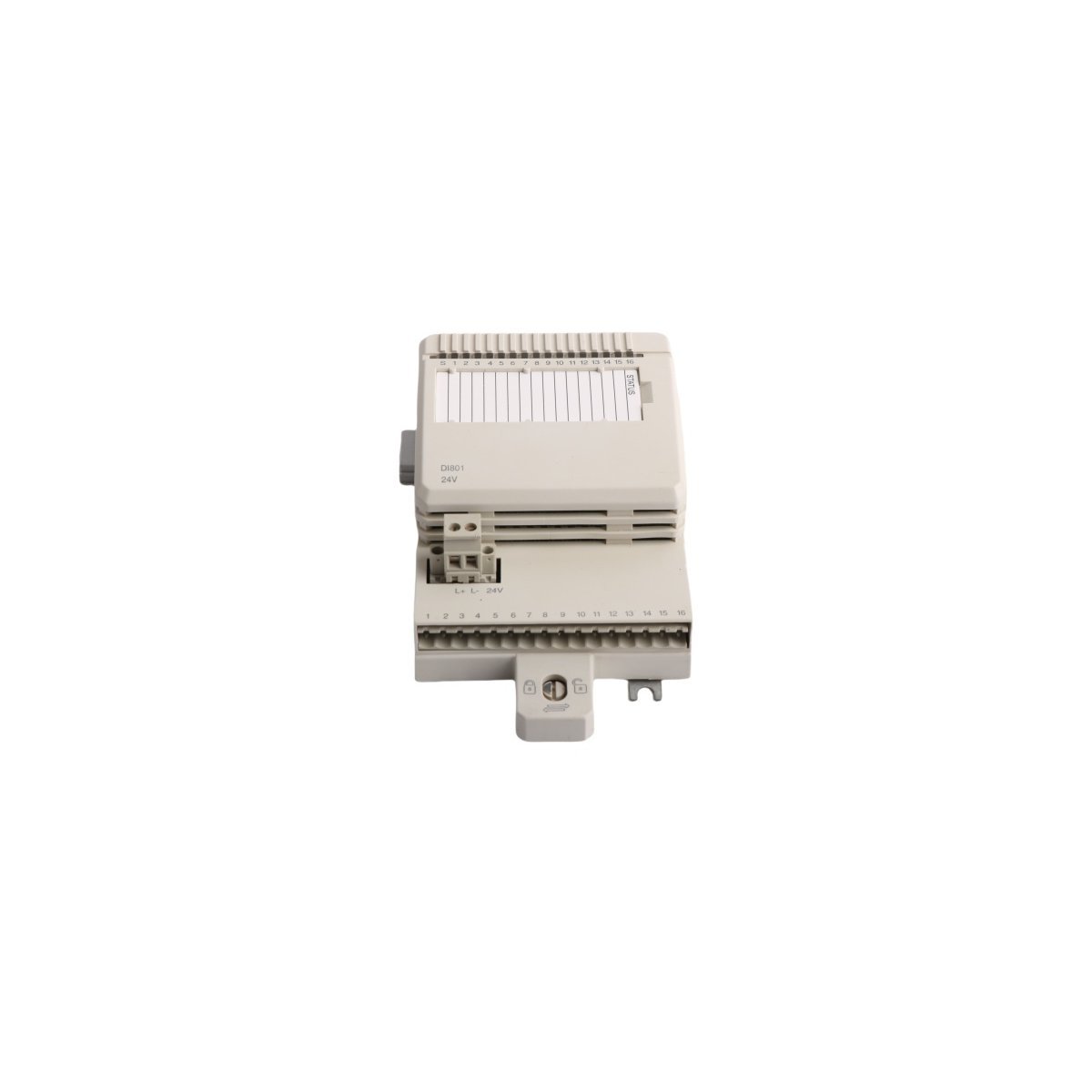

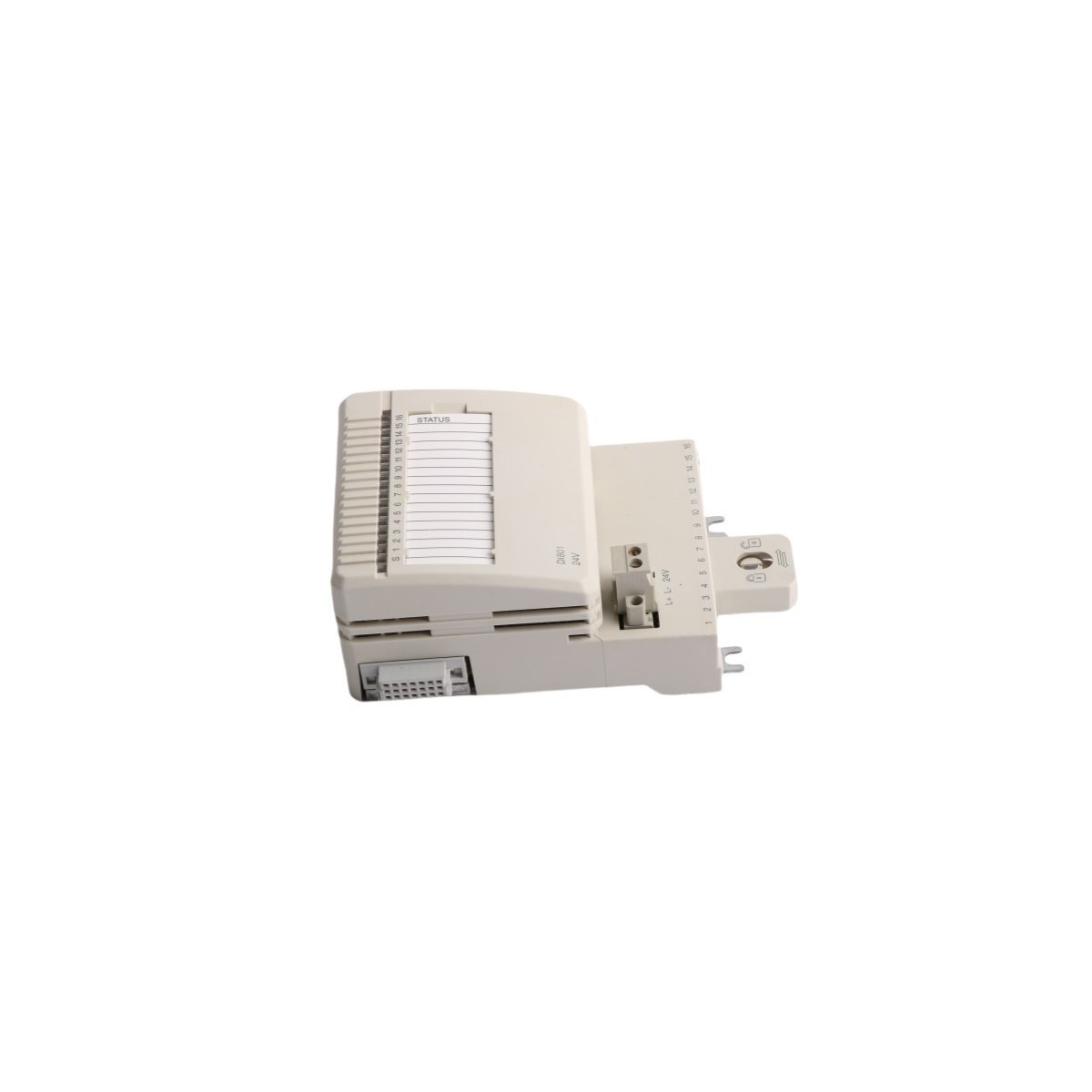

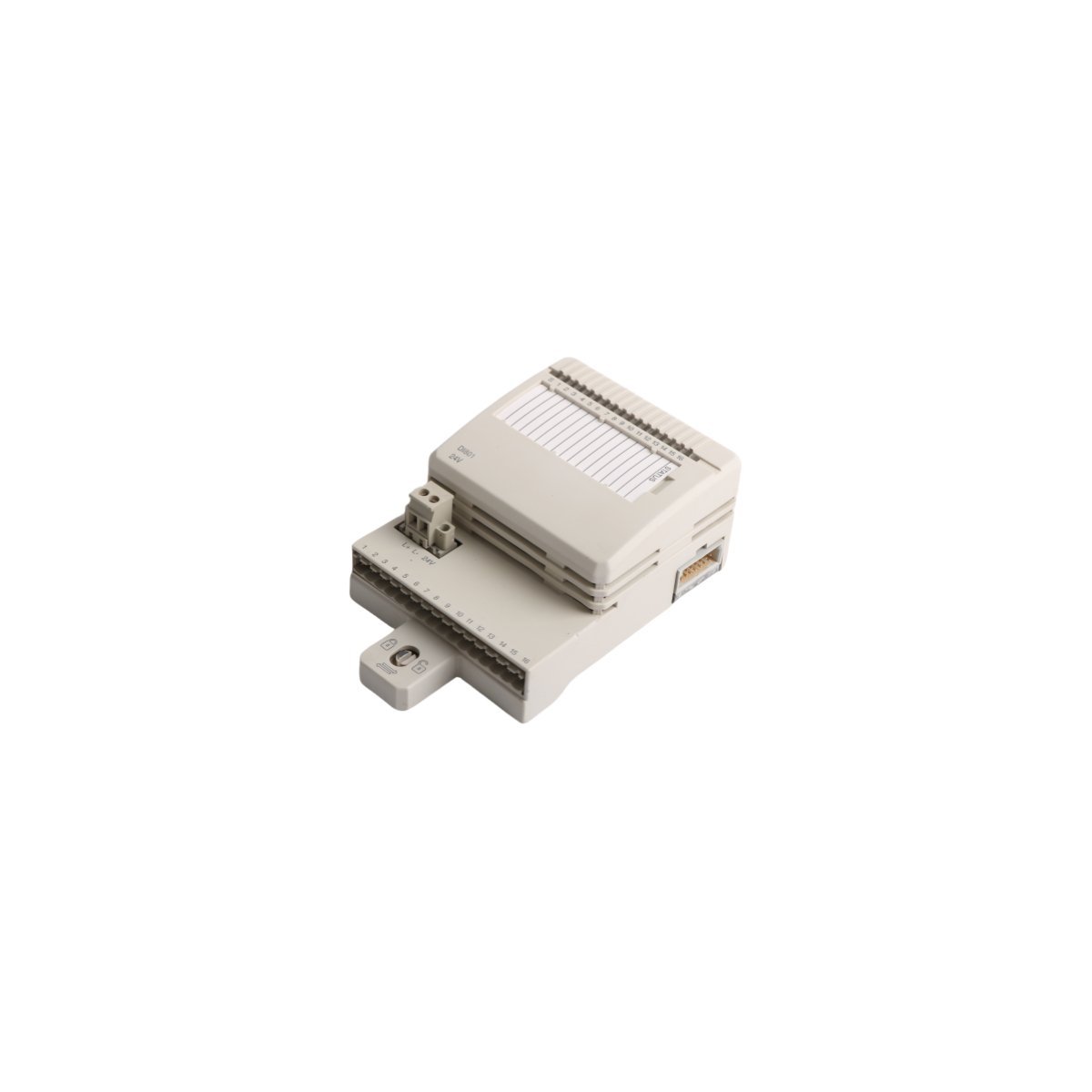

ABB DI801 16-Channel Digital Input Module 3BSE020508R1

The DI801 3BSE020508R1 is a high-density, 24V DC digital signal acquisition module engineered for the ABB S800 I/O platform, providing 16 isolated input channels for industrial automation.

Technical Operational Overview

The DI801 (Order Number: 3BSE020508R1) serves as an essential interface for collecting discrete signals from field devices such as limit switches, pushbuttons, and relay contacts. Operating within a standard 24V DC logic range, this module effectively translates external physical states into digital data for a Distributed Control System (DCS). Consequently, it enables precise logic execution and equipment status monitoring in high-availability environments.

To ensure maximum signal integrity, the DI801 features inputs grouped into a single isolated block. This architecture prevents external electrical noise from migrating into the sensitive control logic of the S800 I/O station. Furthermore, the module includes advanced voltage supervision capabilities on the 16th channel. This allows the system to monitor the power supply health of the entire input group, thereby reducing the risk of undetected signal loss due to field power failures.

Key Technical Characteristics

• High-Density Acquisition: Supports 16 digital input channels in a compact 24V DC configuration.
• Signal Protection: Integrates optical isolation and EMC filtering to shield the internal bus from industrial transients and surges.
• Intelligent Supervision: Dedicated 16th channel functionality for monitoring the presence of process voltage.
• Visual Diagnostics: Individual LED indicators provide immediate front-panel status for each input channel, simplifying troubleshooting.
• Current-Limited Inputs: Each channel utilizes current-limiting components to protect against field wiring faults and short circuits.
• Robust Environmental Compliance: Specifically designed to withstand the electromagnetic interference typical of heavy industrial process sites.

Product Specifications

Industrial Applications

The DI801 module is widely utilized across diverse automation sectors that require high channel counts and reliable isolation. Major applications include:

• Process Automation: Monitoring valve positions and motor starter feedbacks in chemical plants.
• Energy Management: Collecting breaker status and alarm contacts within power distribution substations.
• Water & Wastewater: Supervising level switches and pump run signals in remote telemetry stations.
