Description

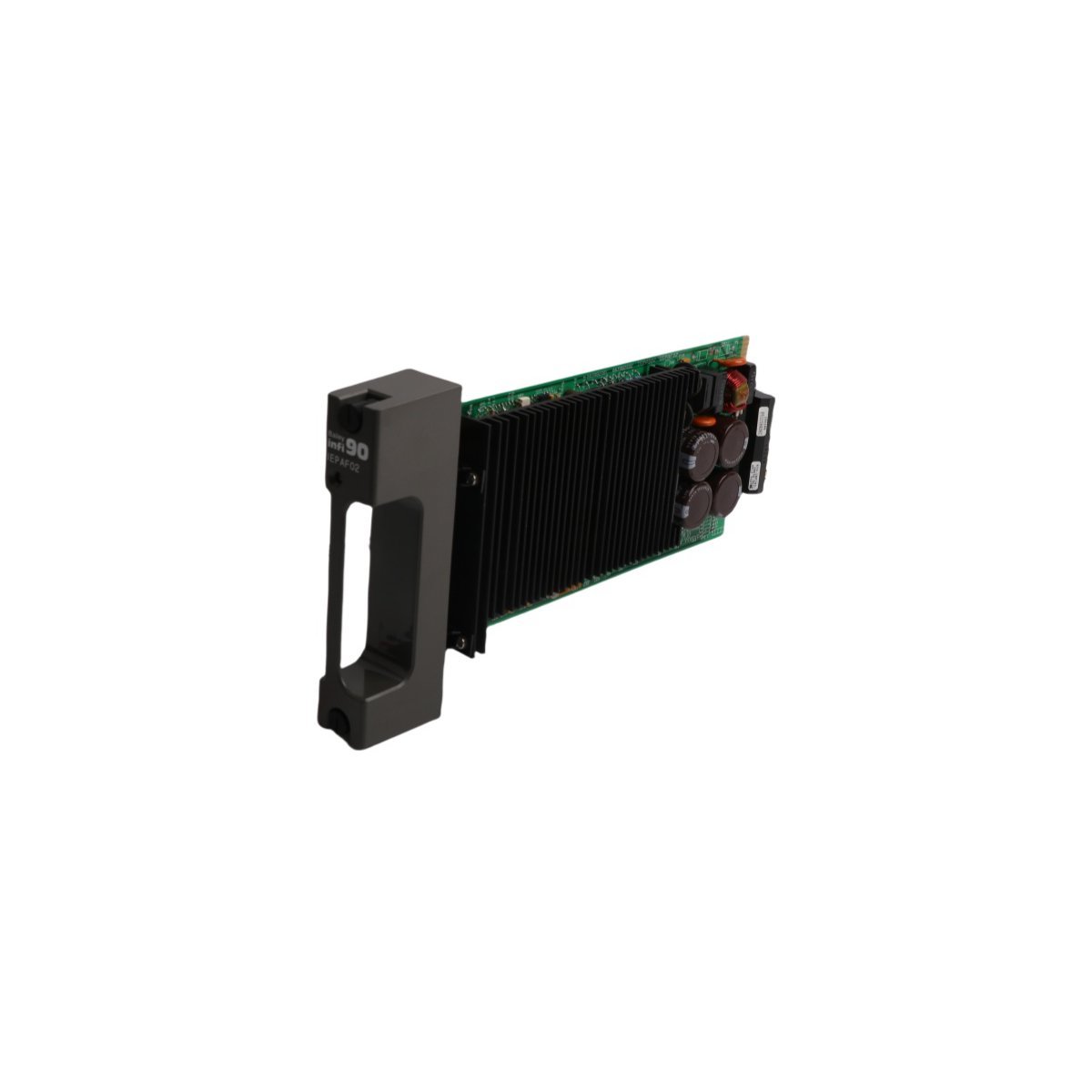

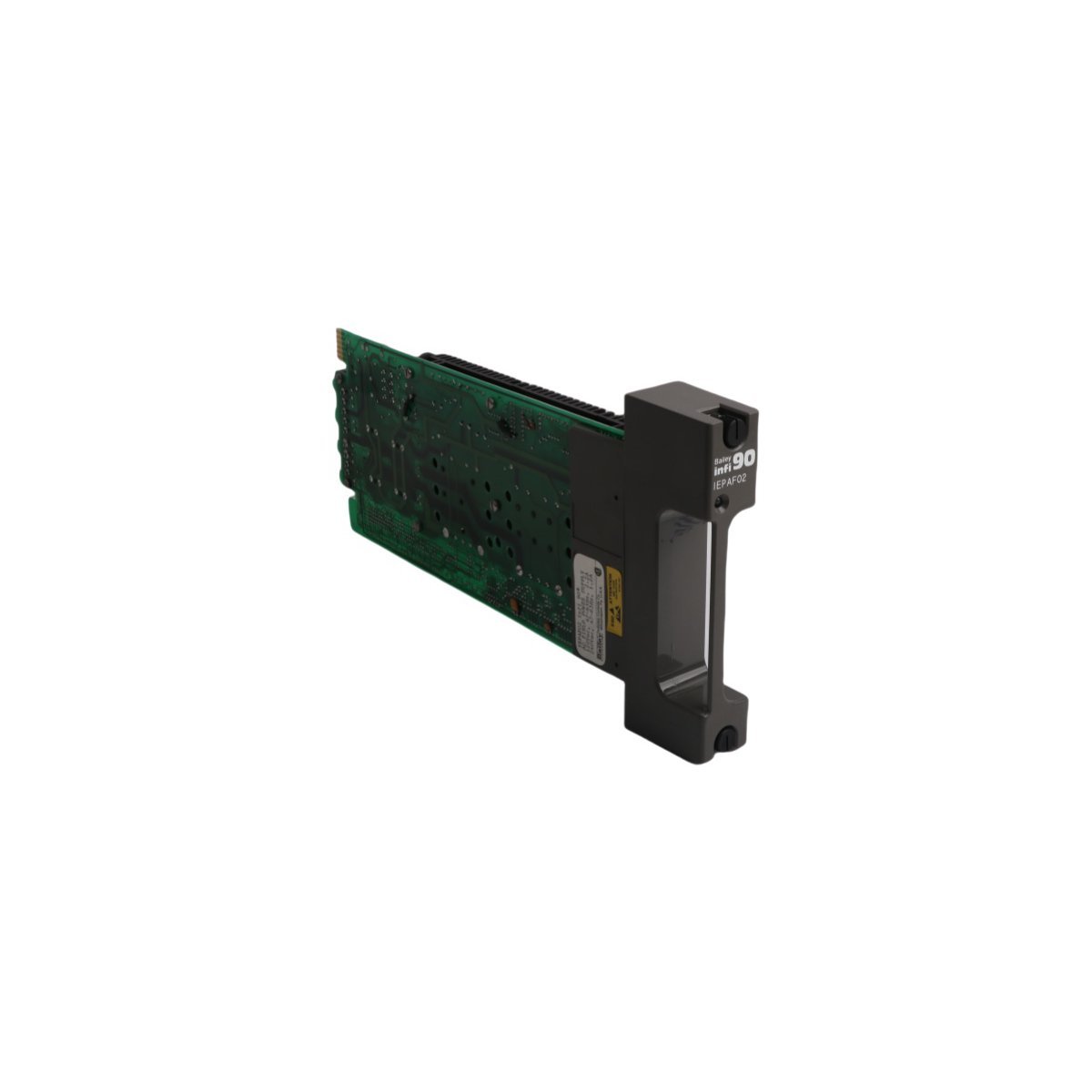

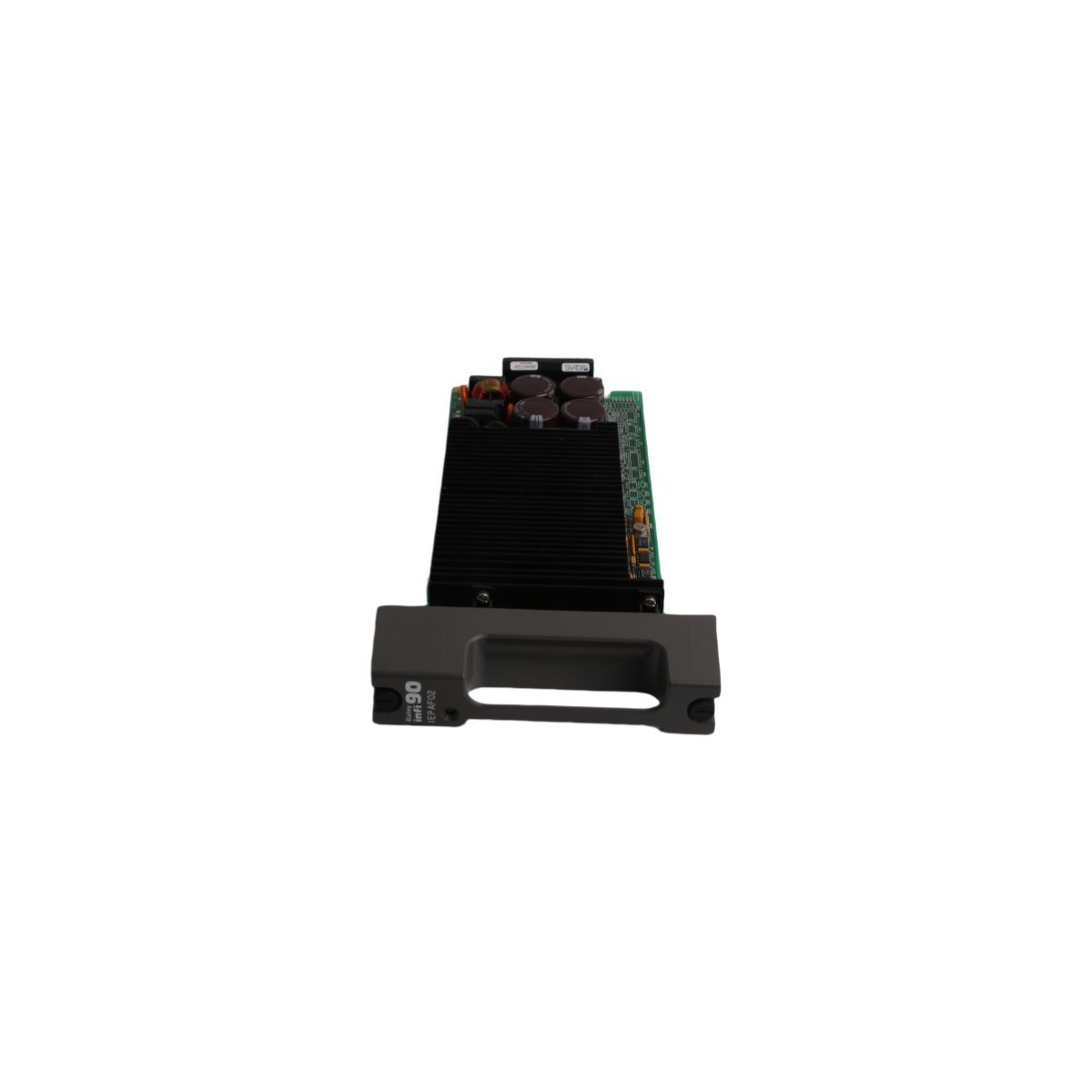

The ABB IEPAF02 is a specialized AC field power supply unit. It belongs to the Harmony Rack (HR) Series I/O family. This module provides essential excitation and power for field-side equipment. It converts input energy into stable signals for sensors and actuators. Furthermore, it ensures the integrity of the control loop in complex DCS architectures. This hardware is a standard choice for maintaining consistent power in Bailey-based systems.

Primary Technical Characteristics

Robust Power Distribution and Efficiency

The IEPAF02 module utilizes high-performance switching technology to deliver consistent field power. It supports heavy electrical loads including large-scale sensor arrays and motor controllers. Because the unit maintains a 1000 VA rating, it handles high startup currents effectively. This capacity prevents voltage drops during peak industrial activities. Additionally, the internal circuitry filters out electrical noise. This creates a clean power environment for sensitive electronic components.

Environmental Resilience and Protection

ABB designed this power supply for harsh industrial landscapes. The unit operates efficiently within a temperature range of -10°C to +50°C. Consequently, it performs reliably in non-climate-controlled manufacturing zones. The IP20-rated housing protects internal components from solid debris and dust. This durability ensures a long service life with minimal hardware failures. Furthermore, the slim profile allows for high-density mounting in standard DCS racks. This optimizes the use of cabinet space in crowded control rooms.

Industrial applications include:

• Powering field instrumentation in thermal power plants.
• Providing AC field excitation for heavy machinery.
• Supporting decentralized I/O in chemical processing facilities.
• Managing energy distribution for water treatment sensors.

System Compatibility and Installation

The IEPAF02 integrates seamlessly into existing Harmony Rack and Bailey Infi 90 systems. It features a simplified mounting mechanism for rapid onsite deployment. Technicians can complete the installation quickly due to the clearly defined interface. Moreover, the module supports standard communication services for remote status monitoring. This connectivity allows operators to track power health from the central control station.
