Description

Brief Product Description

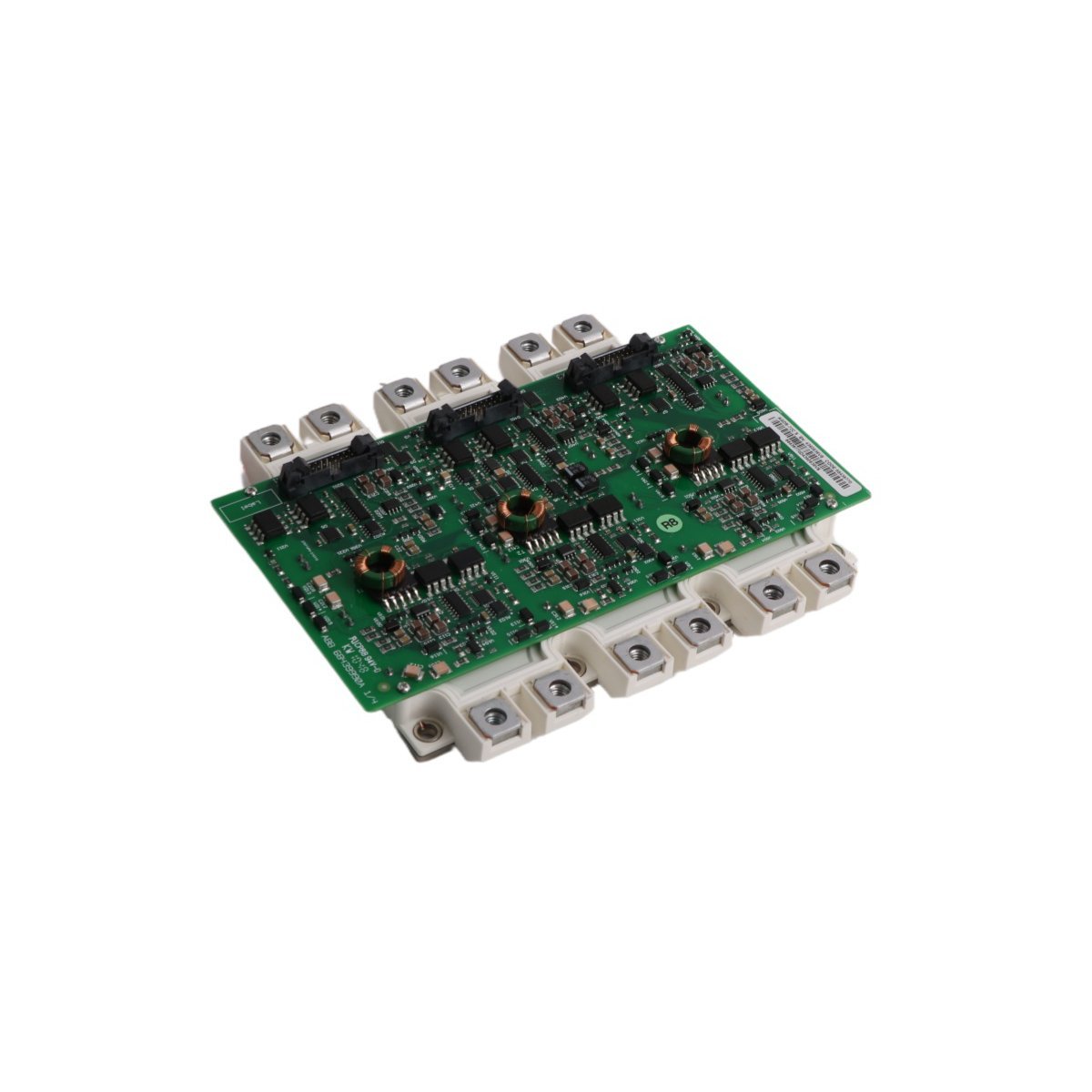

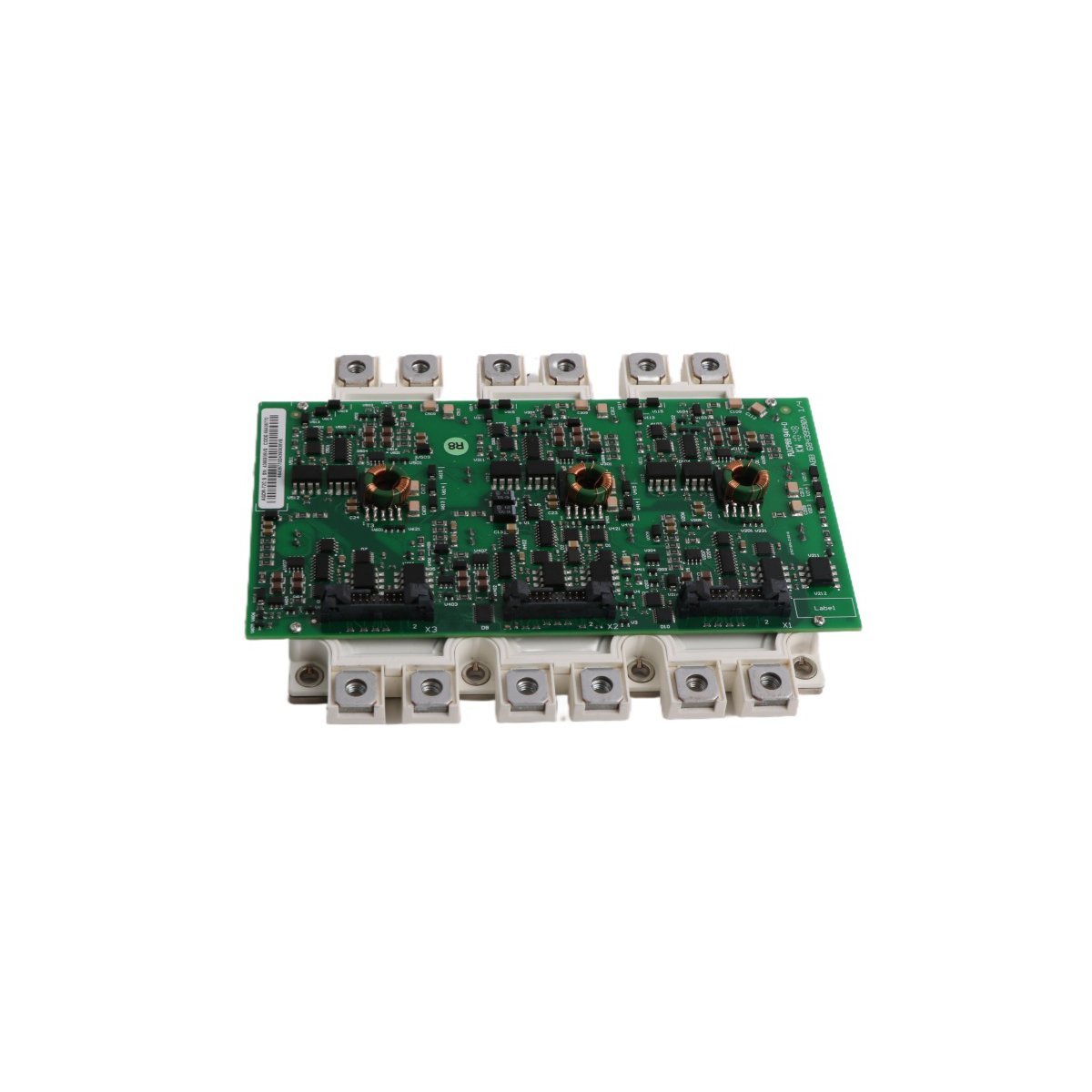

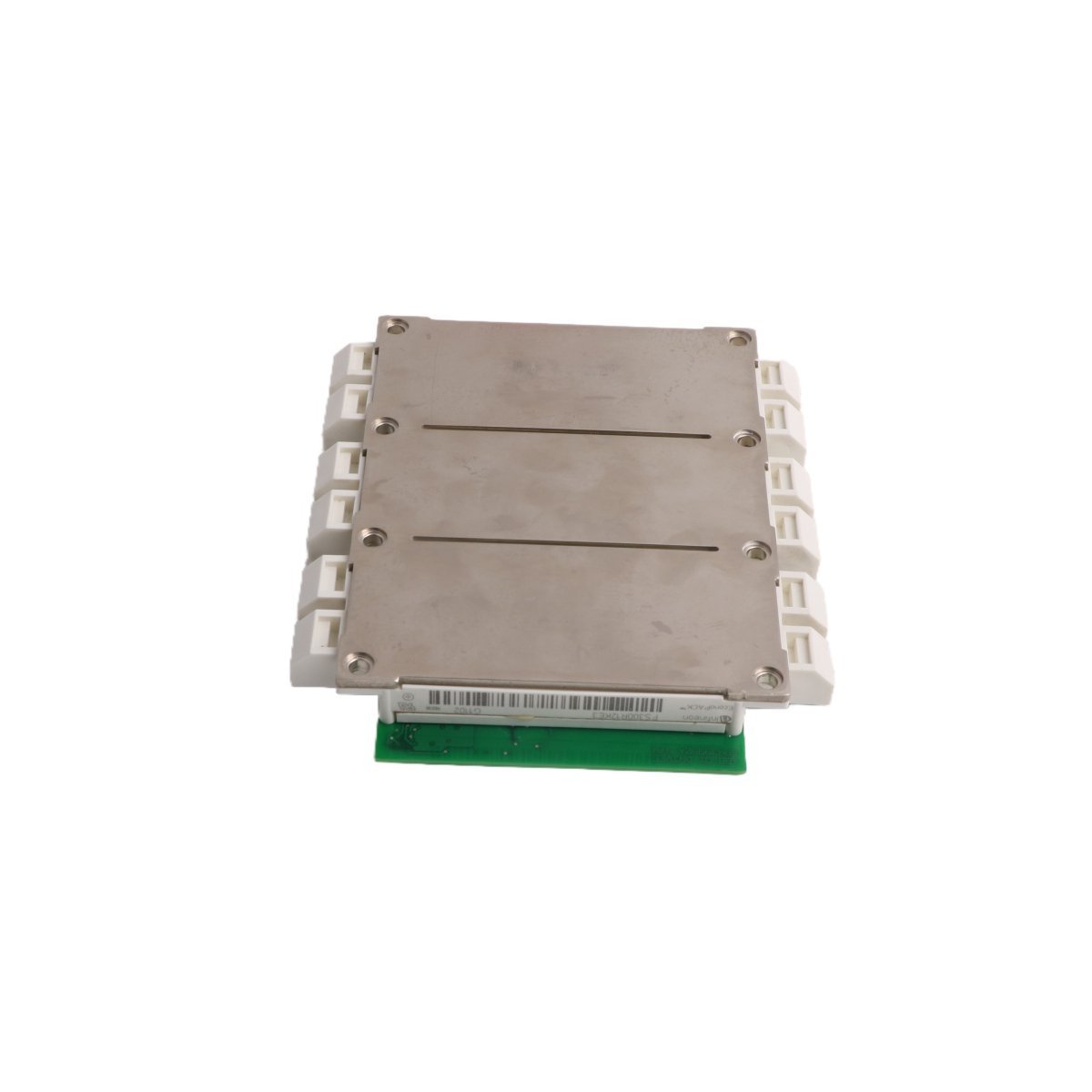

The ABB FS300R12KE3/AGDR-62C is a high-capacity 1200V/300A IGBT power module integrated with a dedicated gate driver board, specifically engineered for ACS800 series industrial drives. This assembly provides the high-current switching and thermal stability required for heavy-duty motor control and power conversion.

​Product Description

Integrated Power Switching and Drive Logic

The ABB FS300R12KE3/AGDR-62C combines a high-efficiency IGBT semiconductor with a specialized gate drive interface to manage the demanding power requirements of ACS800 drive systems. Rated for 1200V and 300A, this module serves as the primary switching element in the inverter stage. By integrating the AGDR-62C driver board directly with the FS300R12KE3 power unit, ABB ensures optimal gate signal transmission and reduced electromagnetic interference. This synergy allows for precise pulse-width modulation (PWM) control, which is essential for maintaining motor torque and speed accuracy in complex automation environments.

Thermal Management and System Protection

Operational longevity in power electronics depends heavily on heat regulation, and the FS300R12KE3/AGDR-62C excels in this area. The module features a low thermal resistance of 0.08 K/W for the IGBT and 0.10 K/W for the diodes, facilitating rapid heat transfer to the cooling assembly. Furthermore, an integrated NTC (Negative Temperature Coefficient) thermistor provides real-time thermal monitoring, allowing the drive system to initiate protective derating or shutdown procedures before overheat damage occurs. These thermal safeguards ensure the module operates reliably even during peak load cycles in high-ambient temperature industrial facilities.

Heavy-Duty Industrial Applications

Engineered for the most rigorous environments, this IGBT kit utilizes press-fit contact technology to maintain electrical integrity under constant vibration and thermal cycling. This makes the ABB FS300R12KE3/AGDR-62C the preferred replacement part for critical infrastructure in mining, metal processing, and large-scale material handling. Maintenance departments utilize this genuine ABB component to restore original equipment manufacturer (OEM) performance standards, ensuring that high-power inverter drives continue to operate with maximum uptime and efficiency.
