Description

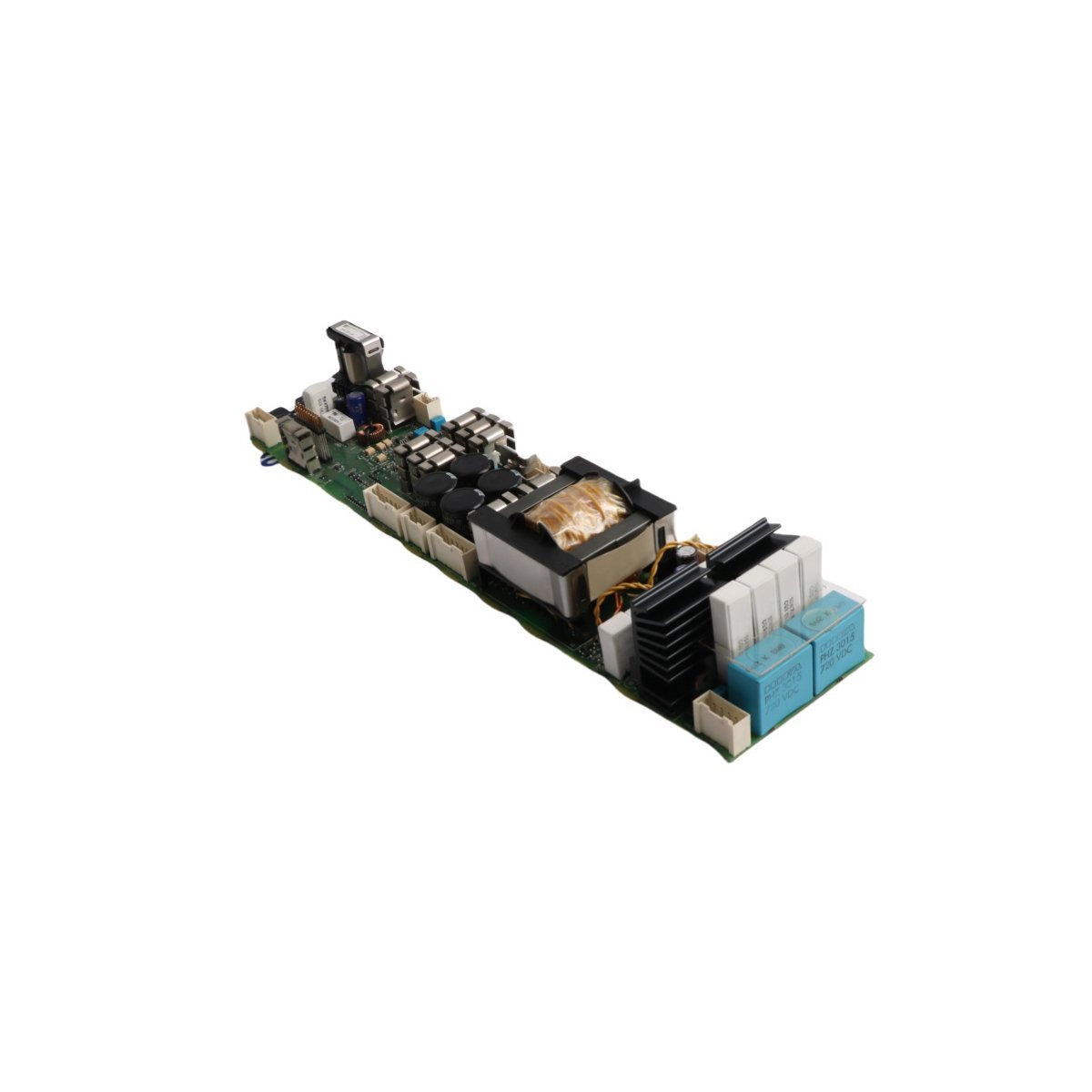

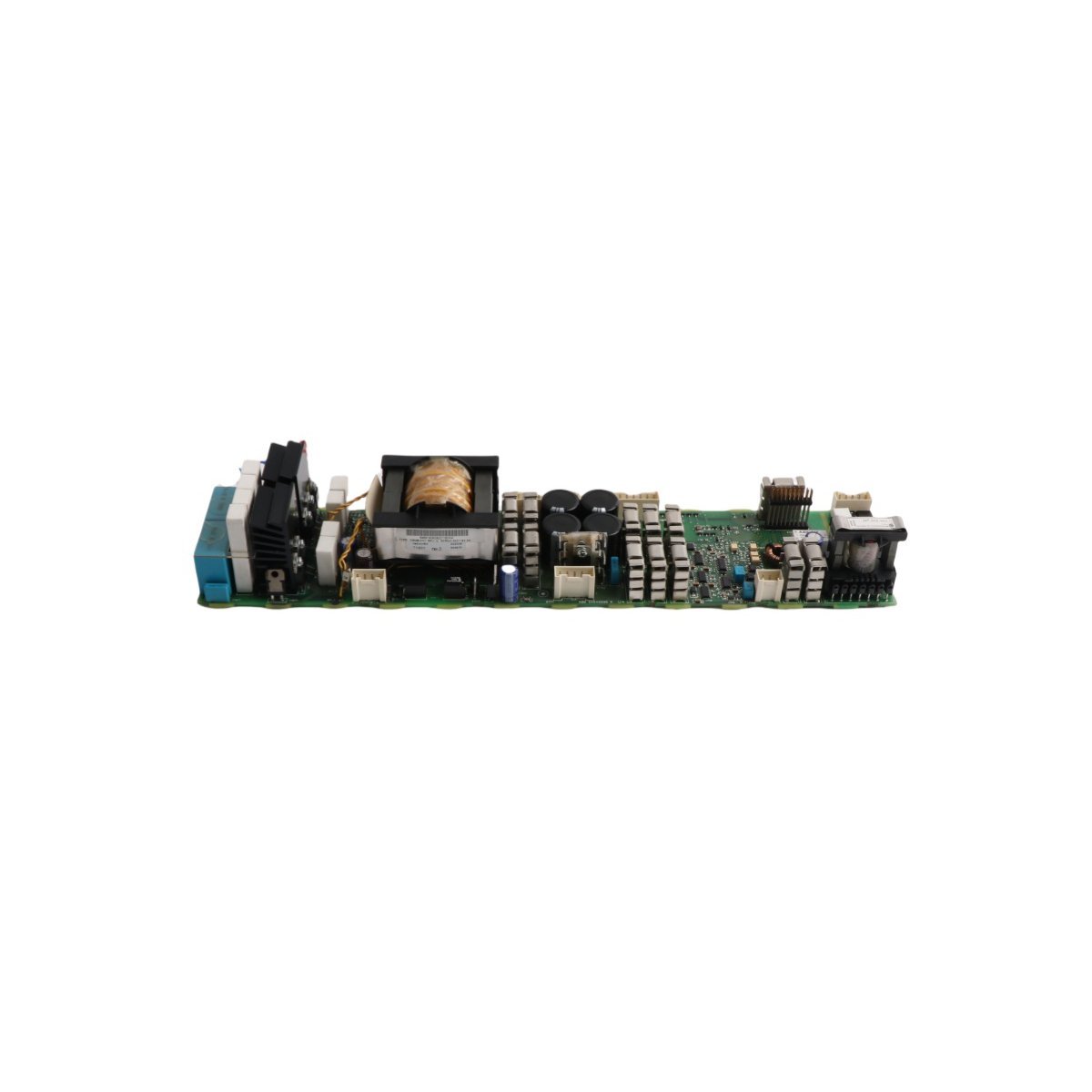

The ABB DSMB-01C functions as a specialized power supply unit for AC800 drive systems. This 64691929 module converts standard alternating current into the precise direct current required by internal drive electronics. Furthermore, it incorporates advanced filtration circuits to prevent electrical noise from disrupting sensitive control signals. The Swedish-engineered architecture prioritizes thermal efficiency and electrical isolation for continuous industrial operation. Consequently, this board serves as a dependable backbone for large-scale motor control and automation assemblies.

Industrial Grade Construction and Versatility

This power supply board features a rugged metal housing to protect internal components from physical stress. It supports global electrical standards by accepting a wide input range from 100V to 240V AC. Additionally, the module delivers a stable 24V DC output with a 100W maximum capacity. It operates efficiently within extreme environments ranging from -20°C to +60°C. These characteristics make it ideal for demanding sectors like mining, marine, and heavy manufacturing. Moreover, the slim profile facilitates easy installation within standard drive cabinets.

Protection and System Integration

The DSMB-01C includes integrated safety mechanisms to protect the AC800 drive from voltage surges. It effectively monitors power quality to ensure the longevity of secondary PLC modules. Furthermore, the board aligns with DCS architecture requirements for seamless communication and power distribution. The 0.98kg unit utilizes high-grade capacitors and transformers to maintain a steady energy flow. As an active ABB component, it remains a preferred choice for both new installations and critical system maintenance.

Technical Specifications

Primary Automation Applications

• Power distribution for ABB AC800 series industrial drives.
• Specialized energy supply for DCS control nodes and interfaces.
• Support for heavy-duty motor control centers in process industries.
• Maintenance and hardware upgrades for legacy automation systems.
• Power regulation in high-vibration manufacturing environments.
