Description

Brief Product Description

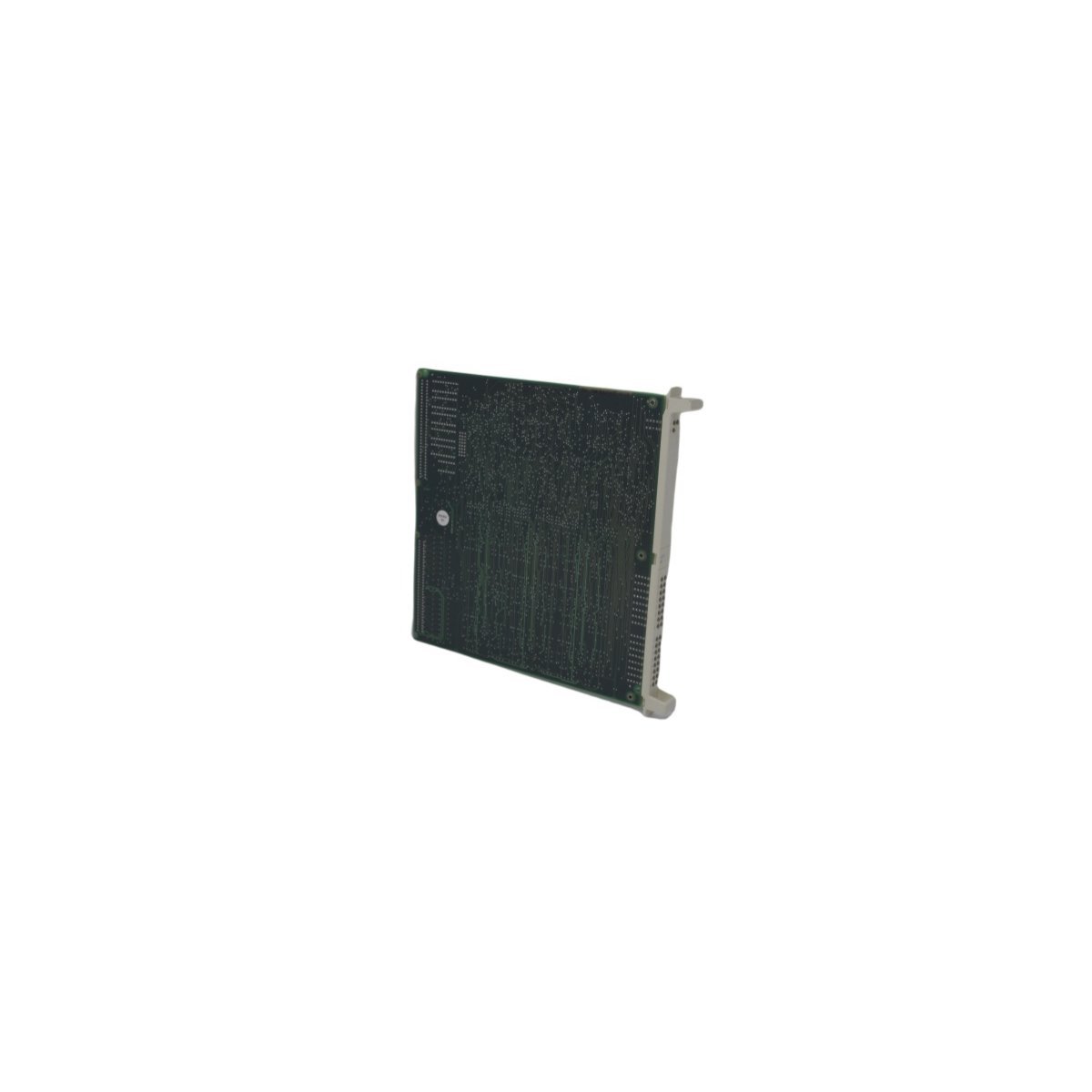

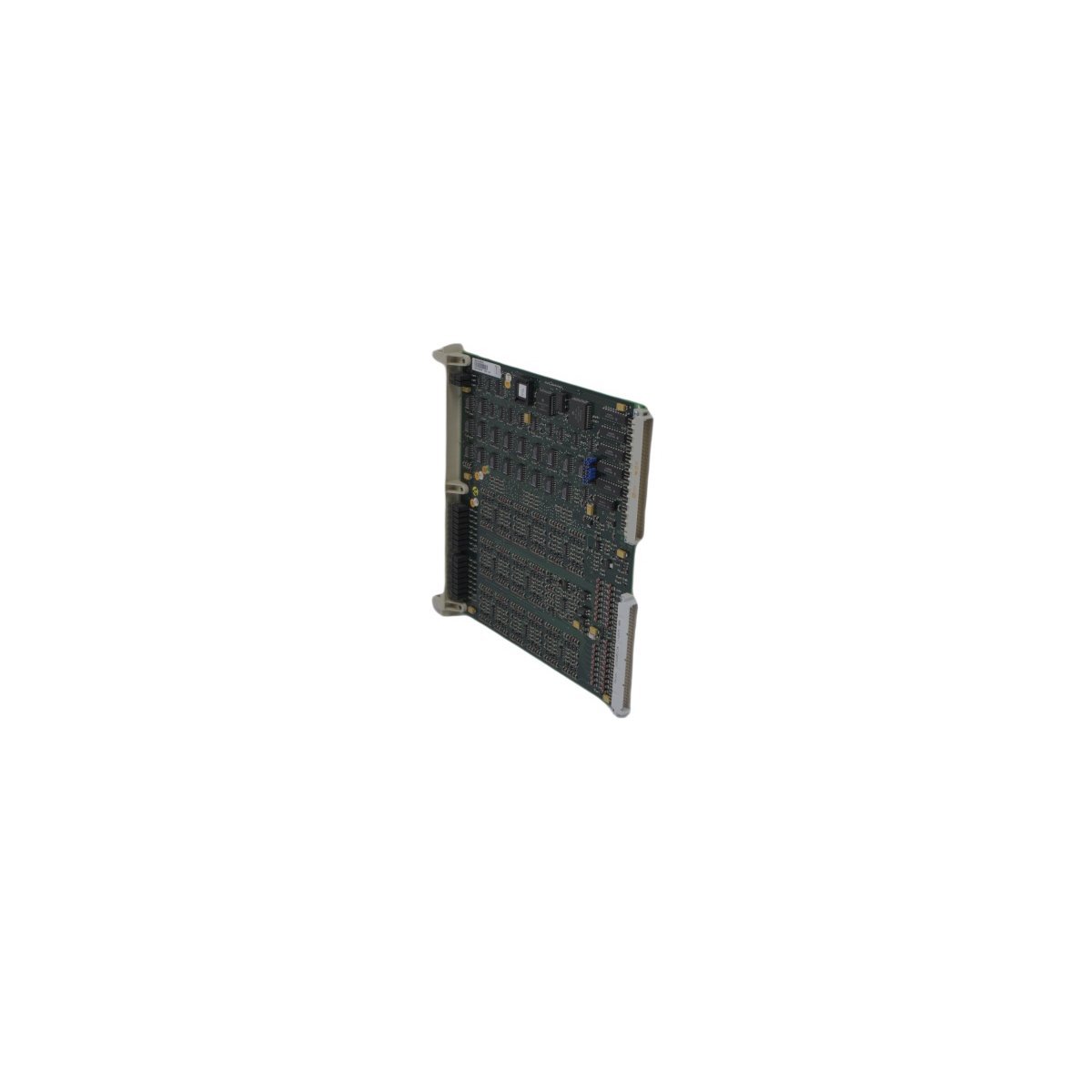

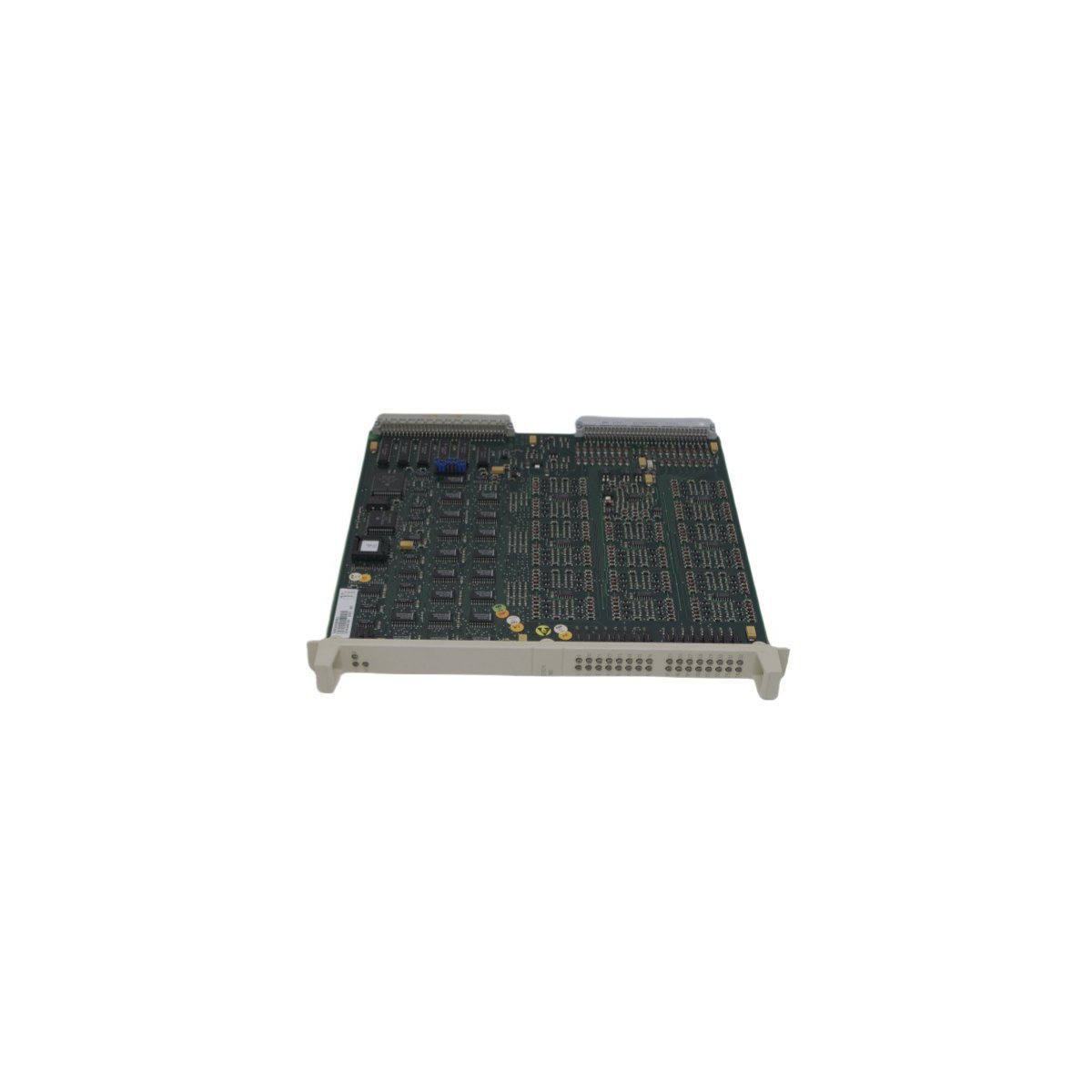

The ABB DSDX180 (3BSE003859R1) is a high-density digital interface board designed for the MasterPiece 200 and S100 I/O series. It provides 16 digital input and 16 digital output channels to facilitate high-speed logic control in industrial DCS environments.

Versatile Signal Processing for MasterPiece Systems

The ABB DSDX180 digital I/O board acts as a critical bridge between field devices and the MasterPiece 200 or Advant Controller systems. By providing 16 dedicated digital input channels alongside 16 digital output channels, the board allows for simultaneous monitoring and control of industrial processes. This balanced density enables engineers to manage complex logic sequences, such as motor starts and valve positioning, through a single hardware interface. Because the DSDX180 integrates natively with the S100 I/O bus, it ensures high-speed data throughput and low-latency response times for time-critical automation tasks.

Advanced Integration and Communication

Designed for the ABB automation ecosystem, the DSDX180 3BSE003859R1 supports robust communication across standard DCS networks. Although legacy systems primarily utilize the board for direct S100 bus connectivity, its design facilitates seamless signal routing within Advant OCS architectures. The board converts field-level 24V DC signals into digital data that the central processor can interpret without signal degradation. Consequently, this module simplifies the wiring architecture of control cabinets, reducing the physical footprint required for extensive I/O point counts while maintaining high signal integrity across all 32 total channels.

Rugged Swedish Engineering for Process Stability

Durability remains a hallmark of the DSDX180, which features a heavy-duty construction typical of Swedish-manufactured ABB components. The module utilizes high-quality electrical isolation to protect the sensitive internal controller logic from unpredictable field-side surges and electrical noise. Furthermore, the 2.72 kg build quality reflects a focus on heat dissipation and mechanical stability, ensuring the board operates reliably under continuous industrial loads. By implementing this module, facilities benefit from reduced maintenance requirements and a longer lifecycle for their distributed control infrastructure, even in challenging manufacturing environments.

Key Technical Characteristics

• High-Density Dual Functionality: Features a symmetrical 16-input and 16-output configuration on a single board.
• S100 Bus Compatibility: Engineered specifically for the MasterPiece 200 and Advant Controller series.
• Galvanic Isolation: Protects internal system logic from field-side transients and electromagnetic interference.
• Optimized Thermal Design: Robust mechanical structure aids in heat management for high-duty cycle operations.
• Standardized 24V DC Operation: Interfaces seamlessly with standard industrial sensors, switches, and actuators.
• Precision Signal Conditioning: Ensures clean digital transitions for accurate PLC and DCS logic execution.
