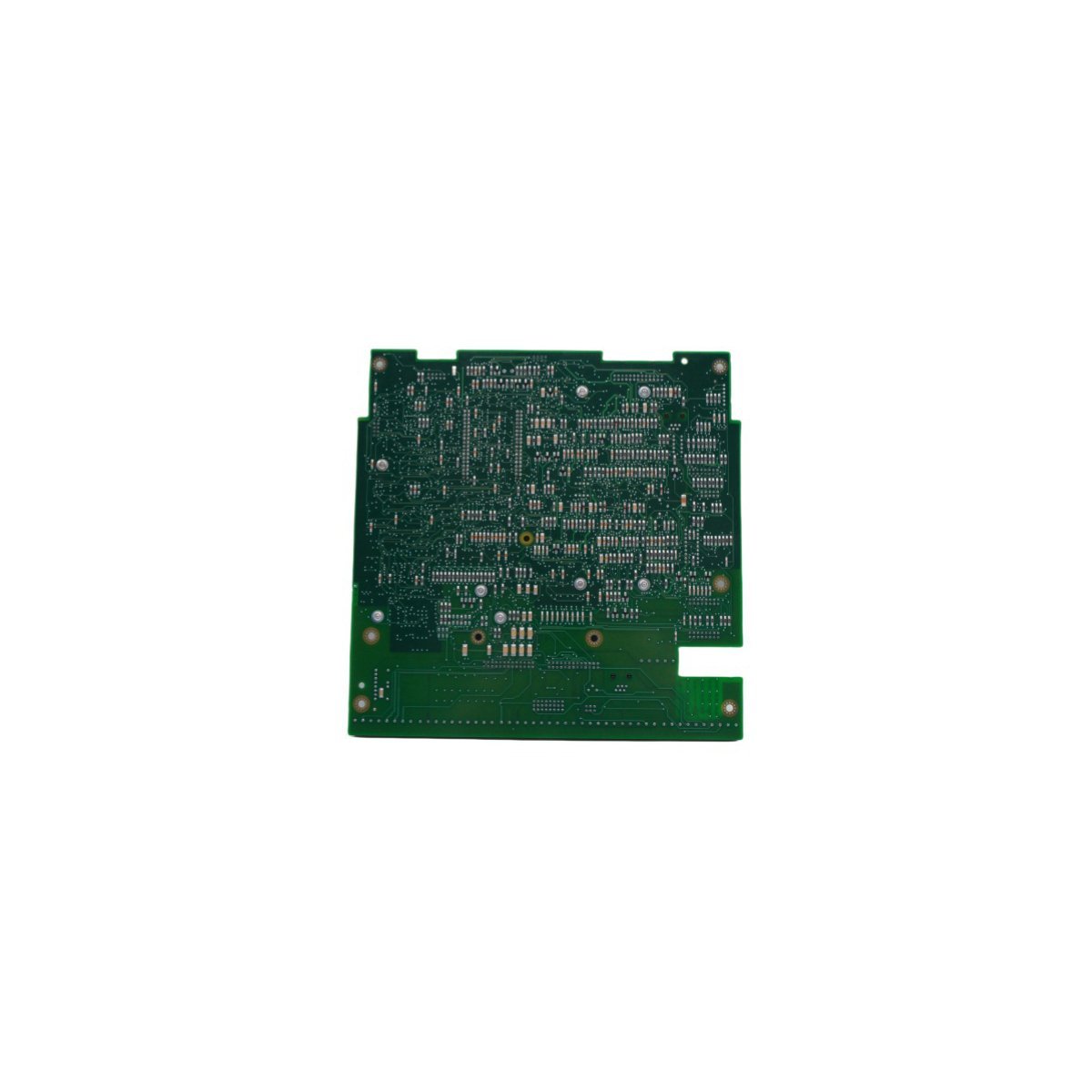

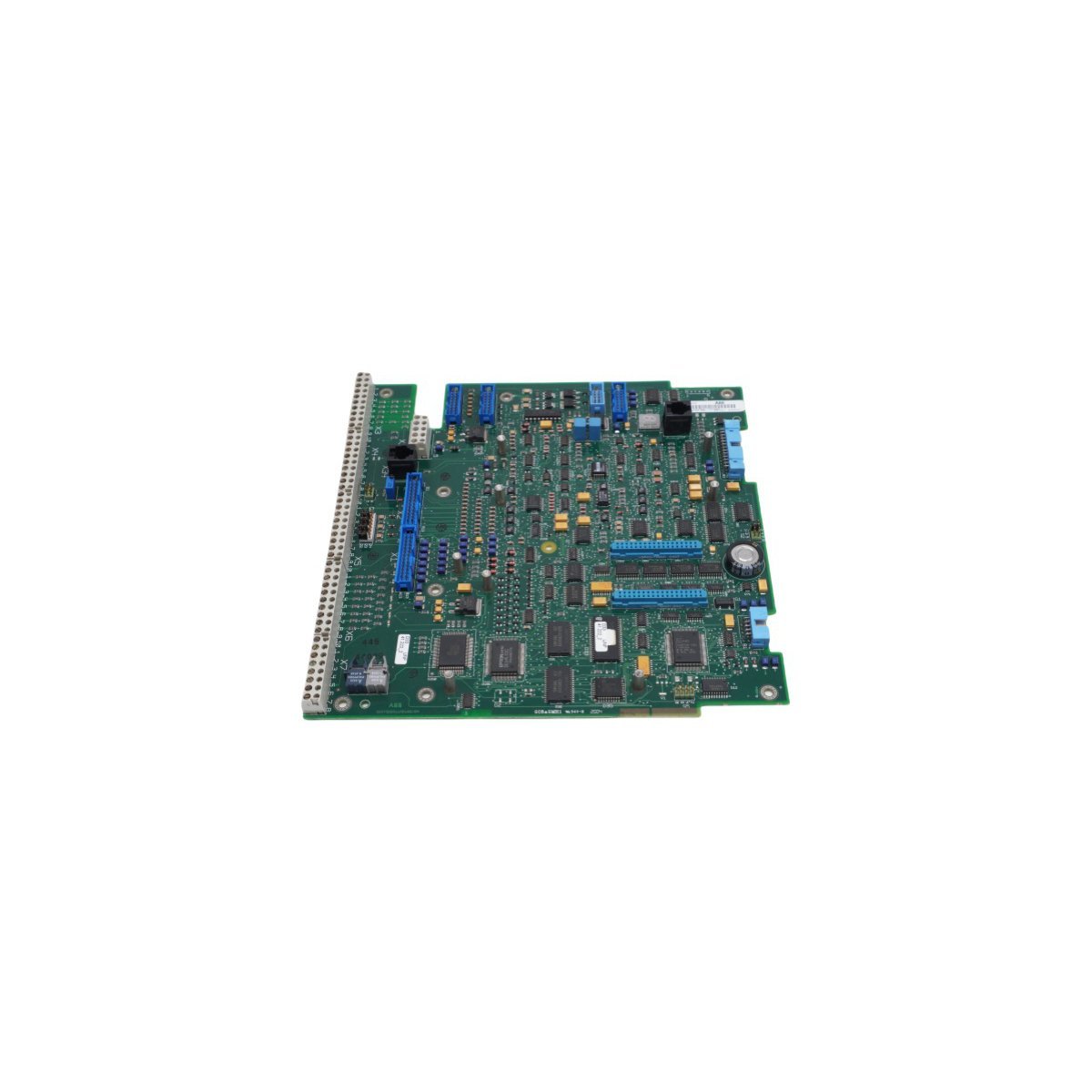

The ABB SDCS-CON-2A, identified by part number 3ADT309600R0002, serves as the primary processing unit for the DCS800 industrial drive series. This control board manages critical drive functions, including speed and torque regulation, pulse generation for the thyristor power stage, and comprehensive diagnostics. By integrating advanced microprocessor technology, it ensures high-speed logic execution and precise motor control for demanding DC drive applications.

Technical Specifications and Features

• Manufacturer: ABB
• Series Compatibility: Specifically designed for the DCS800 DC drive family
• Processing Power: High-speed digital signal processing for real-time motion control
• Input/Output Interface: Manages analog and digital I/O, encoder feedback, and drive-to-drive communication
• Physical Dimensions: 25.4 cm x 2.5 cm x 24.8 cm
• Net Weight: 0.4 kg
• Country of Origin: Sweden
• Hardware Configuration: Includes dedicated slots for fieldbus adapter modules and extension I/O boards

Operational Functions and Applications

The SDCS-CON-2A acts as the central intelligence of the drive system. It monitors system health through continuous feedback loops, thereby preventing hardware failures during voltage fluctuations or thermal overloads. Furthermore, the board facilitates seamless communication between the drive and higher-level PLC systems via various industrial protocols. Consequently, this module is frequently utilized in heavy-duty sectors such as metal processing, pulp and paper, and crane operations where reliable DC motor regulation is paramount. Moreover, its compact architecture allows for straightforward installation within standard drive cabinets, while the modular design simplifies troubleshooting and component replacement.
