Product Overview

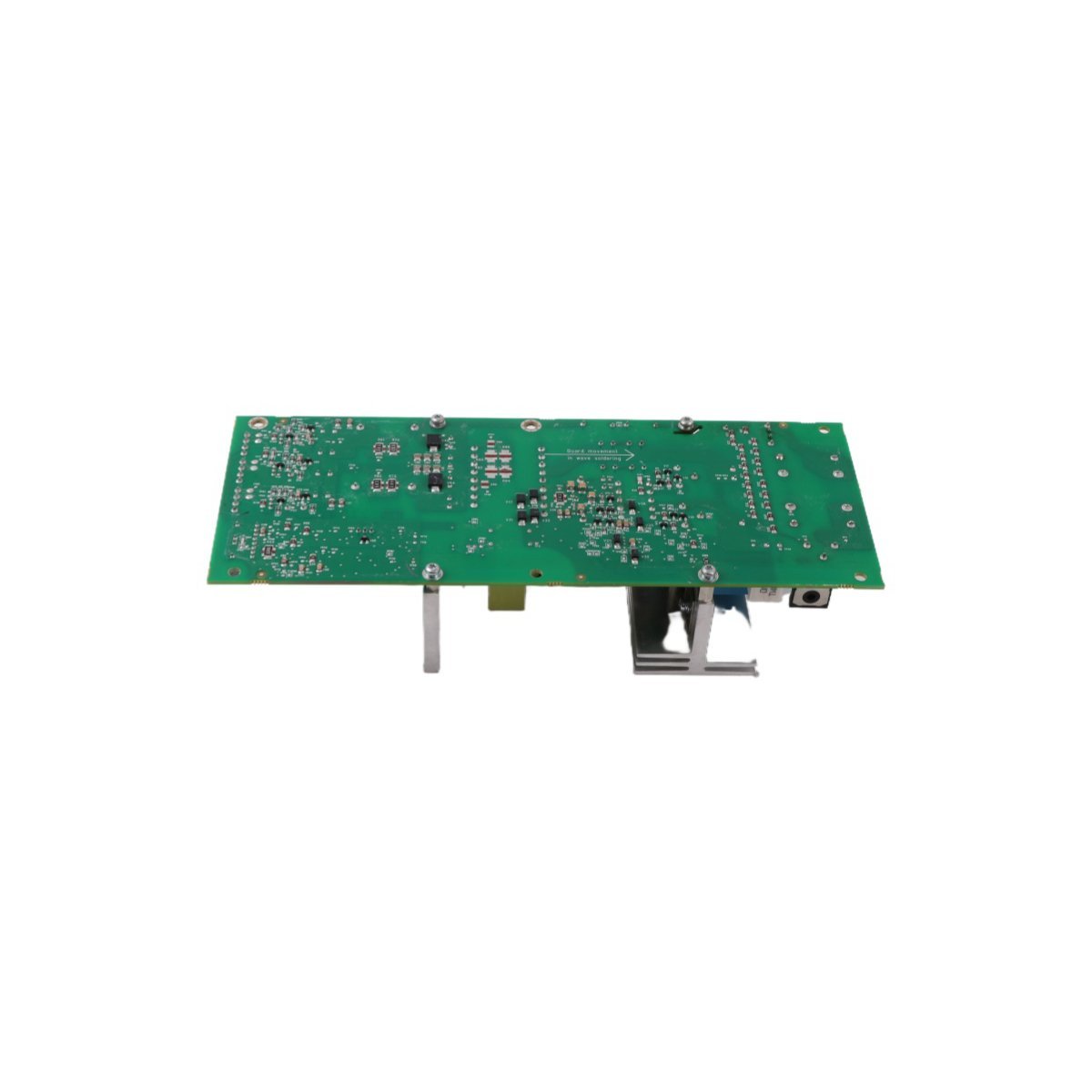

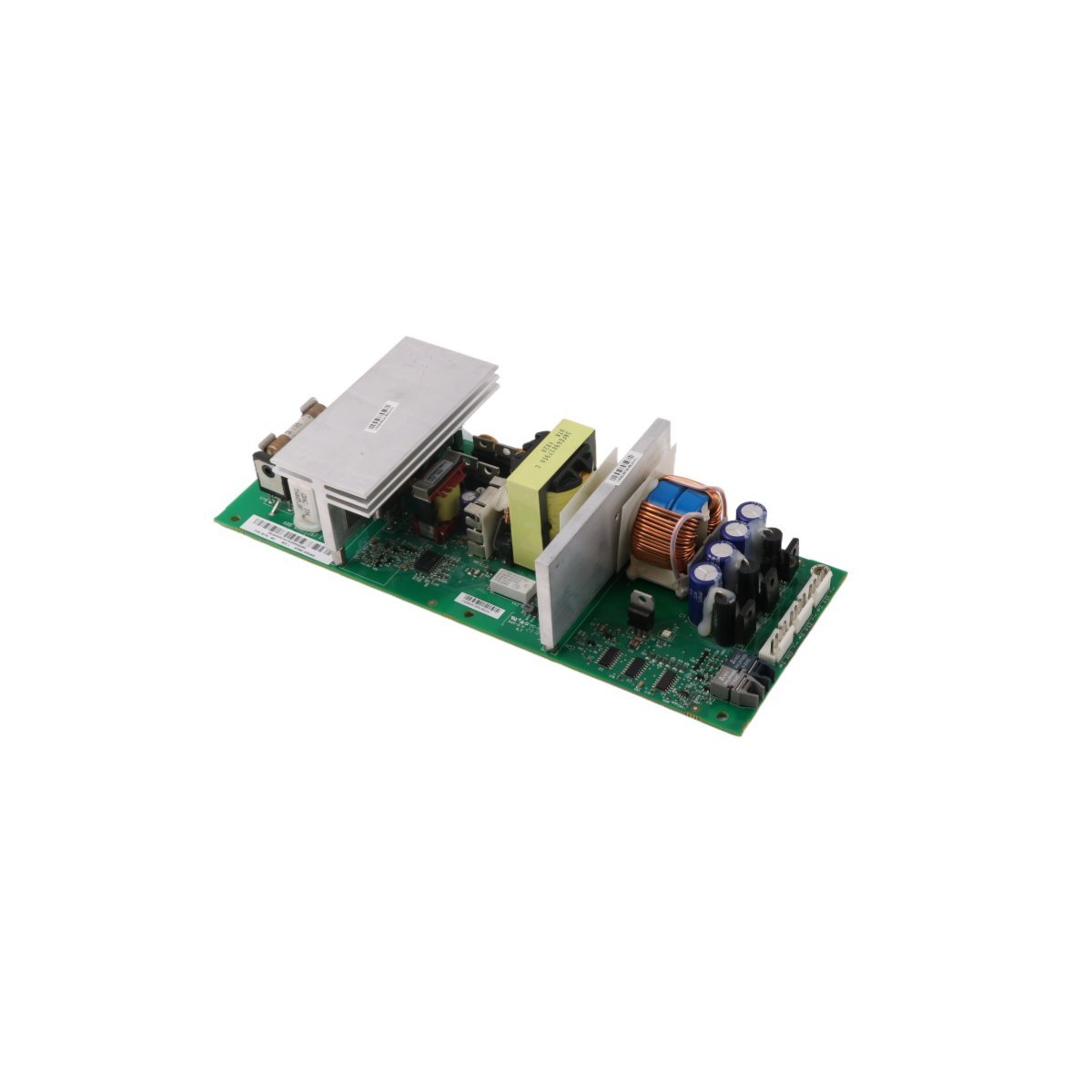

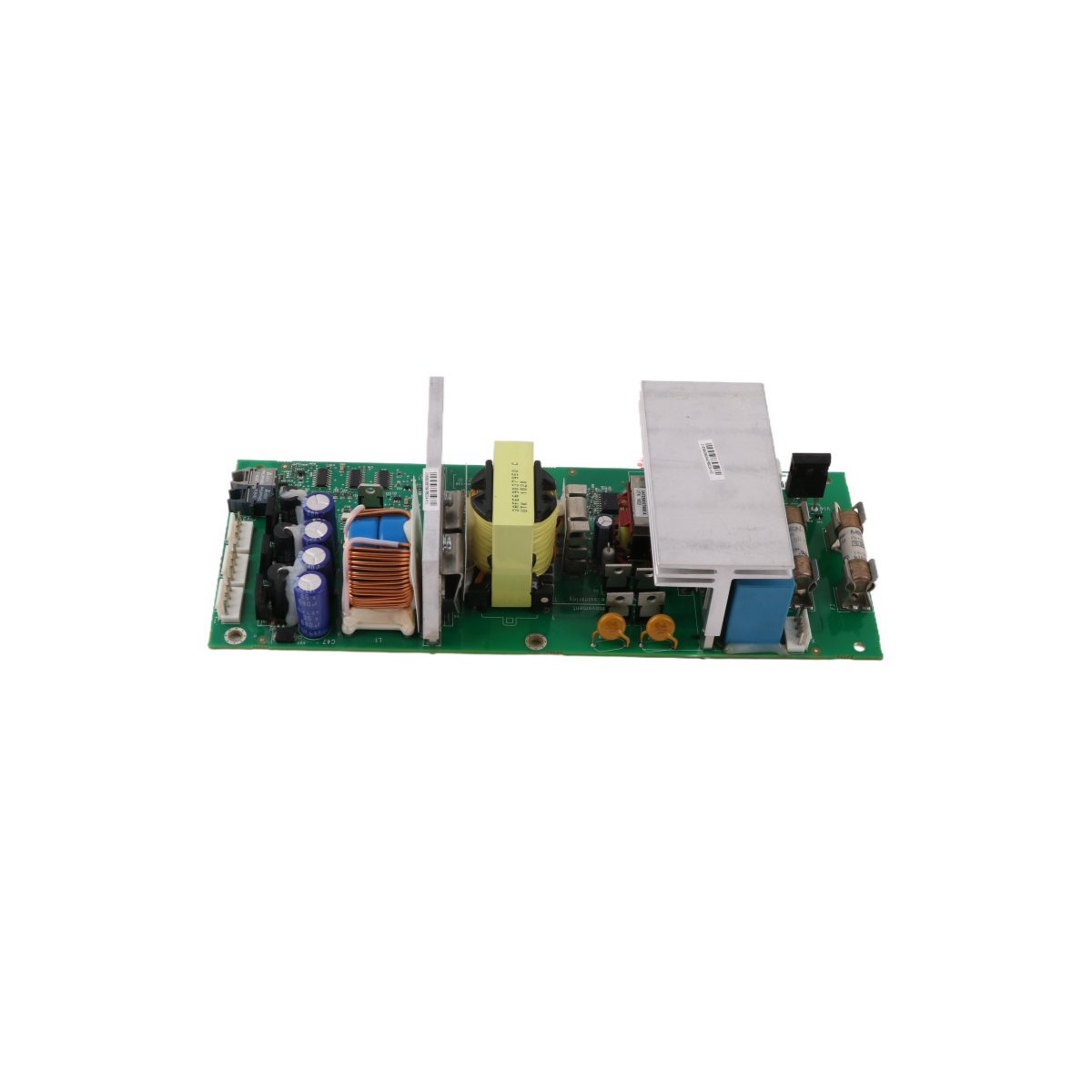

The ABB BFPS-95C 3AXD50000043370 is a specialized power conversion module designed to provide stable DC voltages for industrial drive control units and gate driver circuits. This high-reliability board ensures consistent performance by converting wide-range AC inputs into regulated power for sensitive logic and power electronics.

Robust Energy Conversion and Distribution

The BFPS-95C 3AXD50000043370 acts as the primary energy heart for complex industrial automation assemblies. It accepts a versatile AC input ranging from 200V to 500V, which allows for global deployment across various power grids. This module provides a multi-rail output architecture, including a +24VDC logic supply for controllers and a ±15VDC supply specifically engineered for gate drivers. Furthermore, the board maintains a standby 5VDC output to preserve essential system functions even during low-power states. By regulating voltage within a tight ±2% margin, the BFPS-95C protects downstream components from fluctuations and ensures high-fidelity signal processing.

Engineered for Electrical Resilience

Industrial environments often subject hardware to severe electrical stress; therefore, ABB integrated 4kV surge protection directly into this board’s circuitry. This protective measure prevents input transients from damaging the drive’s internal logic. Additionally, the module achieves an impressive efficiency rating of 88% or higher under standard load conditions. This high efficiency effectively minimizes heat dissipation, which in turn extends the lifespan of the surrounding electronics within the enclosure. The unit also features advanced charging control logic, which manages the power-up sequence of the drive’s DC bus to prevent inrush current damage.

Performance in Extreme Conditions

The 3AXD50000043370 model demonstrates exceptional durability, operating reliably in temperatures as low as -25°C and as high as +70°C. This wide thermal range makes it an ideal choice for heavy industries such as metal processing, mining, and renewable energy. Despite its high power density and robust feature set, the board maintains a compact footprint that facilitates easy integration into standard DCS racks and machinery drive cabinets. Its Swedish manufacturing origin guarantees adherence to the highest international quality standards, providing peace of mind for critical process continuity.
