Description

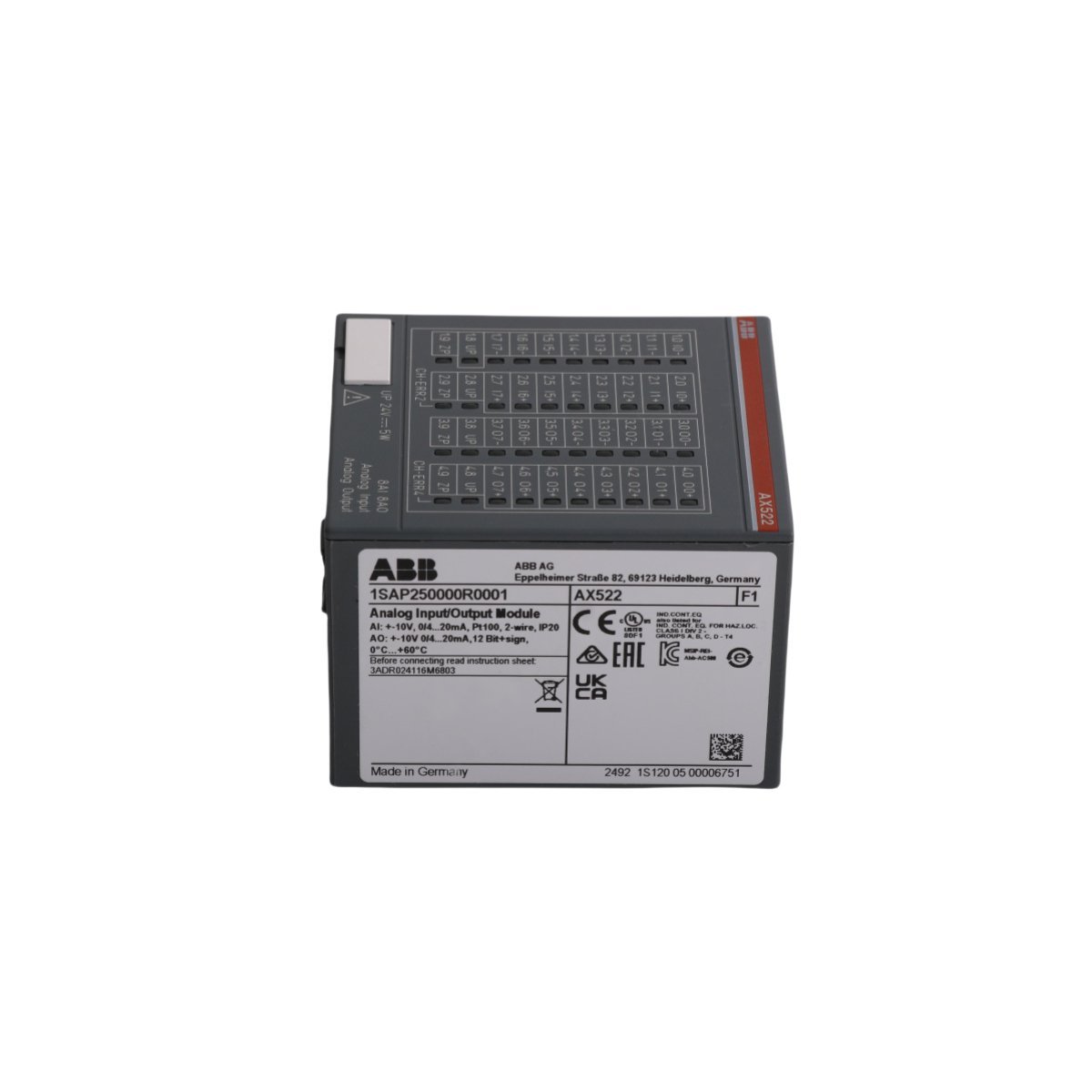

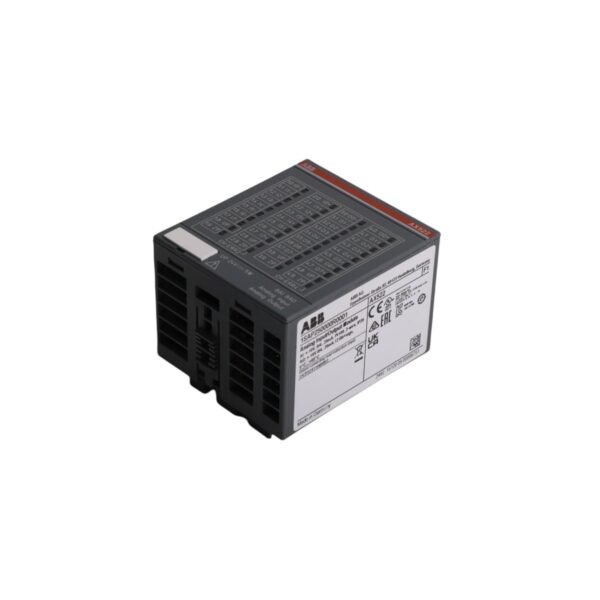

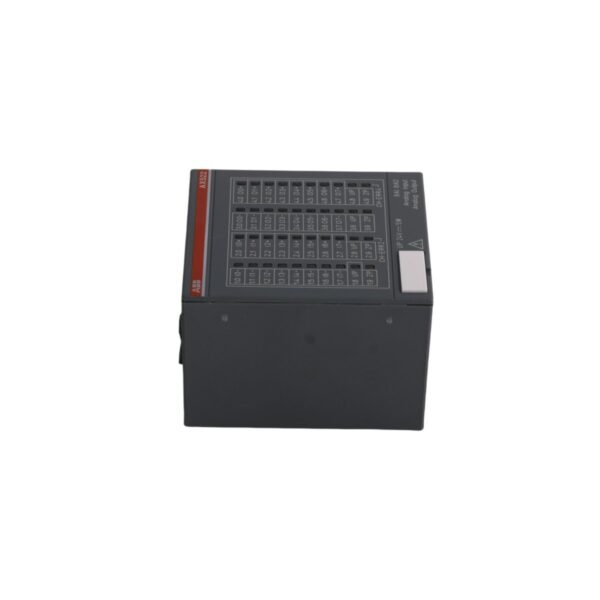

The ABB AX522 (1SAP250000R0001) serves as a high-performance analog expansion component for the AC500 PLC platform. This module enables precise interfacing between the controller and field-level analog devices. It features eight configurable analog input channels and eight dedicated analog output channels.

Engineers can independently configure each input for voltage, current, or temperature measurement. The module supports standard RTD sensors including PT100, PT1000, and Ni1000. For signal processing, the unit utilizes 12-bit resolution plus a sign bit. This ensures accurate data conversion for complex process control tasks.

The output section provides four current channels and four voltage channels. These outputs allow the PLC to drive actuators, valves, and frequency converters. The compact housing supports efficient DIN rail mounting within dense control cabinets.

Core Technical Specifications

Key Operational Characteristics

The AX522 module integrates seamlessly via the ABB Control Builder software environment. It utilizes a centralized power supply through the internal I/O bus. The hardware design includes comprehensive diagnostic LEDs for rapid troubleshooting.

Internal circuitry protects against reverse polarity and short circuits. This improves system uptime in harsh industrial environments. The module maintains high accuracy across a wide temperature range. Vertical mounting is permissible but requires specific power derating.

Industrial Applications

The AX522 is ideal for diverse automation sectors. It excels in chemical processing, water treatment, and HVAC systems. Operators use it to monitor pressure, flow, and thermal levels. The module effectively manages variable speed drives in manufacturing lines. It provides the scalability needed for expanding existing AC500 automation networks.
