Description

Product Overview

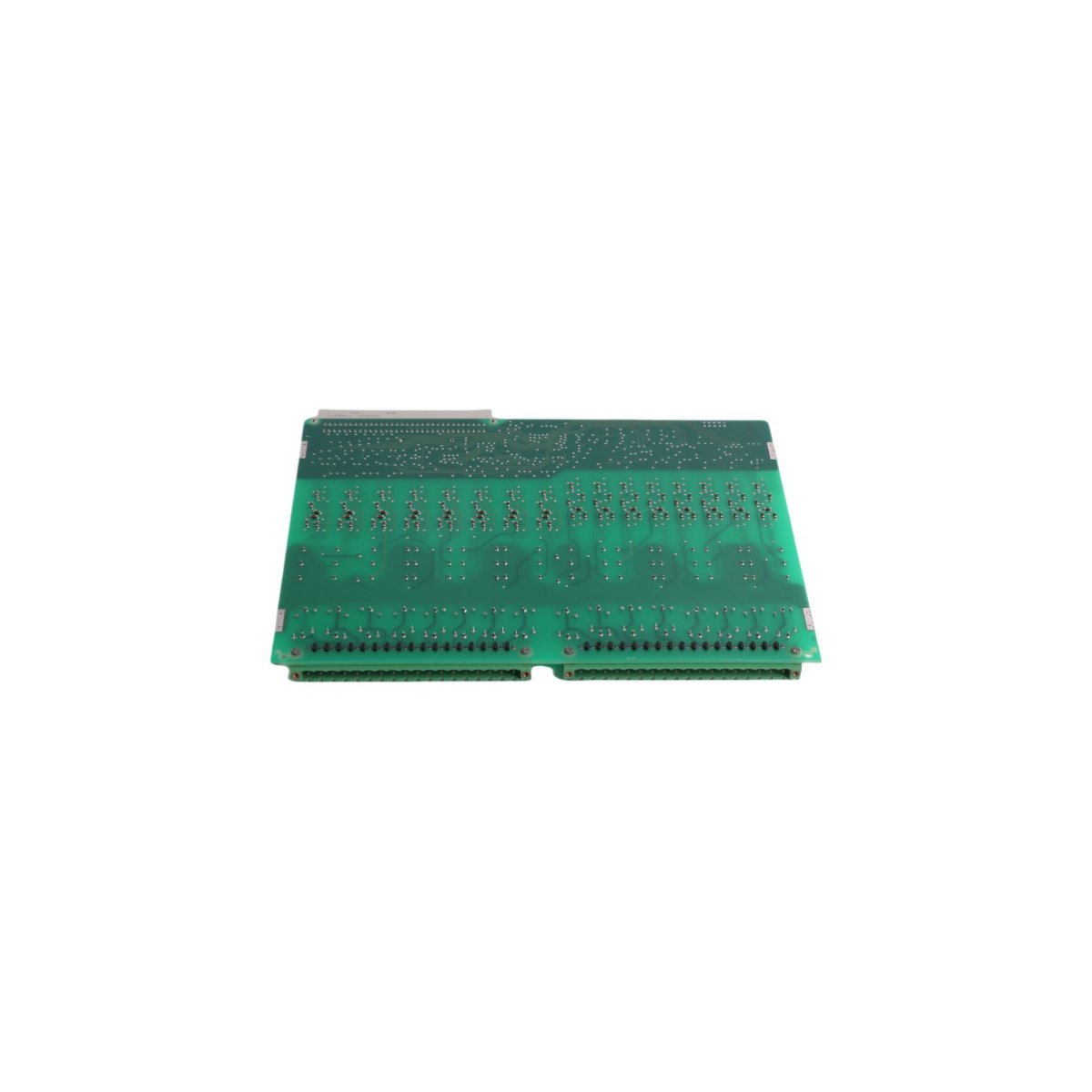

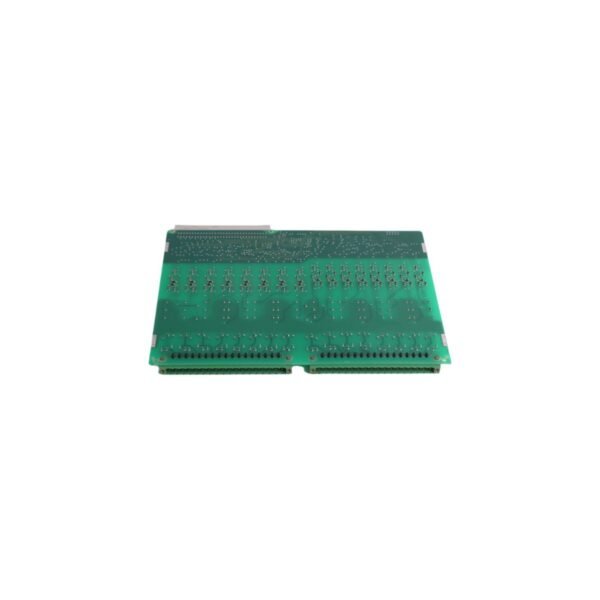

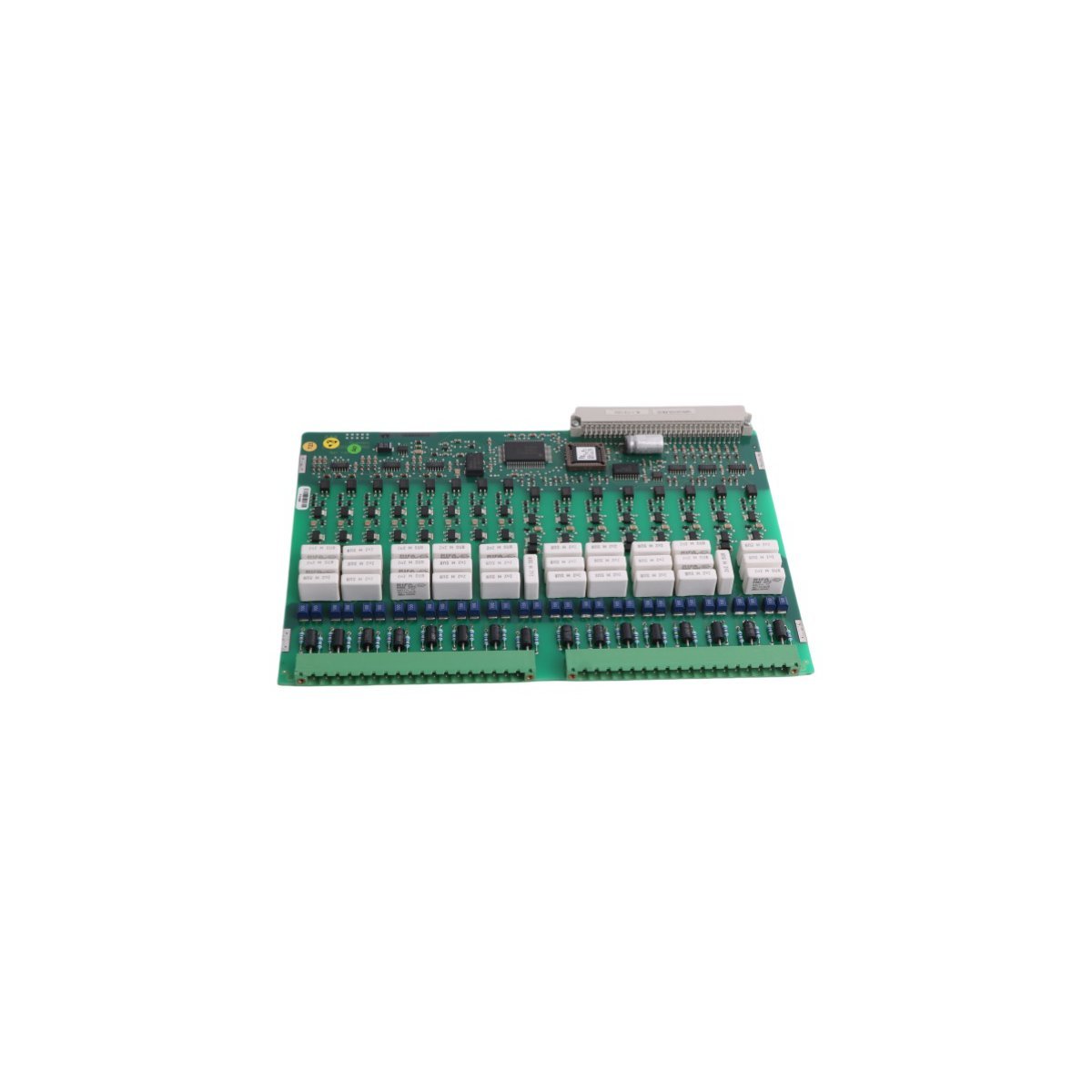

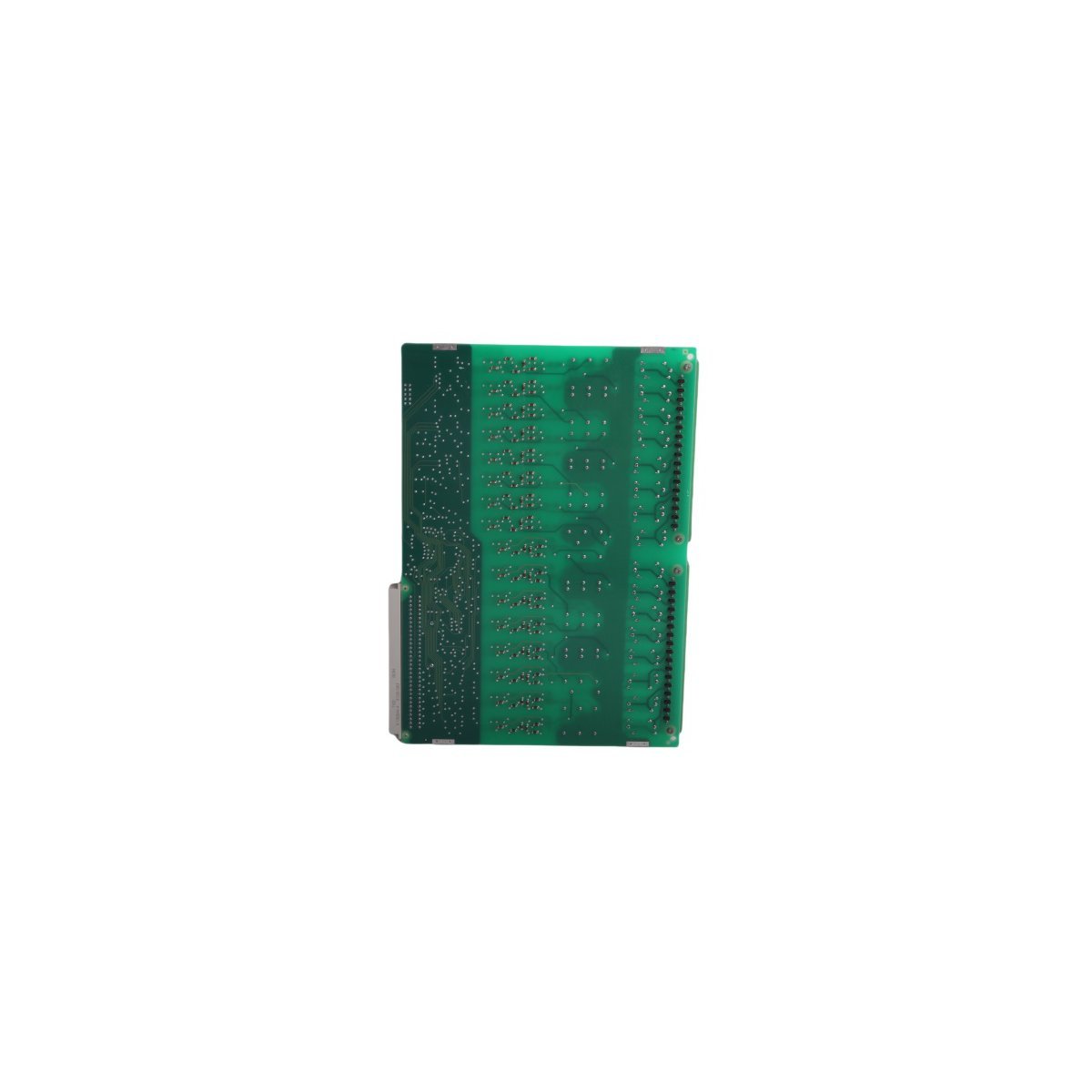

The ABB 1MRK000508-BBR00 is a high-reliability controller card module designed for sophisticated bay control and protection systems. This hardware serves as a central processing unit for monitoring grid parameters and executing automated turbine or relay control logic.

High-Precision Control and Monitoring

The 1MRK000508-BBR00 module provides the essential processing power required for real-time substation automation and turbine governance. By utilizing high-speed signal processing, the card accurately captures data from field sensors to maintain synchronized operation across the power grid. This precise data acquisition allows the system to respond instantaneously to fluctuations, ensuring that protection relays and governors act within milliseconds of a detected fault. Consequently, this level of control prevents equipment damage and stabilizes the broader electrical infrastructure.

Multi-Protocol Communication and Integration

To facilitate seamless data flow across industrial networks, this controller card supports a versatile range of communication standards, including RS-485 and fieldbus protocols like DeviceNet. This broad compatibility ensures that the 1MRK000508-BBR00 integrates effortlessly with existing Programmable Logic Controllers (PLCs) and Distributed Control Systems (DCS). Furthermore, the module optimizes data traffic between the bay level and the station level, allowing operators to perform remote diagnostics and system updates without physical intervention at the hardware rack.

Durability in Extreme Environments

ABB engineered the 1MRK000508-BBR00 with a focus on long-term resilience in harsh industrial settings.¹ The module features a robust PC board construction that withstands the thermal stresses of continuous operation and the electromagnetic interference (EMI) typical of high-voltage substations. Moreover, its energy-efficient architecture minimizes heat generation, which extends the lifespan of the onboard electronic components. This focus on reliability, combined with a user-friendly design for rapid installation, makes it an indispensable component for modernizing power generation and distribution facilities.

Technical Specifications
