Description

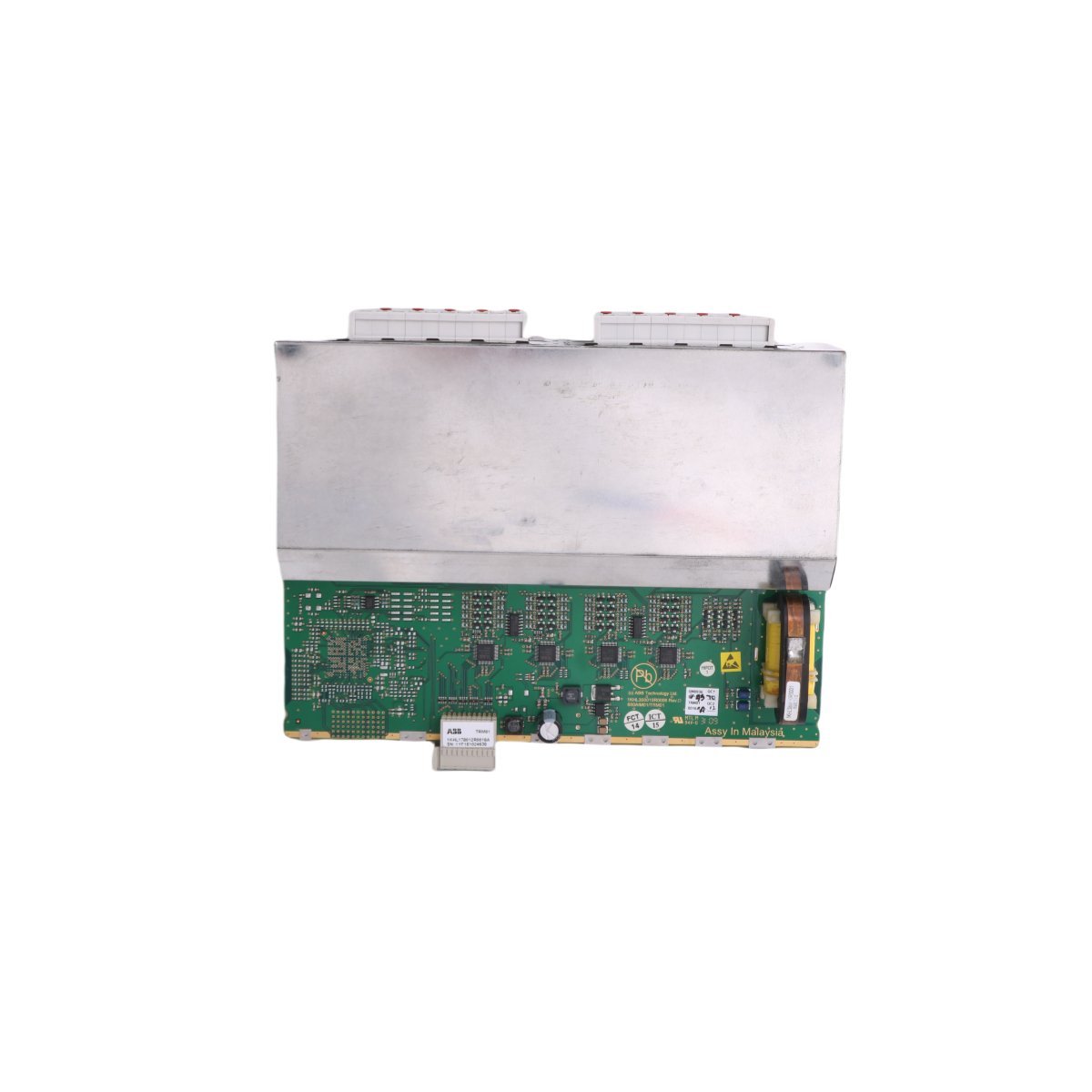

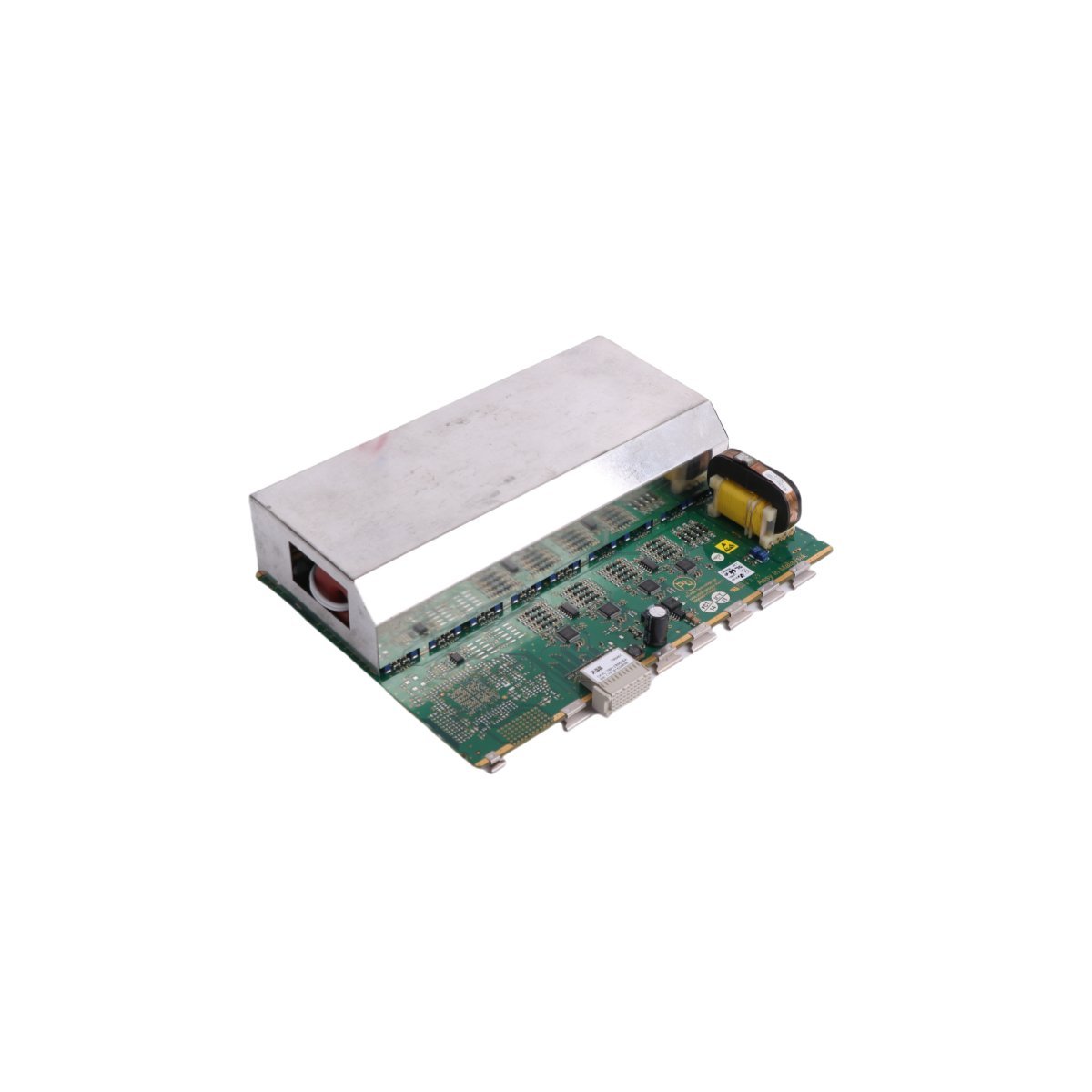

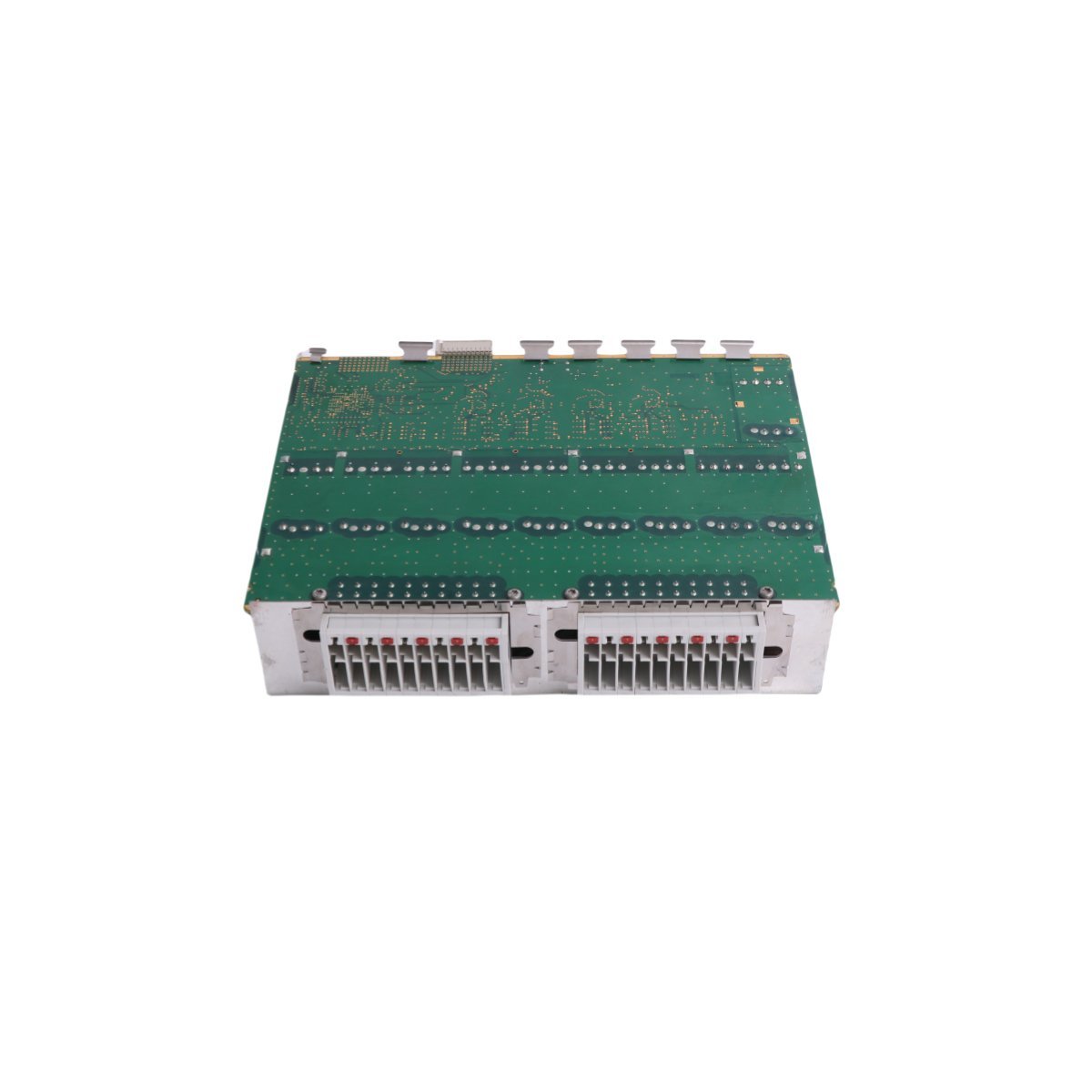

The ABB TRM01 1KHL178012R0016A acts as a specialized power supply terminal module for the S800 I/O system. This component provides the necessary electrical interface between field instrumentation and the central DCS controller. Furthermore, the module ensures stable power distribution across the local I/O bus to maintain signal integrity. Its design focuses on reducing electrical interference during high-speed data transmission. Consequently, the TRM01 serves as a foundational element for ensuring consistent system uptime in automated environments.

Modular Architecture and System Integration

The hardware utilizes a modular footprint to simplify installation within standard industrial cabinets. This terminal module supports various communication protocols to enhance its versatility across different platforms. Additionally, the unit facilitates seamless expansion of existing I/O clusters without requiring extensive rewiring. The robust mechanical structure allows the module to operate effectively in high-vibration settings. Moreover, the integrated connection points provide secure and organized cable management for field technicians.

Technical Specifications

Industrial Applications and Performance

This terminal module primarily supports process automation in the chemical, utility, and manufacturing sectors. It manages the critical power link for distributed control system components. Furthermore, the TRM01 helps minimize system latency by optimizing the electrical path for input/output signals. The unit’s reliability remains high even when subjected to continuous industrial duty cycles. Because of its proven track record, it remains an essential spare part for maintaining legacy S800 I/O installations.

Installation and Maintenance Efficiency

The ABB 1KHL178012R0016A simplifies maintenance routines through its accessible terminal layout. Clear labeling on the module housing allows for rapid circuit identification during troubleshooting. Additionally, the unit features high-quality protective circuitry to guard against external electrical faults. This protection prevents localized power issues from affecting the entire controller rack. Consequently, the TRM01 promotes a safe and efficient operational environment for modern industrial plants.
