Description

SEO Product Titles

• Siemens Robicon A1A363818.00M Perfect Harmony Circuit Control Board¹
• A1A363818.00M Siemens Robicon VFD Communication Control PCB
• Siemens A1A363818.00M Size 00 Power Cell Circuit Control Module

Brief Product Description

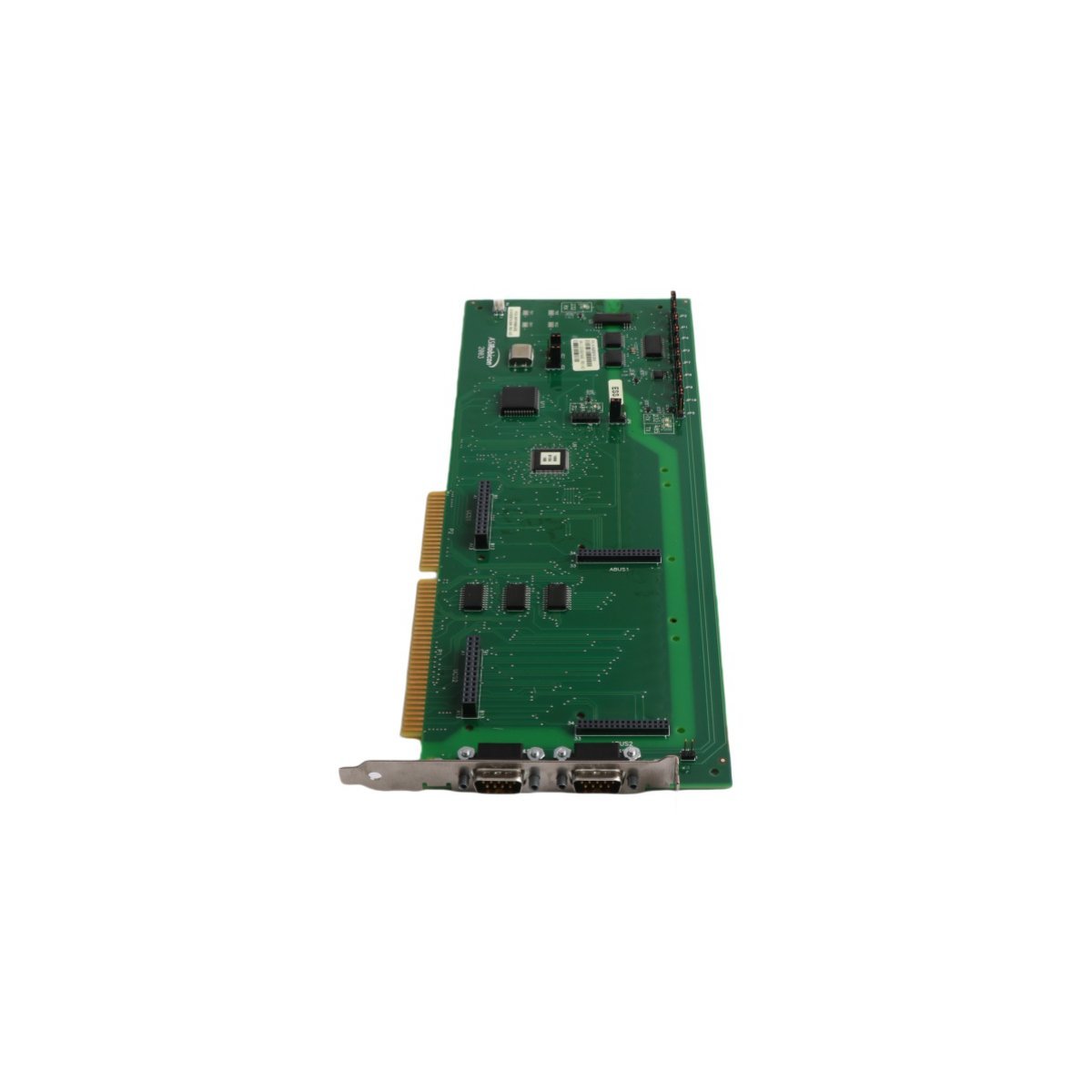

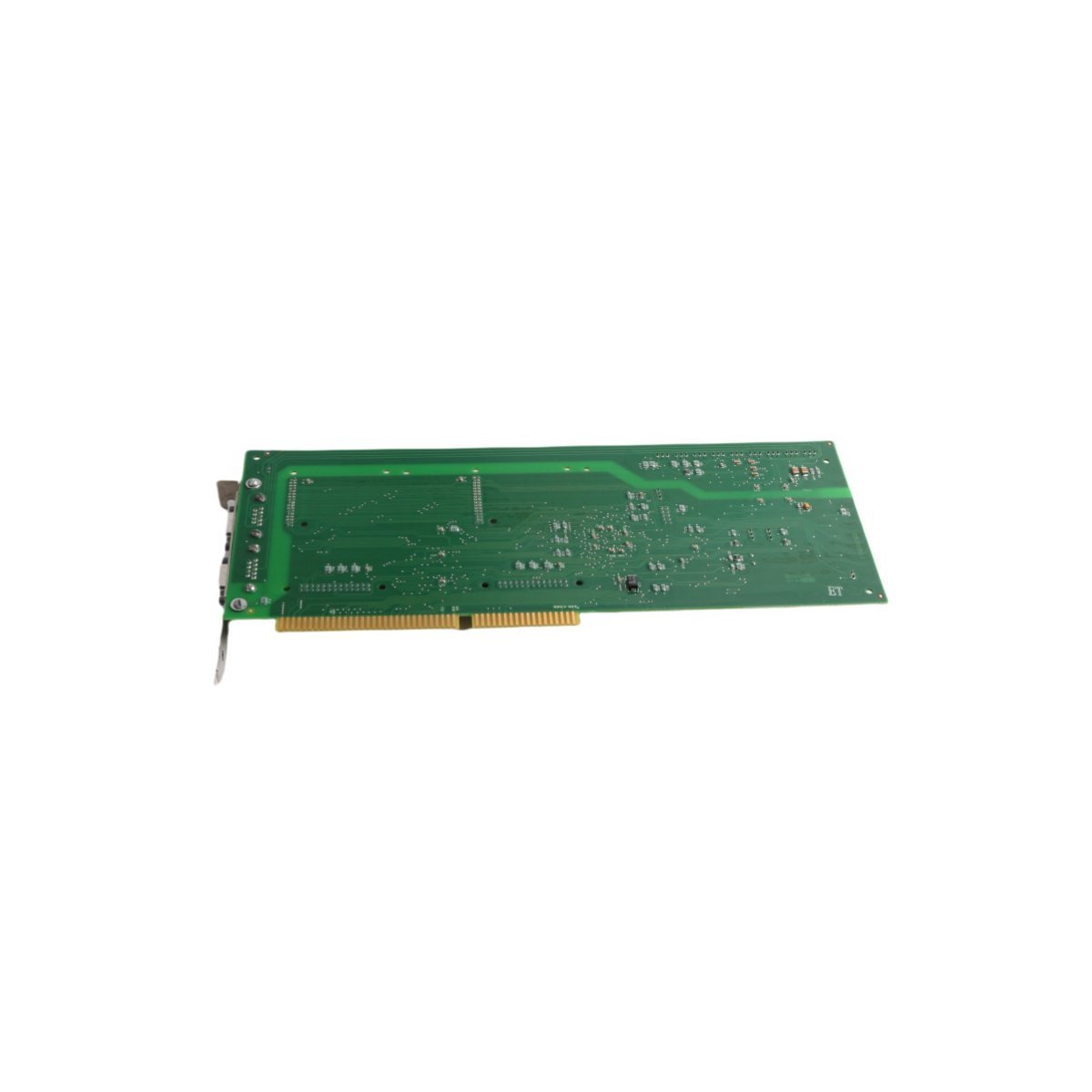

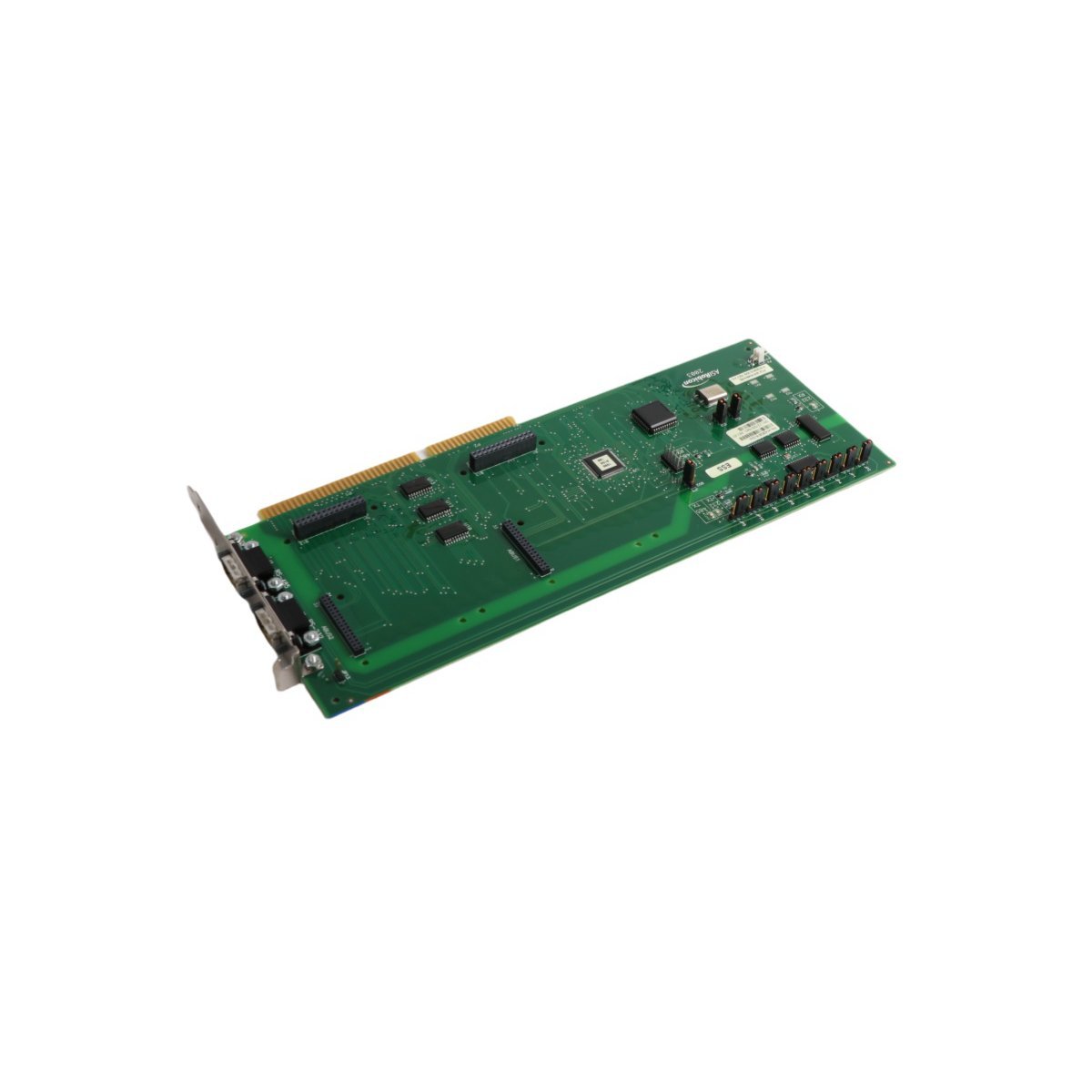

The Siemens Robicon A1A363818.00M is a specialized circuit control and communications board engineered for Perfect Harmony medium-voltage variable frequency drives. It provides high-speed processing and firmware-driven logic to manage Size 00 power cells, ensuring precise motor control and system synchronization.

Critical Drive Control for Perfect Harmony Systems

The Siemens Robicon A1A363818.00M serves as a fundamental regulation component within the Perfect Harmony series of medium-voltage drives (MVD). This circuit control board manages the high-speed switching logic and operational health of individual power cells. By utilizing dedicated PCA firmware, the module translates complex control commands into precise electrical signals that govern motor speed and torque. Furthermore, the board acts as a bridge between the central processing unit and the power stage, facilitating real-time data exchange. Consequently, this unit is vital for maintaining the multi-level PWM output quality that characterizes the Robicon VFD architecture.

Advanced Communication and Fault Monitoring

Reliability in heavy industrial environments depends on the robust communication capabilities of the A1A363818.00M module. This board features sophisticated diagnostic circuitry that constantly monitors the power cell’s status, protecting against overcurrent and thermal irregularities. Because it integrates both control and communication functions, it significantly reduces the wiring complexity within the drive cabinet. Moreover, the adaptive nature of its onboard firmware allows the drive to adjust to varying load conditions dynamically. Transitioning to this high-performance control board ensures that large-scale industrial motors operate with maximum efficiency and minimal harmonic distortion.

Engineering Excellence and Mechanical Integration

Manufactured with German precision, the A1A363818.00M reflects the legacy of ASI Robicon’s power electronics expertise. The module is specifically optimized for Size 00 power cells, offering a compact footprint that eases installation in high-density drive lineups. Each board undergoes rigorous testing to withstand the vibration and electrical noise typical of oil and gas, energy, and chemical processing facilities. By maintaining this component in your spare parts inventory, you ensure rapid recovery from control-level failures and extend the operational life of your legacy variable frequency drive systems.

Key Technical Characteristics

• Integrated Firmware Control: Utilizes advanced PCA-level software to regulate Size 00 power cell performance.
• Dual-Function Design: Combines circuit control logic and communication services into a single PCB module.
• High-Speed Data Acquisition: Enables rapid feedback loops for precise medium-voltage motor synchronization.
• Rugged Industrial Build: Engineered to survive the harsh electrical transients common in heavy industry applications.
• Plug-and-Play Compatibility: Designed for direct integration into Siemens and legacy ASI Robicon drive cabinets.
• Precision German Engineering: Ensures long-term stability and compliance with international power electronic standards.

Technical Specifications
